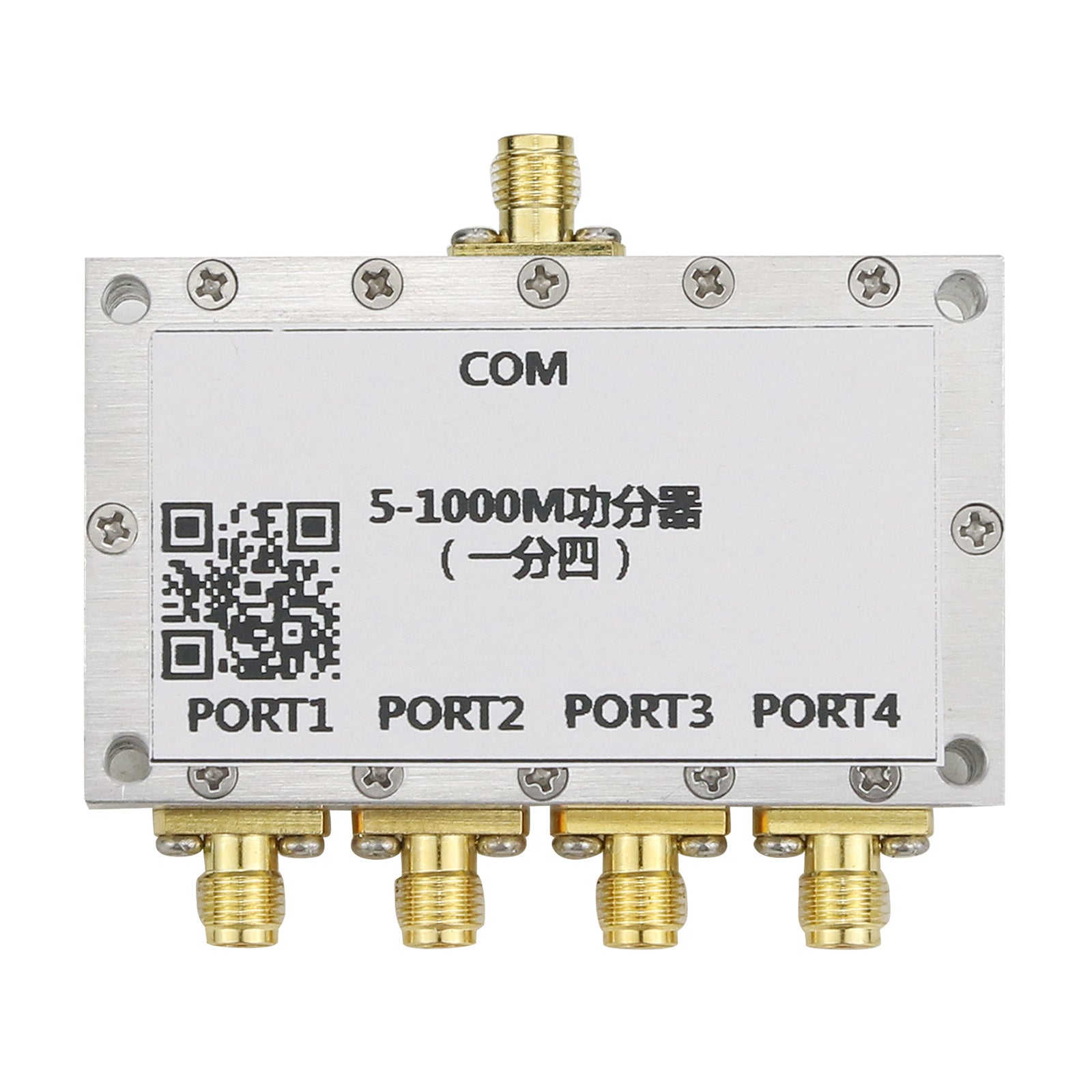

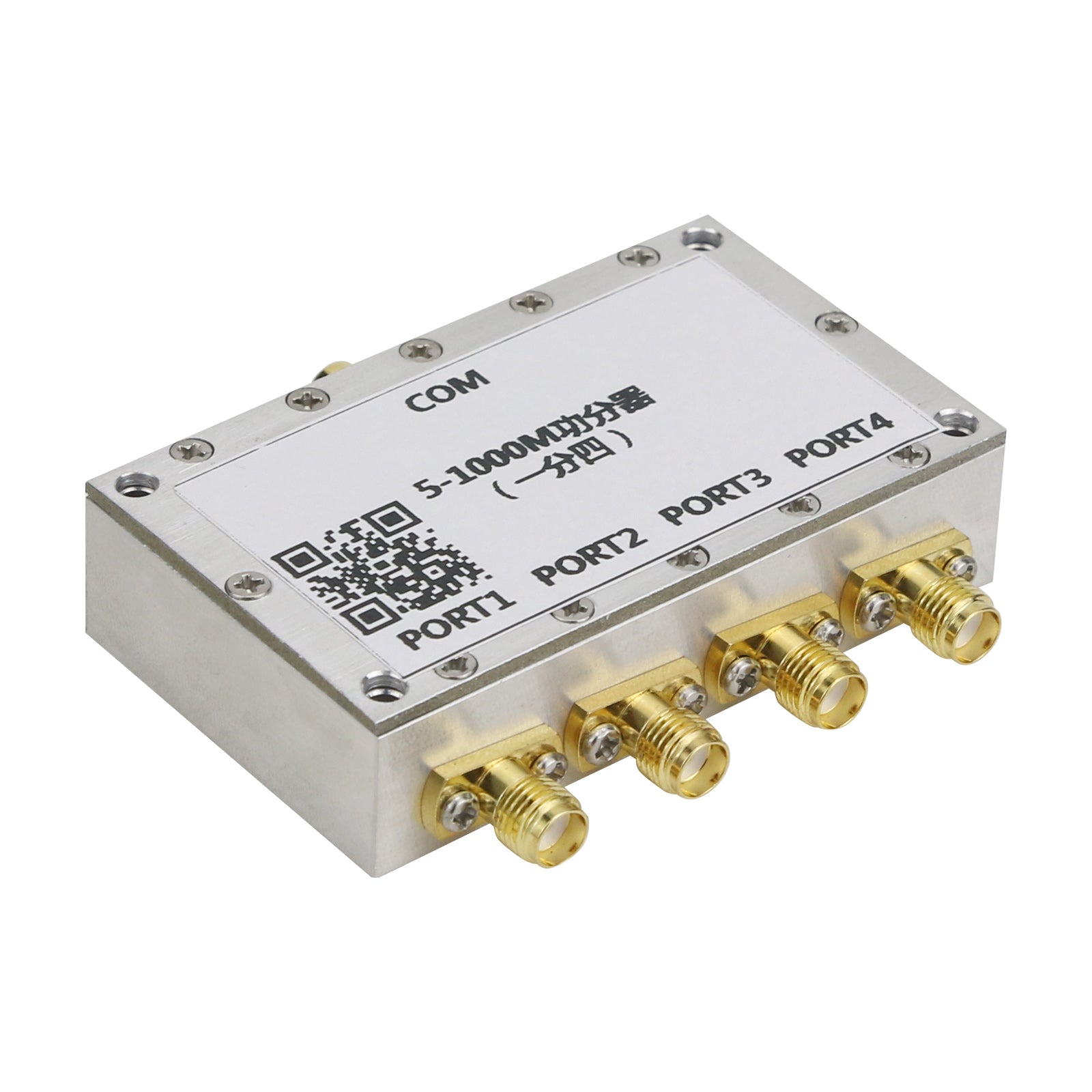

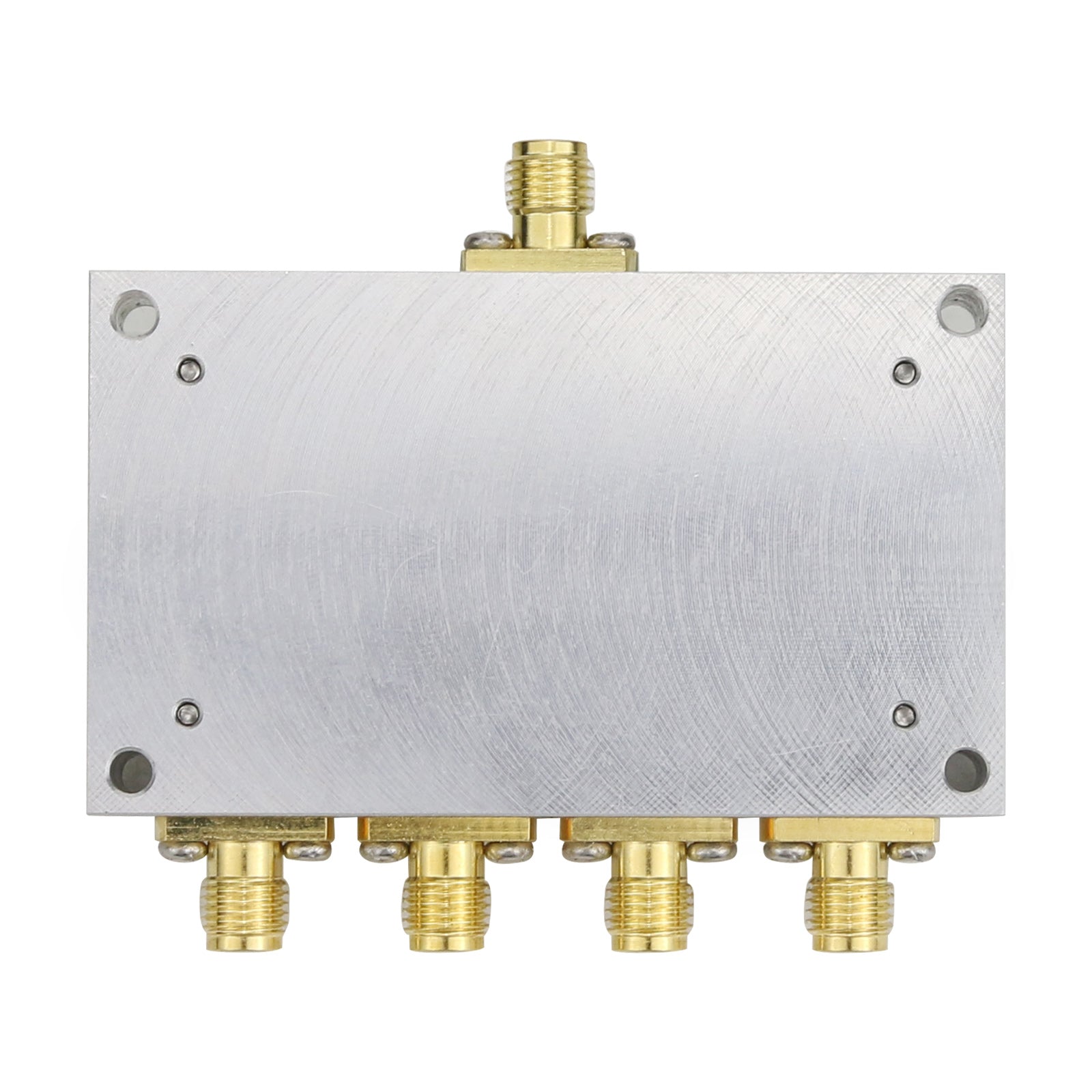

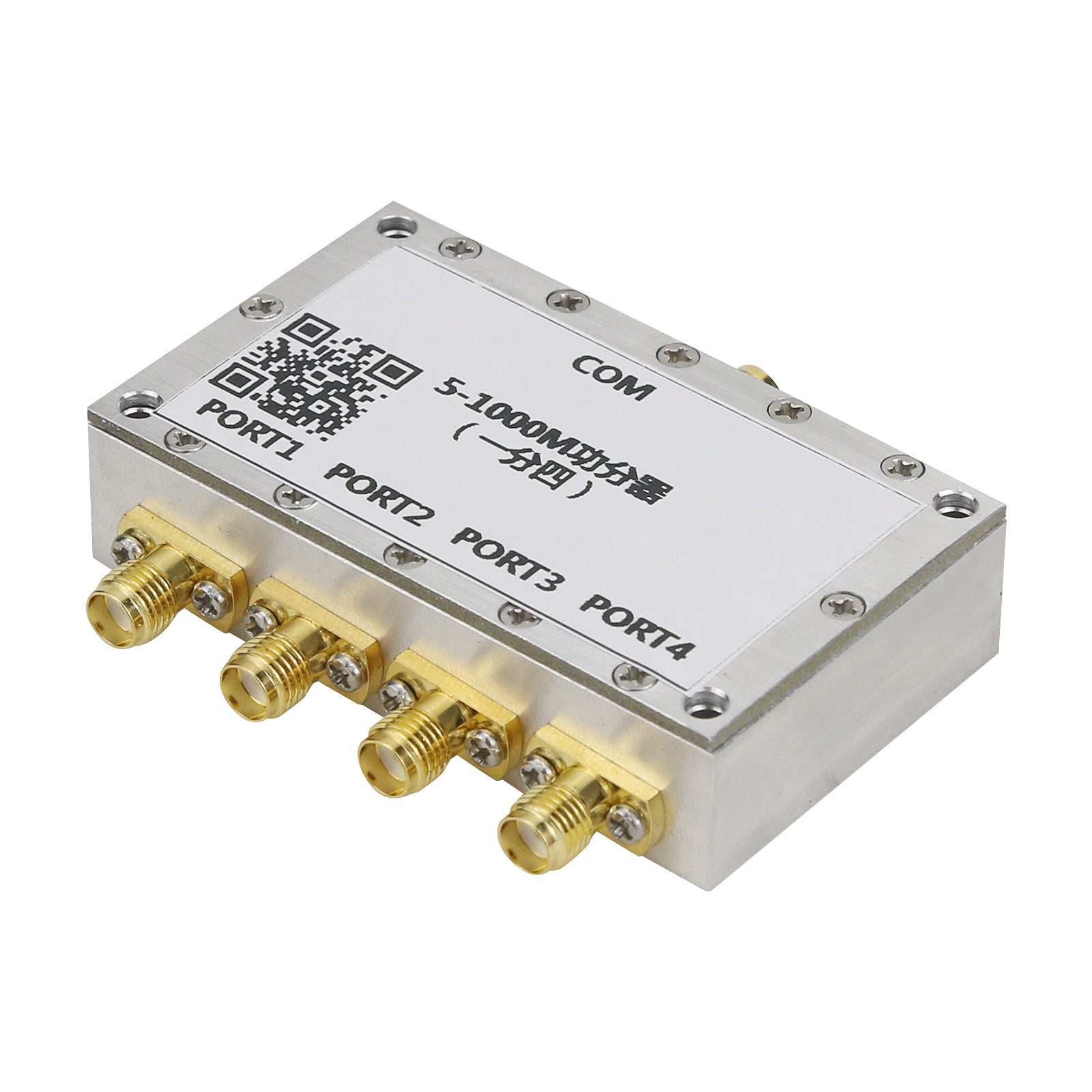

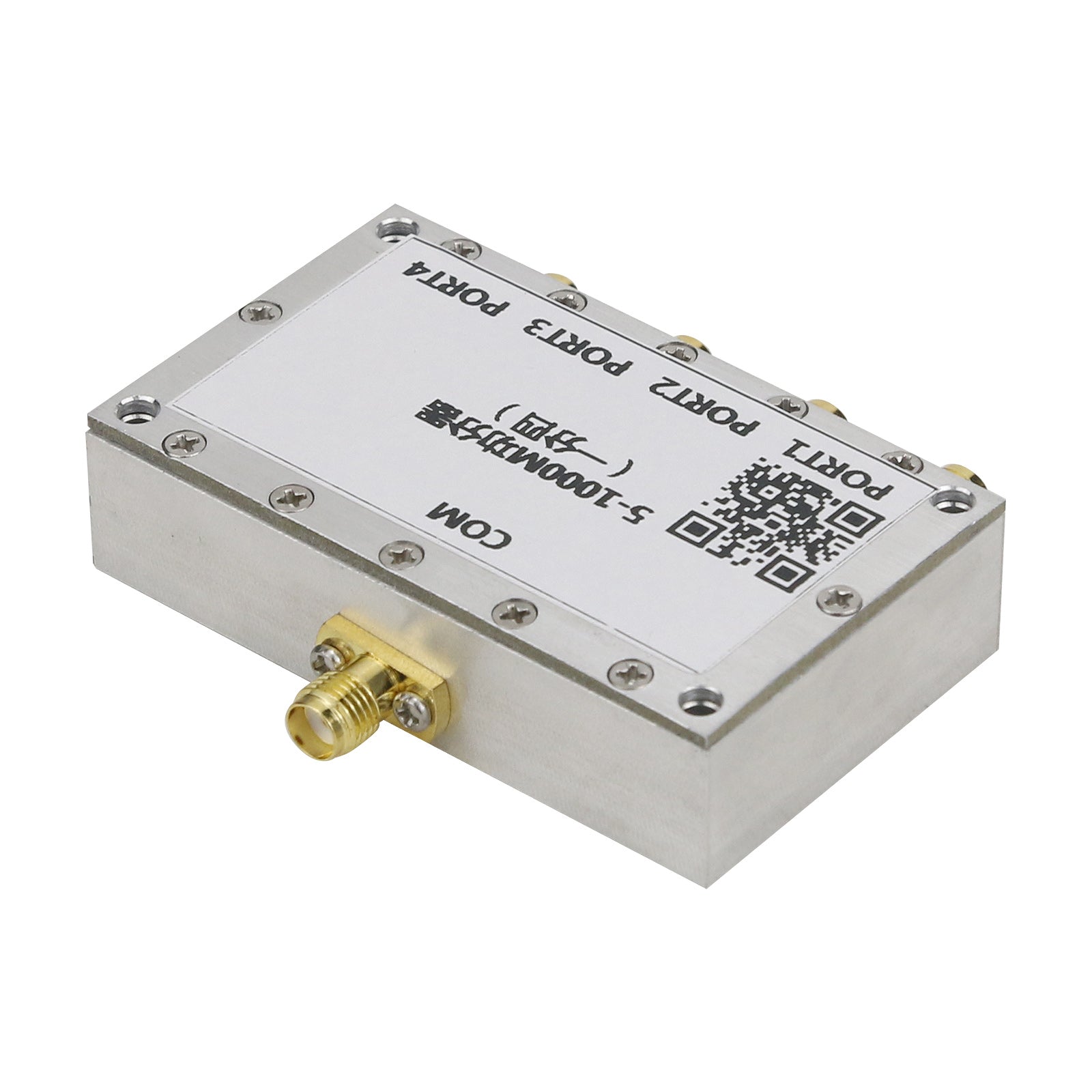

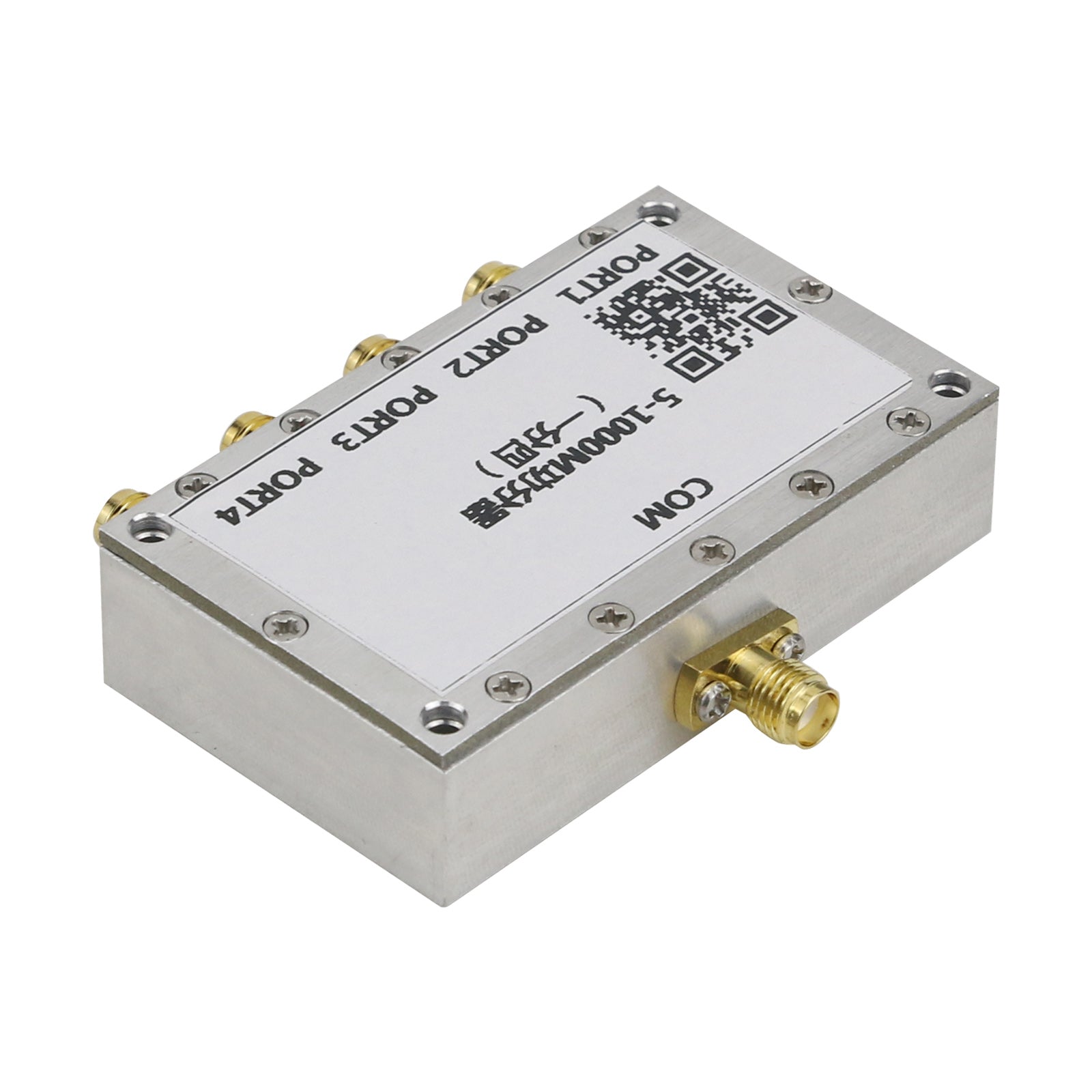

QM-PD4-05100S RF Power Divider Power Combiner 5-1000M Power Splitter SMA Connector One To Four
Обычная цена
$38.42
Обычная цена
Цена со скидкой
$38.42
Цена за единицу
за
Сумма налога включена.
Стоимость доставки рассчитывается при оформлении заказа.
Не удалось загрузить сведения о доступности самовывоза
Обычная цена
$38.42
Обычная цена
Цена со скидкой
$38.42
QM-PD4-05100S RF Power Divider Power Combiner 5-1000M Power Splitter SMA Connector One To Four
Description:
This module enables one-to-four power equally divided, used in the 5-1000M frequency range, with low insertion loss and high isolation, and is widely used in UHF, VHF, 433M and other typical transceiver systems. The module adopts CNC structure cavity, with excellent electromagnetic shielding performance
Technical Parameters:
- Model: QM-PD4-05100S
- Working frequency: 5-1000MHz
- Typical insertion loss: 0.3dB
- Branch port isolation: ≥20dB
- Input and output impedance: 50Ω
- Interface: SMA
- Module size: 64 x 38 x 15mm/2.5 x 1.5 x 0.6" (with mounting holes)
Package Included:
- 1 x Power Splitter Combiner
Description:
This module enables one-to-four power equally divided, used in the 5-1000M frequency range, with low insertion loss and high isolation, and is widely used in UHF, VHF, 433M and other typical transceiver systems. The module adopts CNC structure cavity, with excellent electromagnetic shielding performance
Technical Parameters:
- Model: QM-PD4-05100S
- Working frequency: 5-1000MHz
- Typical insertion loss: 0.3dB
- Branch port isolation: ≥20dB
- Input and output impedance: 50Ω
- Interface: SMA
- Module size: 64 x 38 x 15mm/2.5 x 1.5 x 0.6" (with mounting holes)
Package Included:
- 1 x Power Splitter Combiner
