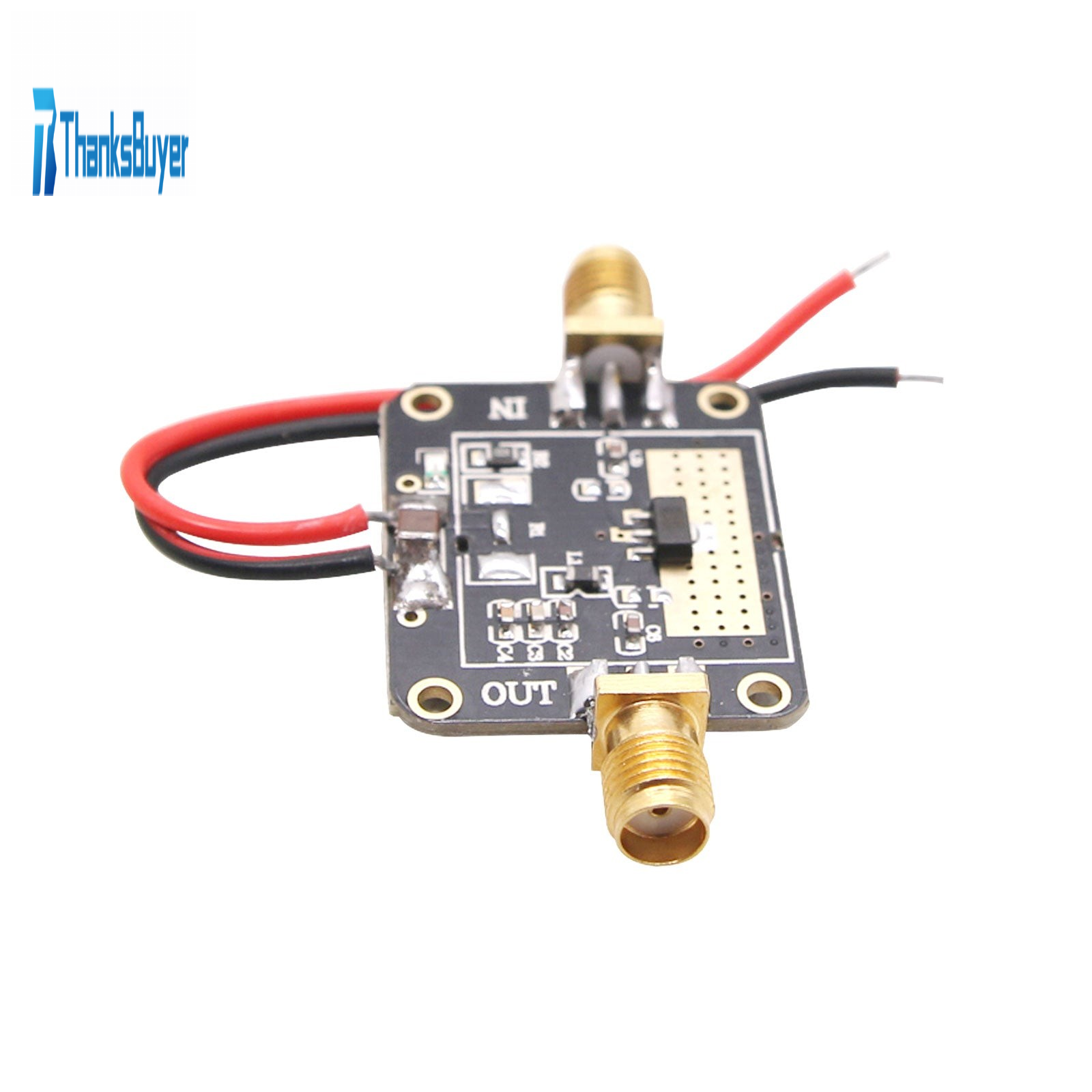

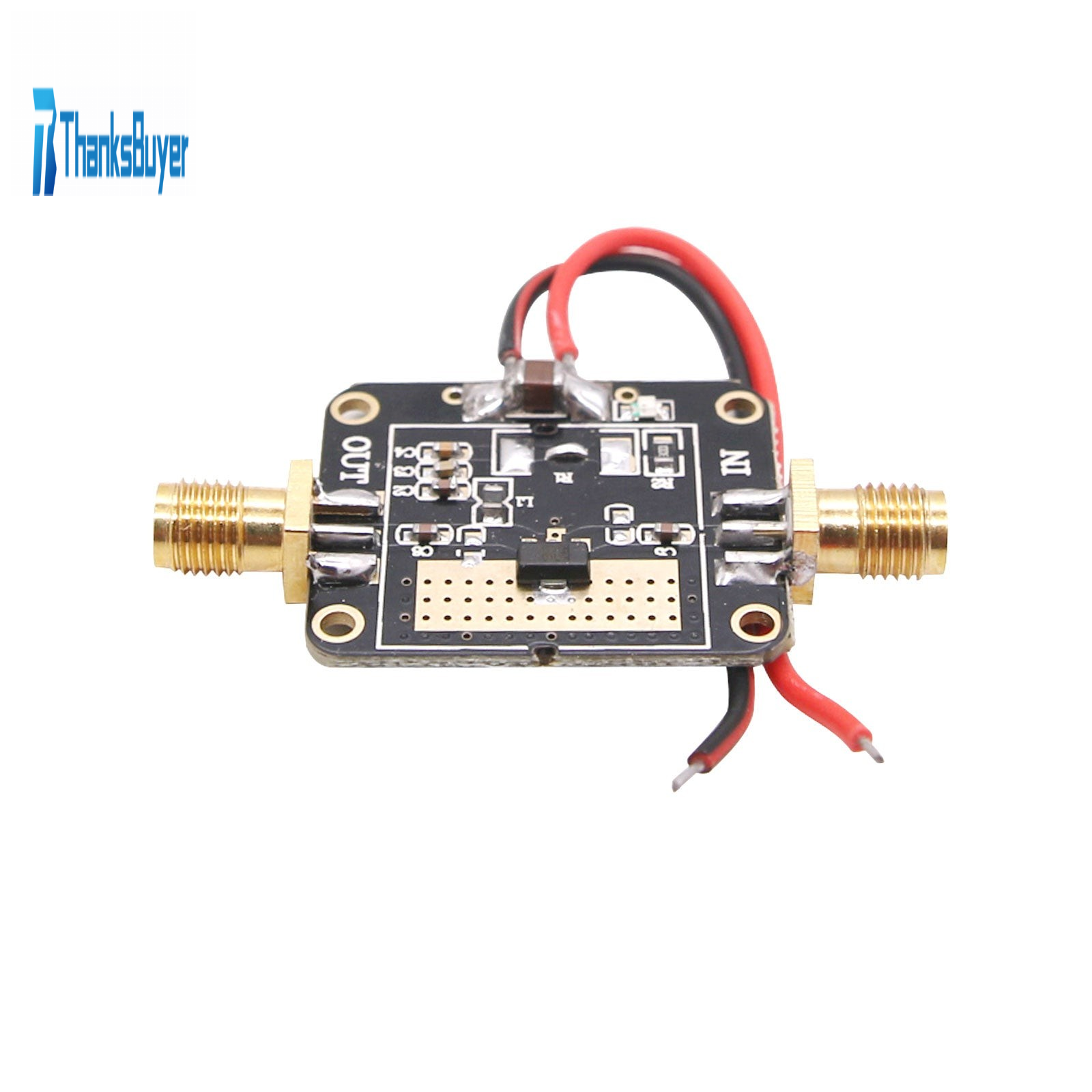

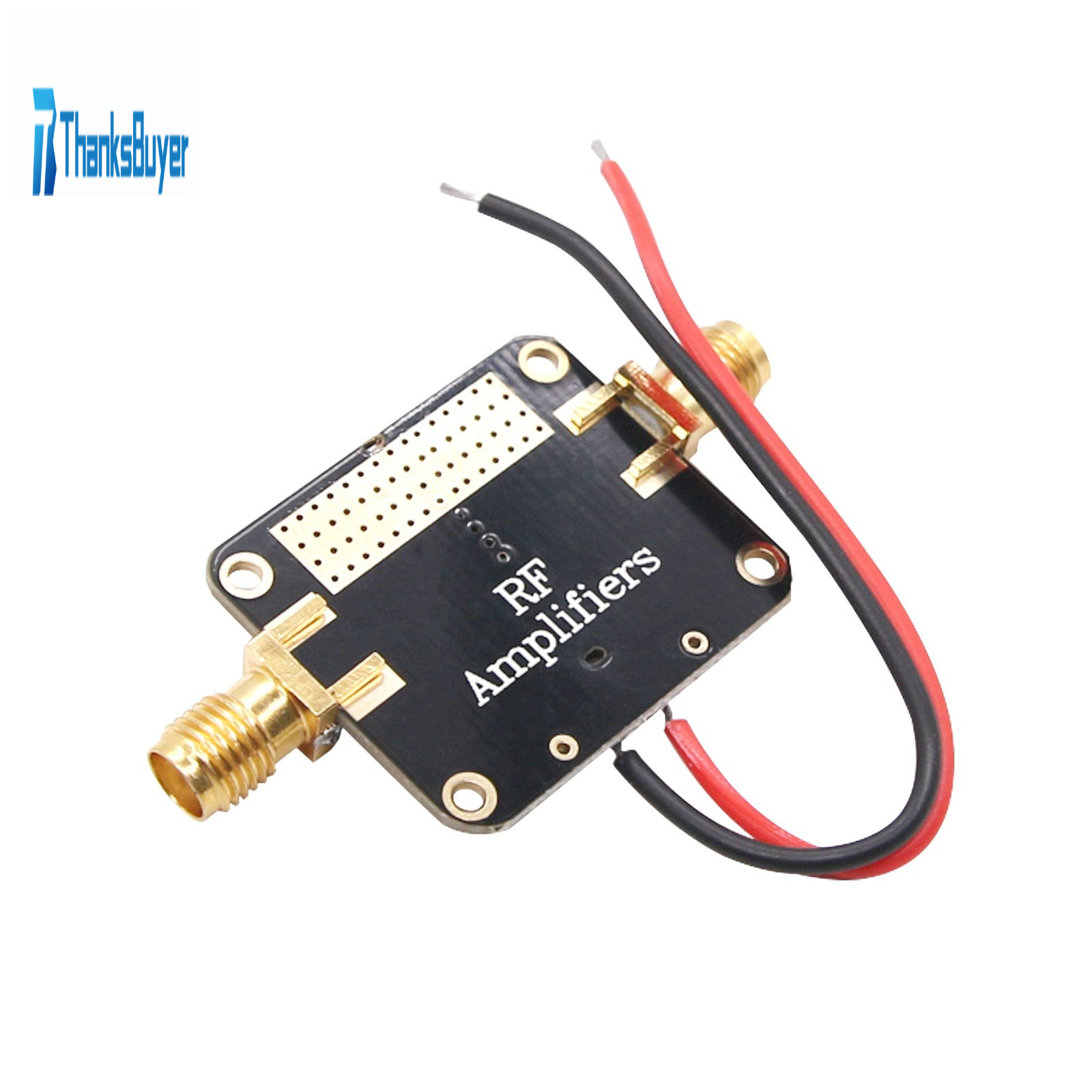

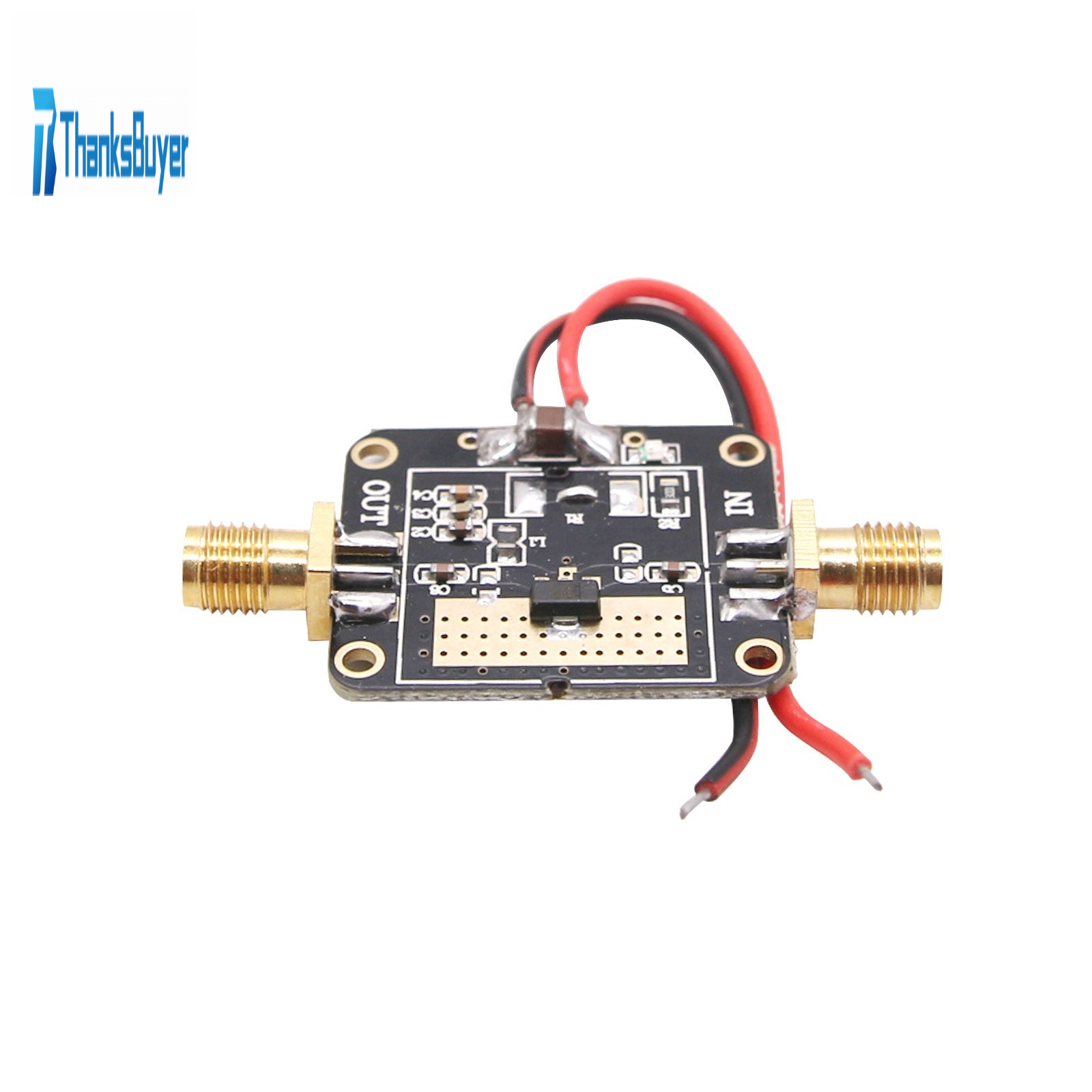

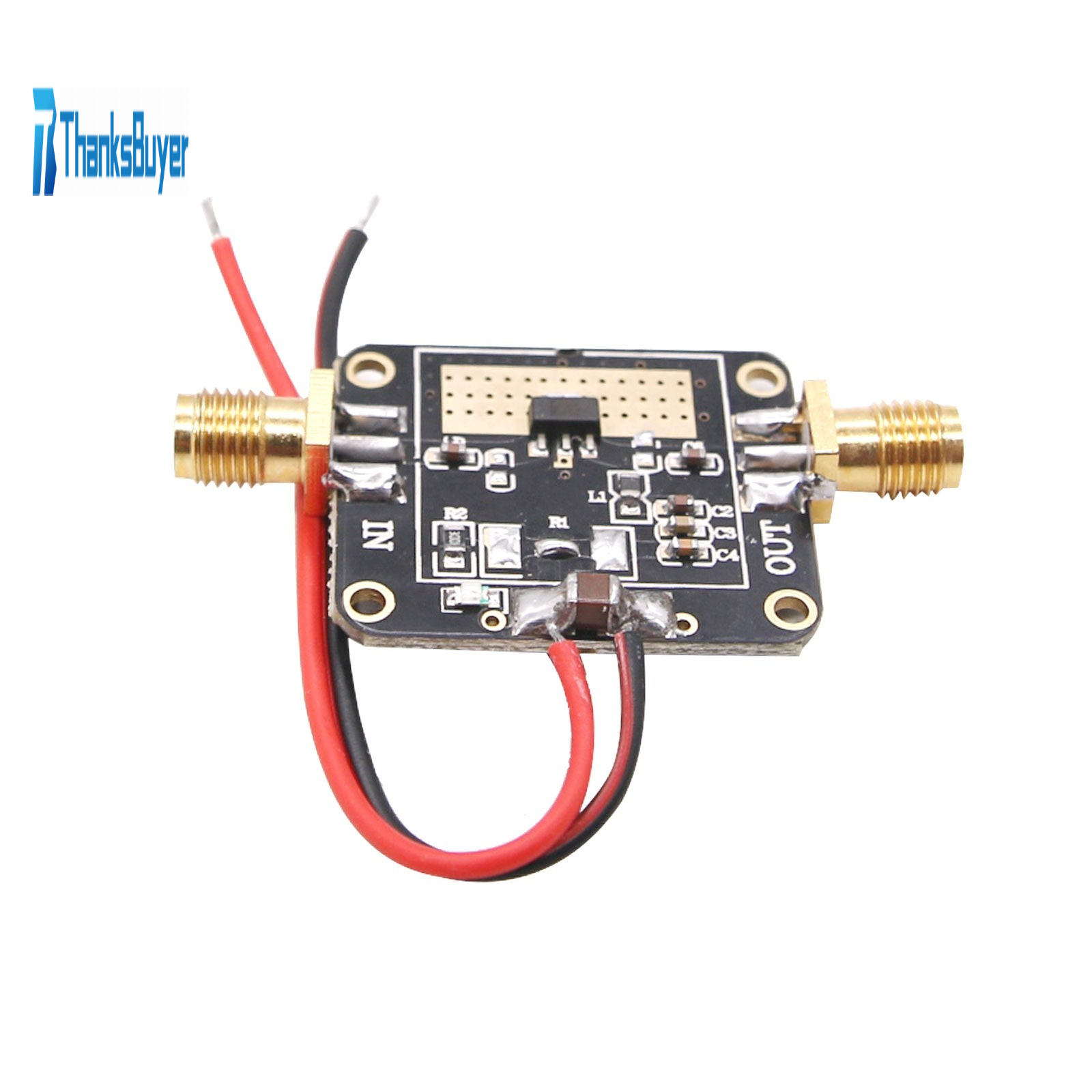

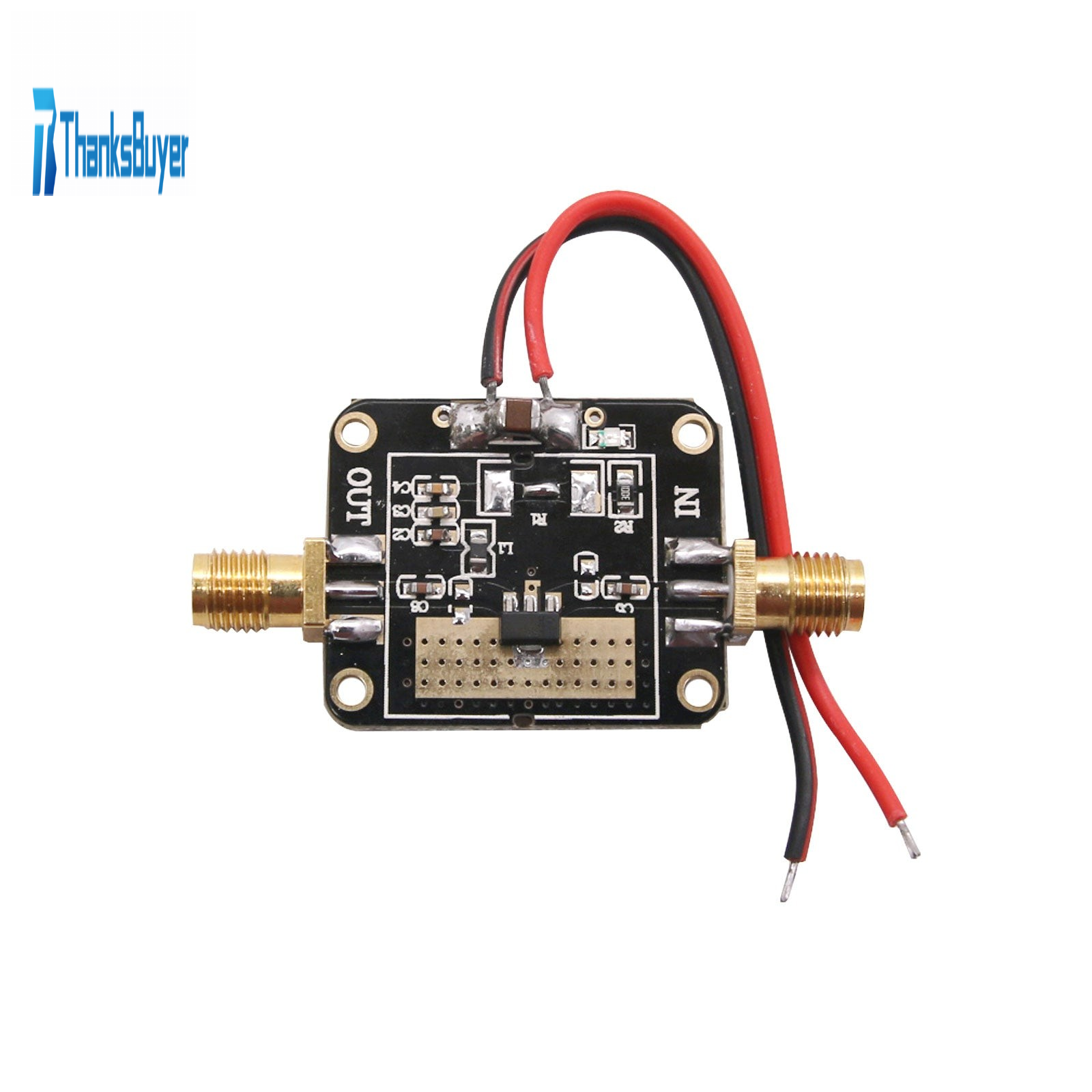

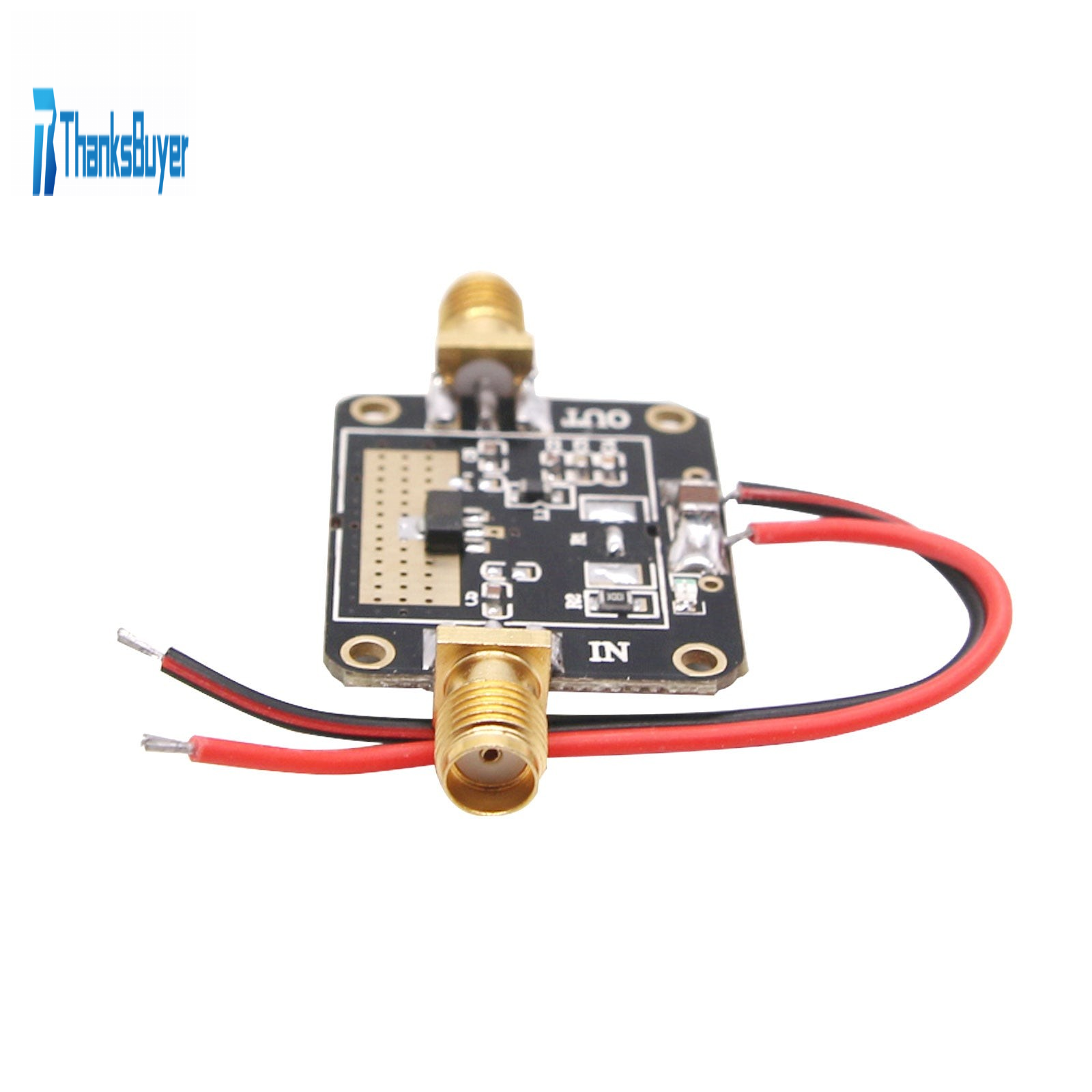

RF Power Amplifier Module 22dB Gain IP3 Output +37dBm LF~1GHz HMC580

RF Power Amplifier Module 22dB Gain IP3 Output +37dBm LF~1GHz HMC580

Specifications:
- Item Name: HMC580 RF Amplifier
- Size: 20 x 20mm
- Power Supply: 5V
- Current: 110mA

Features:
- P1dB Output Power: +22dBm
- Gain: 22dB
- Output IP3: +37 dBm
- Cascadable 50 Ohm l/Os
- Single Supply: +5V
- Industry Standard SOT89 Package

Typical Applications:
HMC580ST89/ HMC580ST89E is an ideal RF/IF gain module and LO or PA driver:
- For cellular/PCS/3G
- For fixed wireless and local area network
- For CATV, cable modem and DBS
- For microwave radio test equipment
- For IF and RF applications

Package Included:

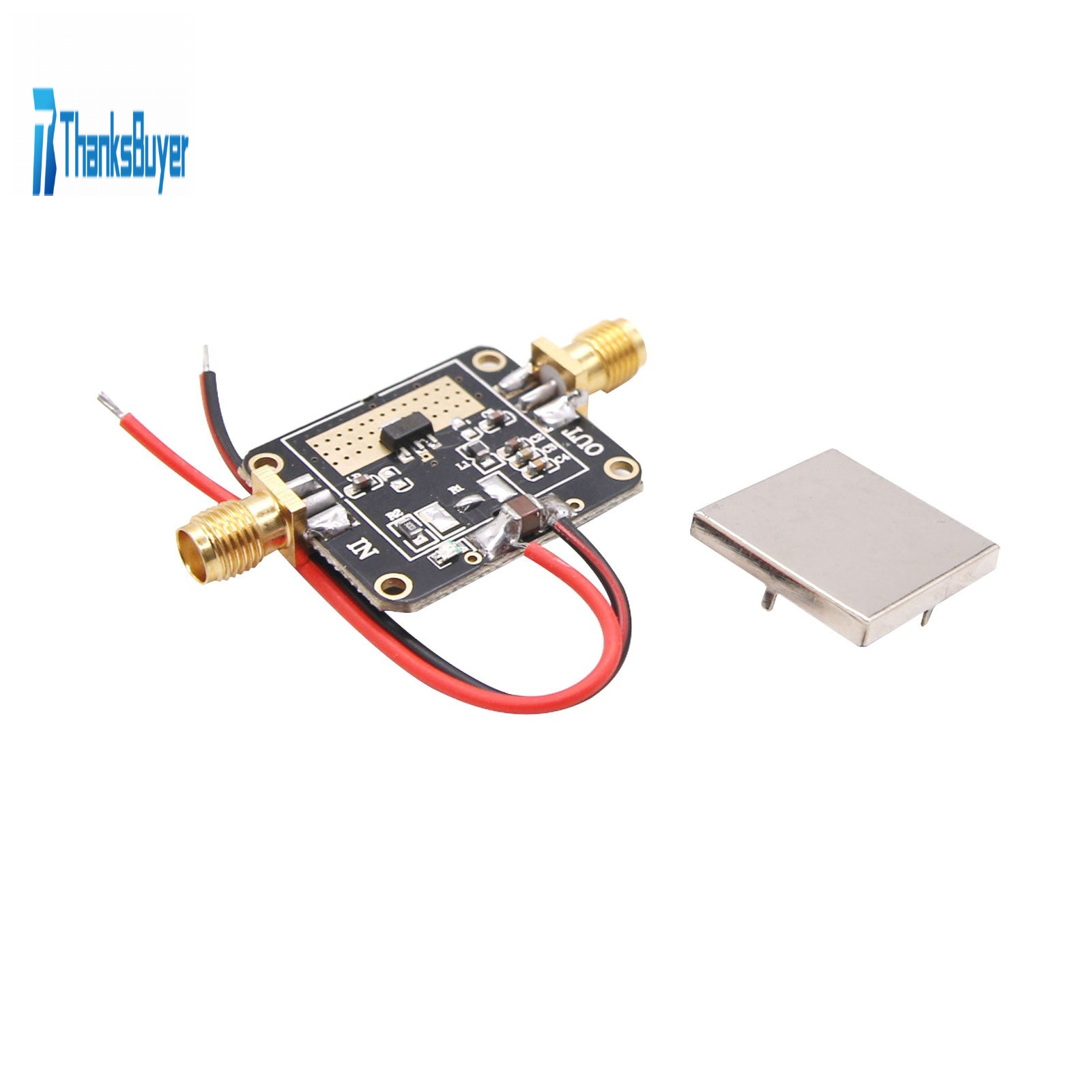

- 1 x RF Power Amplifier Module

Note: Please connect the rf amplifier to a load before powering on. Or it might be burnt out.
