Description:

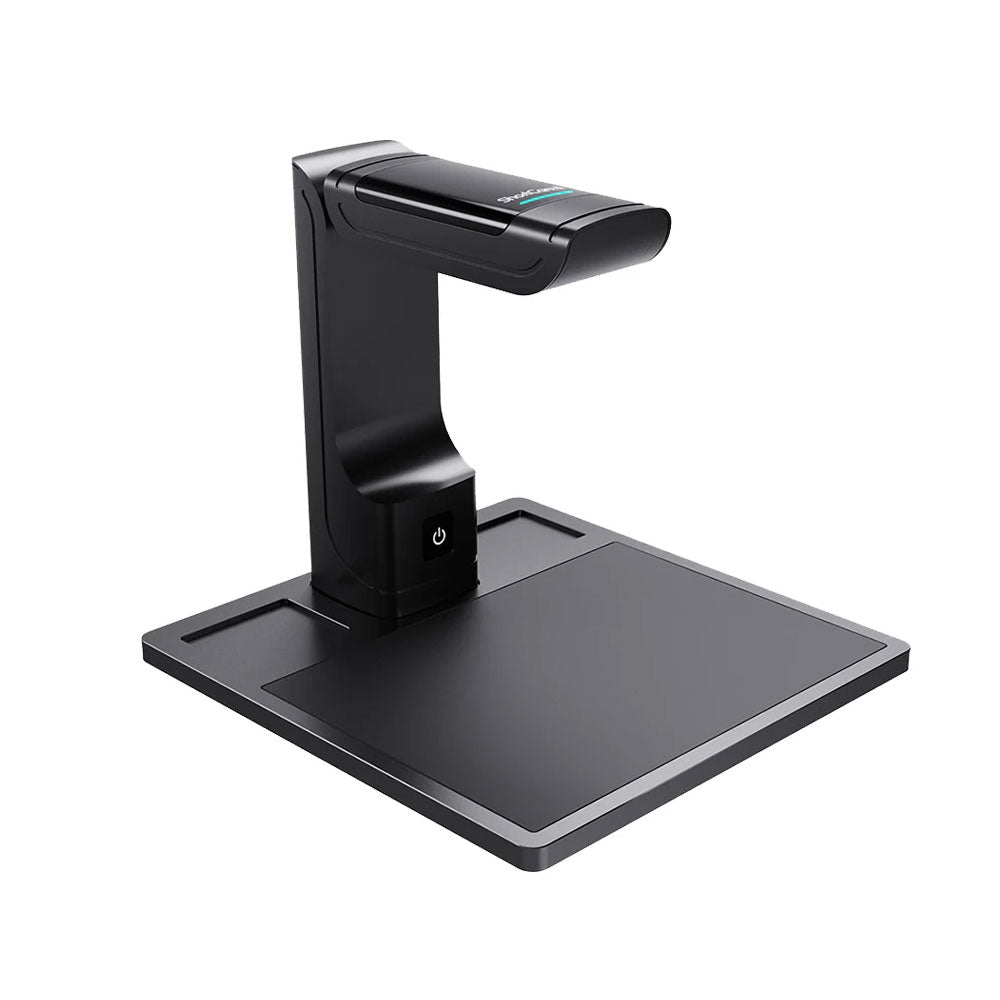

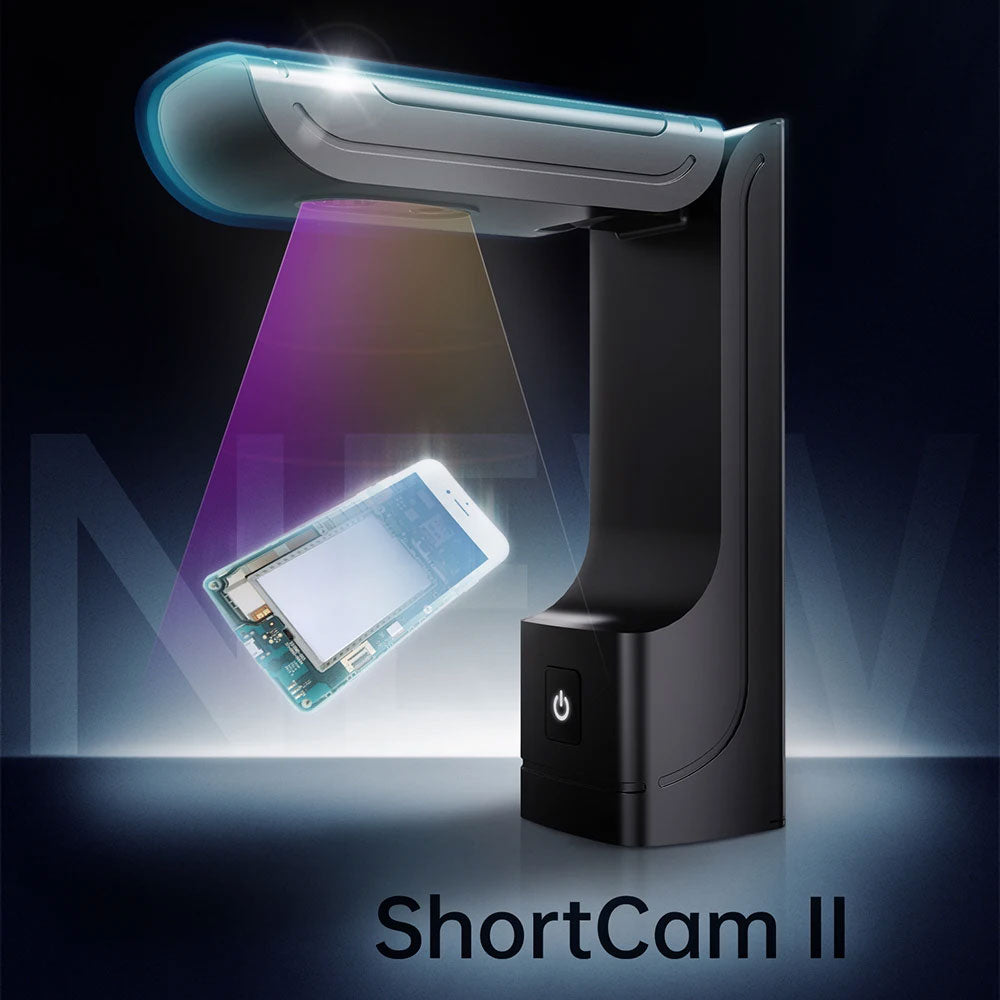

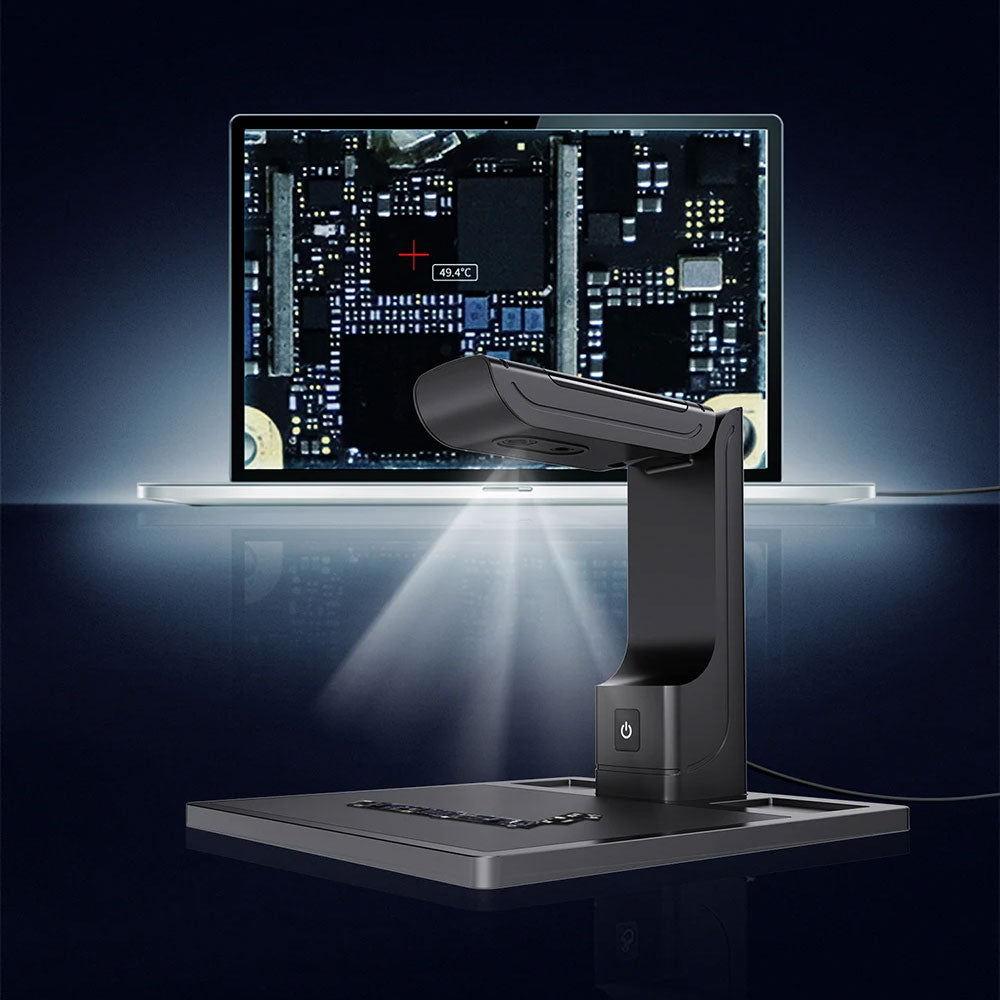

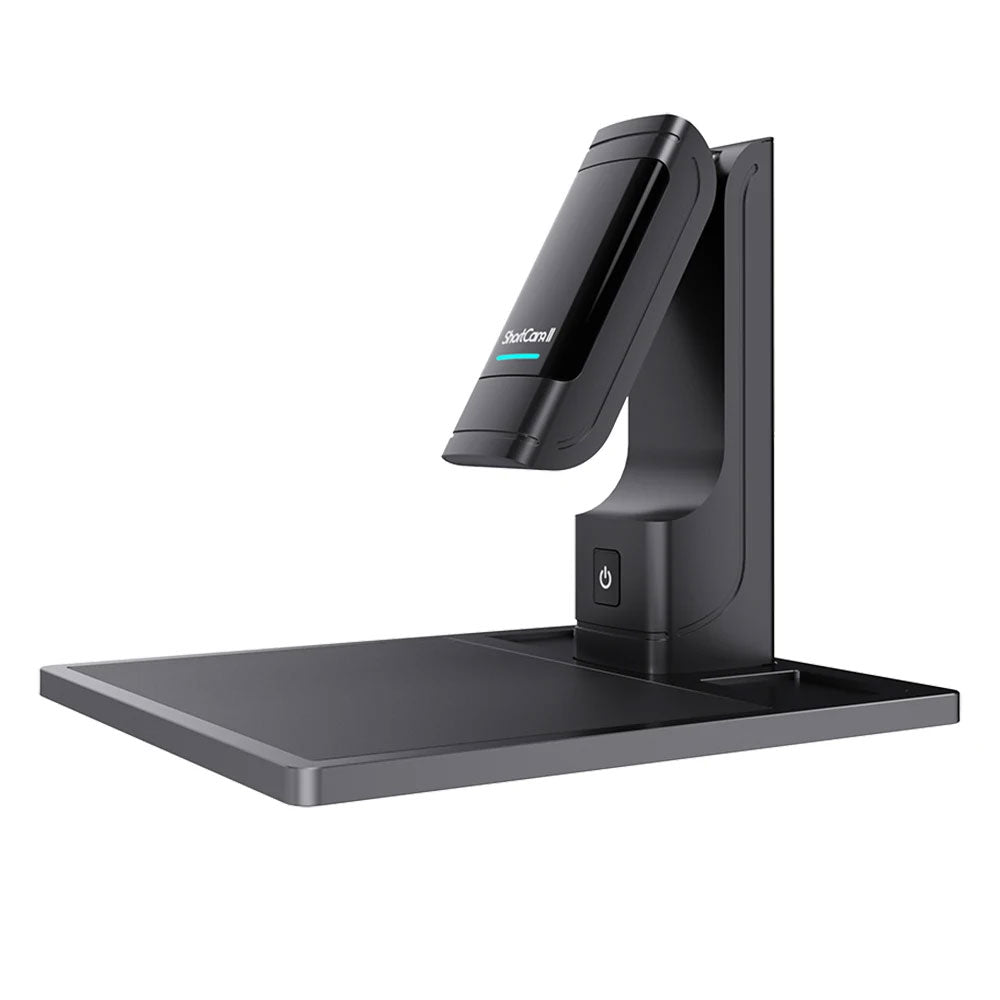

ShortCam II infrared thermal imaging camera is an instrument for PCB fault fast diagnosis. It can be used to diagnose IC short circuit, overheating and other faults on main boards.

Product Specifications:
Thermal imaging:
- Resolution: 256x192
- Pixel size: 12μm
- Wavelength range: 8-14μm
- Field of view angle: 25° * 18°

Visible light:
- Resolution: 2568H * 1448V

Interface and display:
- Display mode: visible light/partial fusion/quick search

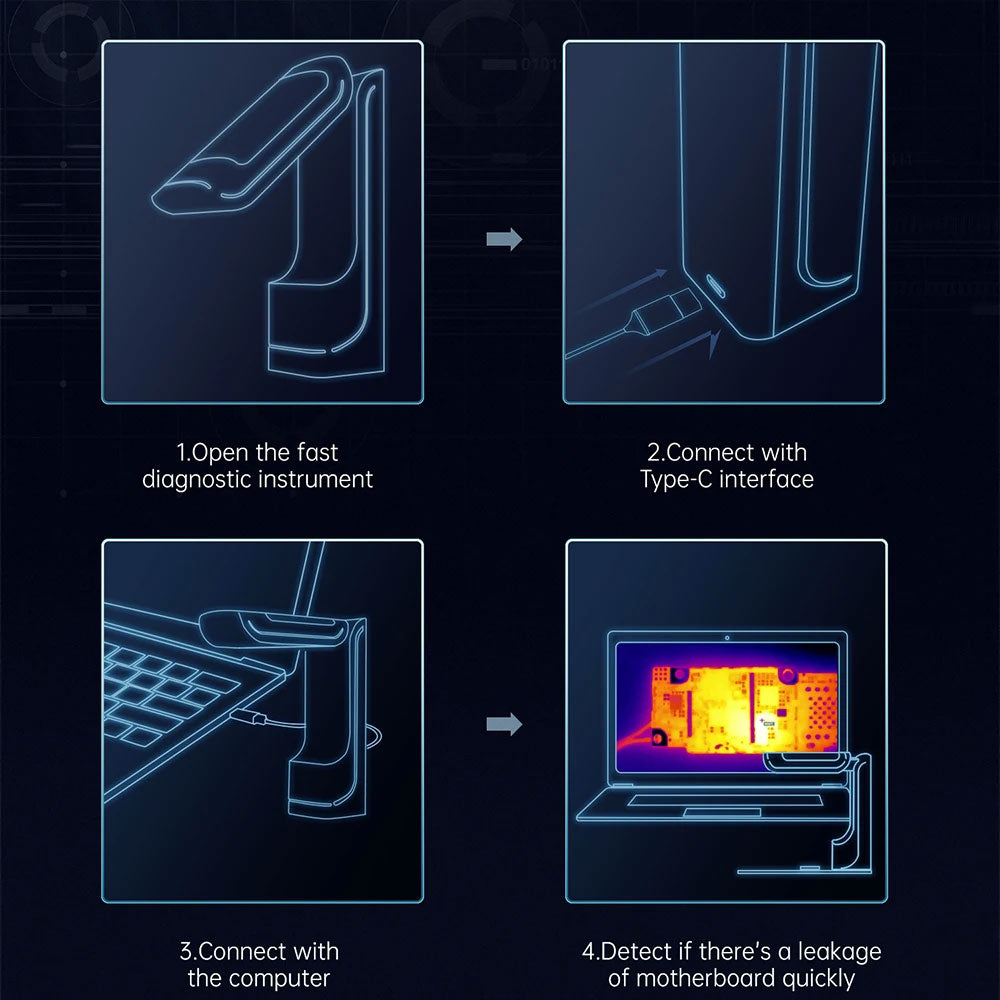

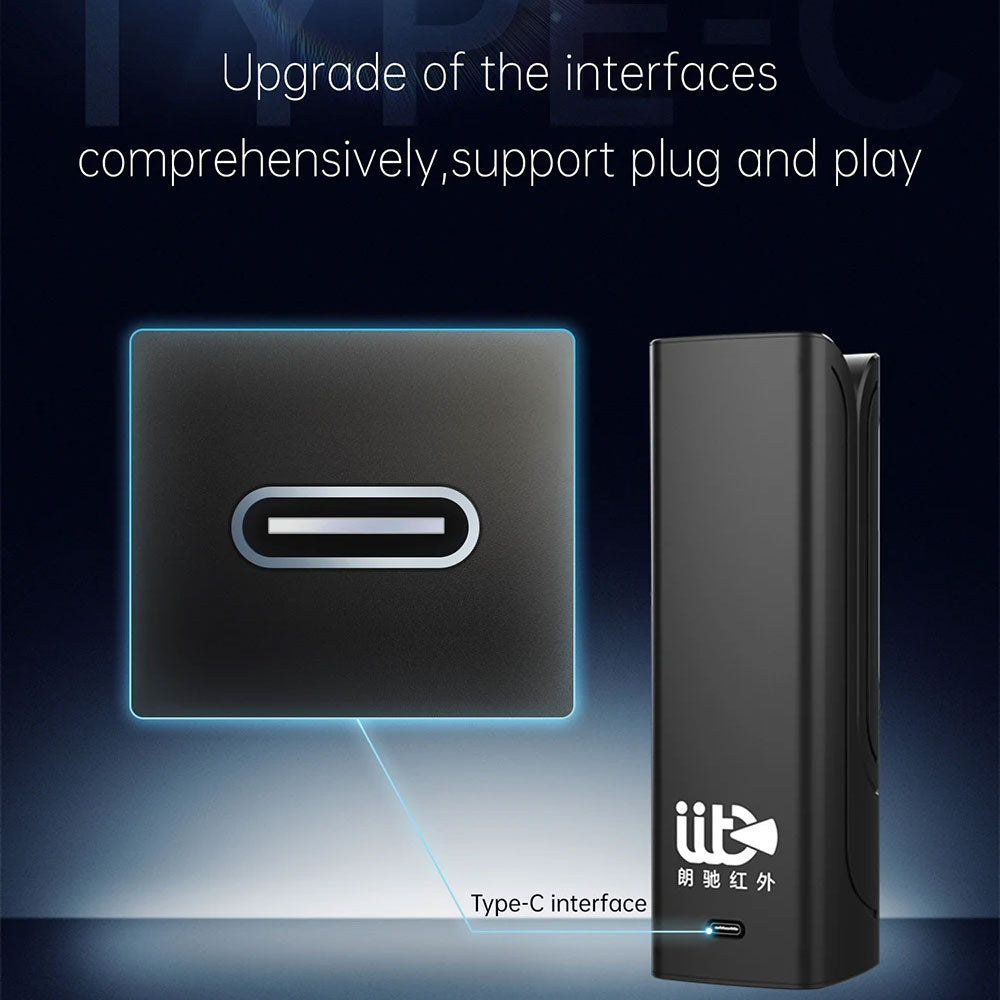

- Interface: type-c
- Image display format: JPEG
- Video storage format: MP4

Application functions:
- One-click quick checking, high- and low-temperature tracking, frame temperature measurement, partial amplification, comparative analysis, and video recording

Temperature measurement performance:
- Temperature measurement function: full range temperature measurement
- Temperature measurement distance: 13cm/5.1"
- Temperature measurement accuracy: ±5℃ or ±5% (take the maximum)
- Temperature measurement range: - 20℃ to 550℃

General specifications:

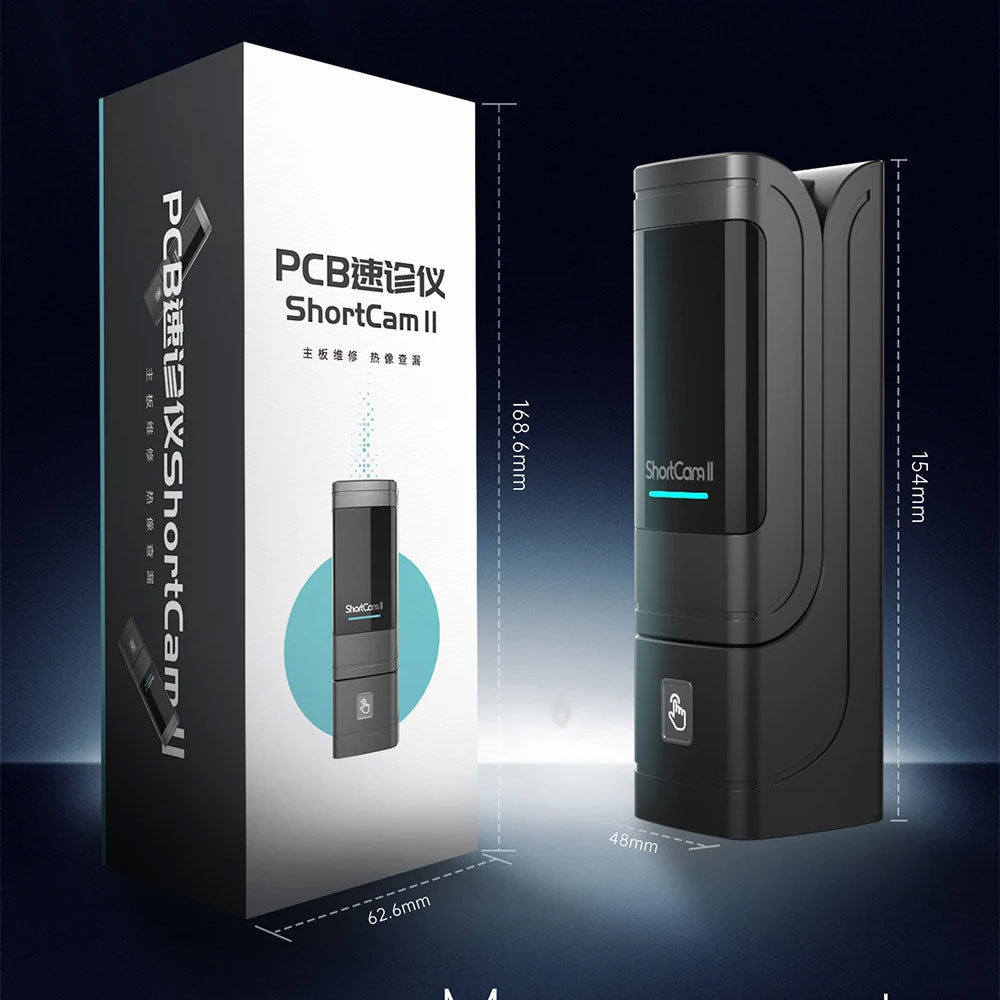

- Product size: 48 x 48 x 154mm/1.9 x 1.9 x 6.1"
- Output voltage/power consumption: 5V DC/2.5W
- Storage temperature: - 20℃ to 60℃
- Working environment: 3℃ to 45℃

Package Included:
- 1 x Set of Thermal Imager
