Spectrum Analyzer Low Frequency Converter SA-LF-CONV

Spectrum Analyzer Low Frequency Converter SA-LF-CONV

Specifications:
- Item Name: Spectrum Analyzer Low Frequency Converter
- Type: SA-LF-CONV
- Power: DC11.7-12.9V/0.3A
- LF Input:
  Impedance: 50Ω
  Frequency Range: 1Hz-2MHz
  Max Input Amplitude: +13dBm
- RF OUT:
  Impedance: 50Ω
  Frequency Range: 10M-12M
  Max Output Amplitude: +13dBm
- 10M INPUT:
  Impedance: 50Ω
  Input Range: 0.2-5Vpp

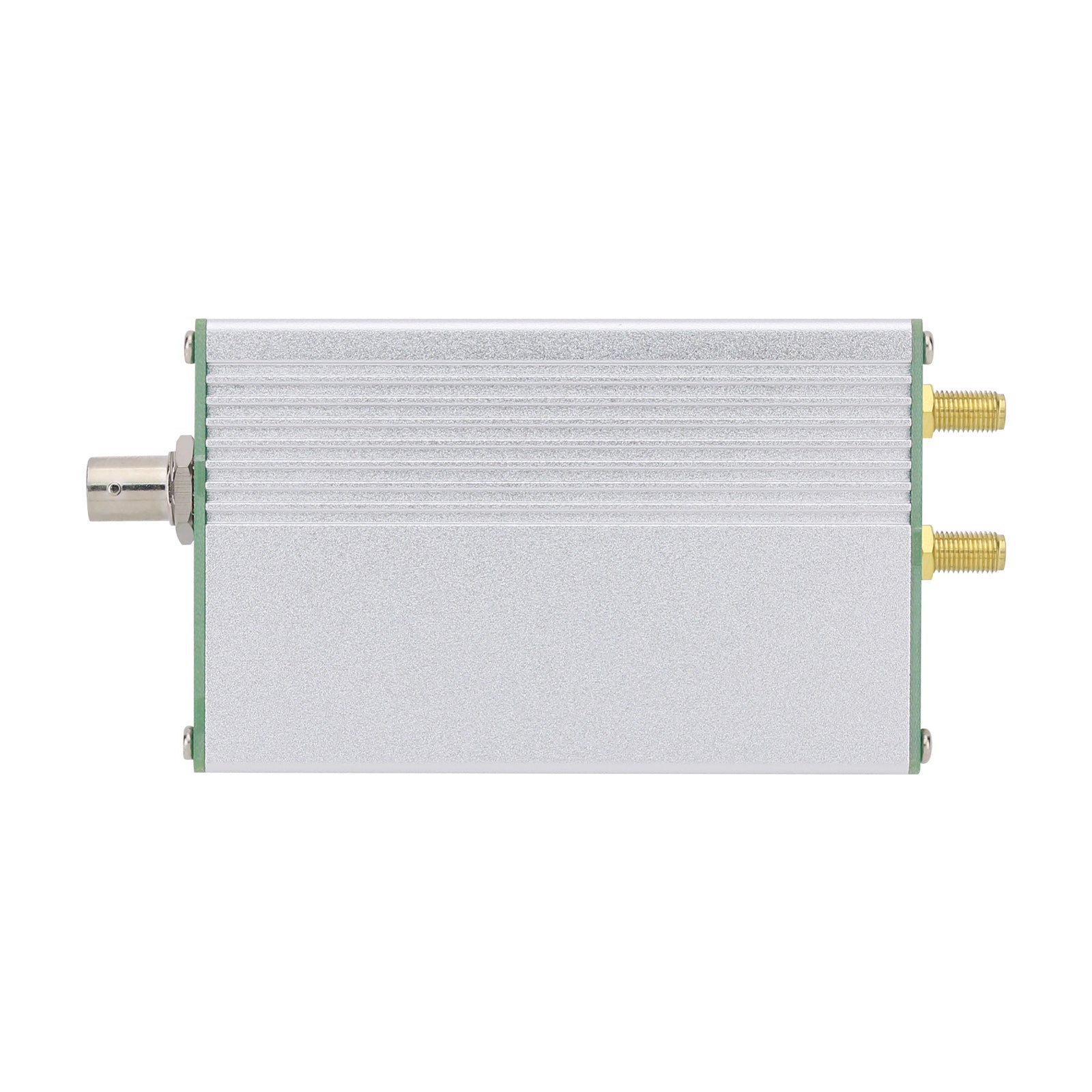

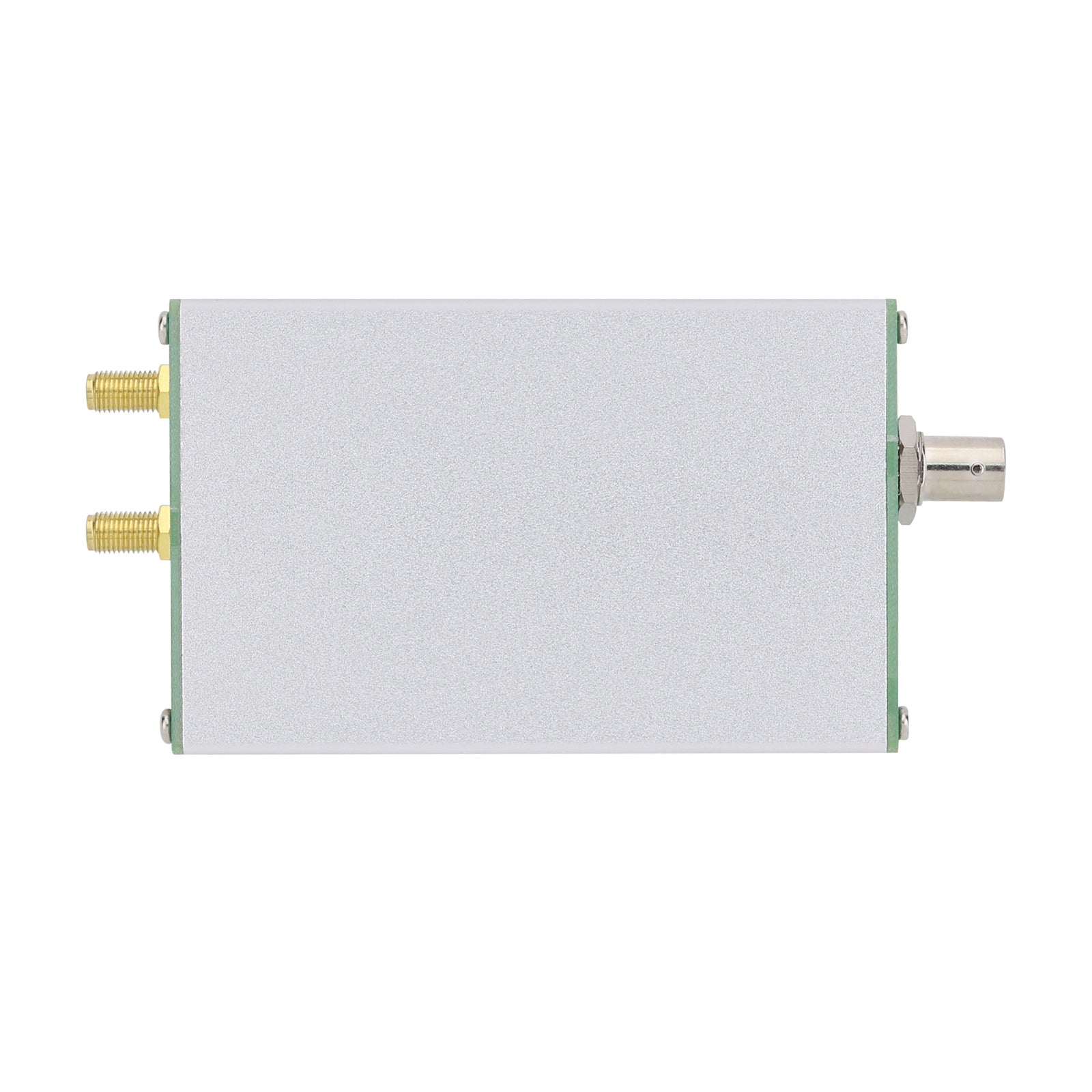

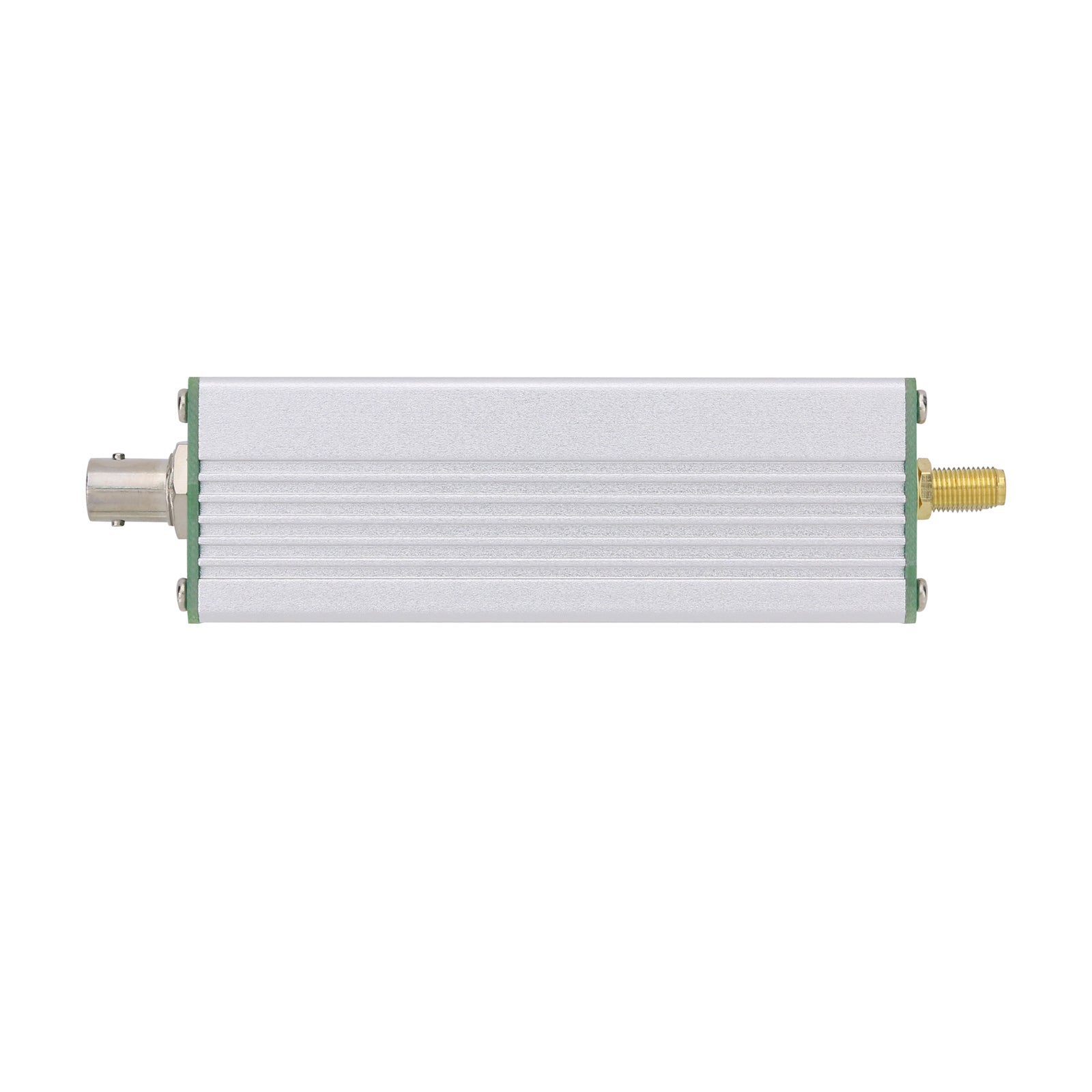

- SIZE: L*W*H=138*25*65mm (INCLUDE BNC CONNECTOR)

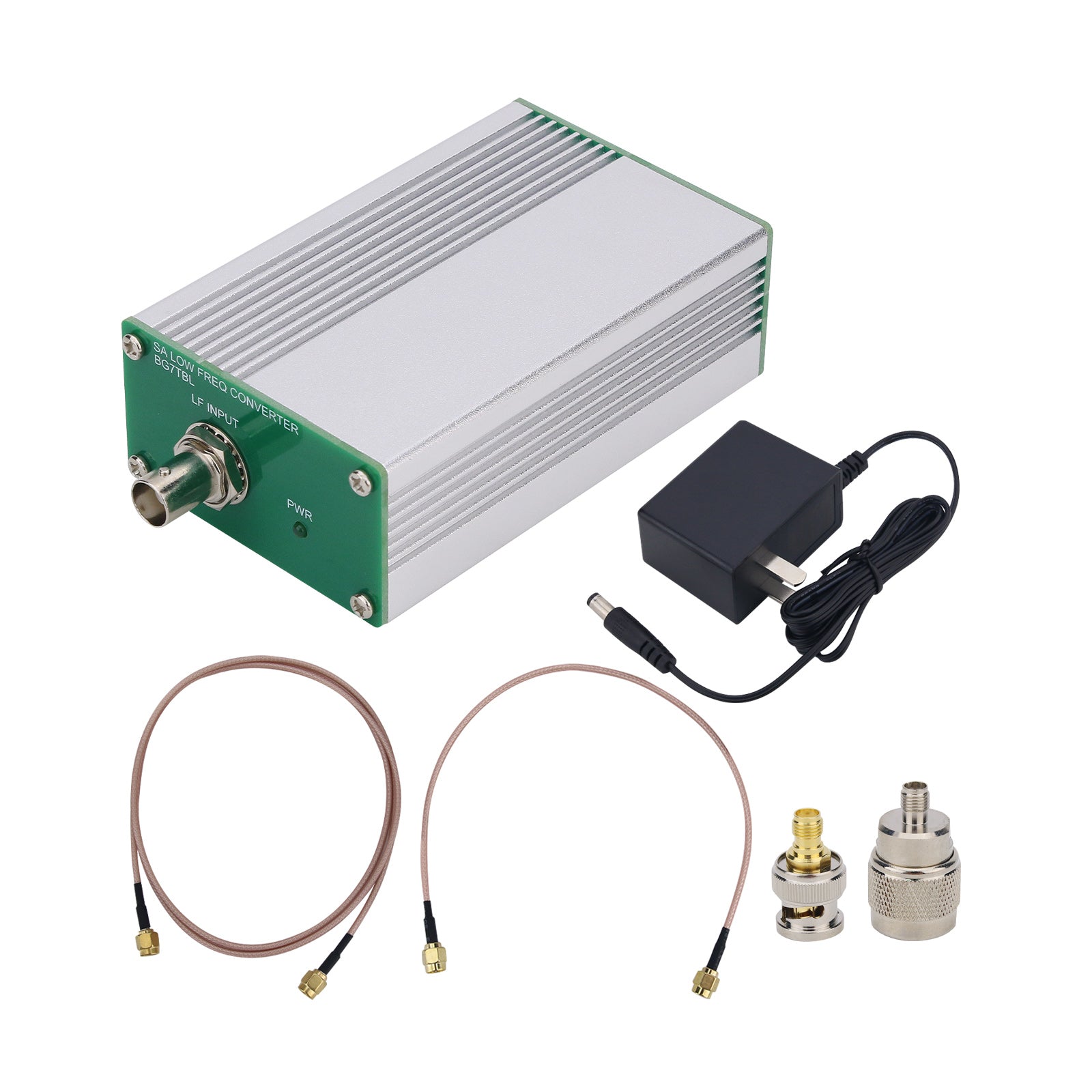

Package Included:
- 1 x Spectrum Analyzer
- 1 x AC110/220-DC12V Adapter
- 1 x N-SMA Adapter
- 1 x BNC-SMA Adapter
- 2 x SMA Cables

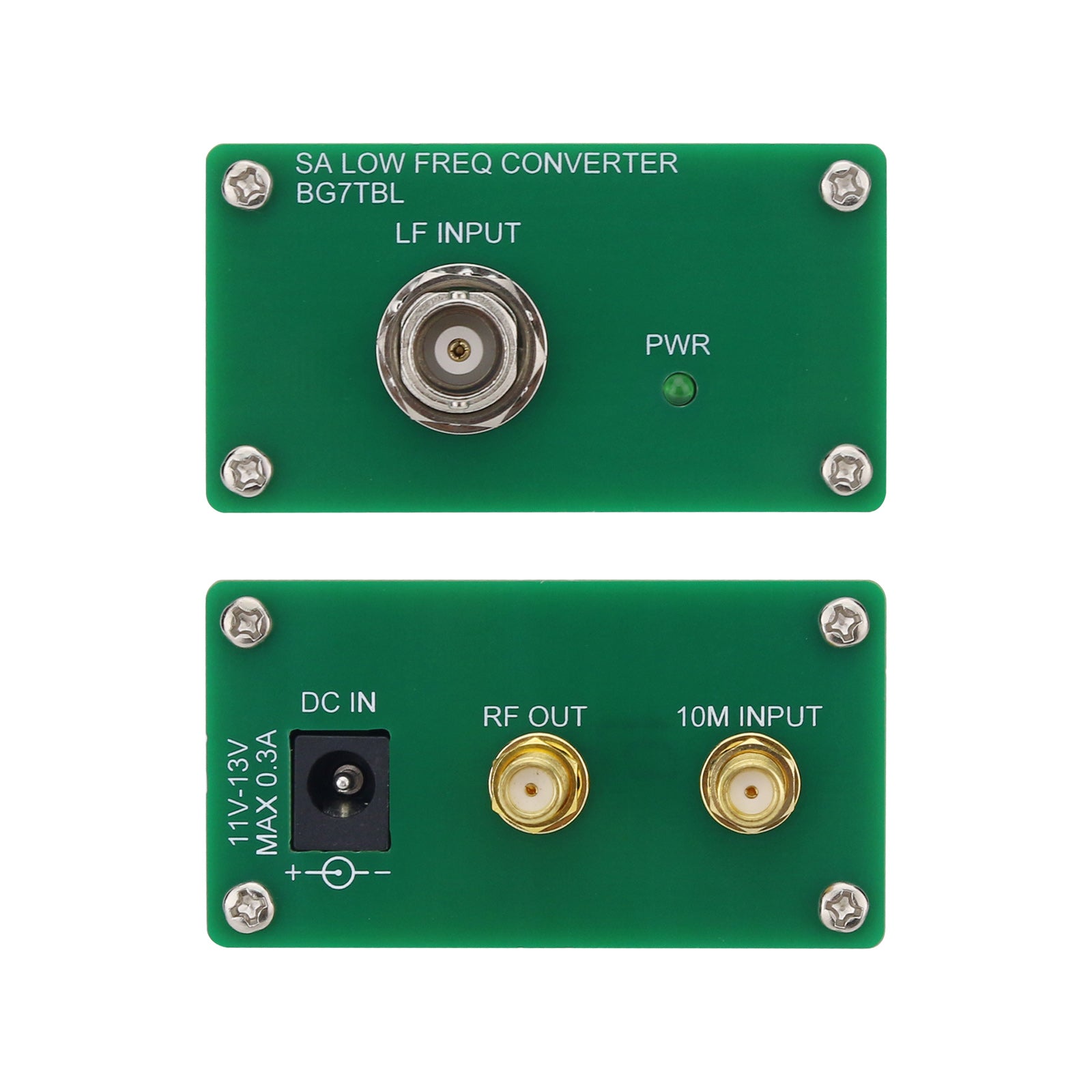

Panel Introduction:

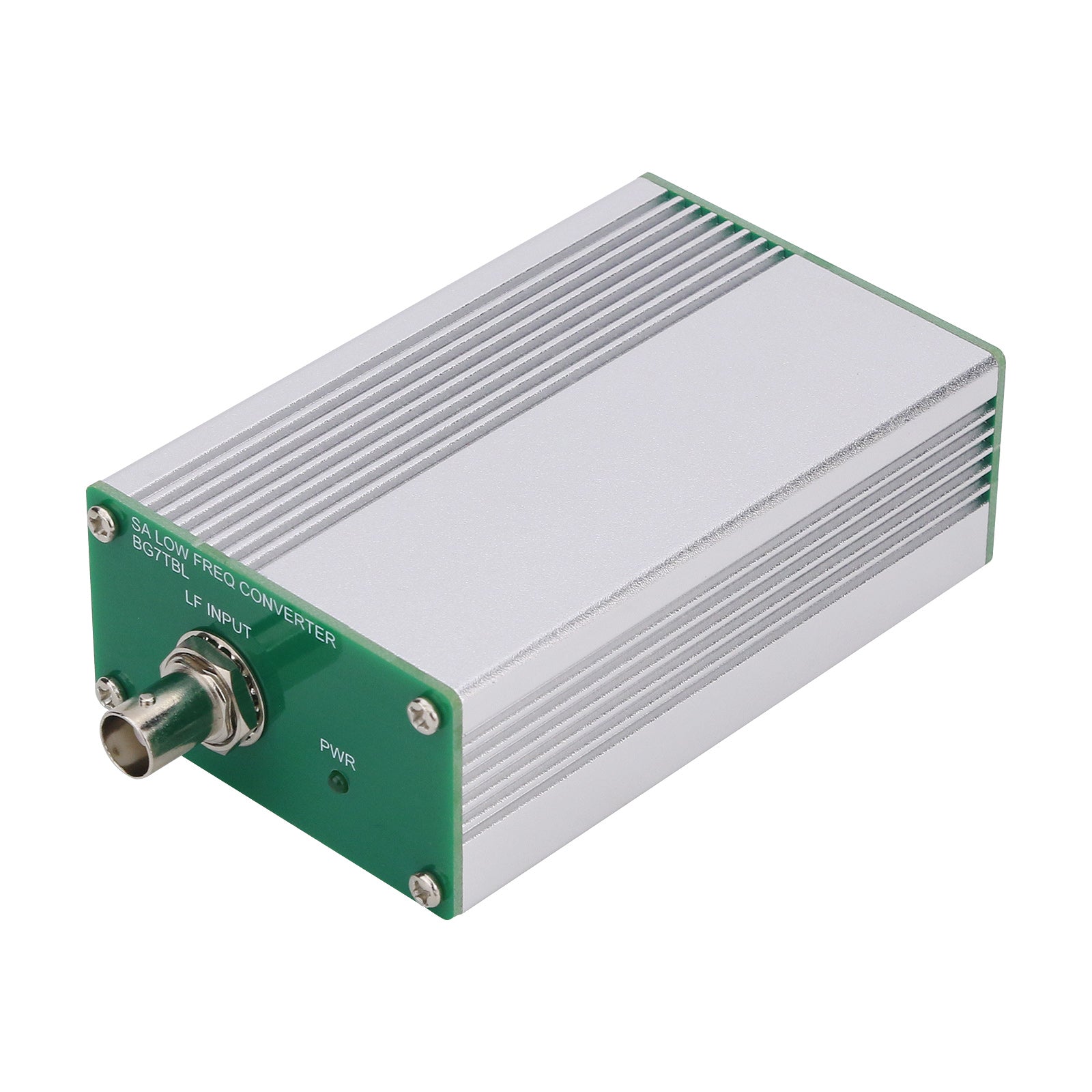

- Front Panel:
  LF INPUT: LF Frequency Input
  PWR: Power Indicator

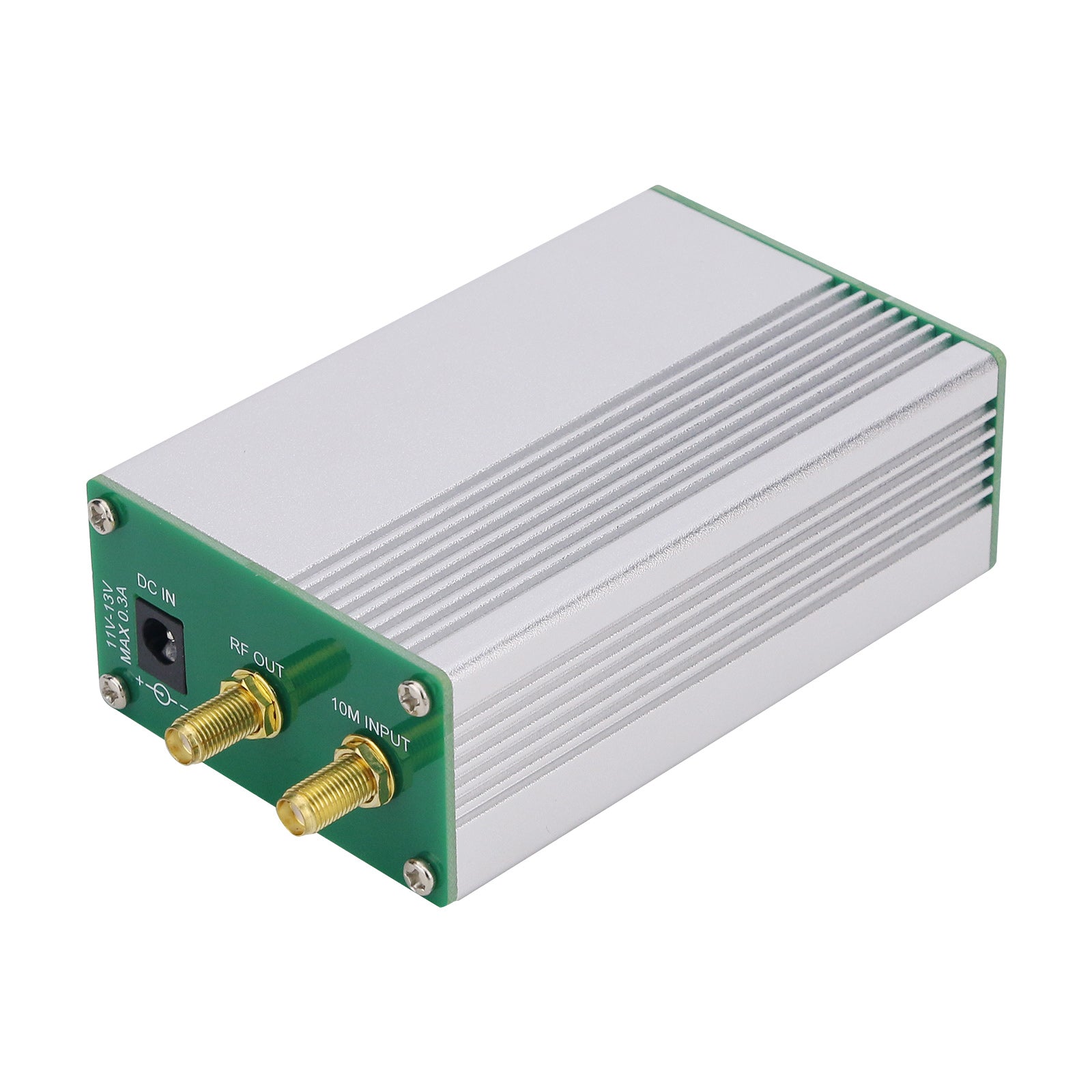

- Rear Panel:
  DC IN: Power Supply Input
  RF OUT: Signal Output after Frequency Conversion
  10M INPUT: 10M Signal Input with the Same Spectral Accuracy

Using Method:
- The spectrum is set to start at 10M, the end is 10M+, and the corresponding frequency is reduced by 10M, which is the input frequency. The amplitude of the spectrum display is consistent with the input amplitude.

Note:
- Enter the 10M reference value of the spectrum into the machine, set the center frequency to 0M, and reduce the SPAN from 4M to the minimum SPAN.
- The spectrum amplitude is always at the center. If some SPANs are not in the center, it is not very convenient to use.
