Tarot TL300N5-03 1.2G 8CH FPV Video Receiver Kit for Tarot 800mW and 1600mW Video Transmitters

Tarot TL300N5-03 1.2G 8CH FPV Video Receiver Kit for Tarot 800mW and 1600mW Video Transmitters

Description:
This is the receiving end of the Tarot 8CH 1.2G audio and video transmission system. It has a small size and ultra-light weight. The video receiver is suitable for use with Tarot 800mW and 1600mW transmitters.

Specifications:
Receiver (Ground End):
- Input voltage: 12V
- Weight: 17g (without the weight of antenna)

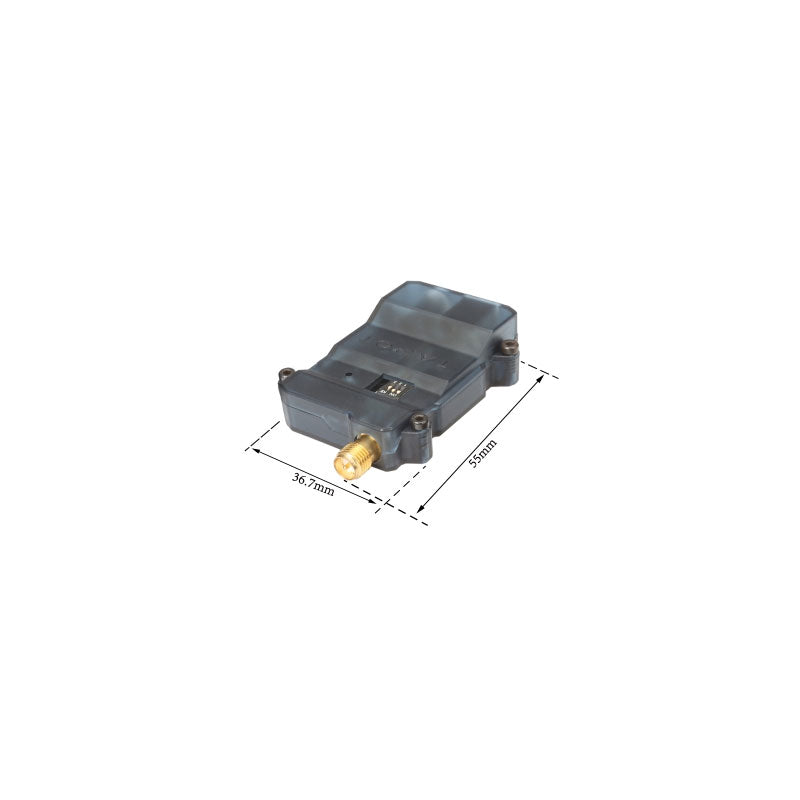

- Size (LxWxH): 55mm*36.7*mm*13.4mm
- Number of channels: 8 channels
- Channel selection: 3 mini DIP switches (positions 1-3)
- Receiving Frequency: 1080MHZ/1120MHz/1160MHz/1200MHz/1240MHz/1280MHz/1320MHz/1360MHz
- Antenna interface: RP-SMA (with external thread and internal needle) 50Ω
- Operating ambient temperature: -10℃ to 60℃
- Modulation Type: FM

Attention:
1. Please install the antenna first and then power on to avoid equipment failure;
2. Select the appropriate working frequency and set your transmitter and the receiver to the same frequency.

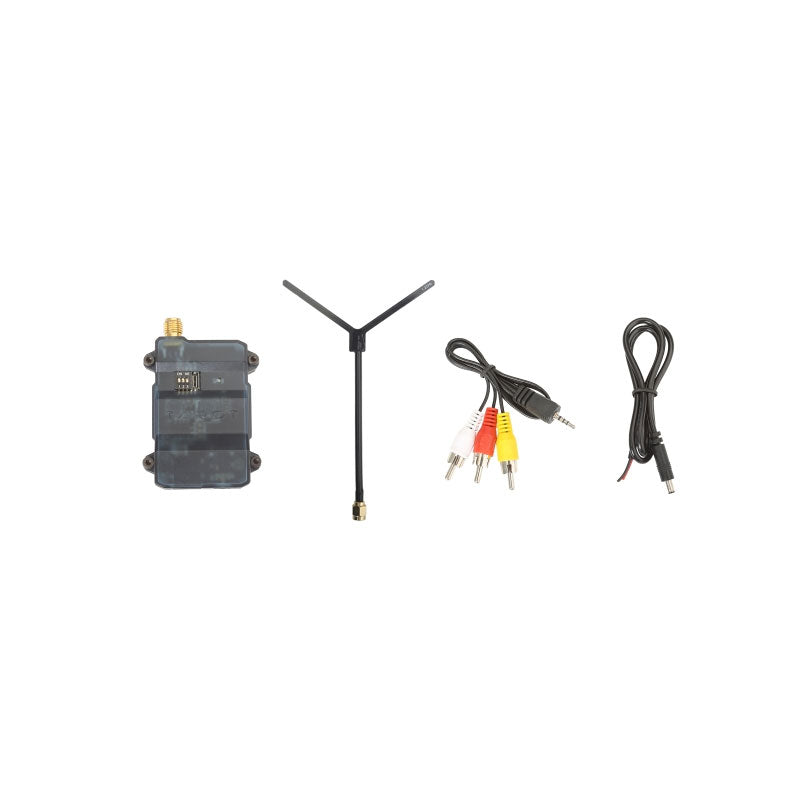

Package Included:
- 1 x 1.2G video receiver
- 1 x Receiver power cord
- 1 x Receiver video cable
- 1 x 1.2G Y-shaped antenna

Packaging Details:
- G.W.: 0.2kg
