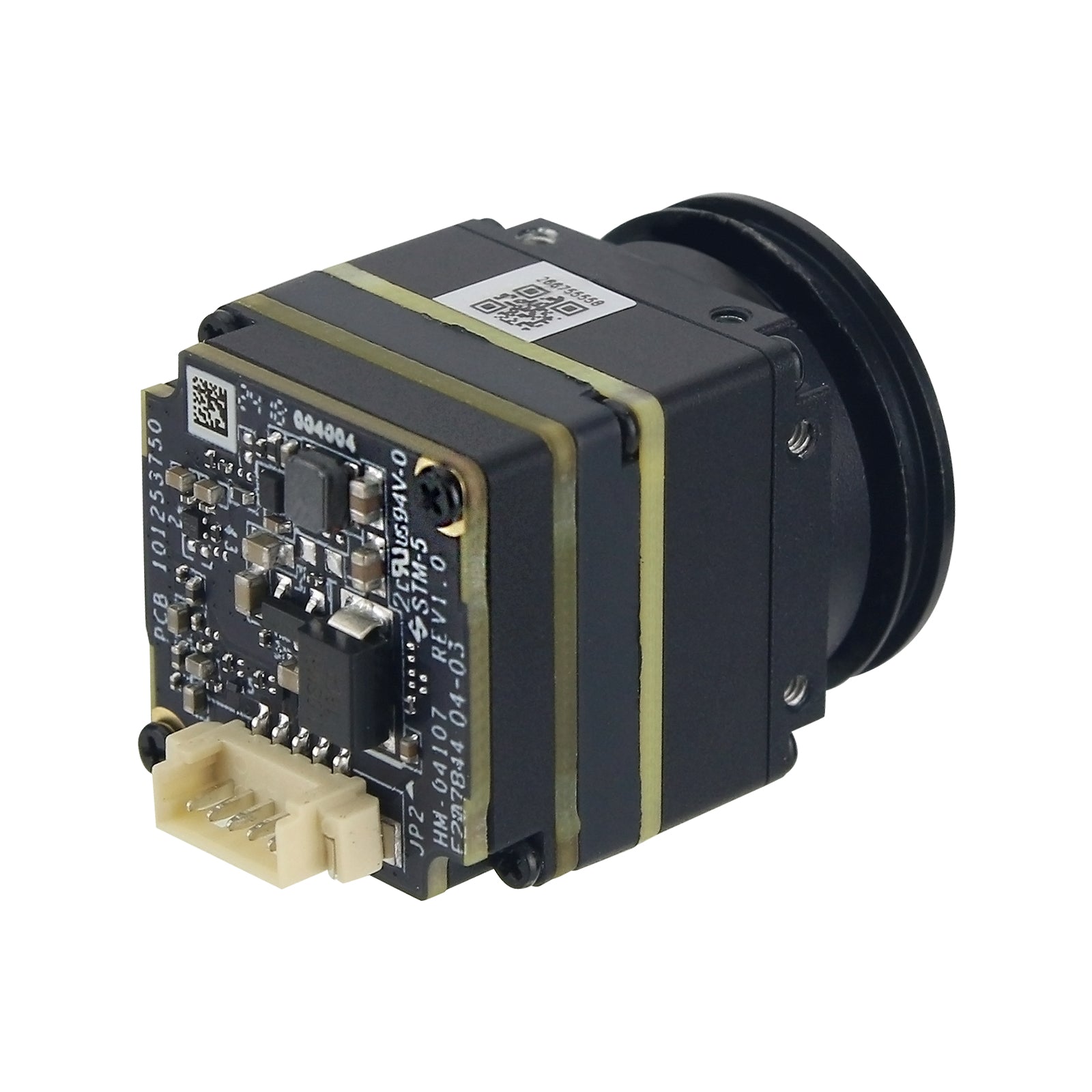

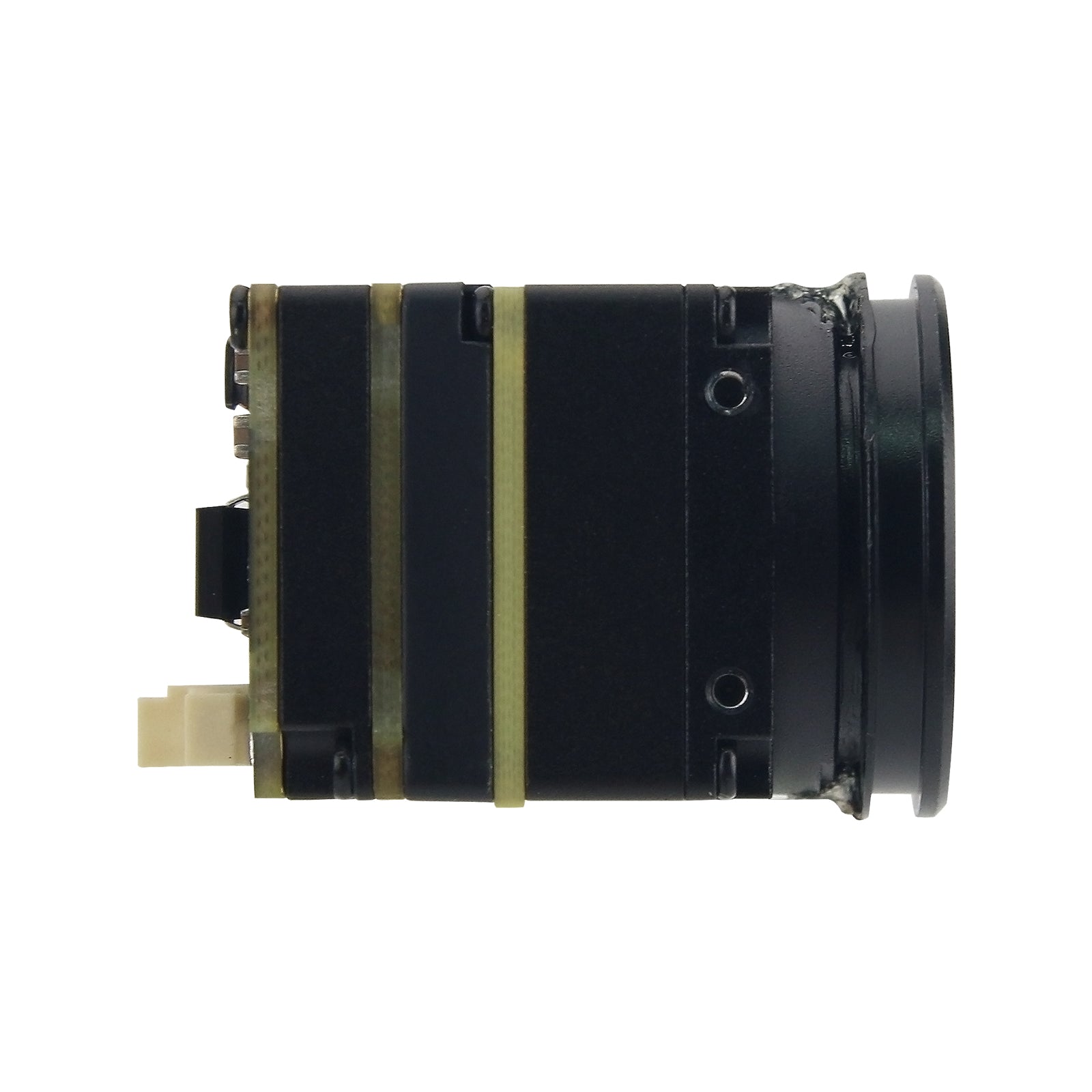

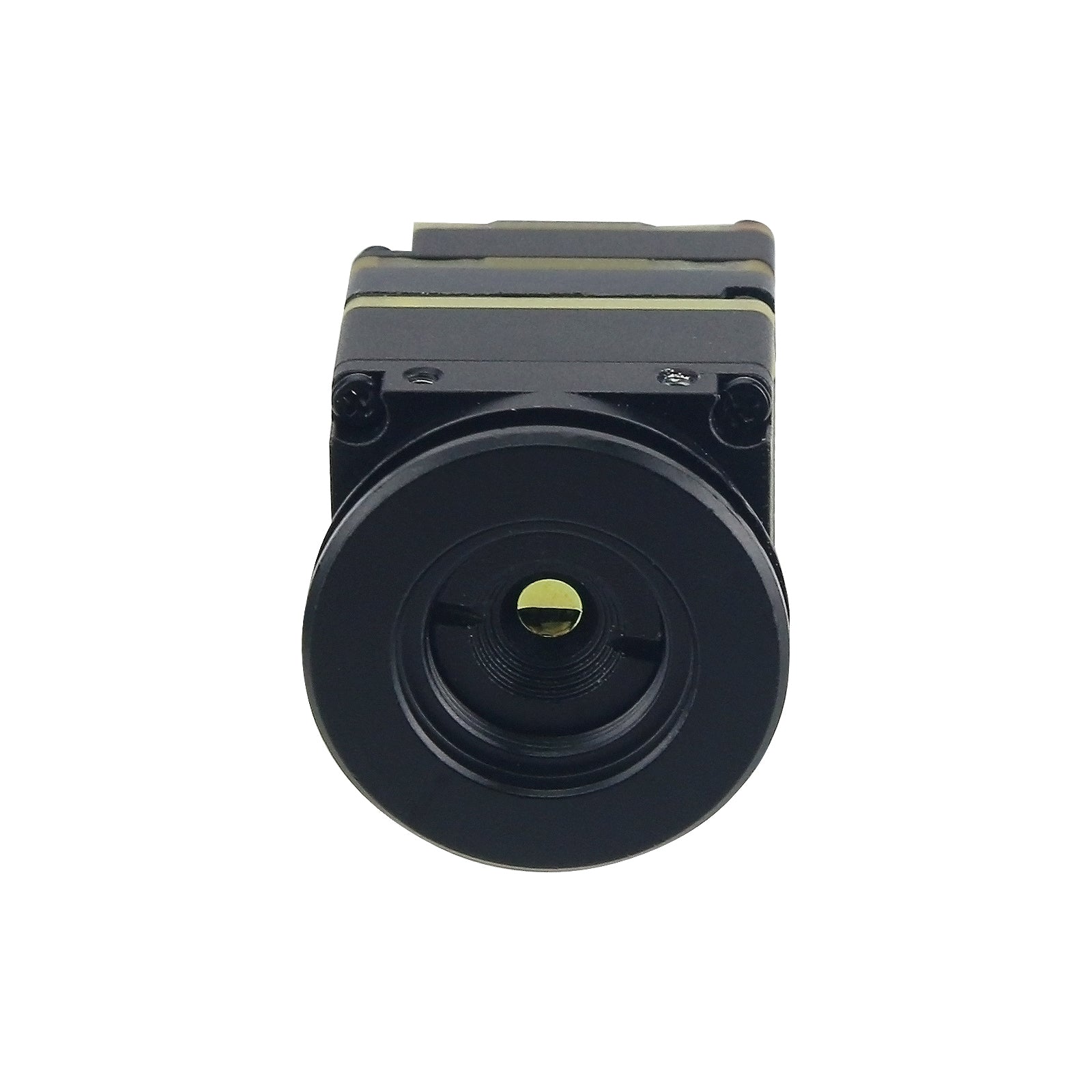

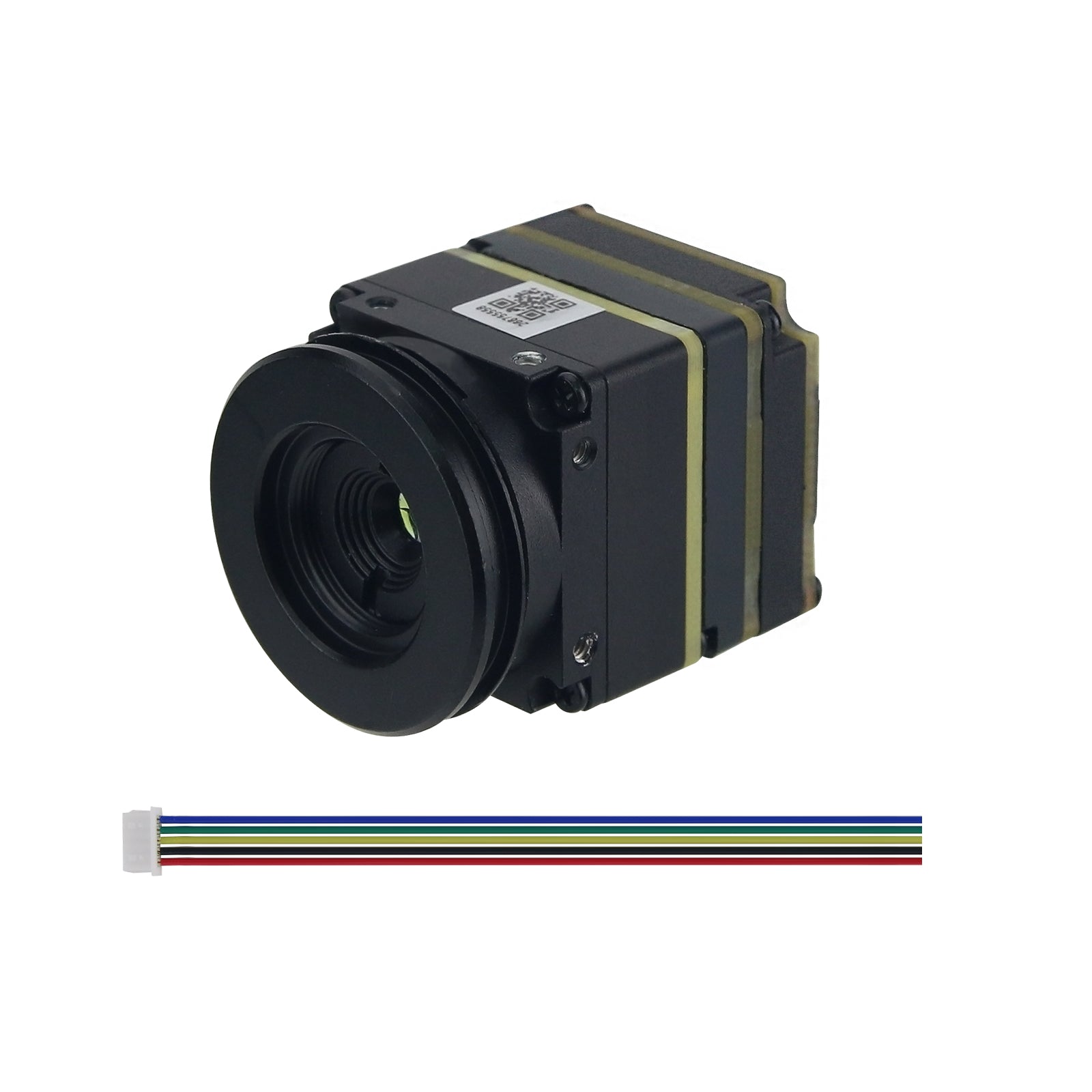

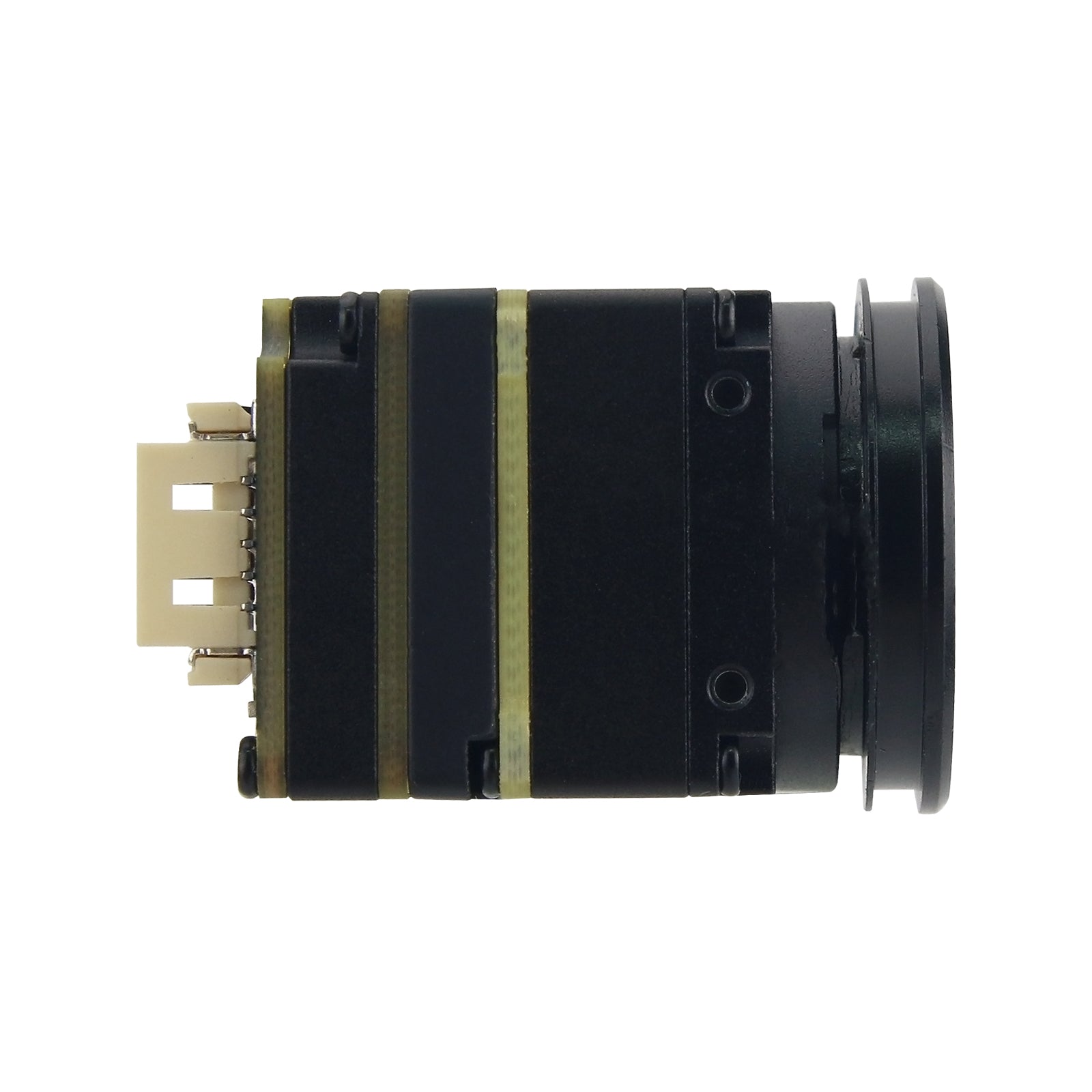

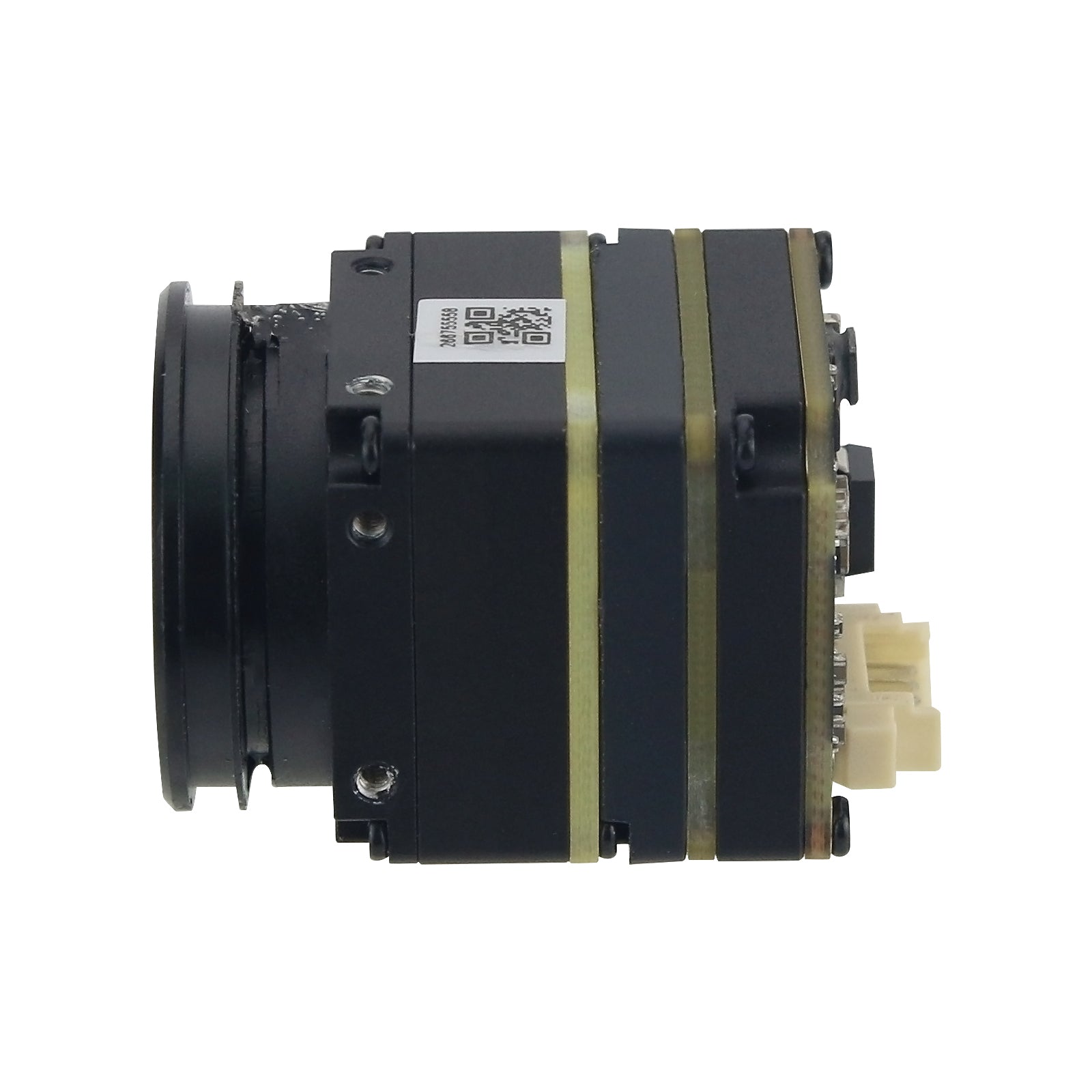

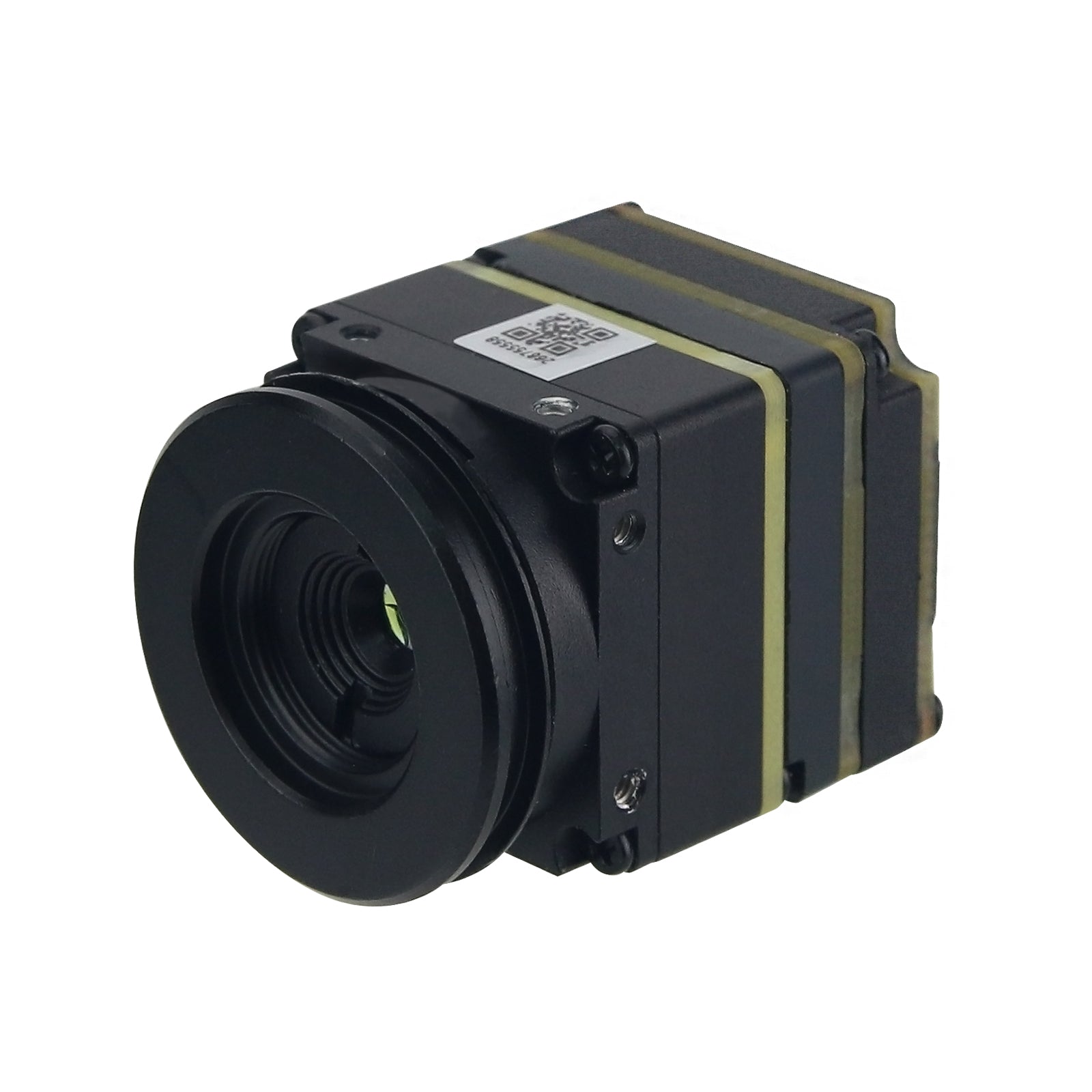

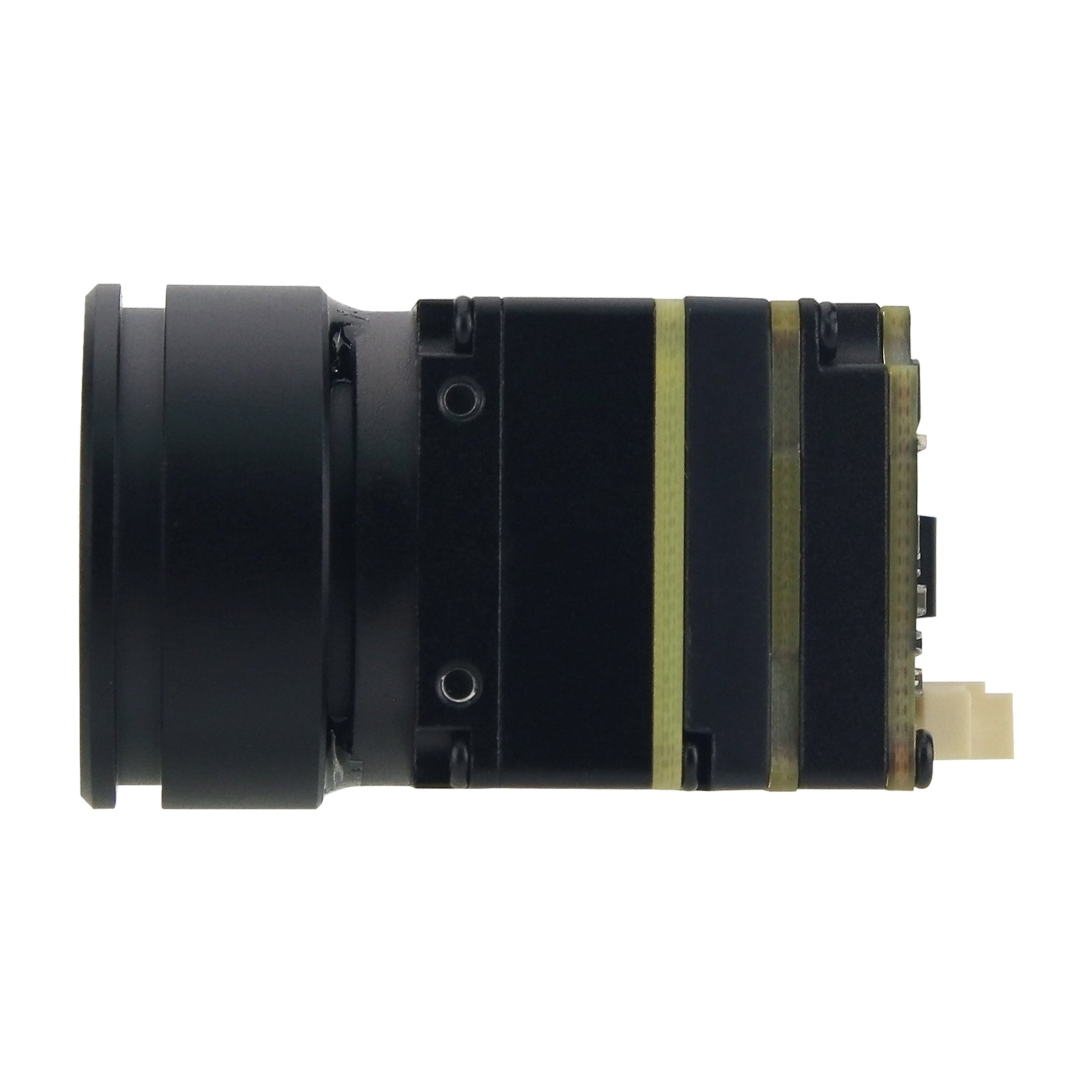

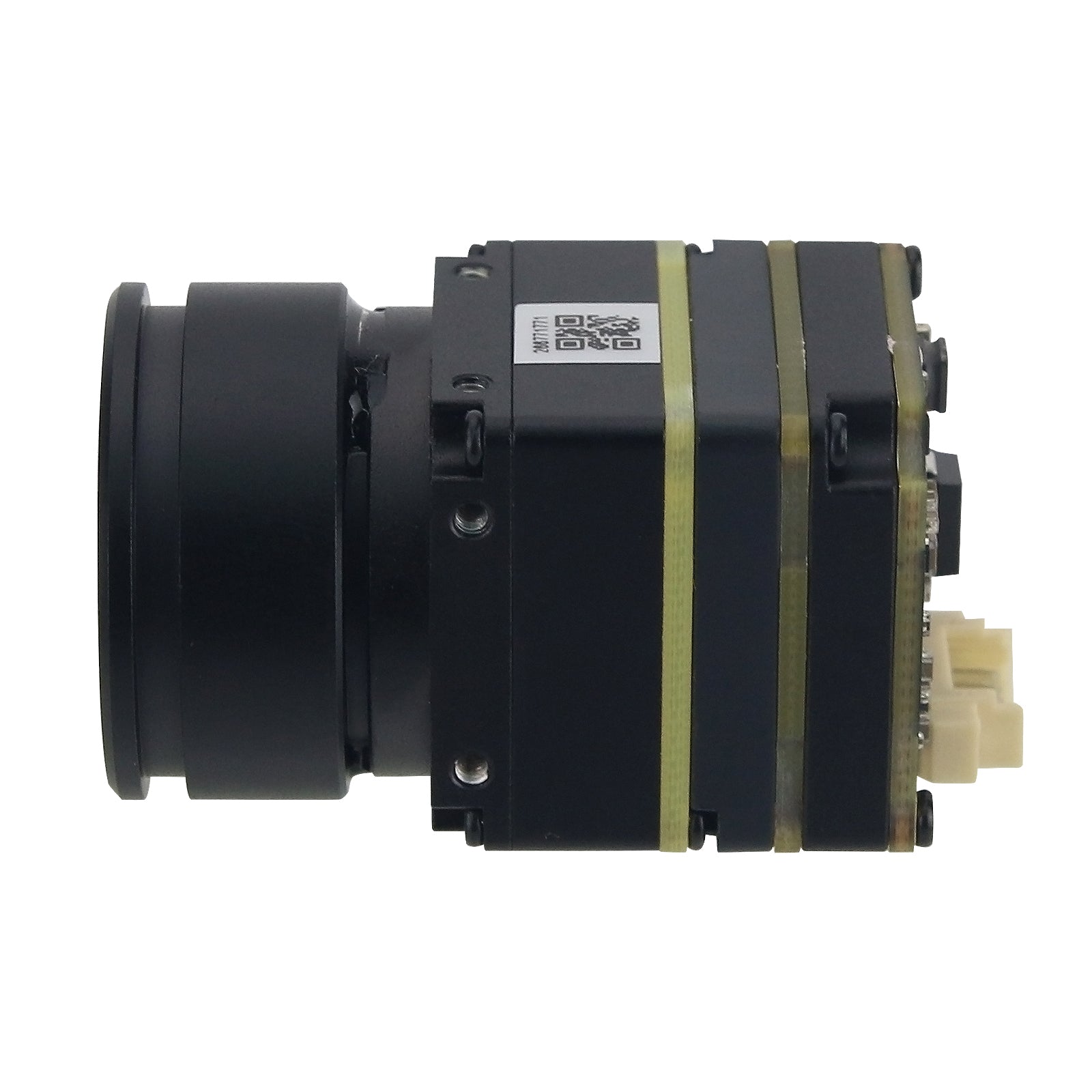

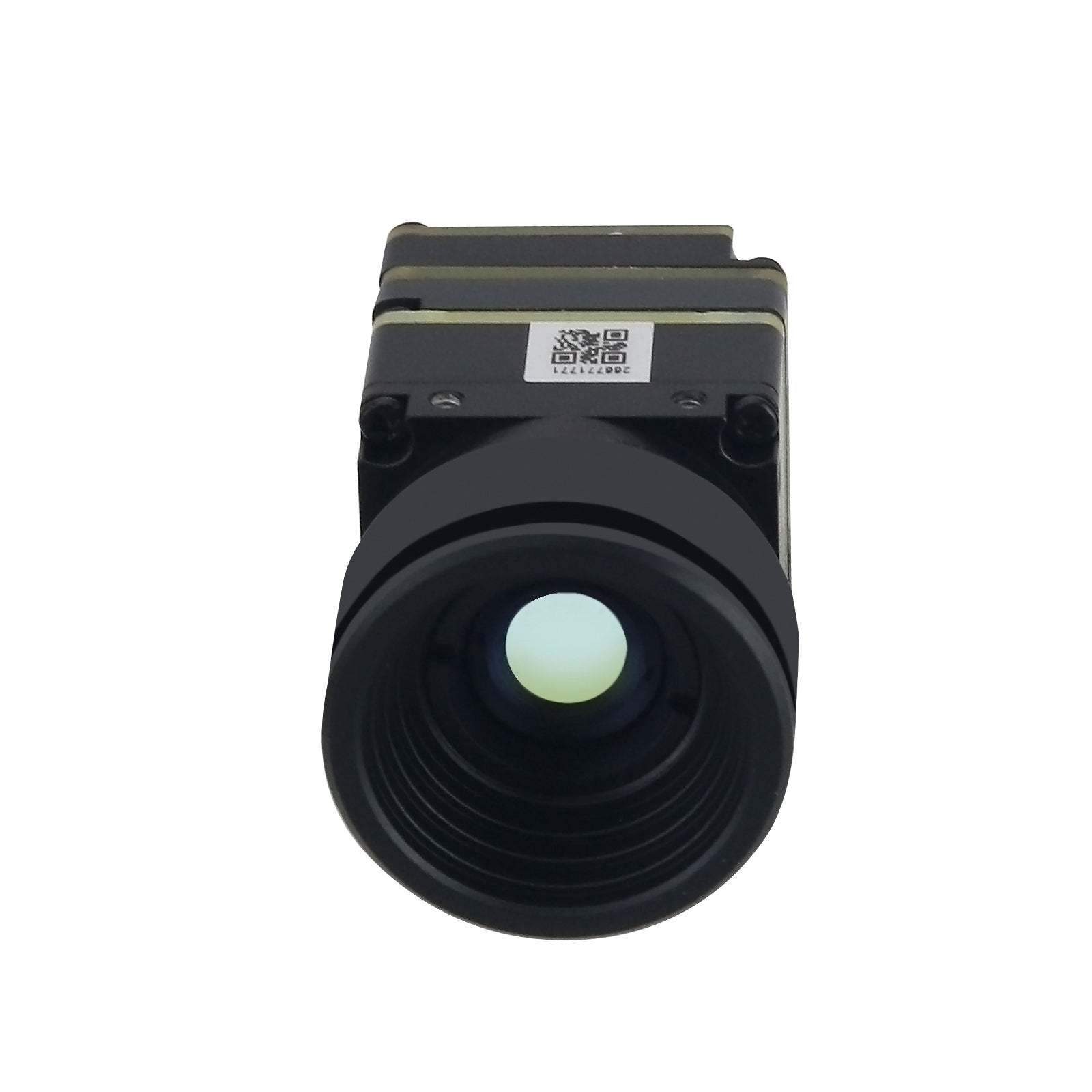

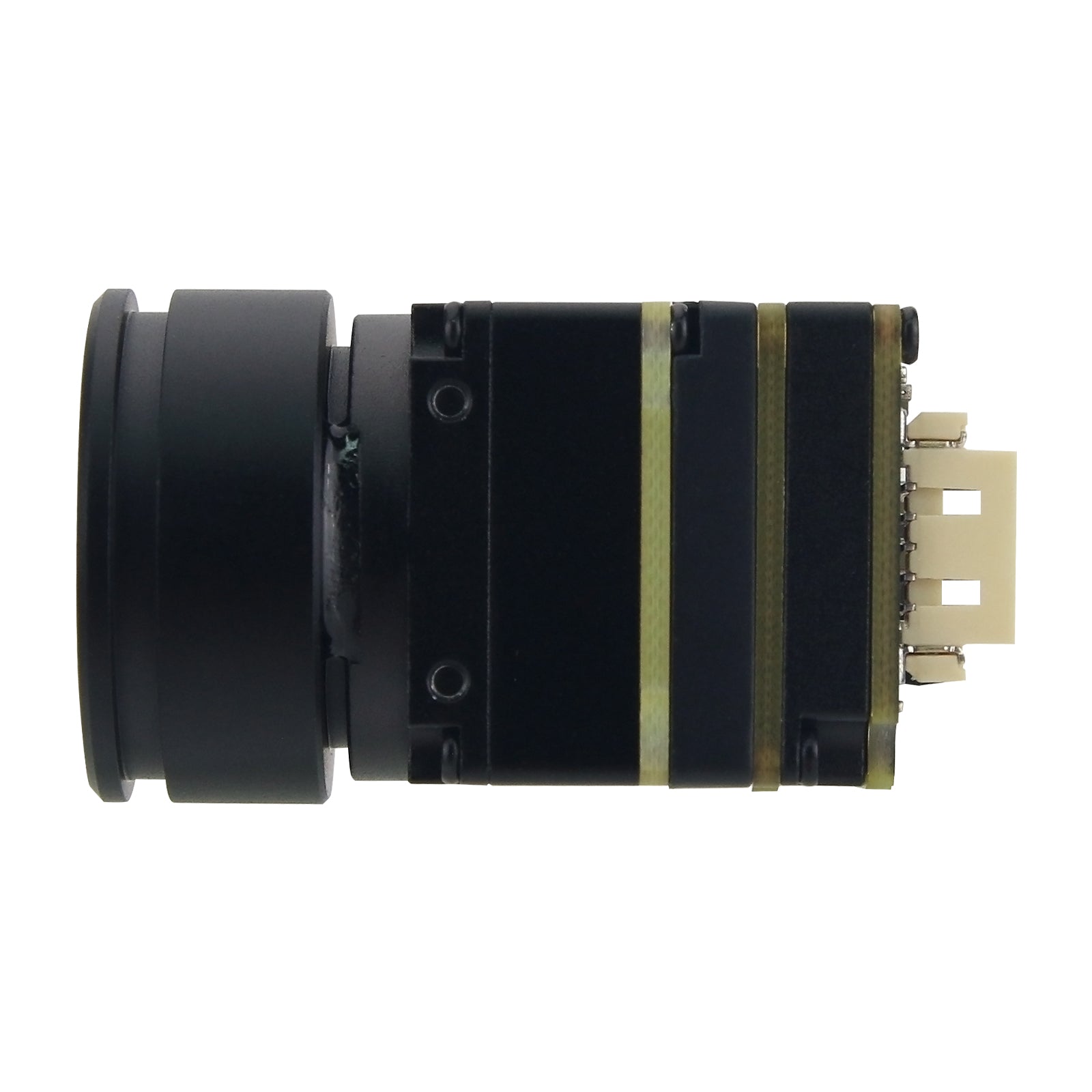

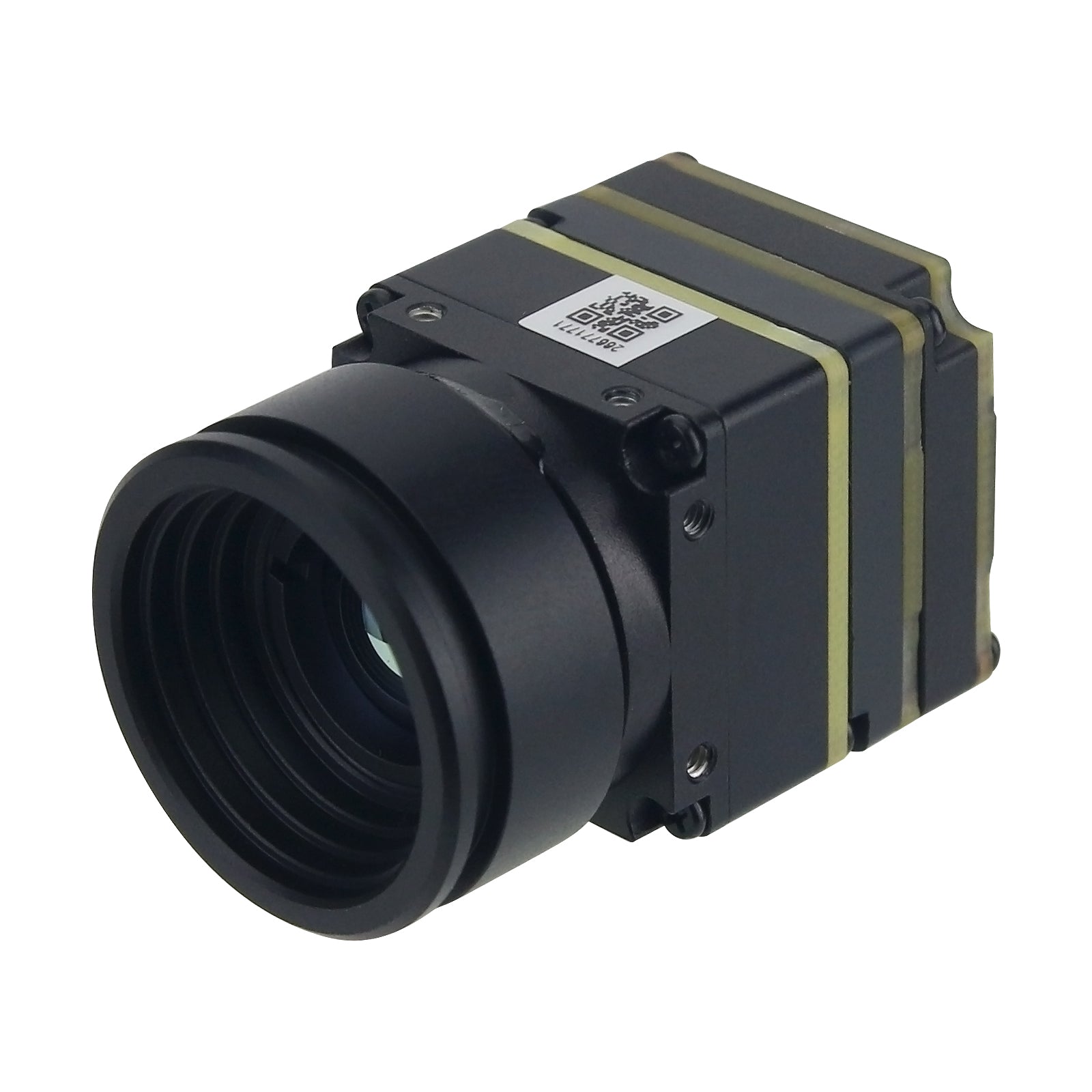

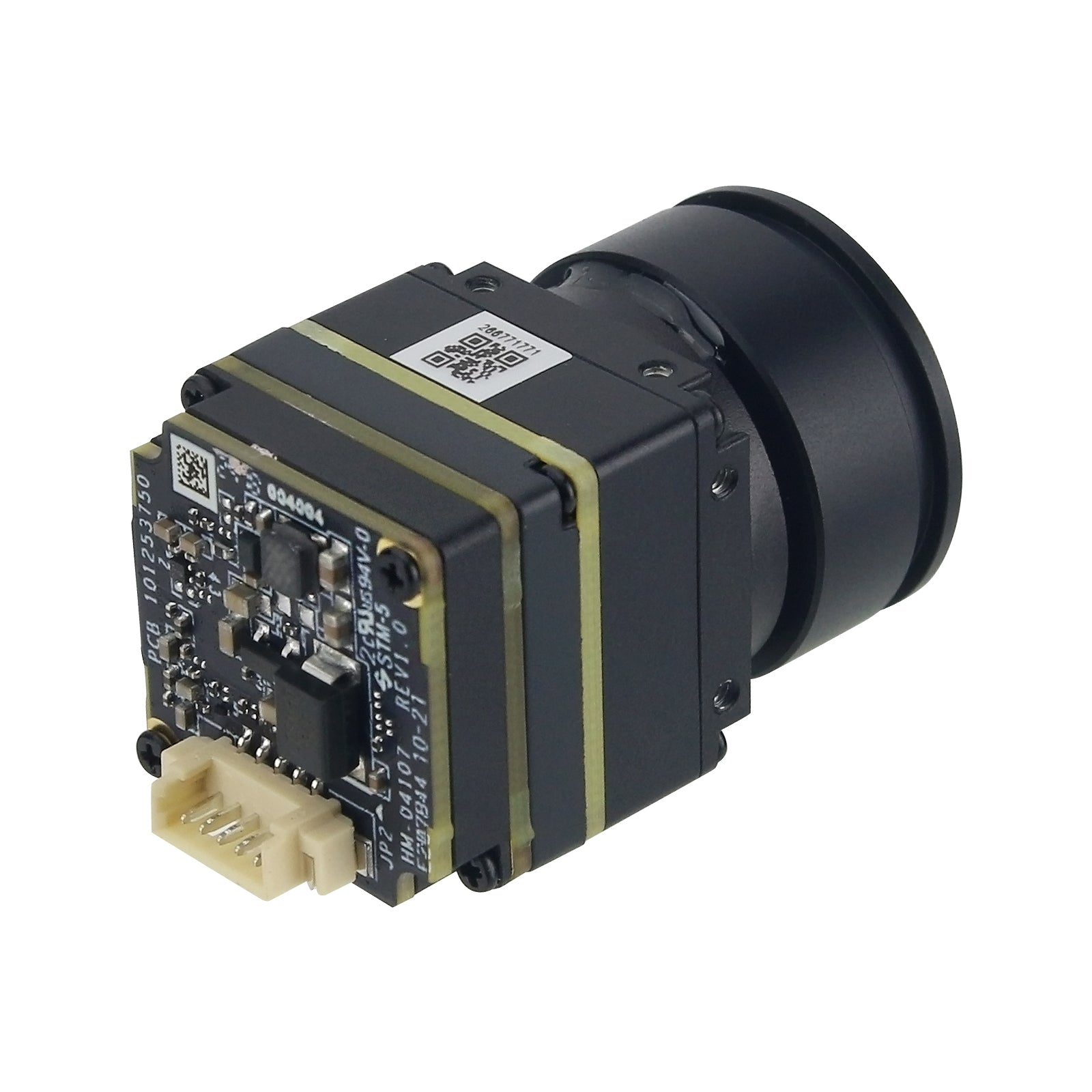

TZT 256X192 4MM Lens Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module

TZT 256X192 4MM Lens Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module

Specification:
- Resolution: 256 x 192
- Detector type: vanadium oxide uncooled infrared focal plane detector
- Effective frame rate: 25fps
- Pixel pitch: 12um
- NETD: 40mk
- Spectral band: 8 - 14um
- Lens parameters: 4.0mm F1.0
- FOV (HxV):
  4mm lens: 45°(H) x 33°(V)
- Polarity/palette: white heat, black heat, fusion, iron red, fusion
- Power supply input: 5V - 16V
- Power: ≤0.8W
- Output: CVBS
- Analog video: PAL
- Product size (without lens): 20mm x 20m
- Weight (without lens): ≤23g
- Operating temperature: -40℃ ~ 80℃
- Storage temperature: -45℃ ~ 85℃

Package Included:
- 1 x Thermal Imager
