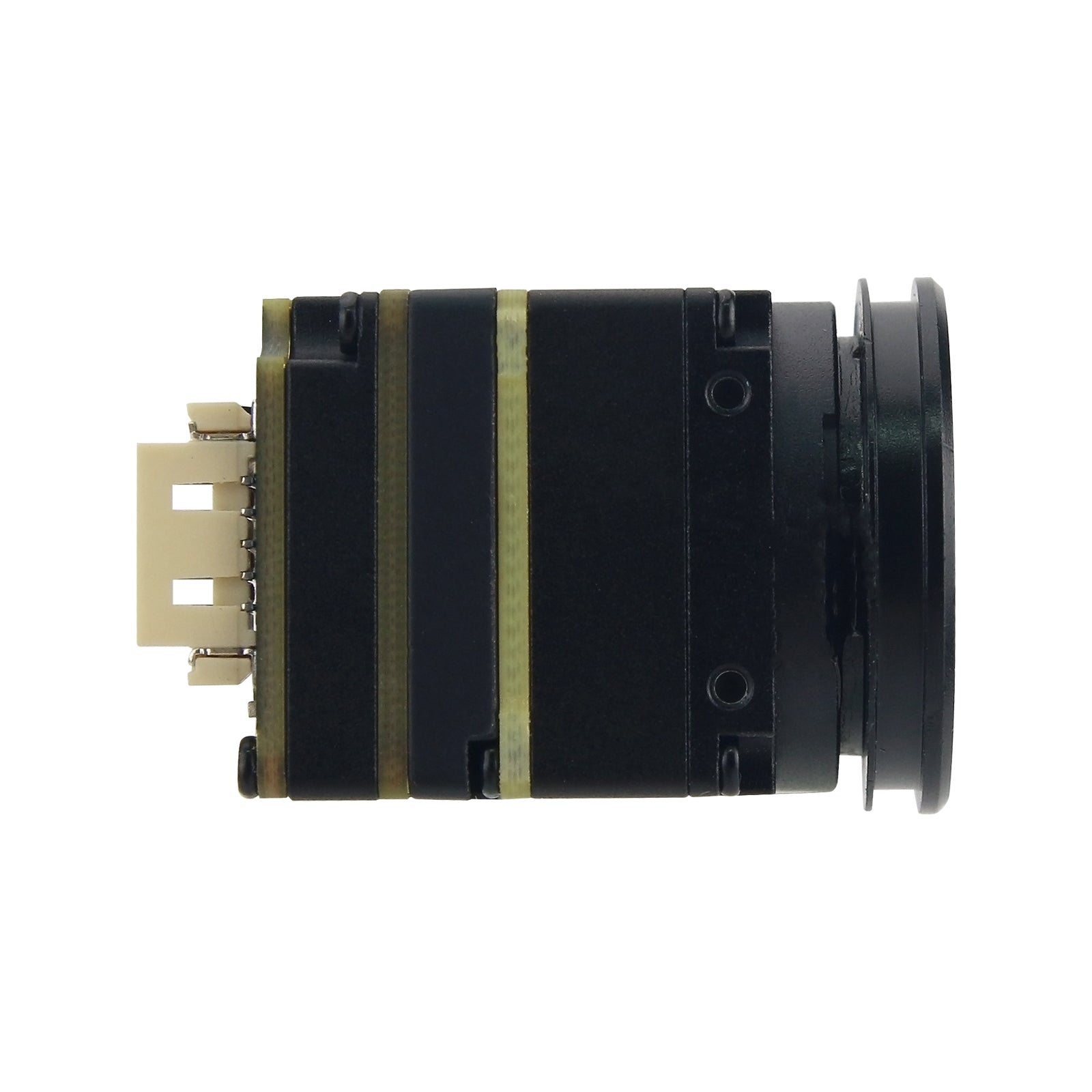

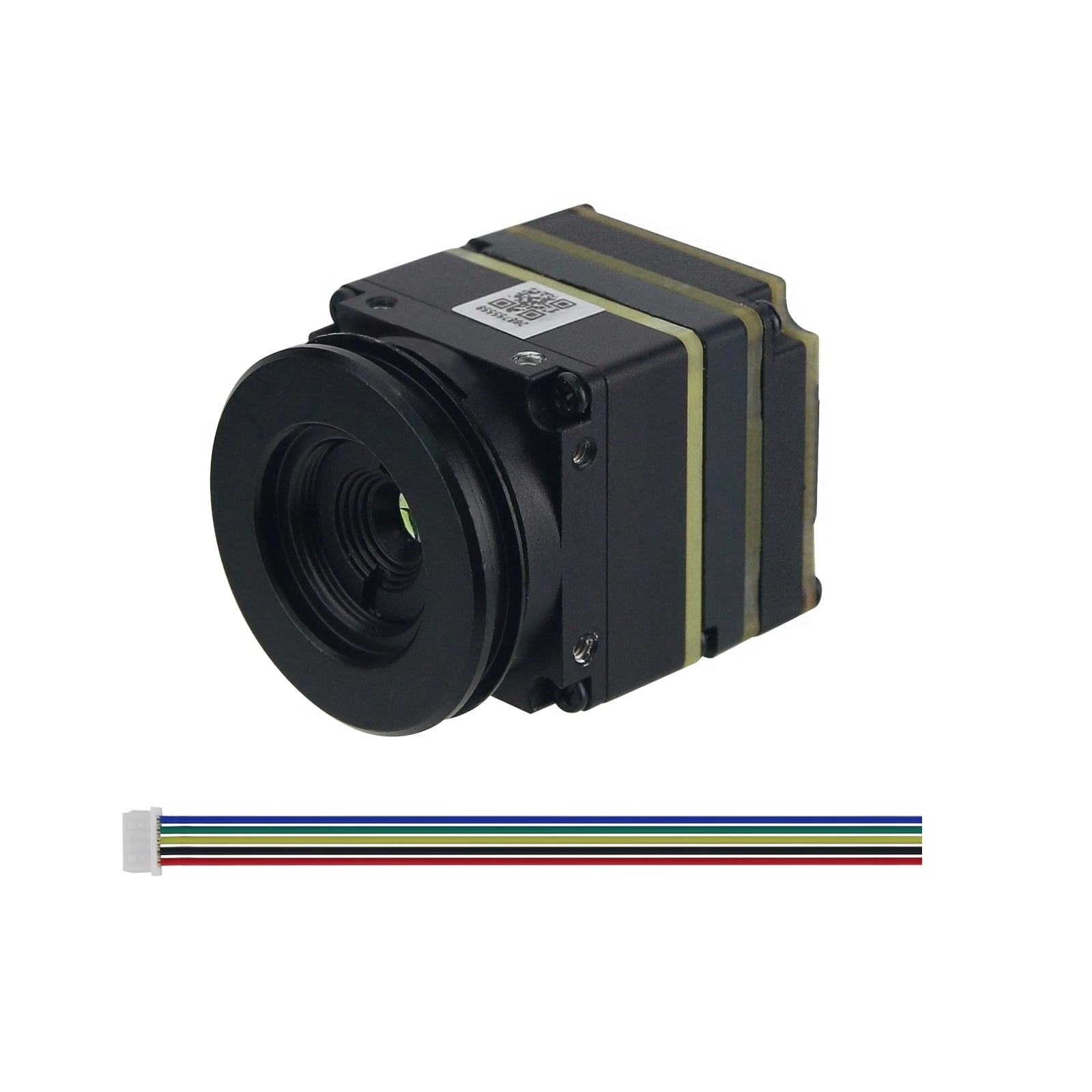

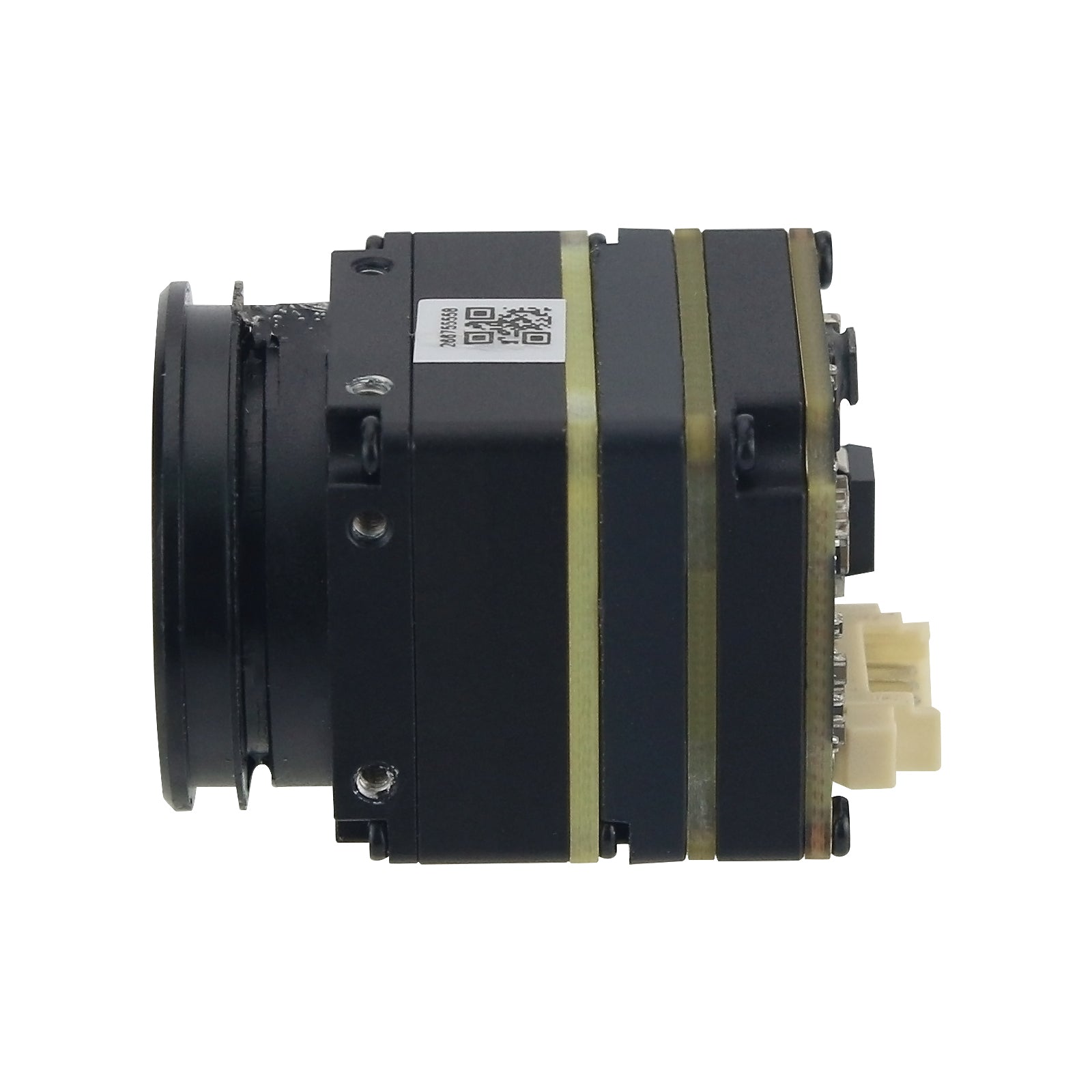

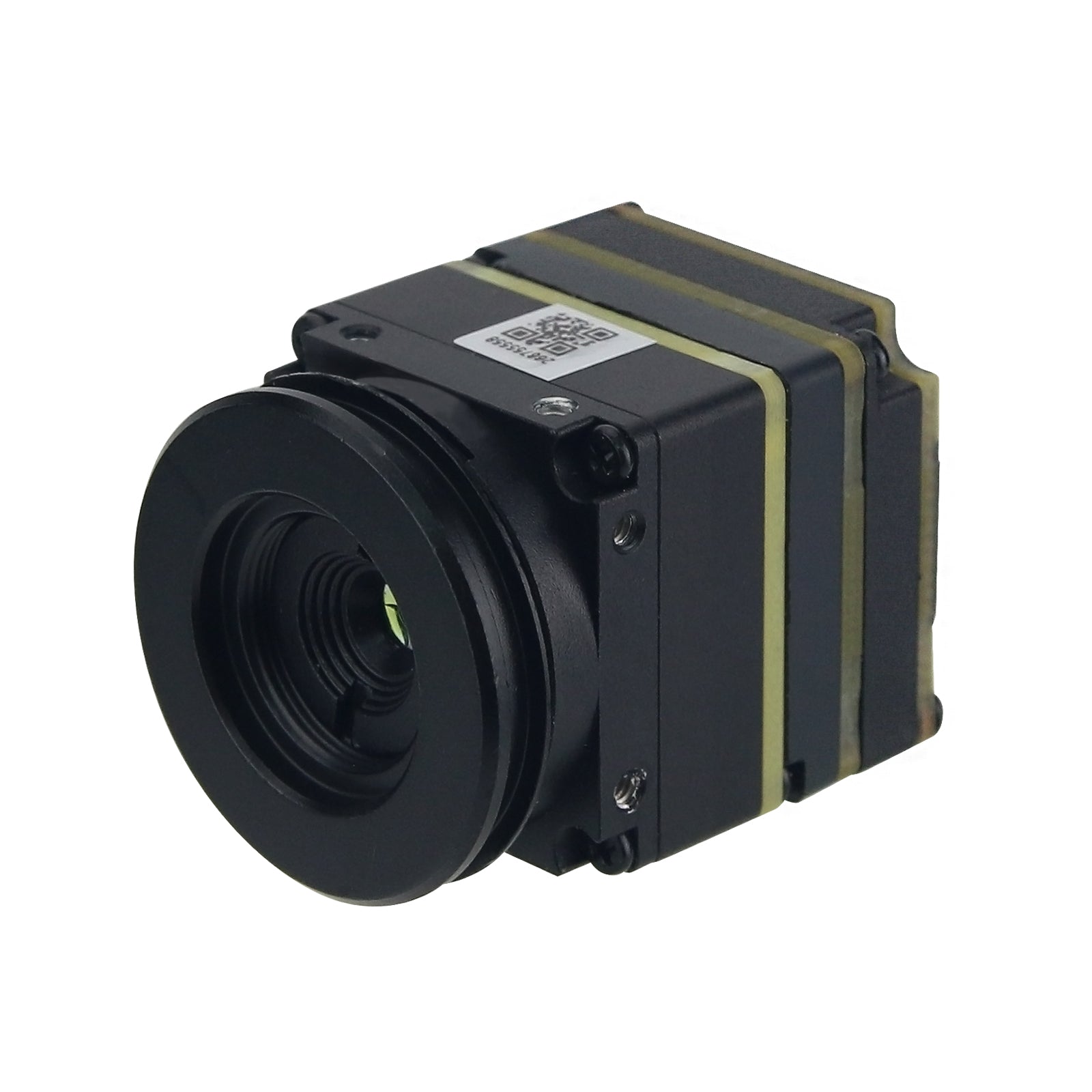

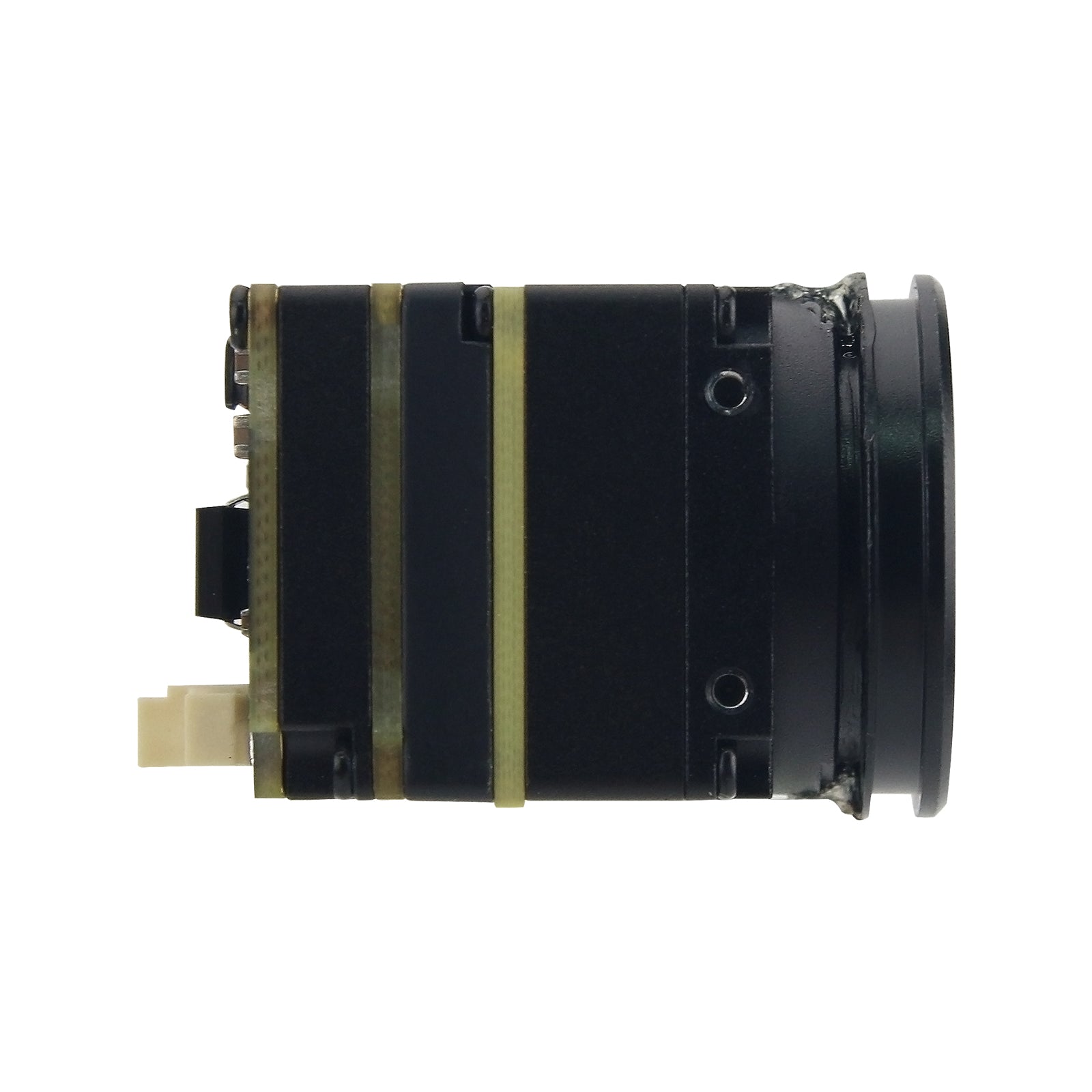

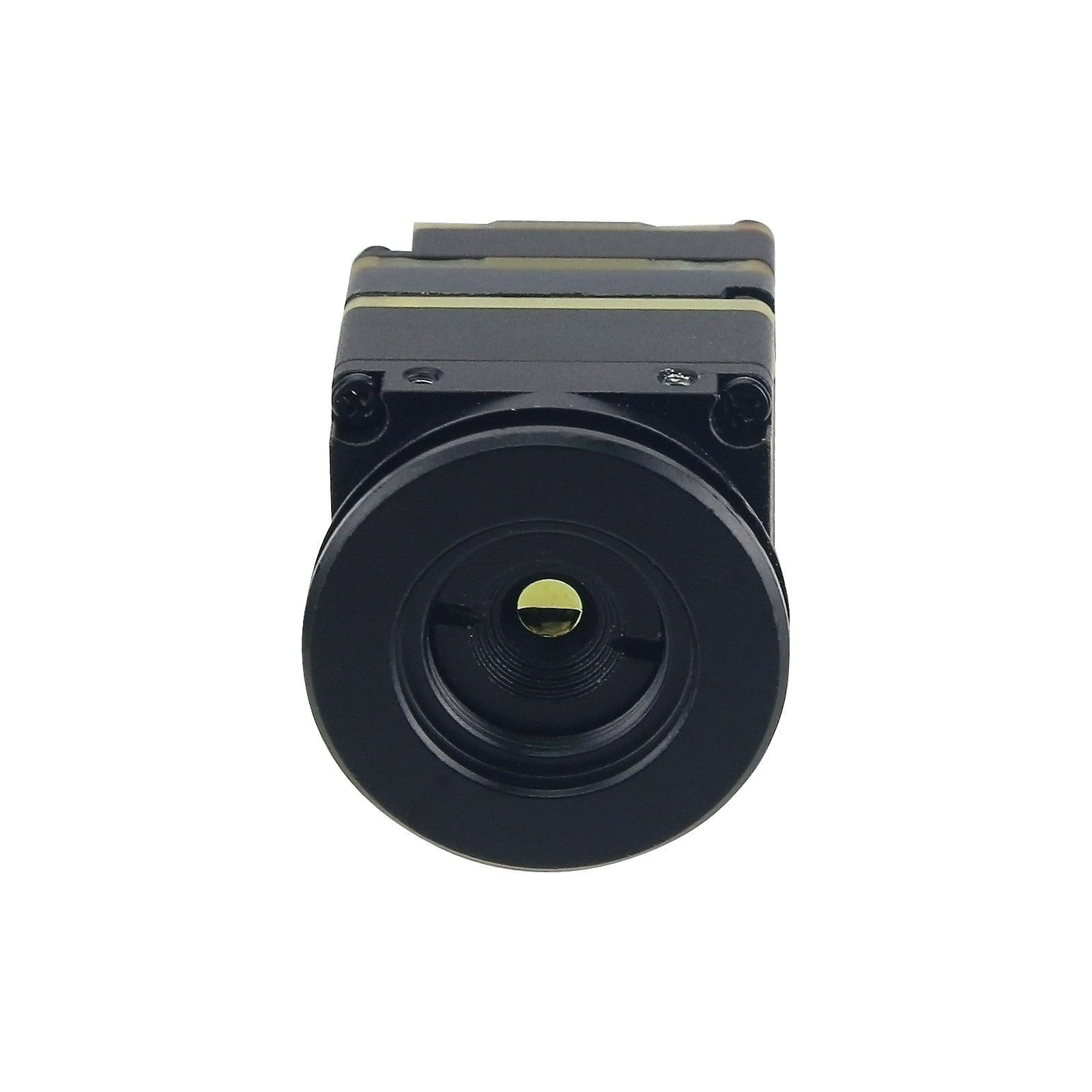

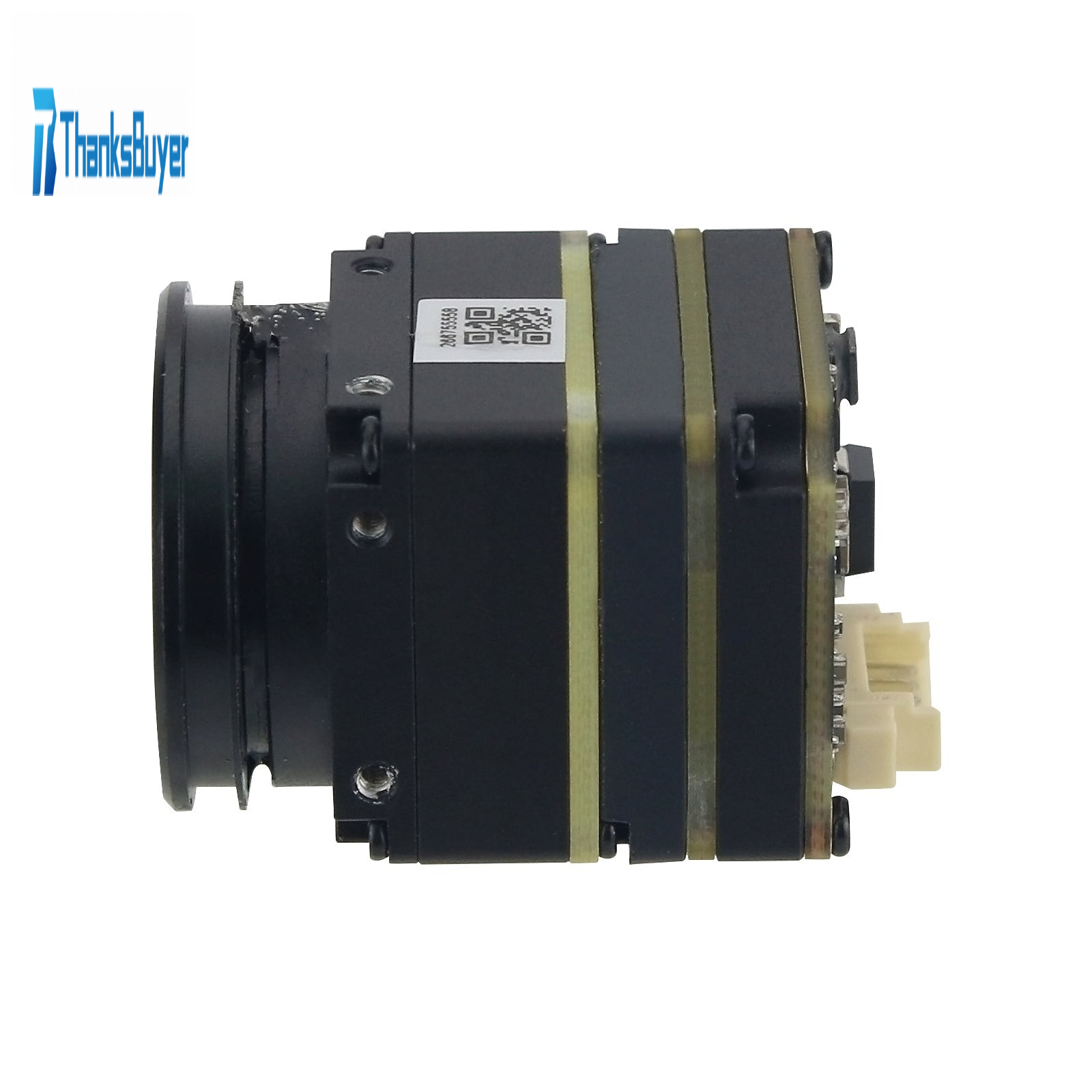

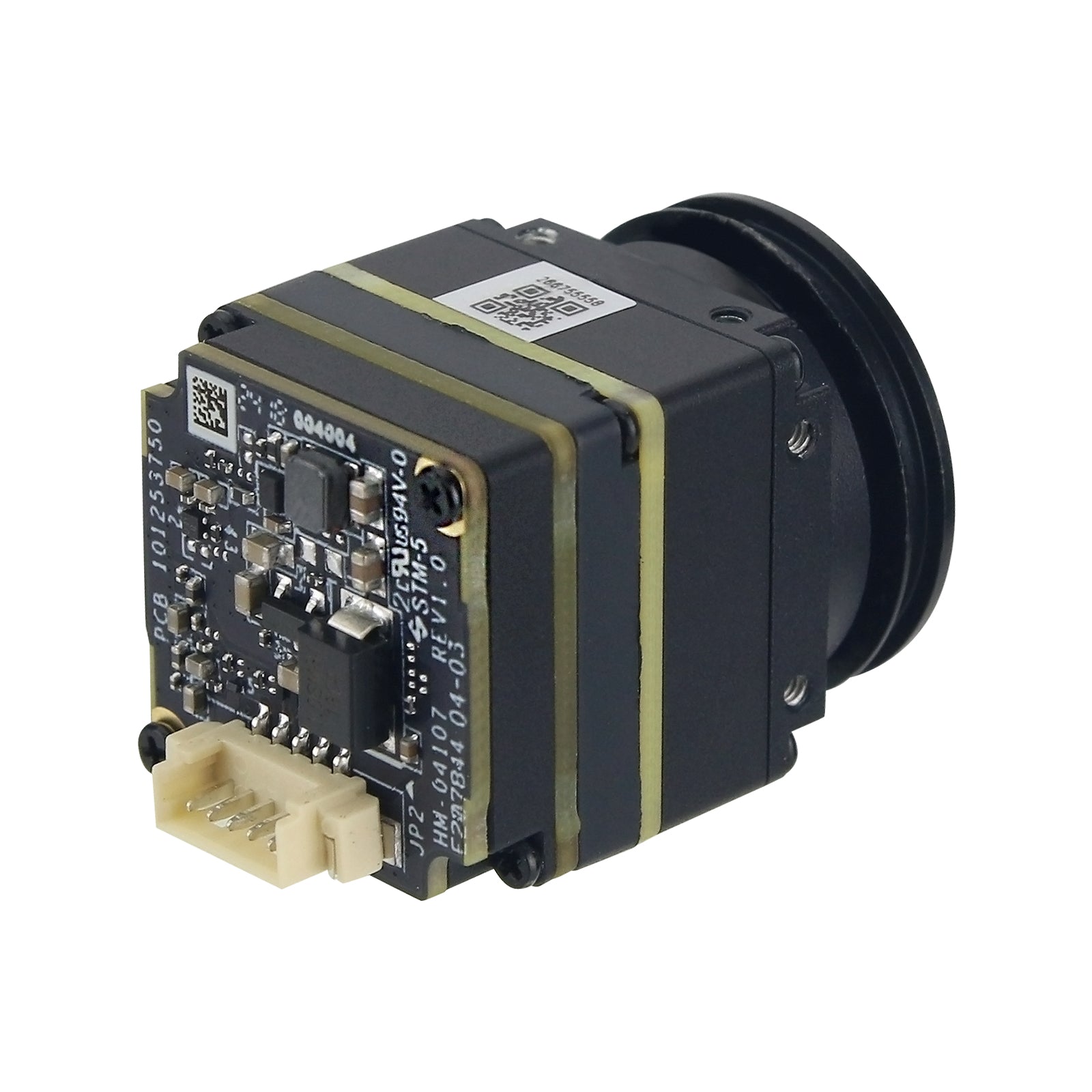

TZT 256X192 6.8MM Lens Thermal Imaging Camera Module for FPV Drones Thermal Imager with CVBS Interface

TZT 256X192 6.8MM Lens Thermal Imaging Camera Module for FPV Drones Thermal Imager with CVBS Interface

Specification:
- Resolution: 256 x 192
- Detector type: vanadium oxide uncooled infrared focal plane detector
- Effective frame rate: 25fps
- Pixel pitch: 12um
- NETD: 40mk
- Spectral band: 8 - 14um
- Lens parameters: 6.8mm F1.0
- FOV (HxV):
  6.8mm lens: 26°(H) x 20°(V)
- Polarity/palette: white heat, black heat, fusion, iron red, fusion
- Power supply input: 5V - 16V
- Power: ≤0.8W
- Output: CVBS
- Analog video: PAL
- Product size (without lens): 20mm x 20m
- Weight (without lens): ≤23g
- Operating temperature: -40℃ ~ 80℃
- Storage temperature: -45℃ ~ 85℃

Package Included:
- 1 x Thermal Imager
