USB-8476 OEM Data Acquisition Card DAQ 779794-01 LIN Interface for NI National Instruments

USB-8476 OEM Data Acquisition Card DAQ 779794-01 LIN Interface for NI National Instruments

Description:

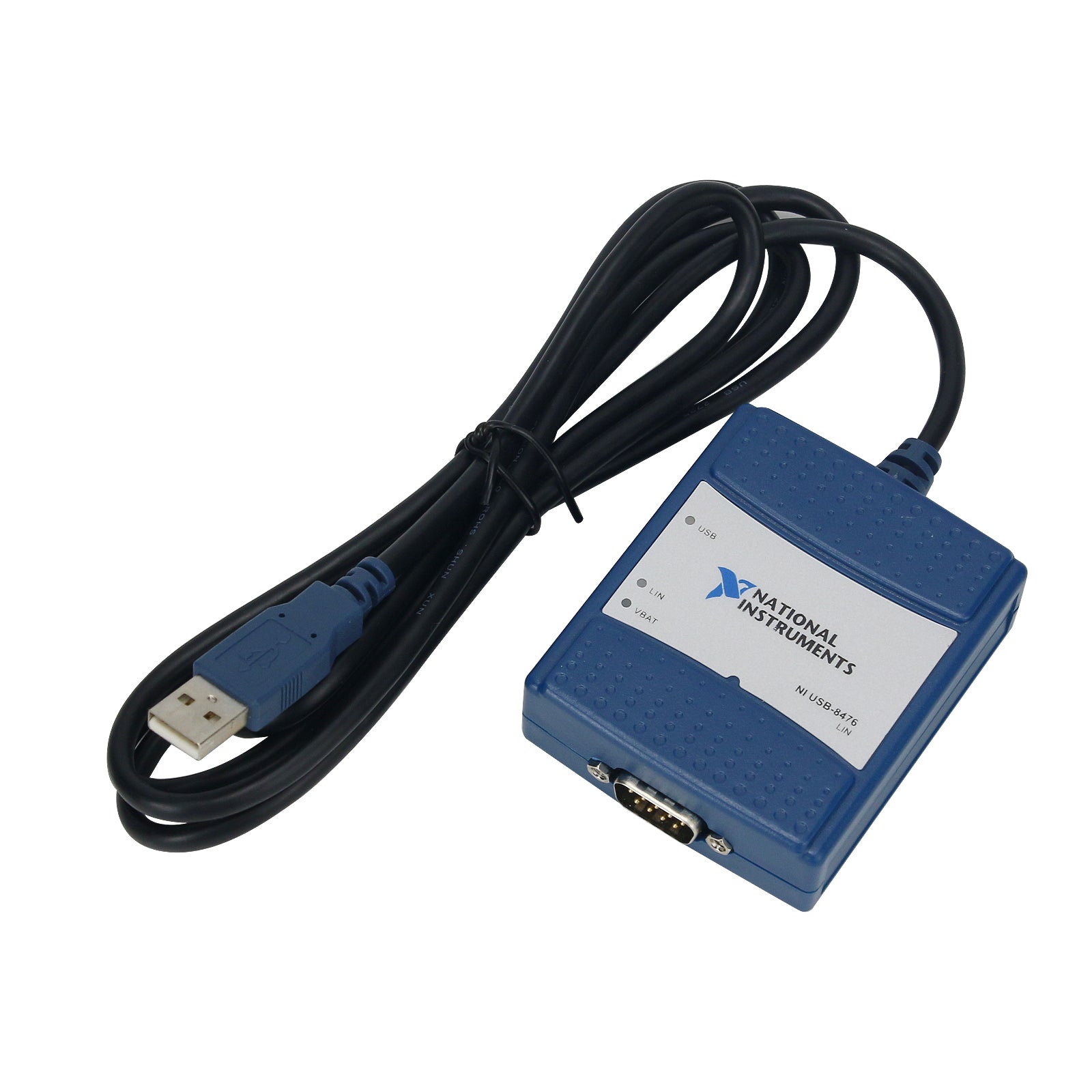

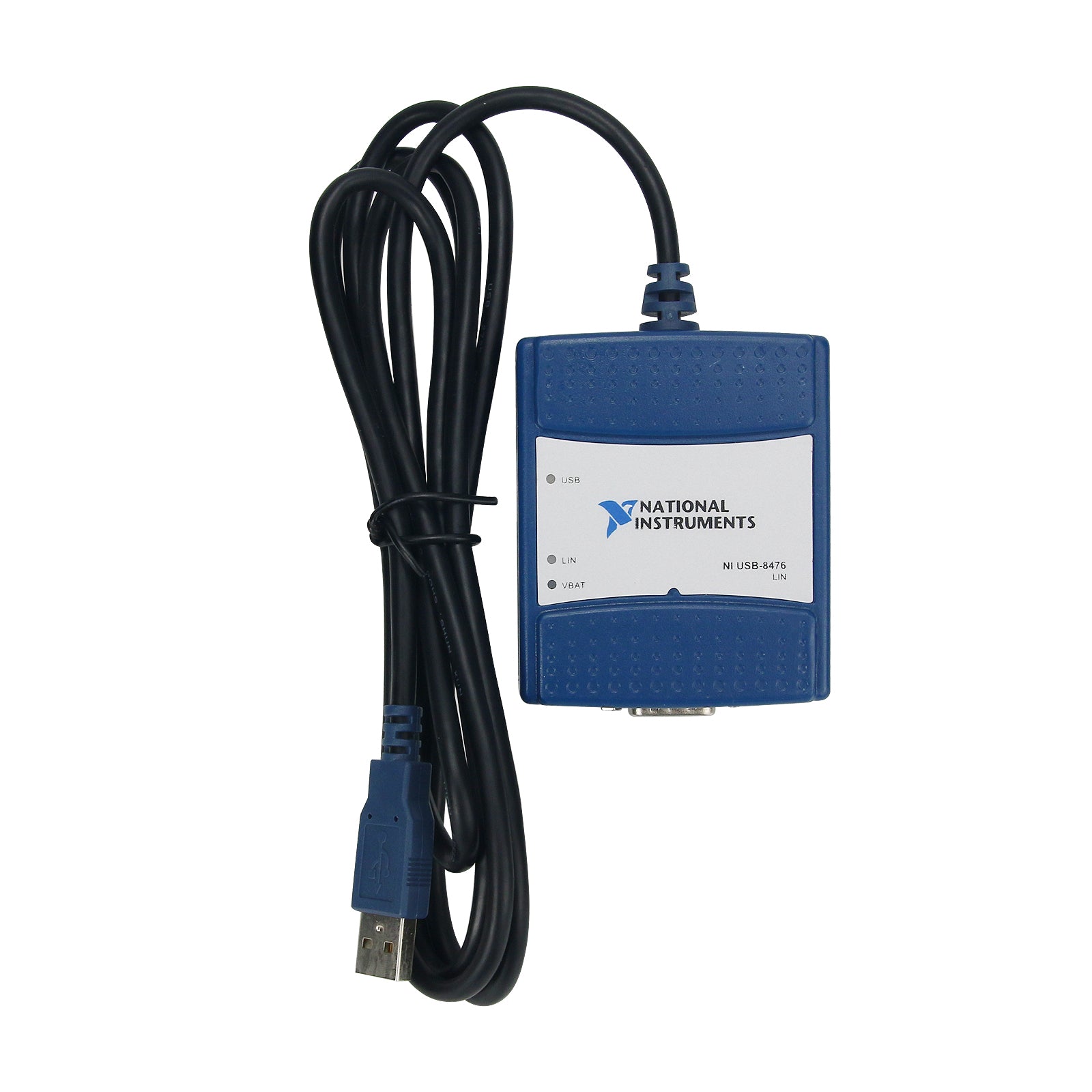

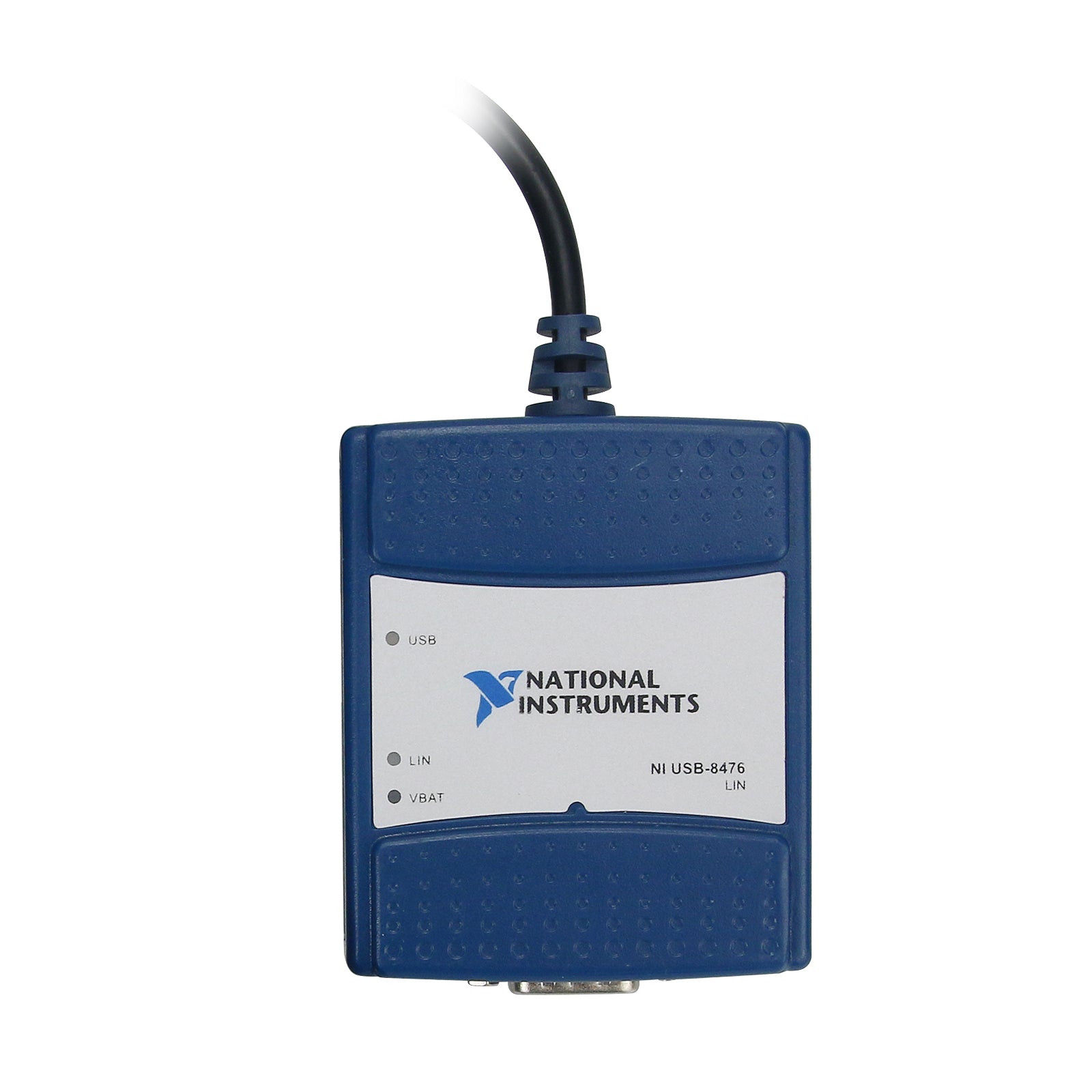

The USB-8476 module is a 1-port LIN Interface Device for connecting PCs to LIN networks and devices. It offers software-selectable, master/slave termination, so you can monitor, log, and test at all points of a LIN network. It includes driver software for NI-CAN that provides a powerful frame-based API for rapid application development.

Integrated Design
The convenient all-in-one design includes a 2m/6.6ft USB integrated cable and built-in transceiver to quickly run applications without additional cables or accessories. The USB-8476 controller is powered by USB. The LIN physical layer is powered by VBat (required for the LIN bus) and has a standard channel-to-bus isolation voltage of up to 500 VDC for up to 2 seconds.

Hardware Time Stamp

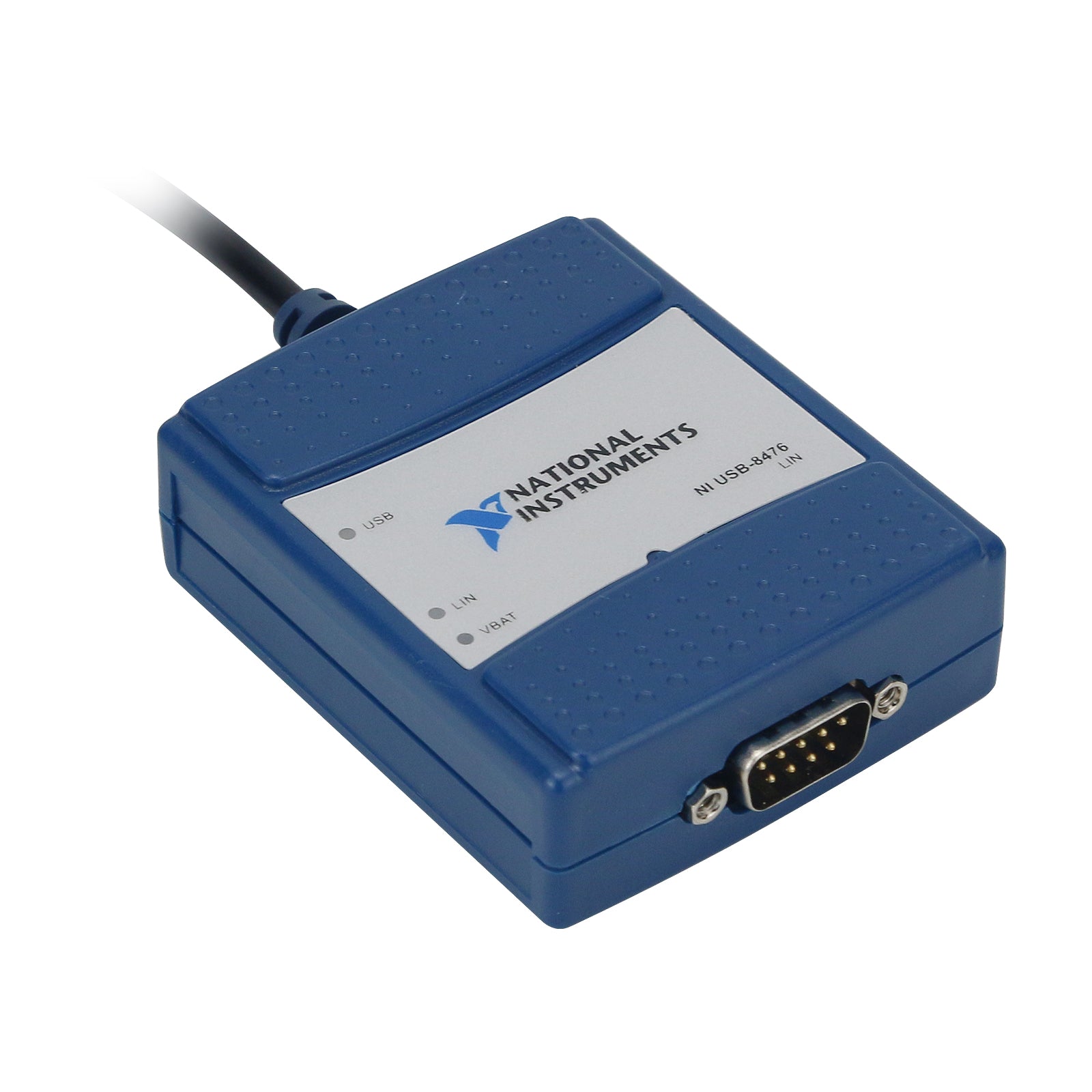

Hardware time stamping helps users record information down to microsecond time stamps and reconstruct network events. The USB-8476 interface connects to the LIN via a 9-pin male D-Sub (DB9) connector.

Functions:
The ATA6620 LIN transceiver for Atmel for the USB-8476 provides functionality and protection for LIN networks, including:
- Sleep and silent modes
- Transient voltage protection (-150 V to 100 V)
- LIN bus high DC voltage (-40 to 60 V)
- Thermal protection

Features:
- USB-8476 has 1 port, LIN, and USB interface
- Compatible with Hi-Speed USB; Bus Powered
- Compatible with LIN 1.3, 2.0 and J2602
- Software selectable master/slave terminal
- ATA6620 LIN transceiver for Atmel
- Hardware time stamping: 1μs read resolution
- Record bus load at 20kb/s without dropping frames

Package Included:
- 1 x Data Acquisition Card

Note:
- It is a non-original product, made in China by a subsidiary factory.
