  3. uTH20V3A SSMU 5uA-500mA Constant Current Source 0.1uA-3A 20V 30W Precision Power Monitor
От Thanksbuyer Online,SDR Radio, Testers and Measurement devices, Astronomy products, Audio Amplifer and Decoders

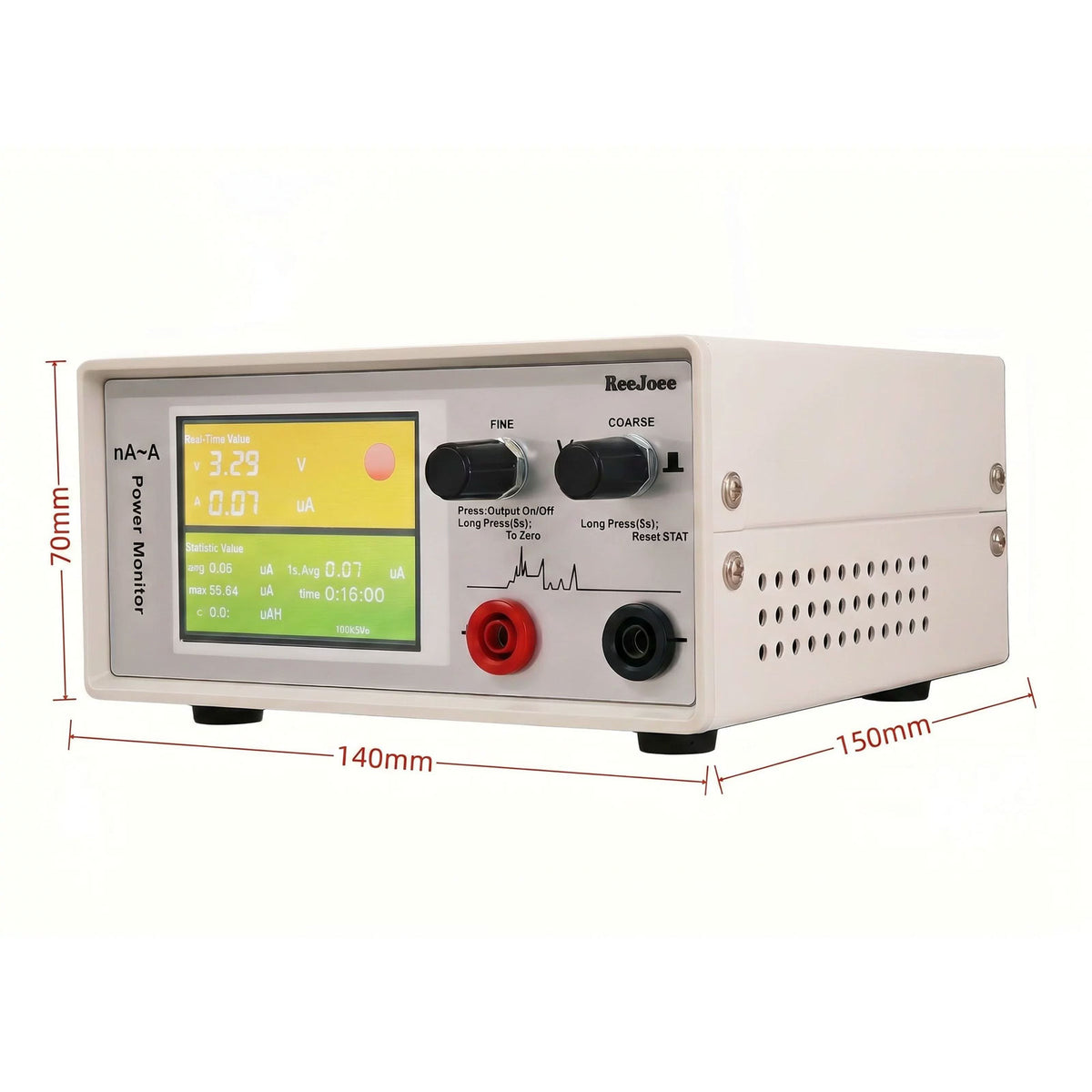

uTH20V3A SSMU 5uA-500mA Constant Current Source 0.1uA-3A 20V 30W Precision Power Monitor

$408.74
$408.74
Сумма налога включена. Стоимость доставки рассчитывается при оформлении заказа.
Availability: В наличии: 2000
SKU: 105923
Tags:
$408.74
$408.74

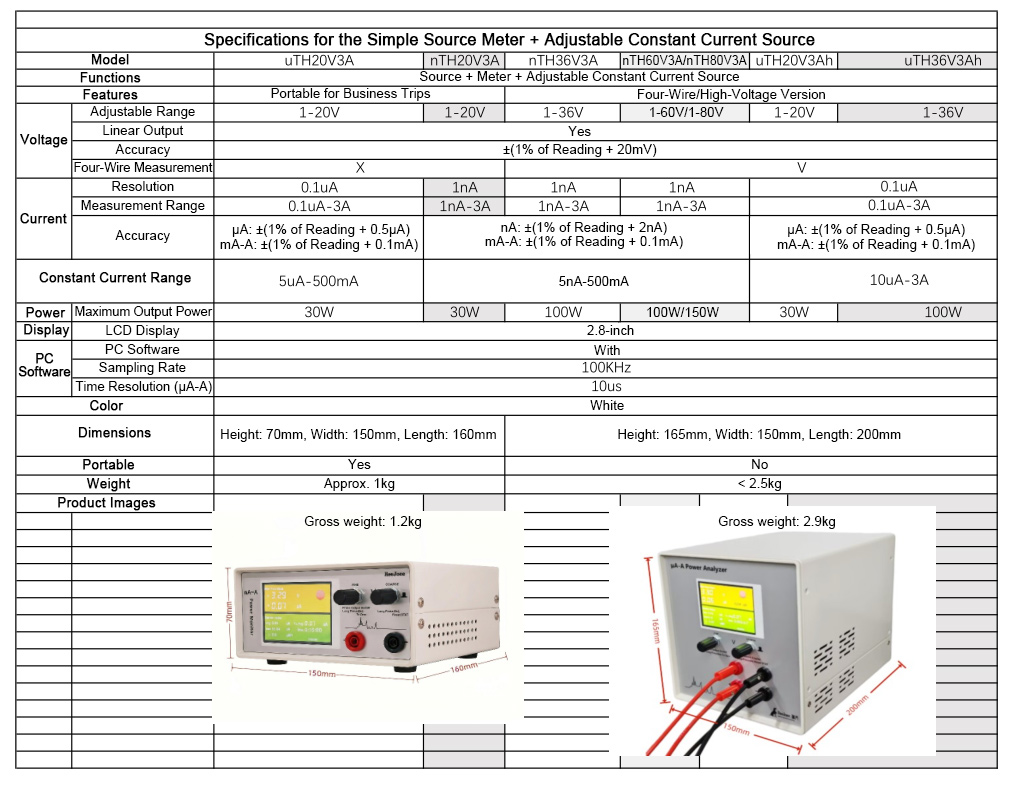

Available Models and Configurations:
* Option 1: uTH20V3A SSMU 5uA-500mA Constant Current Source 0.1uA-3A 20V 30W Precision Power Monitor
* Option 2: uTH20V3Ah SSMU 10uA-3A Constant Current Source 0.1uA-3A 20V 30W Precision Power Analyzer
* Option 3: nTH20V3A SSMU 5nA-500mA Constant Current Source 1nA-3A 20V 30W Precision Power Monitor
* Option 4: nTH36V3A SSMU 5nA-500mA Constant Current Source 1nA-3A 36V 100W Precision Power Analyzer
* Option 5: nTH60V3A SSMU 5nA-500mA Constant Current Source 1nA-3A 60V 100W Precision Power Analyzer
* Option 6: nTH80V3A SSMU 5nA-500mA Constant Current Source 1nA-3A 80V 150W Precision Power Analyzer

SSMU (Simple Source + Meter Unit):
1. Basic Functions:

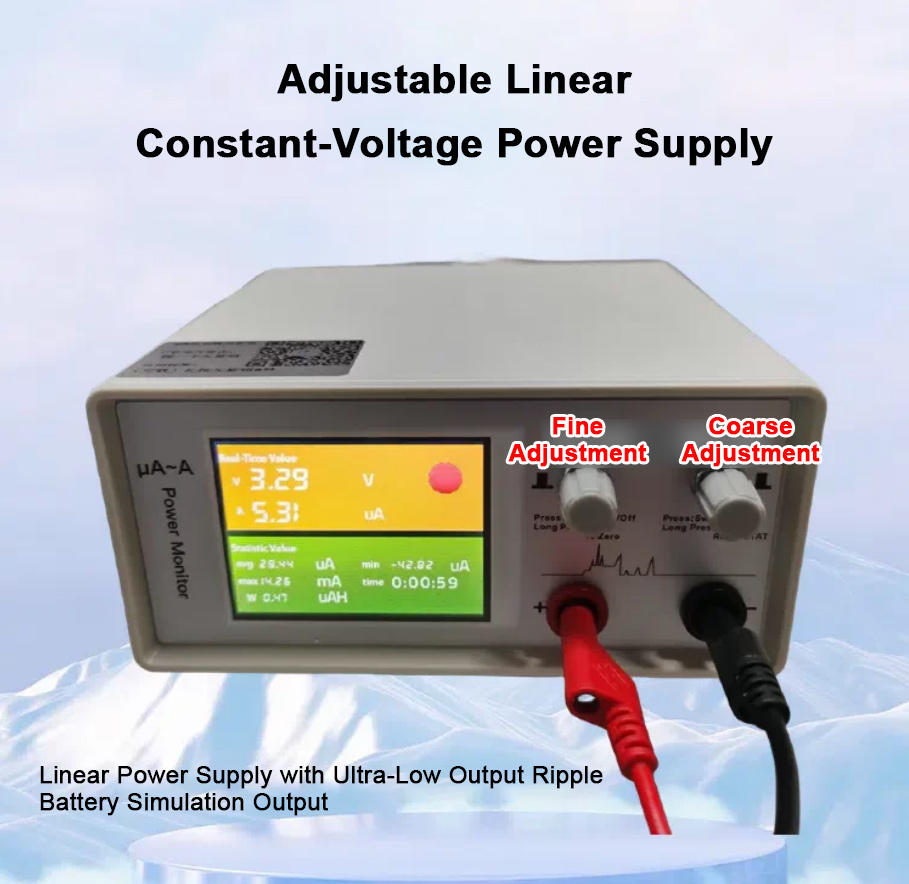

* Linear Power Supply (Source Mode): Adjustable linear constant-current source with ultra-low output ripple.

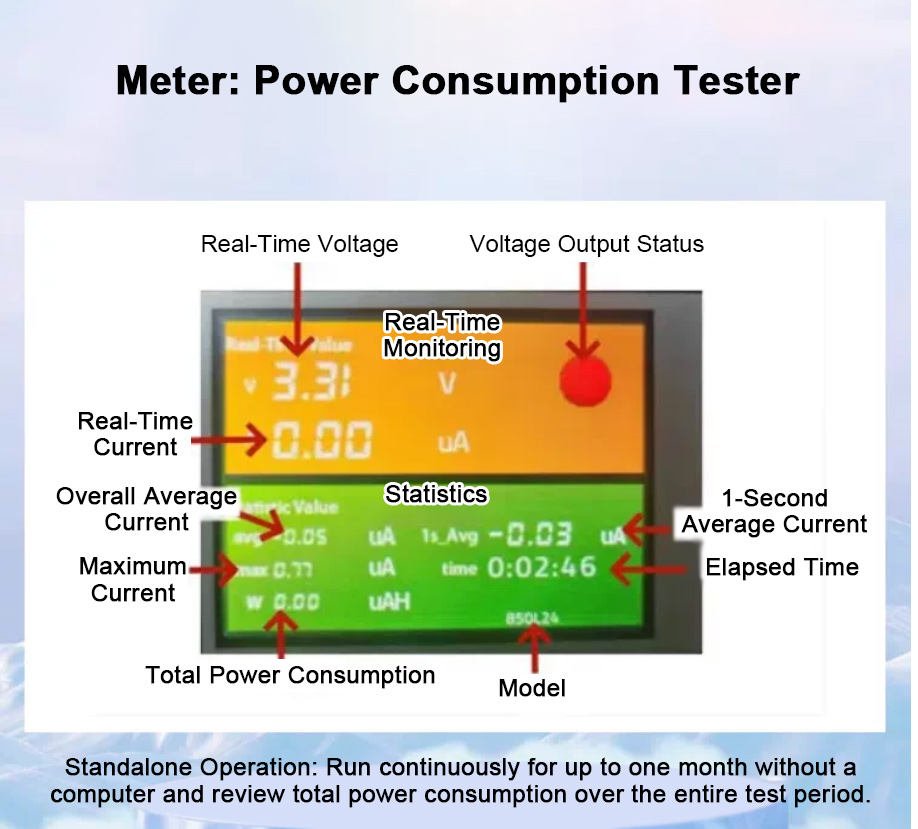

* Low-Power Testing (Meter Mode): Real-time current monitoring, average current measurement, and power consumption statistics.
* Standalone Operation: Built-in display allows independent operation without requiring a computer.

2. Optional Functions:

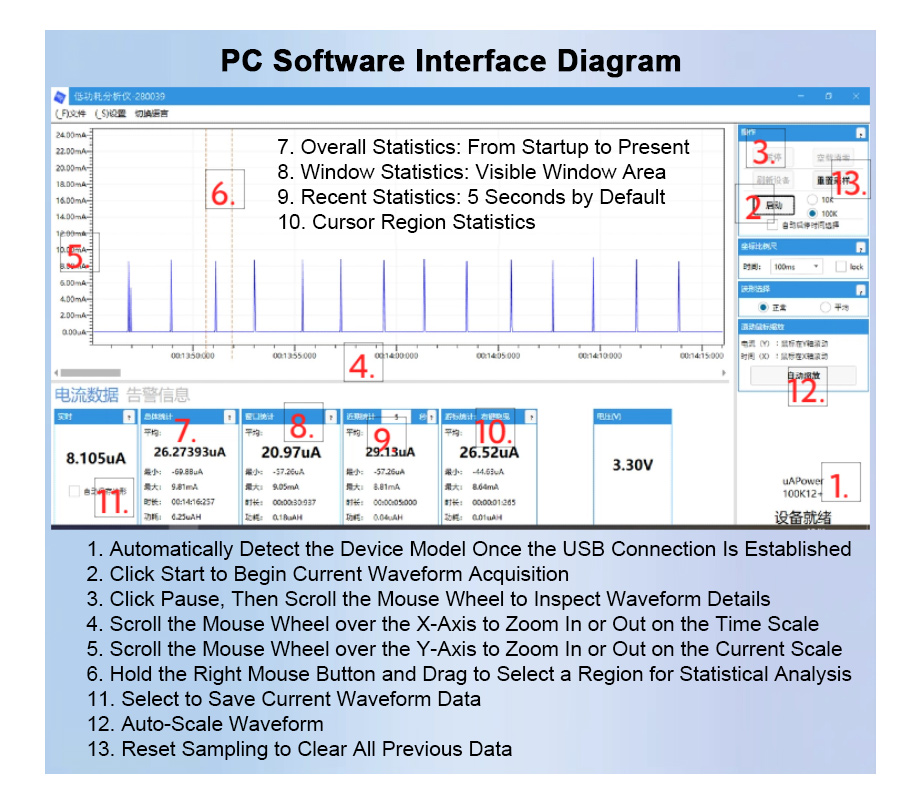

* Waveform Analysis: Professional current waveform analysis software for detailed current behavior analysis.
* Ammeter Mode: Supports external loads powered by a real battery for current measurement.

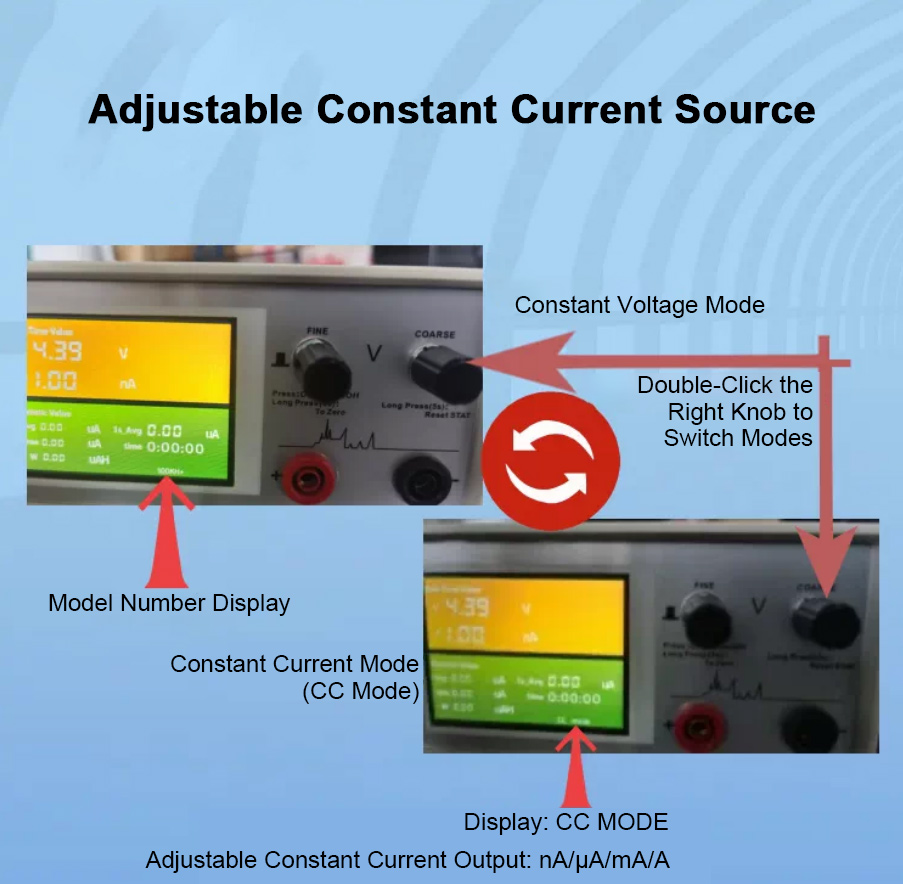

* Constant Current Source: Adjustable constant-current output with a wide range from 10nA to A.
* Battery Simulator: Bidirectional power supply for simulating battery discharge and charging behavior.
* Battery Capacity Testing: Constant-current and constant-voltage (CC/CV) charging and discharging for battery capacity testing.
* mW-Level MPPT Testing: Measures maximum power point tracking (MPPT) performance at the milliwatt power level.

Features:

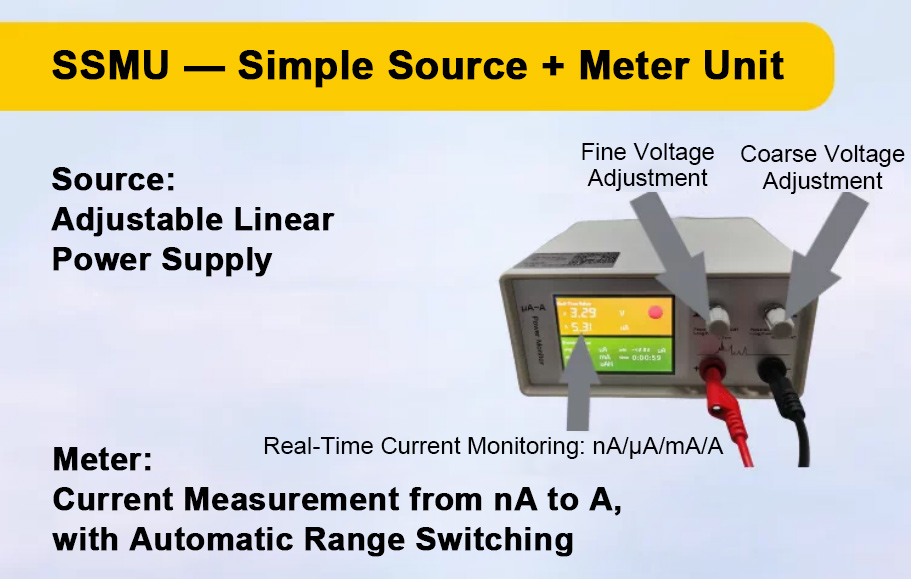

SSMU — Simple Source + Meter Unit
* Source: Adjustable Linear Power Supply
* Meter: Current Measurement from nA to A and µA to A, with Automatic Range Switching

More Than a Source Meter — Long-Term Power Consumption Monitoring
* Standalone Operation: Operates without a computer and supports continuous monitoring for up to one month, allowing you to review overall power consumption over the entire test period.

More Innovations Coming Soon
* Enjoy Using the Source Meter
* Affordable Price
* Portable for Business Trips
* Simple and Easy to Use
* Suitable for Mobile and Outdoor Use in Various Environments

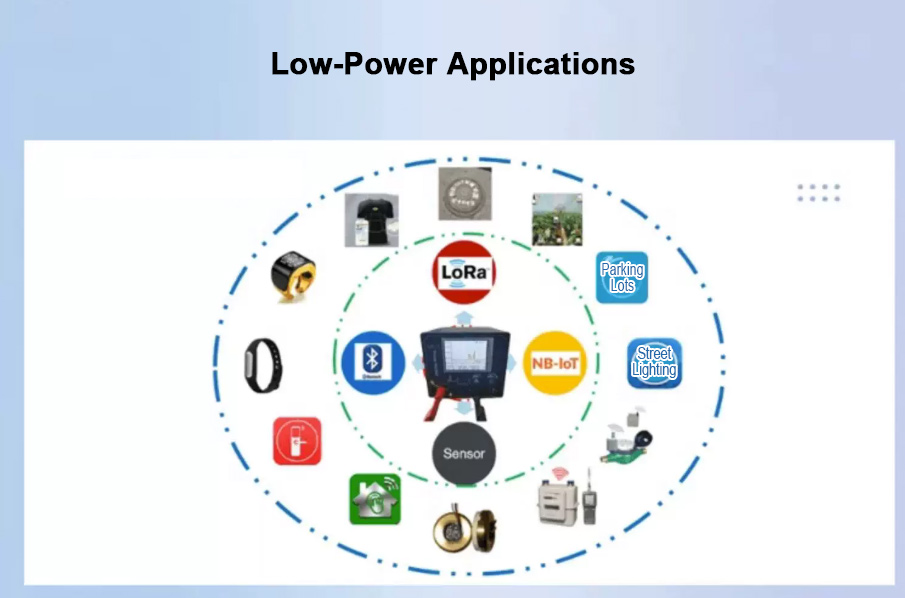

Low-Power Applications
* LoRa
* Bluetooth
* NB-IoT
* Sensors
* Others

Packing List:
* 1 x Source Measure Unit

Note:
* Fully compatible with Windows 10. Ready to use in just 1 minute. Windows 7 requires installation of the .NET Framework and drivers, which can be a bit complicated. We strongly recommend using the PC software on Windows 10.
* Batteries are not included in the package.
