VG820 HDMI-compatible2.0 Signal Generator & Analyzer 18Gbps with 7-inch Touch Screen Support HDCP/SCDC/HDR Testing

VG820 HDMI-compatible2.0 Signal Generator & Analyzer 18Gbps with 7-inch Touch Screen Support HDCP/SCDC/HDR Testing

Introduction:
- VG820 is a signal testing analyzer with a maximum bandwidth transmission of 18Gbps per port, supporting up to 4Kx2kp60Hz. It comes with rich format outputs and test image cards, and also supports testing functions such as HDCP, SCDC, HDR, etc.
- VG820 supports a wide color gamut color space and can output various timing sequences within the EIACEA-861-F standard range. It can set YCbCr4:4:4, 4:2:2, and 4:2:0 chromaticity sampling formats.

Features:
- Built-in 200(+) kinds of resolution, the maximum support 4096x2160P60.
- Built-in 50(+) kinds of test pattern, support custom bitmap pattern.
- Built-in 8-channel LPCM sine wave generator, bit-width and sampling rate adjustable.
- Built-in EDID read/write and analysis, support EDID data USB import and export.
- Support for HDCP1.4 and HDCP2.3 test and analysis.
- Support for SCDC read and write, and InfoFrame display analysis.

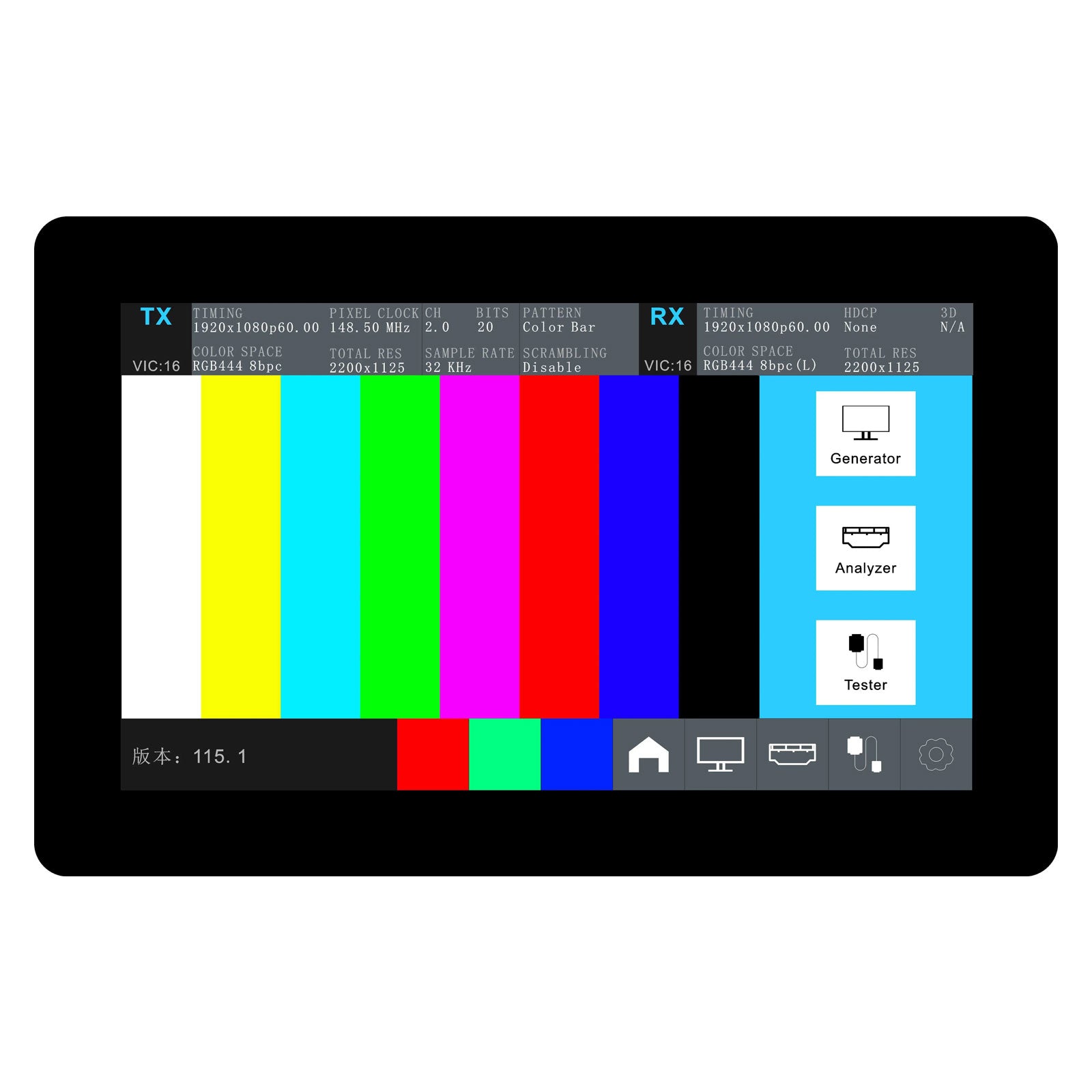

- 7-inch full-colour high-brightness touch screen, full-screen display of the incoming video.

Package Included:
- 1 x VG820 Analyzer
