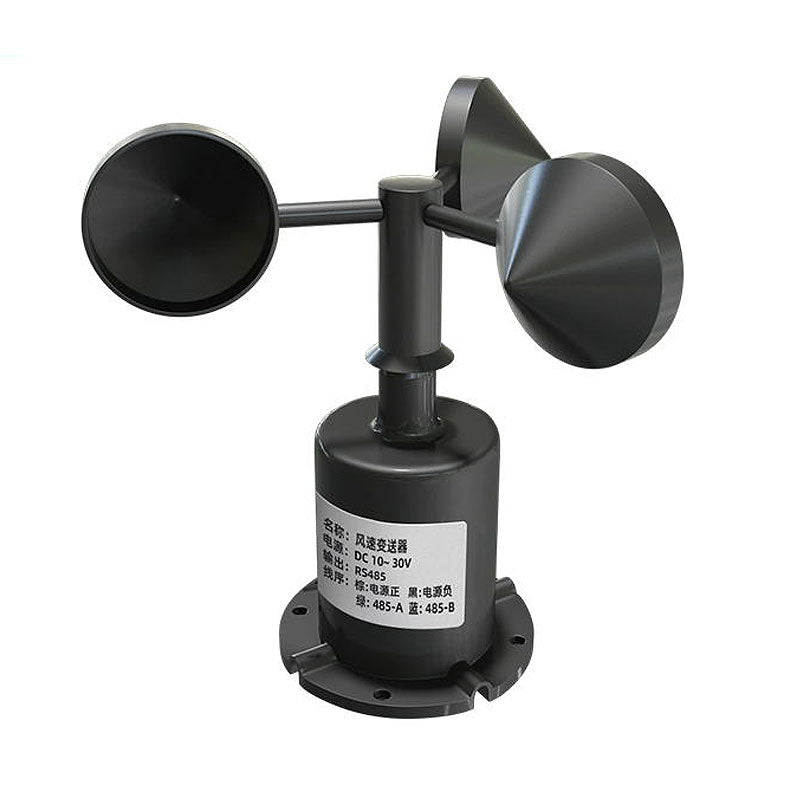

Wind Speed Sensor Wind Speed Anemometer with RS485 Output Applied to Construction Site Tower Cranes

Wind Speed Sensor Wind Speed Anemometer with RS485 Output Applied to Construction Site Tower Cranes

Features:
- Wind speed sensor: anti-corrosion, anti-weathering and anti-electromagnetic interference.
- It can be connected to external display instrument. Highlight readings are clearly visible and detection values are displayed in real time.
- Polycarbonate shell: Made of polycarbonate, it is small in volume to reduce friction and increase sensitivity for more accurate measurements. Polycarbonate is resistant to acids, alkalis and oxidation resistance. This greatly extending the service life of the product.
- Bearing cap: The bearing cap brim makes it waterproof and rainproof and enables higher protection level and stable working performance.
- Flange base: It is mounted with flanges. The base has four 6mm diameter mounting holes that use bolts to secure the anemometer to a bracket. The flange connection makes it easy to use and can withstand high pressure.
- Application: It is suitable for the measurement of wind speed in the field of construction machinery (cranes, crawler cranes, gantry cranes, tower cranes, etc.), terminals and ports, meteorological environment, greenhouses, animal husbandry, smart agriculture, etc.It can output response signals to help you solve problems.

Specifications:
- Output type: RS485
- DC power supply (default): 10~30V DC
- Accuracy: ±(0.2+0.03V)m/s. V represents wind speed (60%RH and 25°C)
- Measuring range: 0~60m/s
- Resolution: 0.1m/s
- Working environment of transmitter circuit: -40°C to +70°C and 0%RH~80%RH
- Dynamic response time: ≤2S
- Output signal: RS485 (Modbus-RTU protocol)
- Parameter settings: Configure parameters through the RS485 interface with the provided configuration software

Package Included:
- 1 x Wind Speed Sensor

Note:
- Side and bottom cable outlets are supported.
