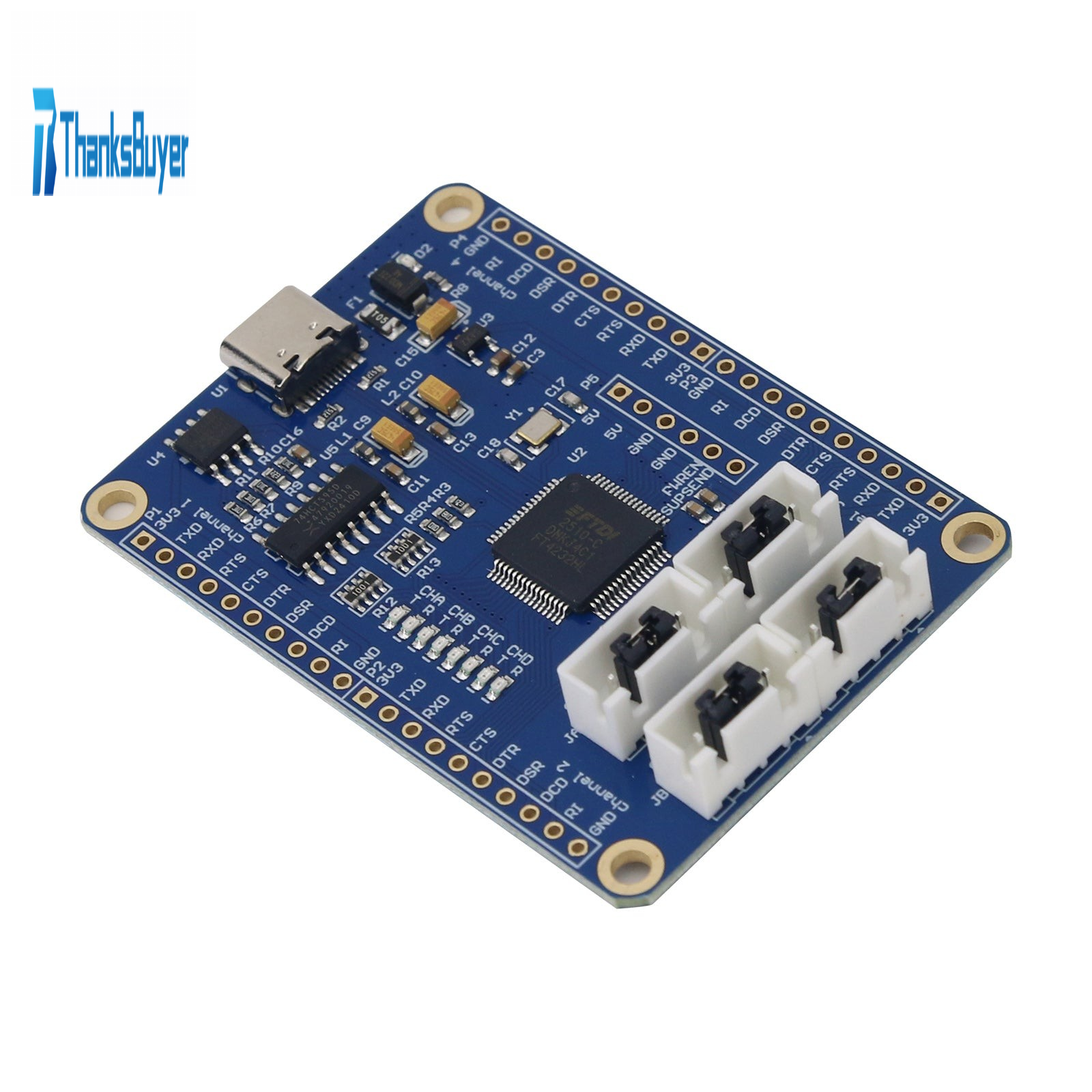

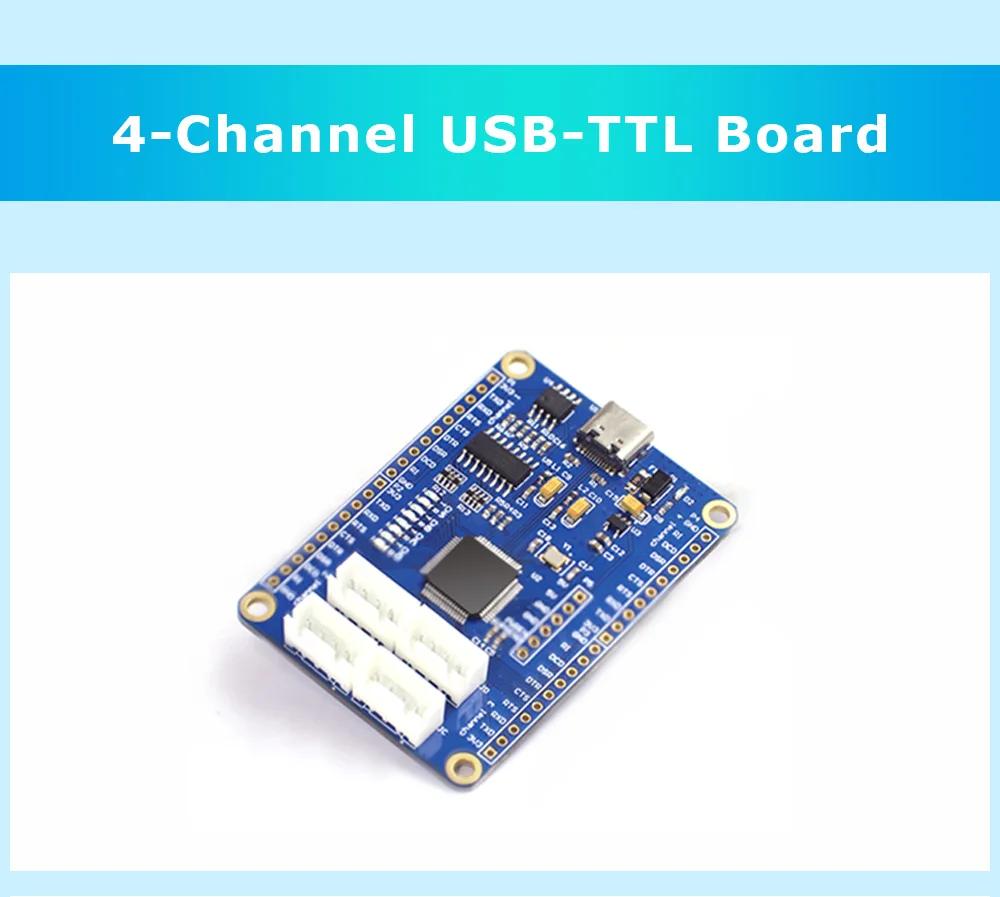

WitMotion USB to 4-Channel TTL Serial Port Adapter Board FT4232HL Multi-channel USB-TTL Module 5V

WitMotion USB to 4-Channel TTL Serial Port Adapter Board FT4232HL Multi-channel USB-TTL Module 5V

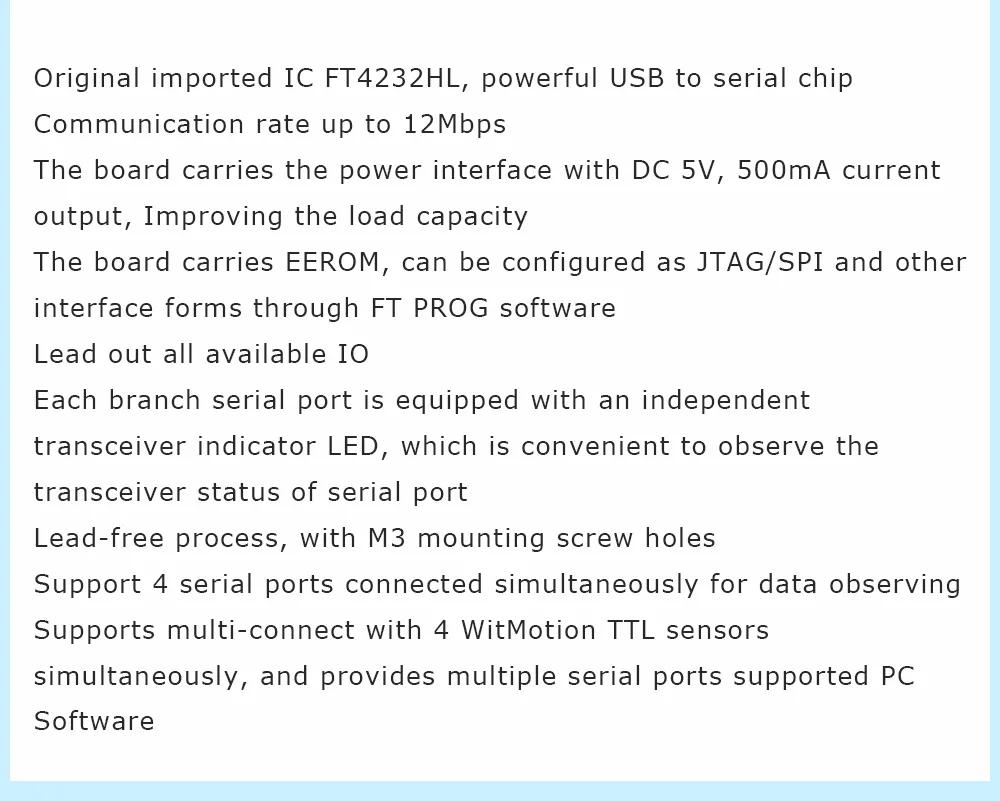

Features:
- Carefully optimize the circuit, use materials generously, and achieve a communication speed of up to 12Mbps to meet your demanding needs.
- TTL is compatible with 5V levels.
- On board DC 5V power interface, 500MA current output, improving load capacity.
- All available IOs are exported.
- Each serial port is equipped with independent sending and receiving indicator LEDs, making it easy to observe the status of the serial port's sending and receiving.
- Immersion gold PCB, lead-free process, with M3 mounting screw holes.
- Four serial ports are connected simultaneously, allowing for simultaneous observation of data.

Specification:
- Power supply voltage: 5V
- Current: 500mA
- Baud rate: 1200 - 921600
- Transmission speed: 12MBPS
- Operating temperature: -40 ~ 85℃

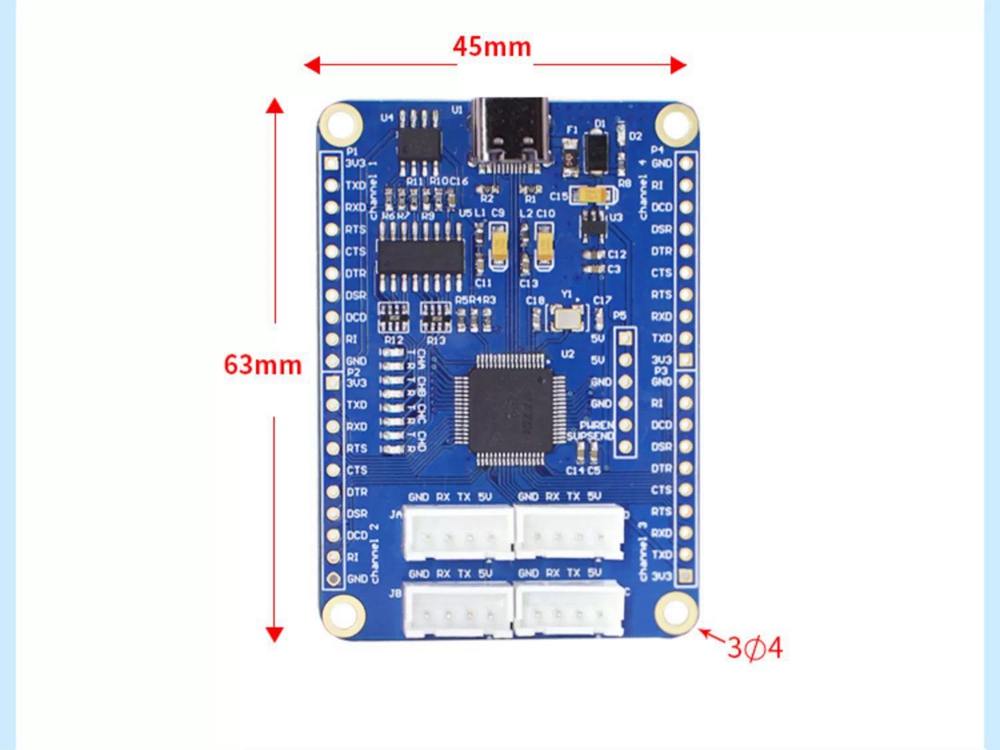

- Module size: 63 x 43 x 11.24mm

Package Included:
- 1 x USB to TTL Module
