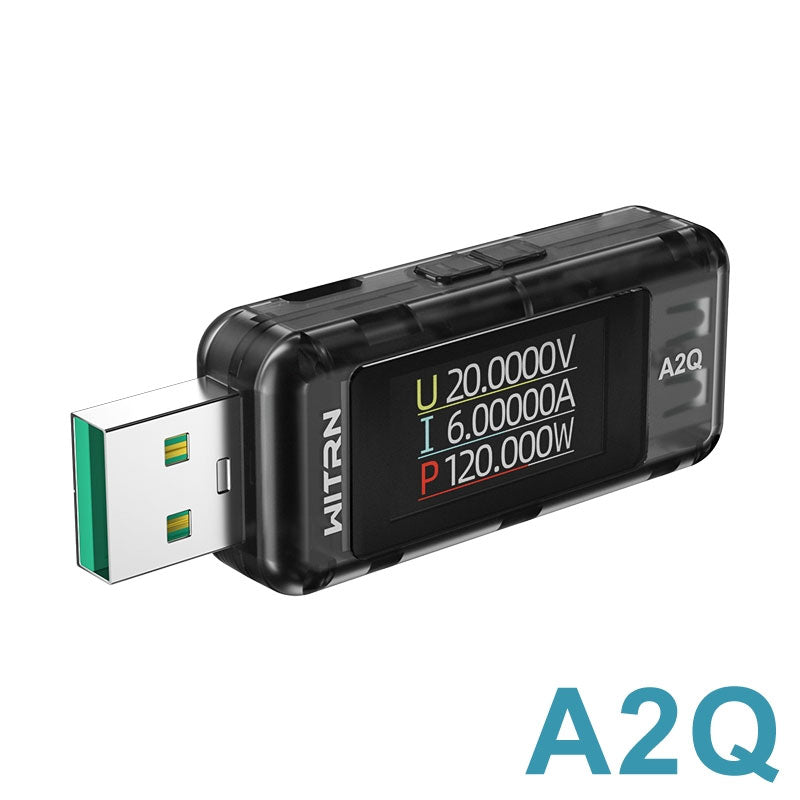

WITRN A2Q Transparent Black USB Voltmeter and Ammeter Tester 8A 120W Mobile Phone Charging Detector

WITRN A2Q Transparent Black USB Voltmeter and Ammeter Tester 8A 120W Mobile Phone Charging Detector

Features:
- ARM M4 CPU
- False fast charge protocol detection
- 2MHz Ripple Detection
- Ripple frequency curve
- 5P straight through 120W

Parameter:
- Model: A2Q
- Input current: 6A (unidirectional current)
- Voltage: DC4~24V
- Voltage resolution: 0.01V
- Current resolution: 0.01A
- Ampere time capacity: 0~99999AH
- Ampere time resolution: 0.0001AH
- Power on time: 100 hours
- Display screen: 0.96inch IPS
- Dimension: 47.2 x 21 x 12.2mm
- USB input interface: USB - A Male input 5 contactor
- USB output interface: USB - A Female input 5 contactor (support 6A output)
- Storage: EEPROM
- Voltage accuracy: Range 1%±nd
- Watt hour capacity: 0~99999WH
- Watt hour resolution: 0.0001WH
- Charging time: about 100 hours
- Resolution: 160 x 80
- Weight: 12g
- Static power consumption: <30mA

Package Included:
- 1 x A2Q Tester
