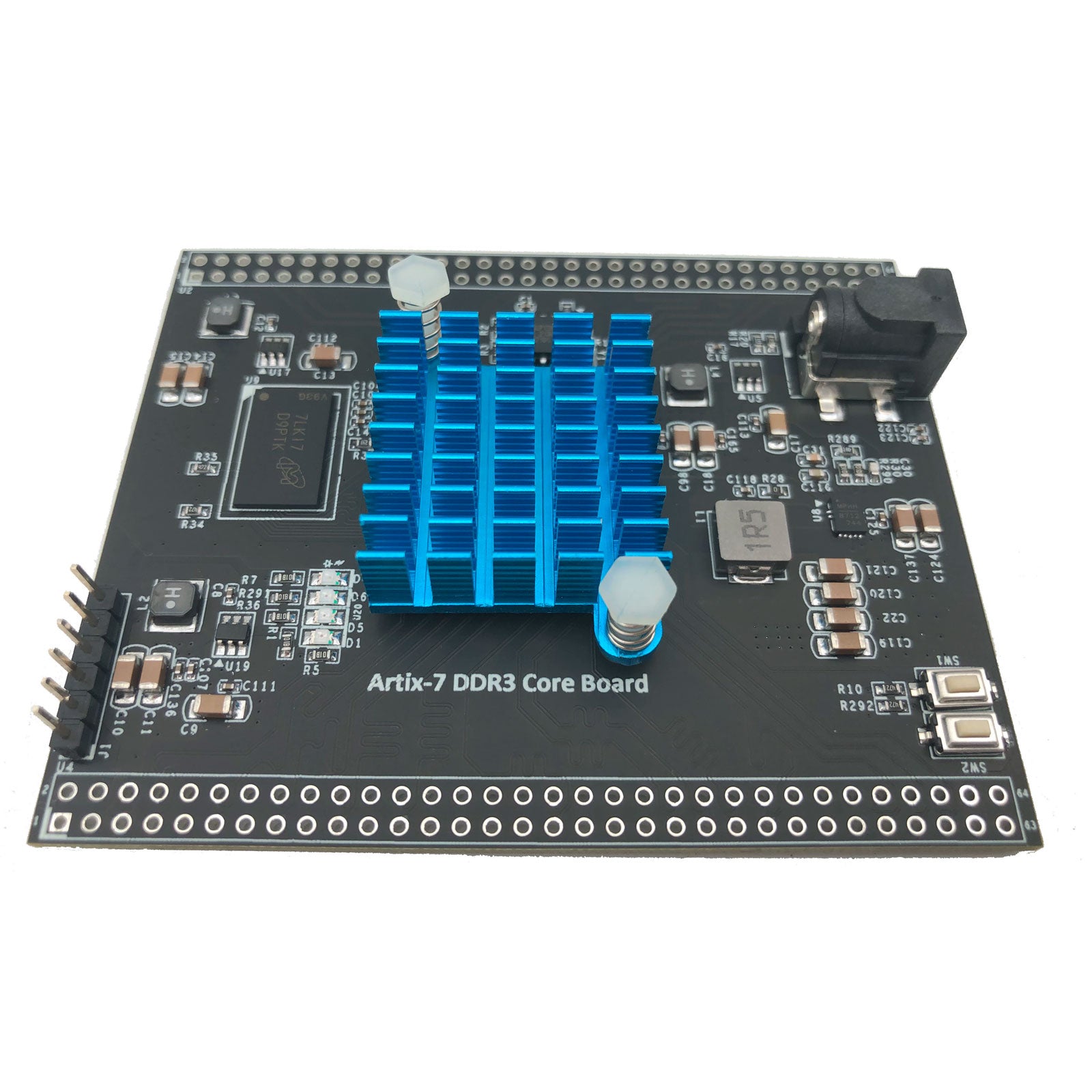

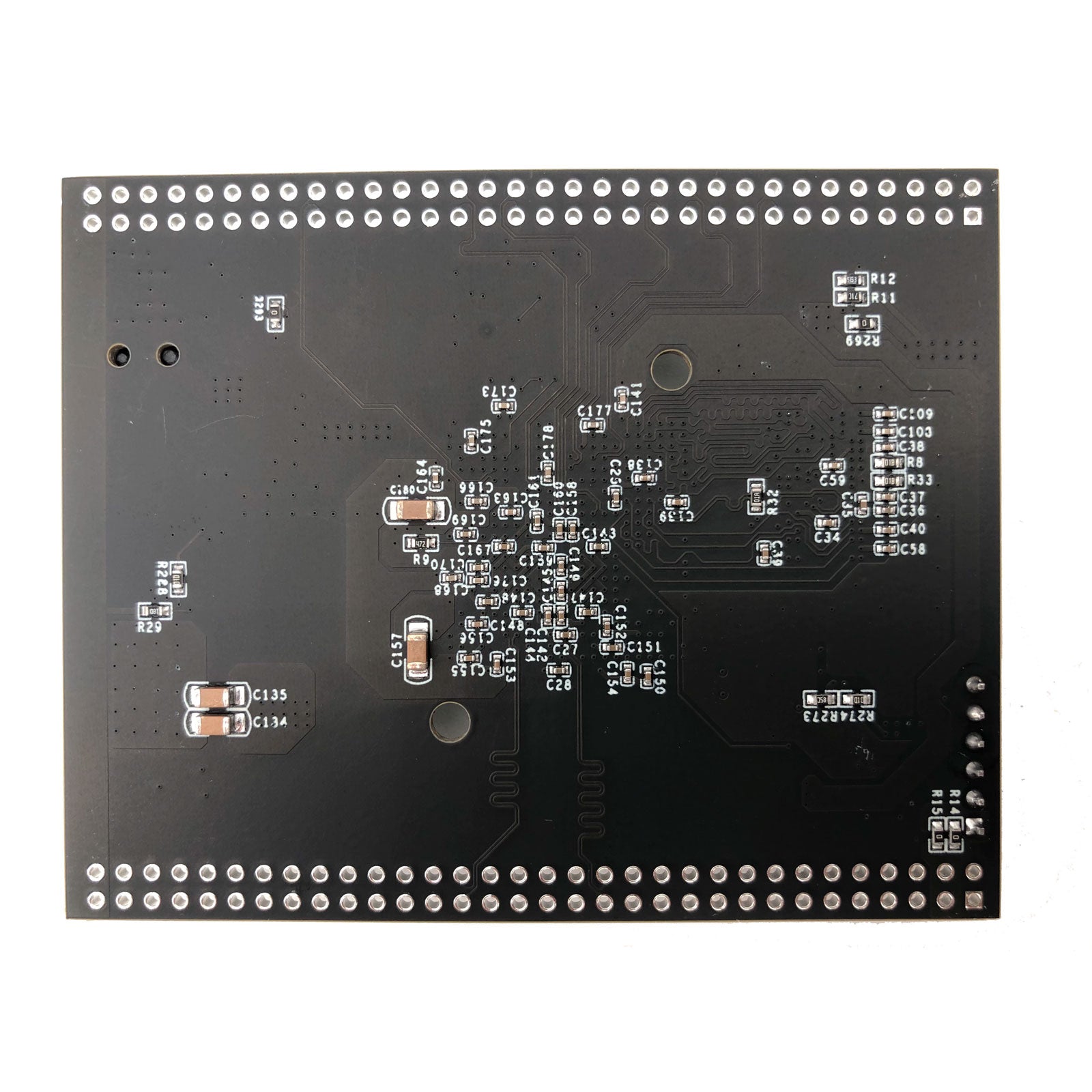

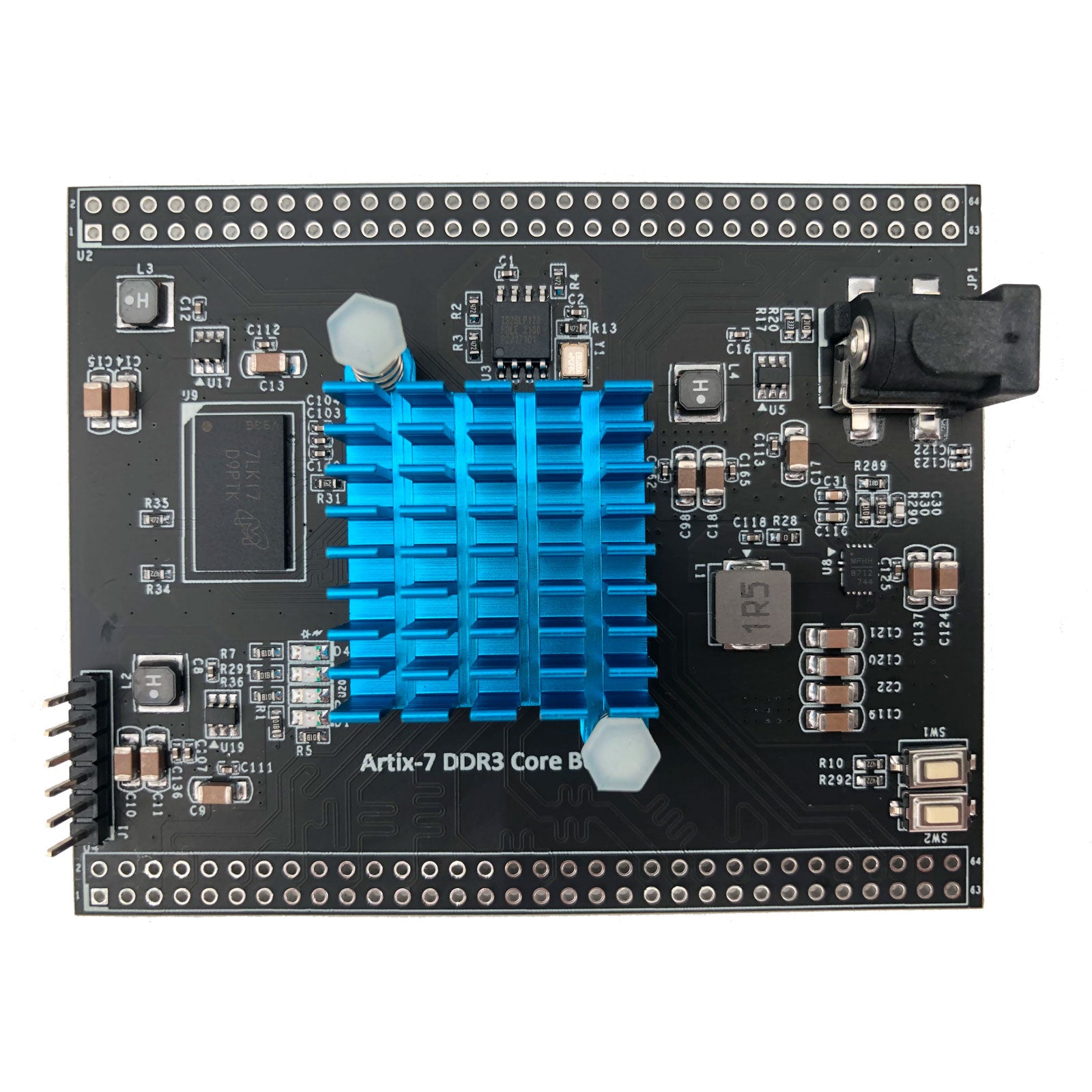

XC7A200T Artix-7 DDR3 Core Board A7 FPGA Development Board for Electronic Engineers Hardware DIY

XC7A200T Artix-7 DDR3 Core Board A7 FPGA Development Board for Electronic Engineers Hardware DIY

Specifications:
- FPGA: XC7A200T-1FBG484C;
- Frequency of FPGA external clock source: 50MHz;
- On-board IS25LP128 SPI Flash chip, 16MB storage capacity;
- Onboard 256MB DDR3 memory for Micron and its model number is MT41K128M16JT-125:K
- XC7A200T core board provides 3.3V power supply for FPGA operation, using TPS 563201 wide-range input DC/DC for TI;
- There are two rows of 64p 2.54mm pins, which can be used to connect 24-bit TFT LCD screens, CYUSB3014 USB3.0 modules, high-speed ADC acquisition modules and CMOS camera modules;
- 2 buttons of the chip for testing;
- 4 LED lights for testing;
- It has JTAG port and adopts a single-row 6p, 2.54mm pin header;
- The size of the core board is 6.7 x 8.4cm/2.6 x 3.3", and the default input power of the board is recommended to be DC 2A 5V.
- The core board provides 108 IOs. These IOs are processed at equal length. The IO voltage of BANK34 and BANK35 can be adjusted by 0 ohm resistor to adapt to external IO levels, such as 1.8V LVDS high-speed ADC signal, 2.5V Gigabit Ethernet PHY, etc.

For Users:
- Electronic engineers
- Hardware DIY enthusiasts
- All kinds of audiophiles, such as music, digital audio and MIDI
- Teachers and students from colleges and universities

Package Included:
- 1 x Core Board
- 1 x 2A 5V DC Power Supply
