XC7K325T Core Board Kintex-7 FPGA Development Board K7 Higher Performance than Artix-7 XC7A200T

* Finished Product: All components soldered, with pin headers

* Complete power supply system, only external 12V power input is required for operation. 20A high-current DCDC core chip ensures stable chip operation

* 5070 package 50MHz active crystal oscillator, main frequency can be set via PLL

* 3 user LEDs for program debugging

* Onboard 2Gbit DDR3

* Onboard 128Mbit FLASH

* DC5.5 power socket

* Anti-reverse 14P/2.0mm standard JATG socket

* 3 rows of 100x1.27mm standard pitch pin headers leading out all chip IO ports:

  • 202pcs of 3.3V level IO (Level cannot be modified, only for single-ended IO)

  • 38pcs of 1.8V level IO (Level cannot be modified, available for single-ended IO or LVDS differential use)

  • 26pcs of 1.5V level IO (Level cannot be modified, available for single-ended IO or LVDS differential use)

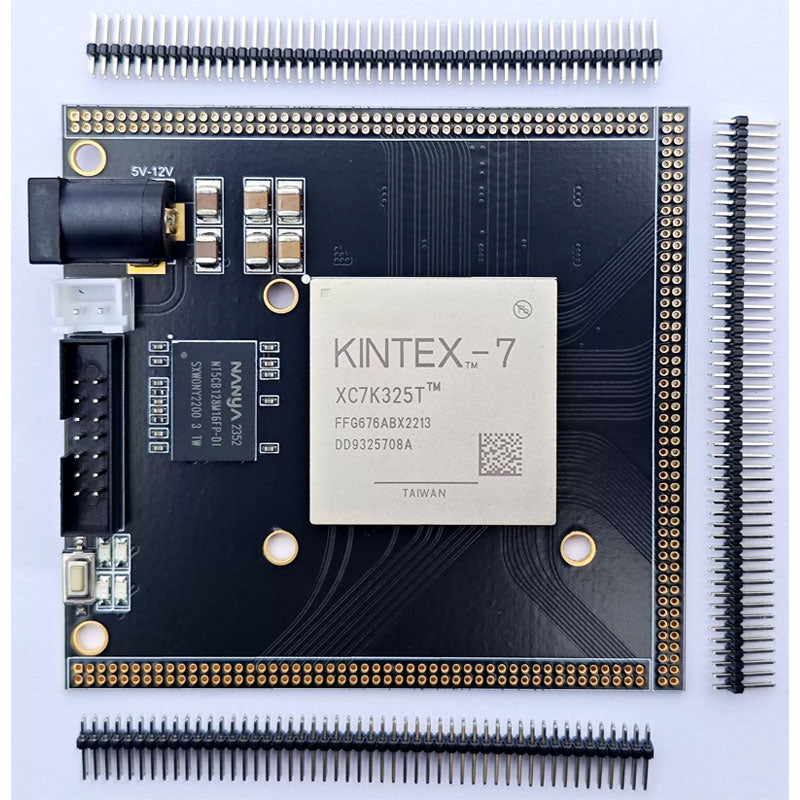

* On-Board Chip Model: XC7K325T-1FFG676C

* Development Board Dimension: 65mm x 69mm

* Power Supply Mode: 12V/2A, Pin Header/DC5.5 Socket

* PCB Layers: 8 Layers

* Download Method: JTAG, USB Cable

* Development Environment: Vivado

* 1 x Development Board

* 3 x Pin Headers

* Package weight: 0.22kg
