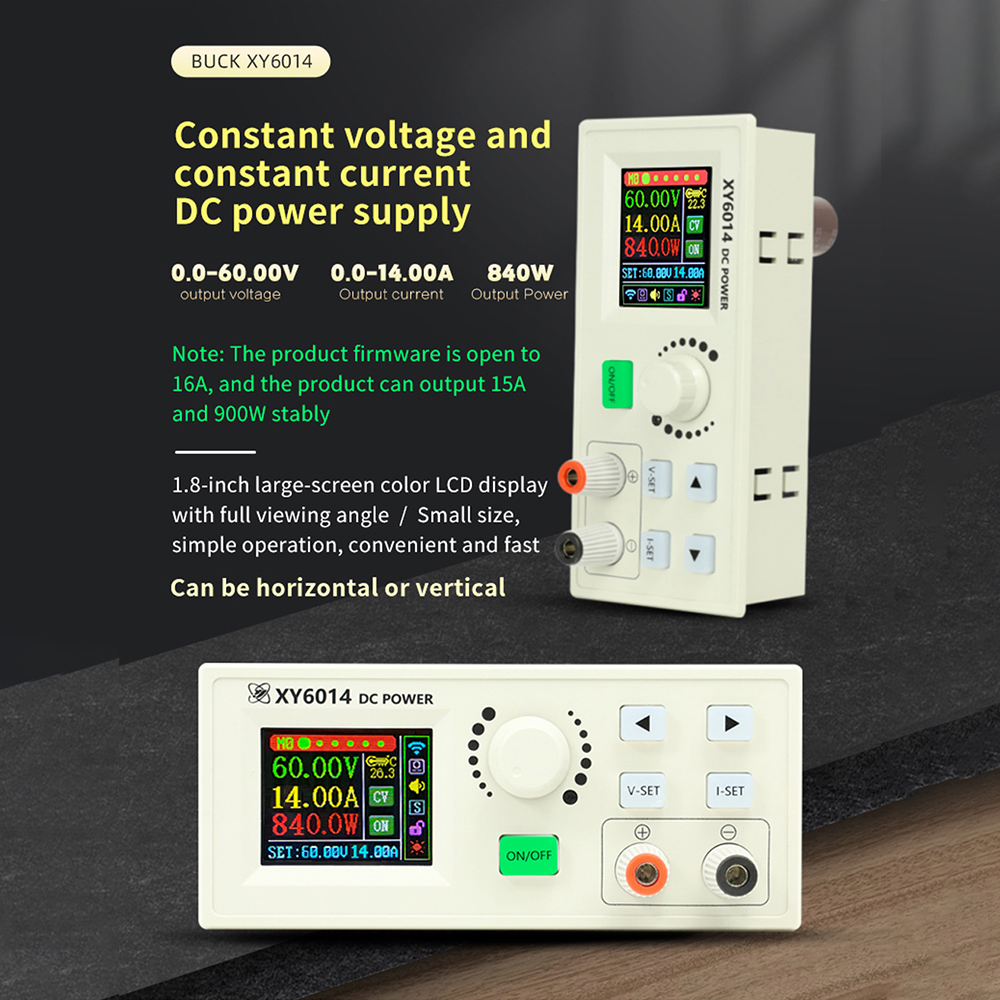

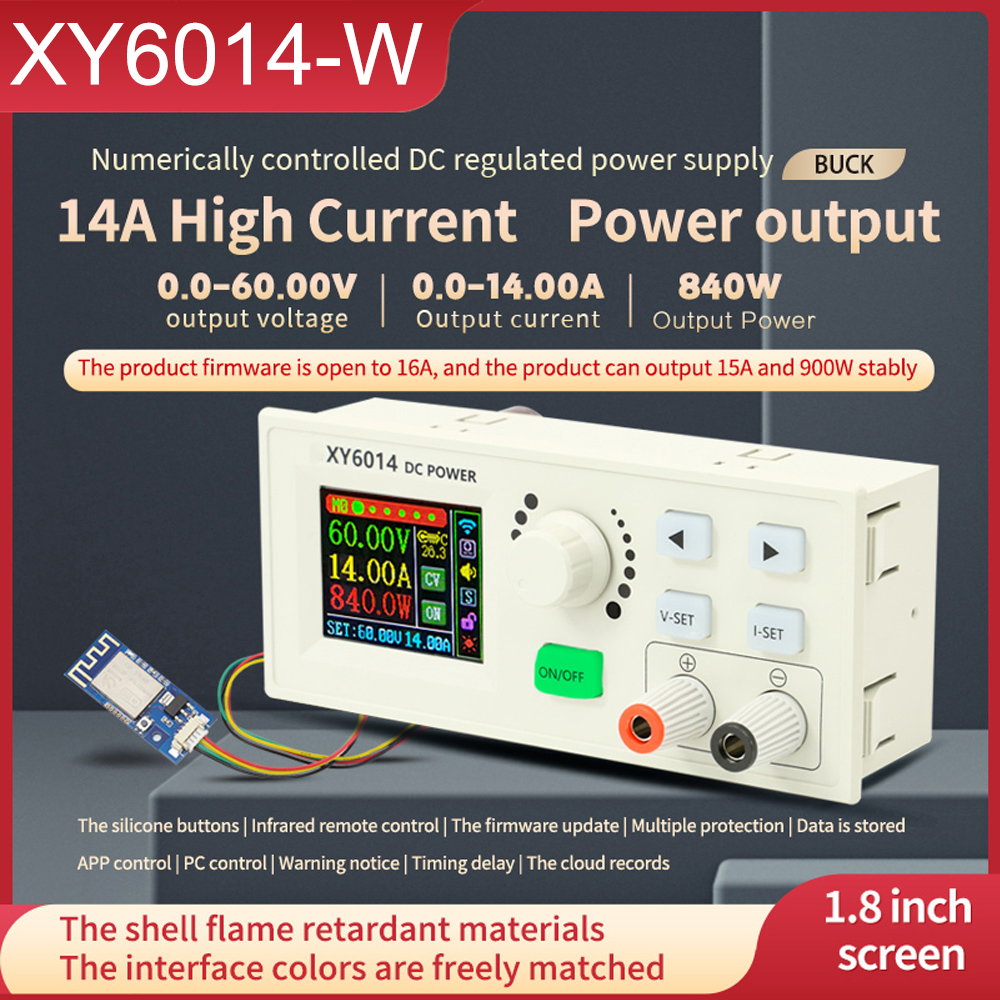

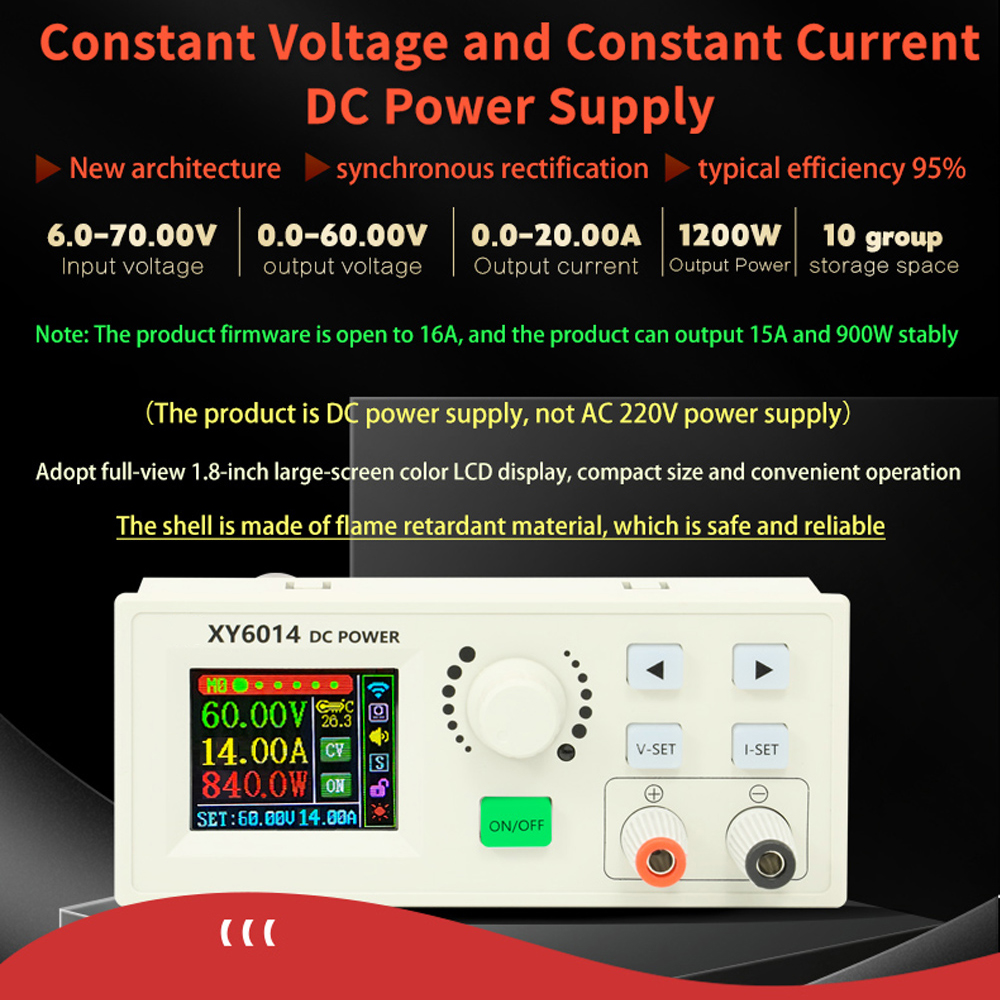

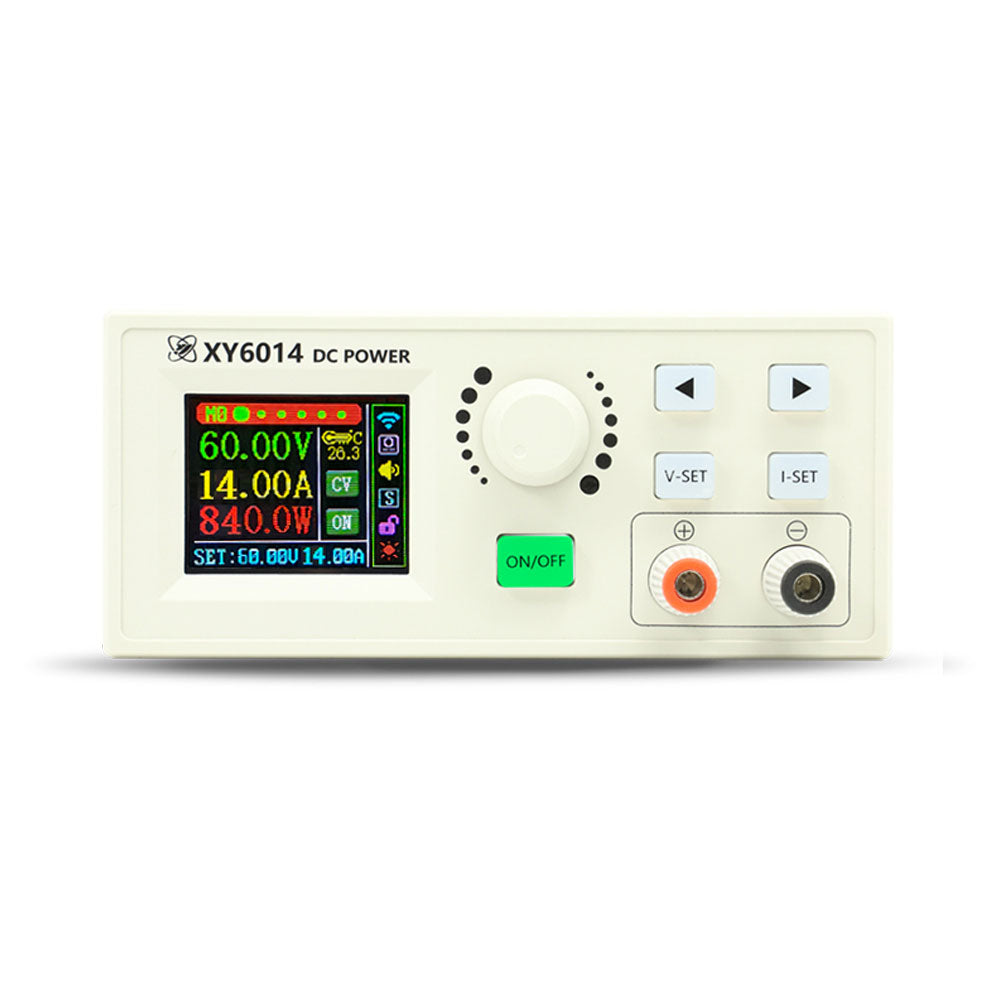

XY6014W DC Adjustable Stabilized Power Supply Board with WiFi Communication Module 900W

XY6014W DC Adjustable Stabilized Power Supply Board with WiFi Communication Module 900W

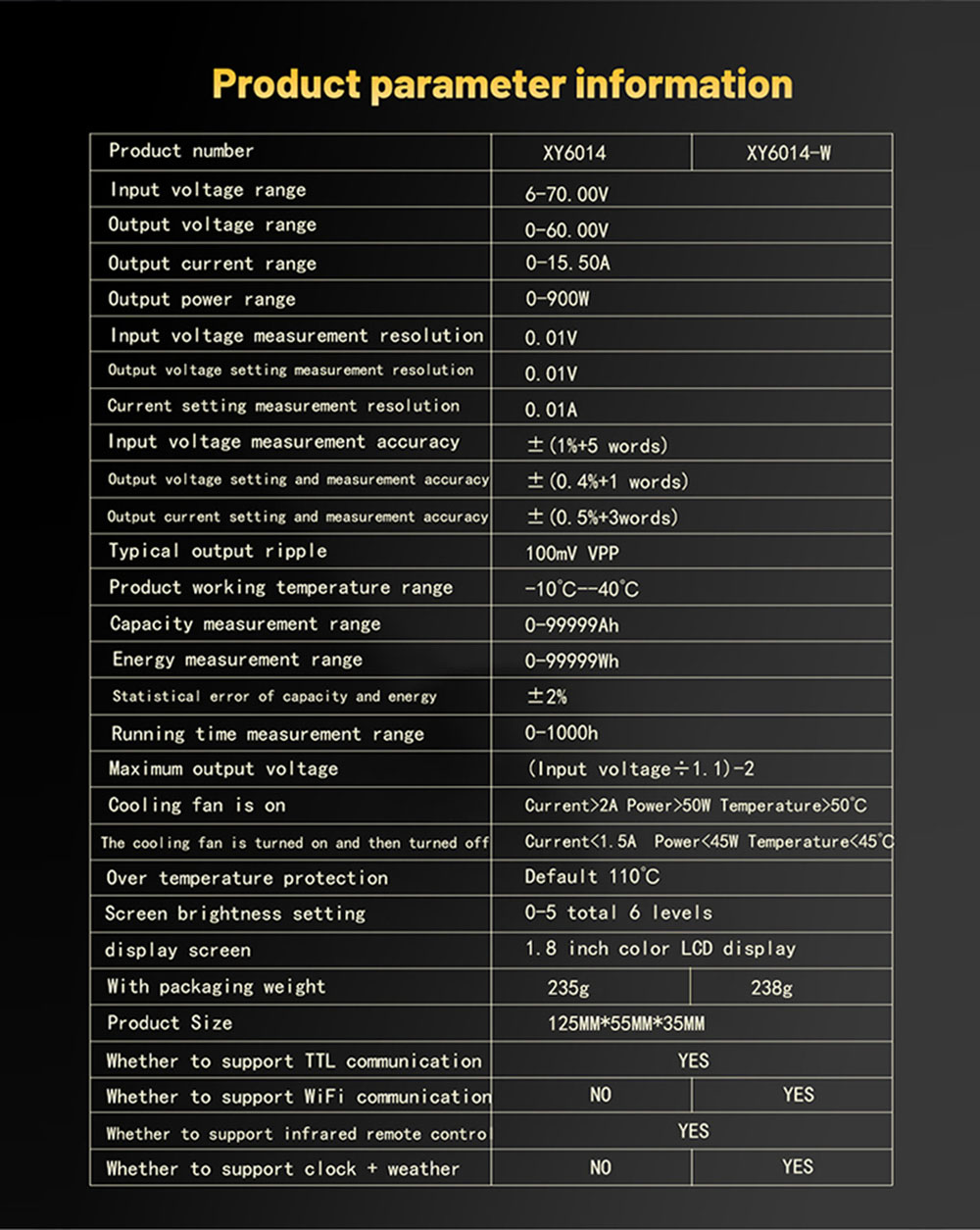

Parameter:

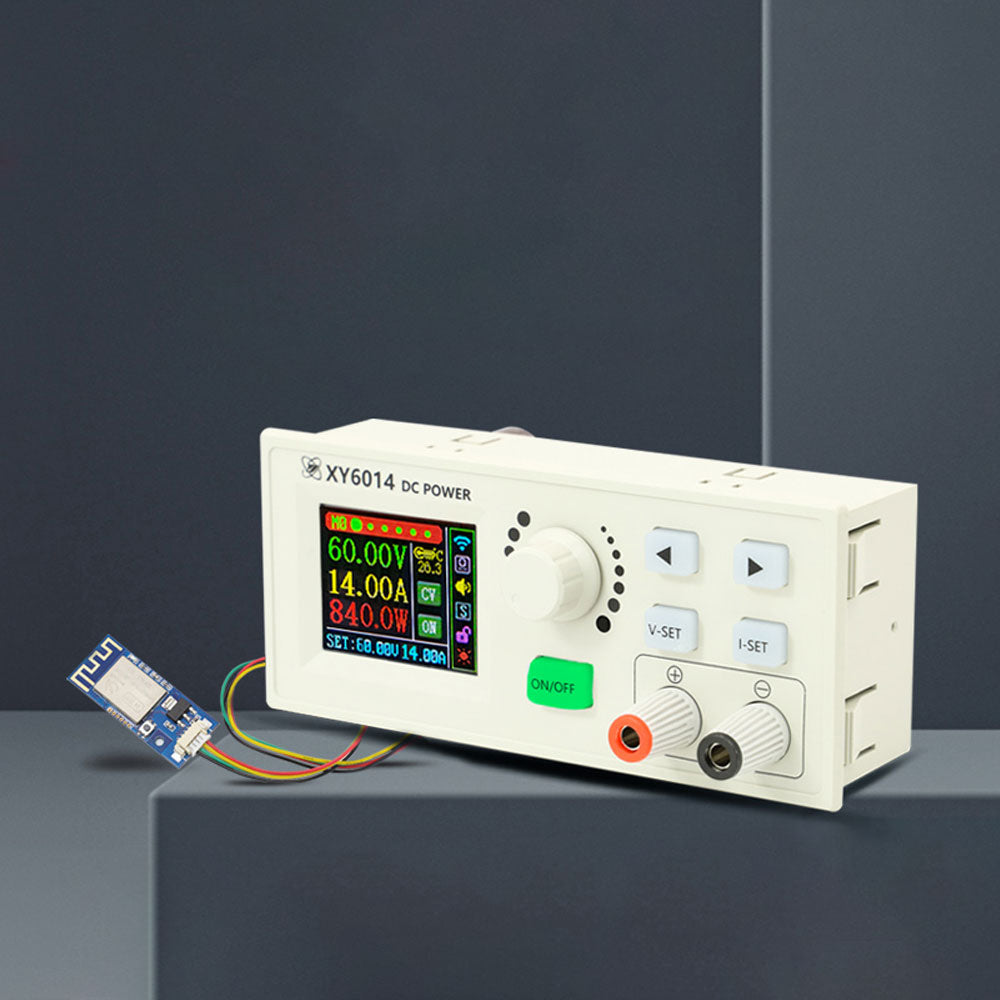

- Model: XY6014W (with WiFi communication module)
- Input voltage range: 6-70V
- Output voltage range: 1-60V
- Output current range: 0-15.5A
- Output power range: 0-900W
- Input voltage measurement resolution: 0.01V
- Output voltage setting measurement resolution: 0.01V
- Current setting measurement resolution:0.01A
- Input voltage measurement accuracy: ±(1%+5 words)
- Output voltage setting and measurement accuracy: ±(0.4%+1words)
- Output current setting and measurement accuracy: ±(0.5%+3words)
- Typical output ripple: 100mV VPP
- Product working temperature range: +10℃--40℃
- Capacity measurement range: 0-99999Ah
- Energy measurement range: 0-99999Wh
- Statistical error of capacity and energy: ±2%
- Running time measurement range: 0-1000h
- Maximum output voltage: (Input voltage ÷1.1)-2
- Cooling fan (on): Current >2A; Power >50W; Temperature >50℃
- Cooling fan (turned off after operation): Current <1.5A; Power <45W; Temperature <45℃
- Over temperature protection: Default 110℃

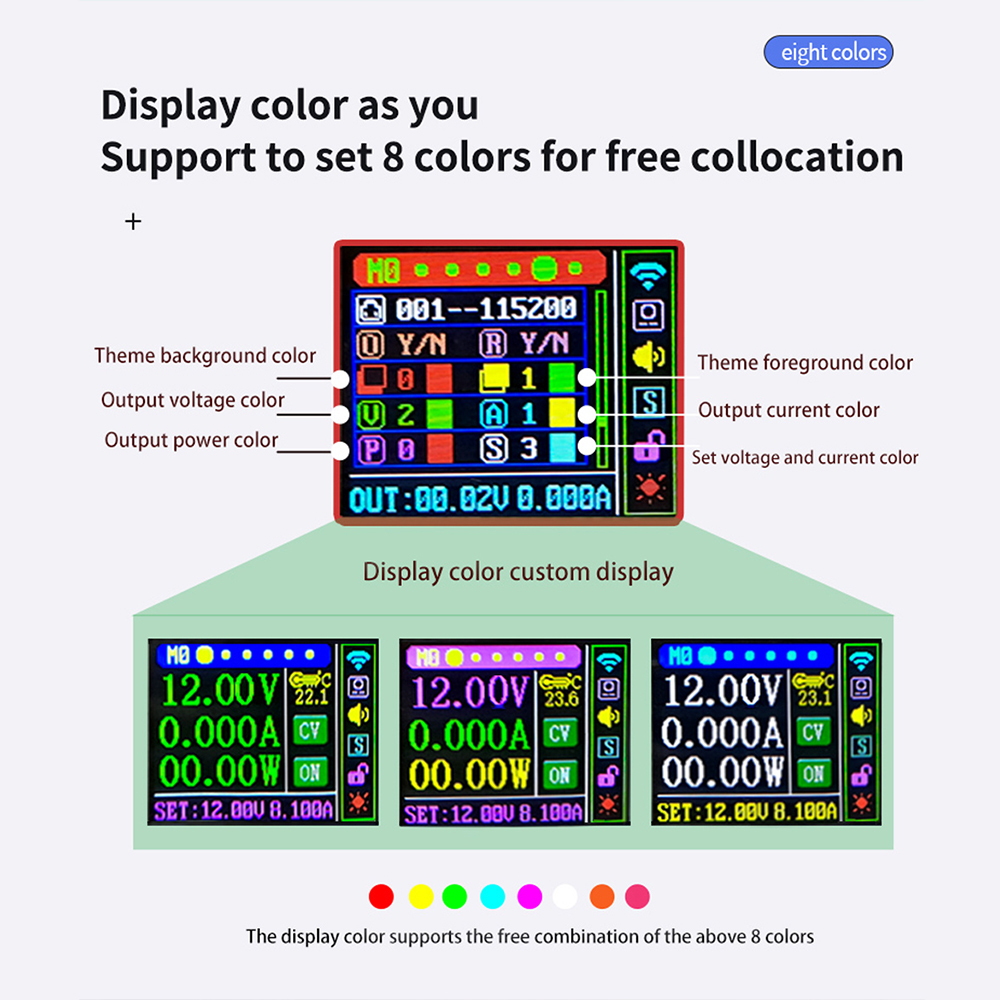

- Screen brightness setting: 0-5; 6 levels in total
- Display screen: 1.8inch color LCD display

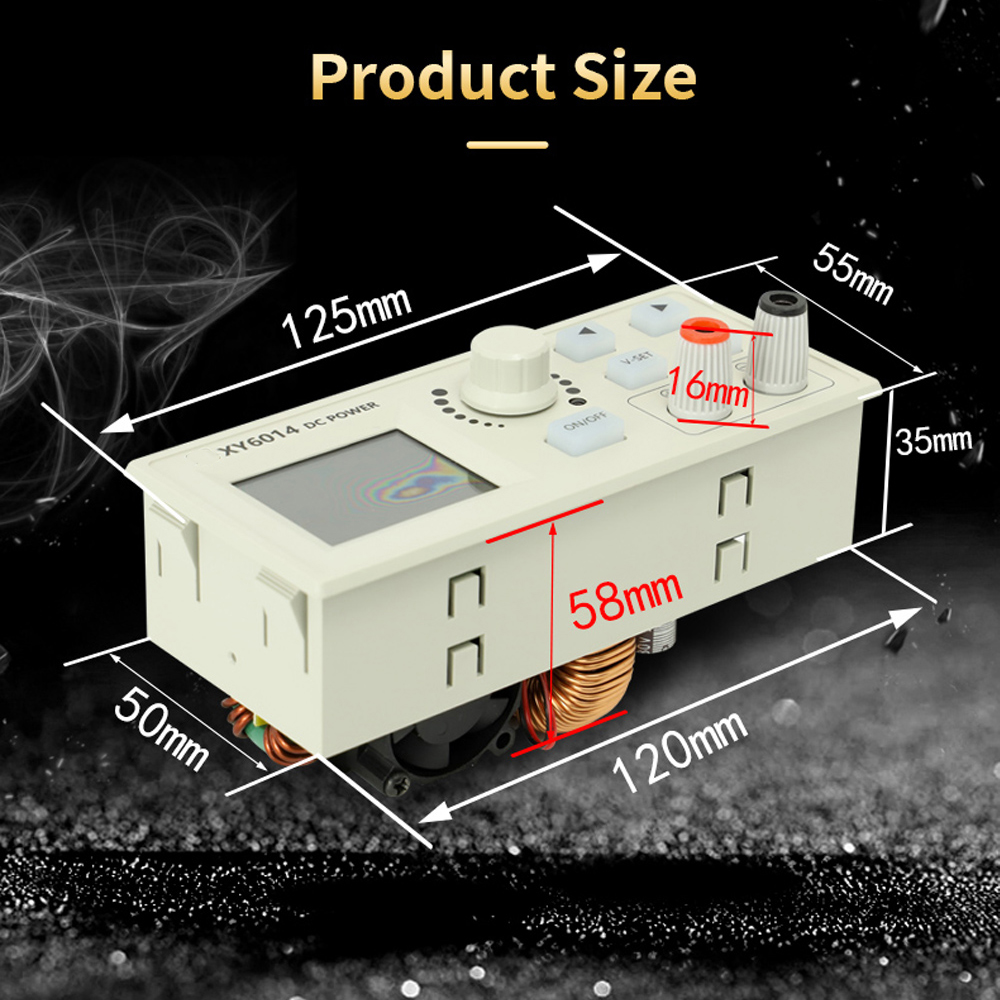

- Size: 125 x 55 x 35mm

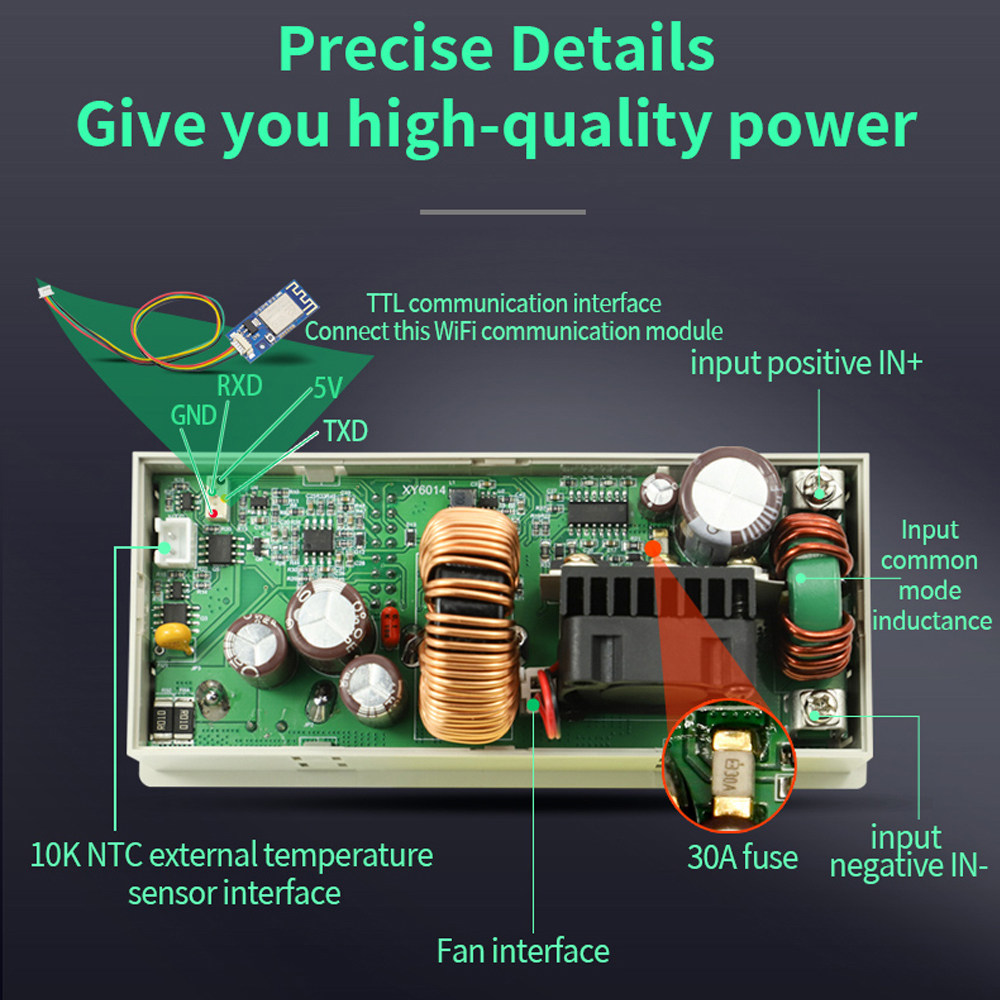

- Whether to support TTL communication: YES
- Whether to support WiFi communication: NO
- Whether to support infrared remote control: YES
- Whether to support clock + weather: NO

Package Included:
- 1 x Power supply

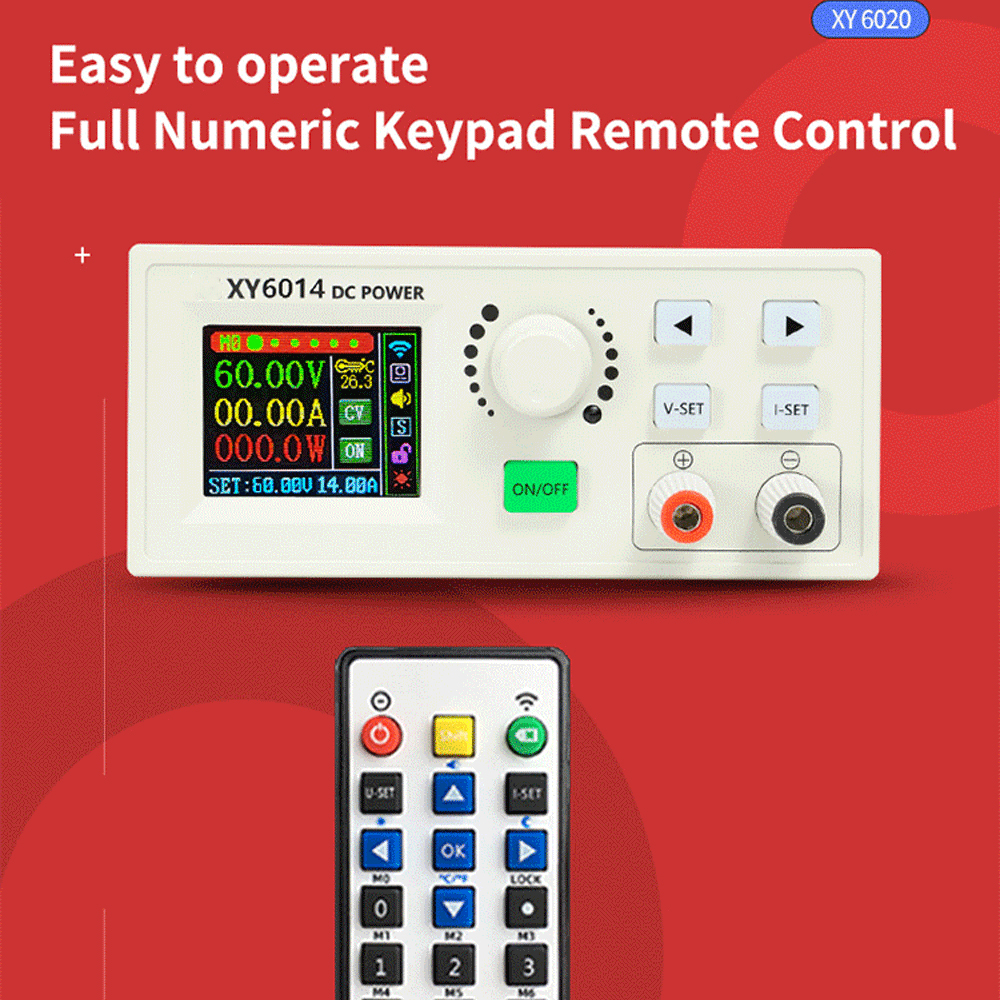

- 1 x Remote control

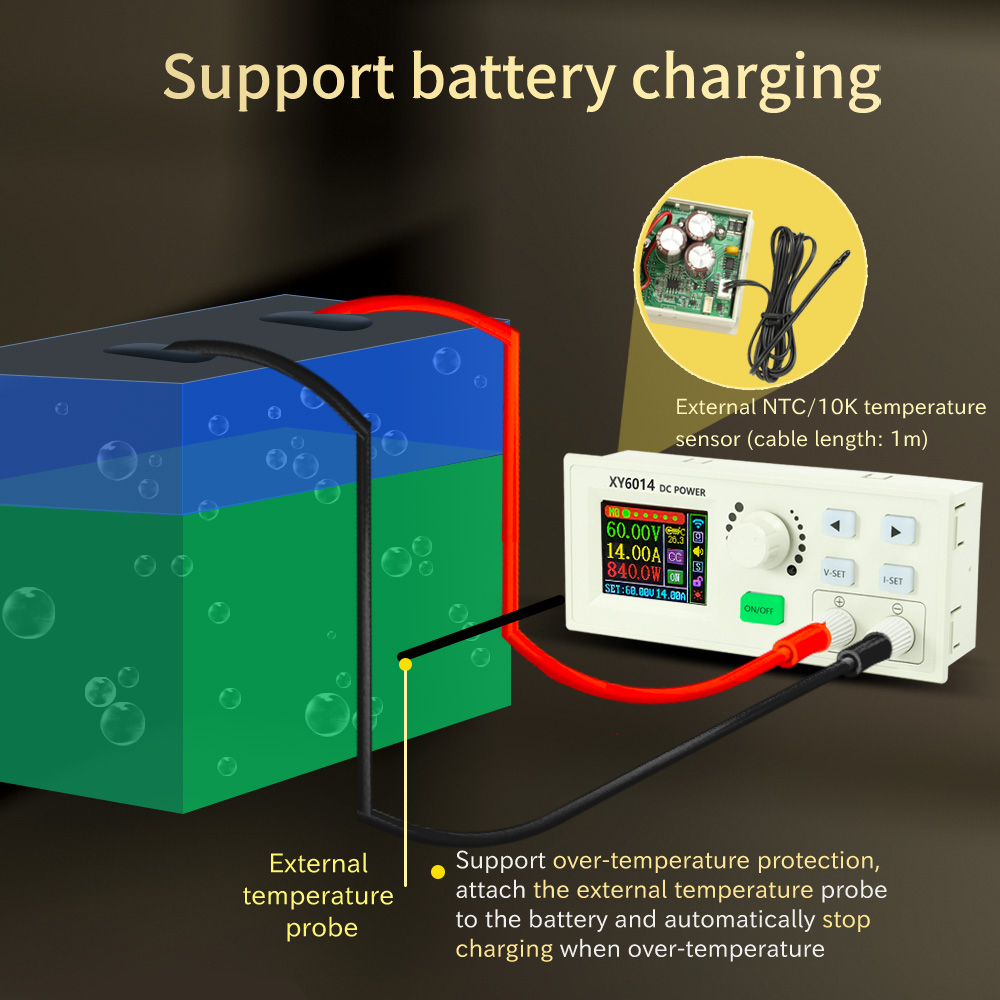

- 1 x 1m 10k temperature sensor
- 1 x Serial communication line

Note:
- Battery is not included.
