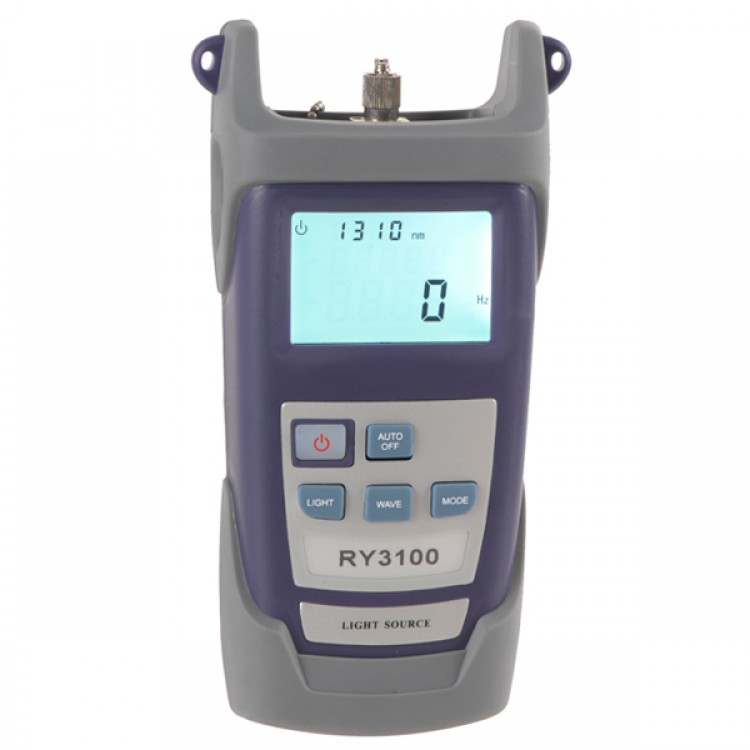

RY3100 series of hand-held laser light source can be provided upon request 1-4 stable output wavelengths, both visible red 650nm can provide can also be provided to the single-mode fiber measured by dual wavelength 1310nm and 1550nm laser output, or provide 850 / 1300/1310/1550nm four wavelength laser output, is ideal for fiber optic test instrument works.
Features:
* High stability multi-wavelength single-(multi) mode output, CW mode or modulation
* Large LCD displays status of the operating wavelength
* Continuous working time of up to 45 hours
* Wavelength switching speed, operational flexibility
* Automatic shutdown can be set
Specifications:
- Instrument Type:RY3100
- Wavelength (nm):According to need to set 1 to 4 wavelengths
- Light-emitting device:FP-LD
- Optical output power (dBm):0 (650nm) / -7/-7
- Modulation:CW/2Hz (650nm) / 270Hz, 1KHz (1310nm, 1550nm, etc.)
- Fiber Type:SM, MM
- Connectors:FC / PC
- Operating temperature (℃):-10 ~ 60
- Storage Temperature (℃):-25 ~ 70
- Auto power off time (min):10
- Battery operating time (h):45
- Dimensions (mm):172 × 82 × 33
- Power:Built-in rechargeable lithium battery
- Weight (g):295
