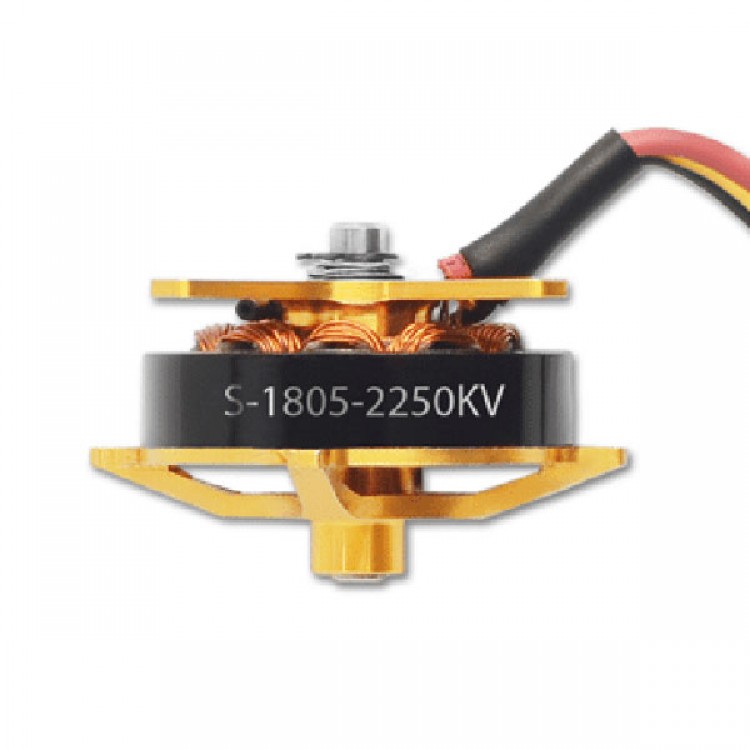

Scorpion S-1805 2250KV Brushless Motor for RC Models
Specifications:
- Stator Diameter: 18 mm (0.87 in)
- Stator Thickness : 5 mm (0.197 in)
- No. of Stator Arms: 9
- Magnet Poles: 12
- Motor Wind: 14 Turn Y
- Motor Wire: 1 - Strand 0.425mm
- Motor Kv: 2250KV RPM / Volt
- No-Load Current (IO): 0.25 Amps @ 6.5V
- Motor Resistance (RM): 0.4 Ohms
- Max Continuous Current: 7 Amps
- Max Continuous Power: 45 Watts
- Weight: 16 Grams (0.56 oz)
- Outside Diameter: 23 mm (0.9 in)
- Shaft Diameter: 2.98 mm (0.17 in)
- Body Length: 18 mm (0.71 in)
- Overall Shaft Length: 21 mm (0.83 in)
- Max Lipo Cell: 2s
- Motor Timing: 20deg
- Drive Frequency: 8kHz
