STF10M1000M-8 RF Power Amplifier with Cooling Fan and Radiator 10-1000MHz 8W-10W Wideband RF Amplifier
Description:
- High reliability RF power amplifier, with output power of 8-11W and frequency of 10MHz-1000MHz, will not be damaged by load open circuit or short circuit.
Specification:
- Frequency range: 10MHz ~ 1000MHz
- Maximum output power: 8 ~ 11W

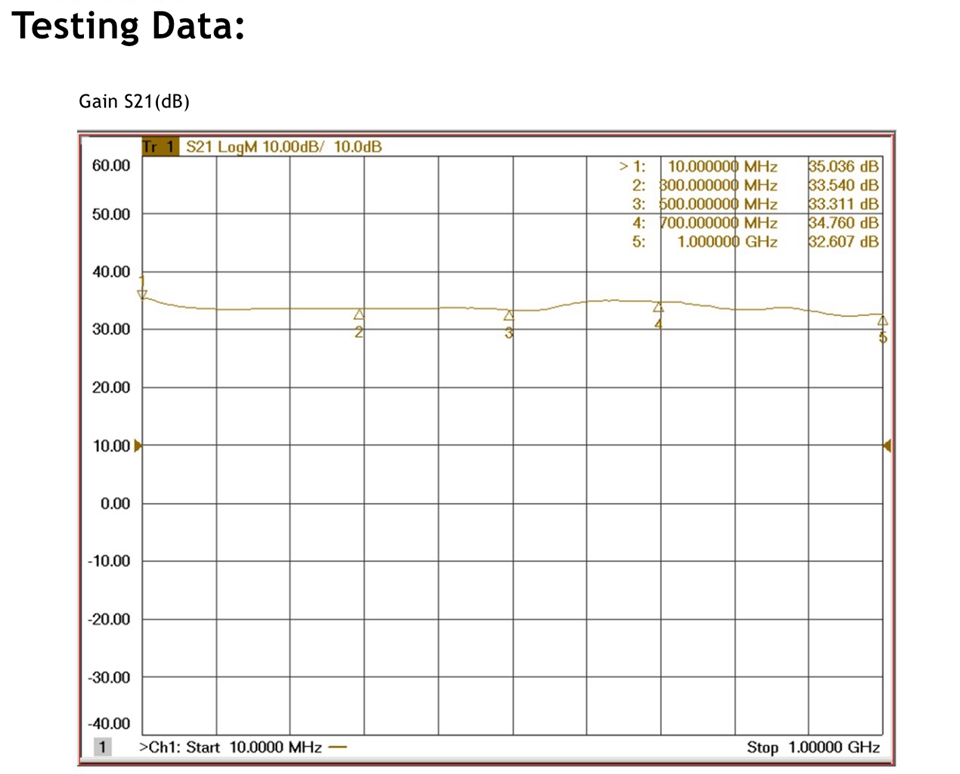

- Gain: < 33dB
- Power supply: +28V to +32V

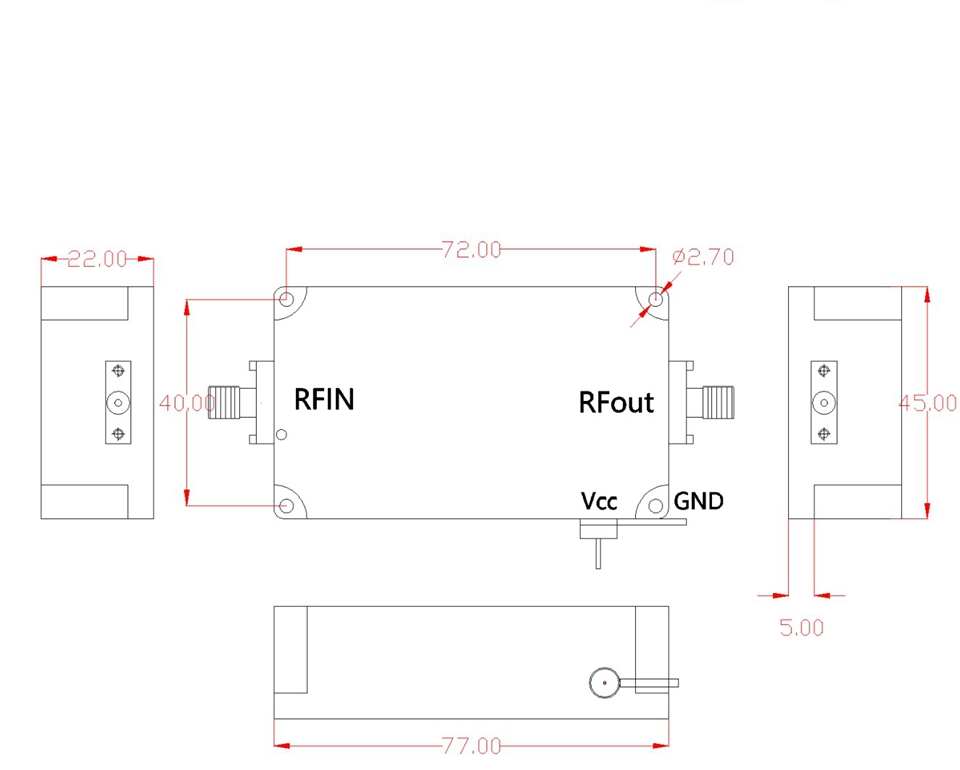

- Product size: 45 x 77 x 22mm
- Impedance: 50ohms
- Maximum input power: <10dBm
Package included:
- 1 x RF Power Amplifier
Note:
- It is necessary to install the radiator when working, as high temperatures can easily cause damage.
