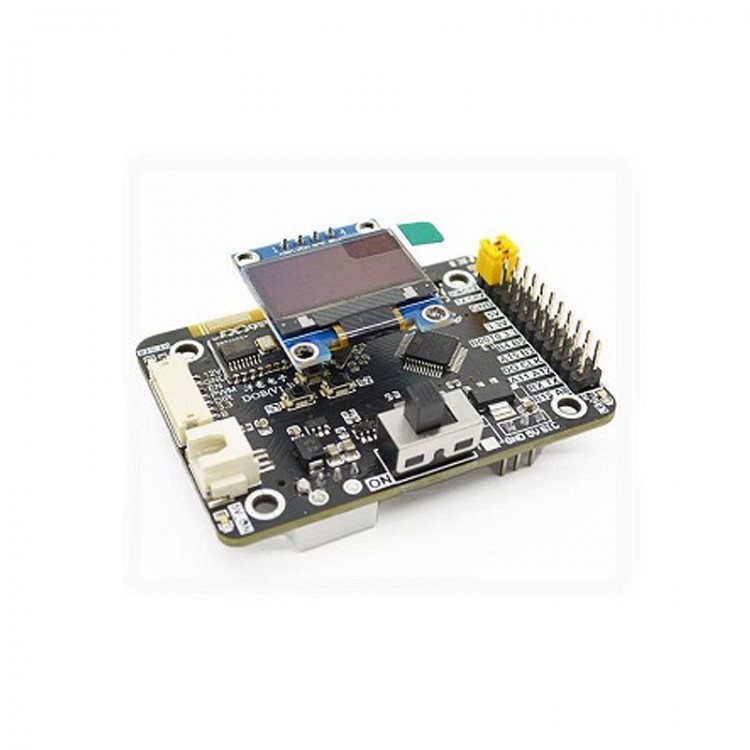

STM32 Balance Bike Main Control Board with Screen for Momentum Wheel Self-balancing Robot Bike Robotic Accessory
Main Control Board Description:
- The main control board leads outs all the I/O ports that are not used by the micro-controller, which can be used as a regular STM32 development board. And it adopts highly integrated Bluetooth module, OLED display screen, MPU6050 attitude sensor, DC motor driver chip, CH340 serial port chip.
- Supports serial port download, only one Type-C data cable is required to download the program. At the same time, the SWD interface has been introduced to support online debugging (users need to provide their own online debuggers, such as ST LINK).
- Support Bluetooth APP control.
Main Control Board Parameters:
- MCU model: STM32F103C6T6A
- Main frequency: 72MHz
- Attitude sensor model: MPU6050
- DC motor drive model: FM116C
- Download method: serial/SWD
- Power supply voltage: 12V (3S lithium battery)
- Size: 63 x 44mm (L x W)
- Screw hole diameter/interval: 3.2mm; 33.5 x 47.5mm
Package Included:
- 1 x Main Control Board (with screen)
- 1 x Connection Cable
Note:
- Please contact us to get the manuals and the source code after receiving the product.
