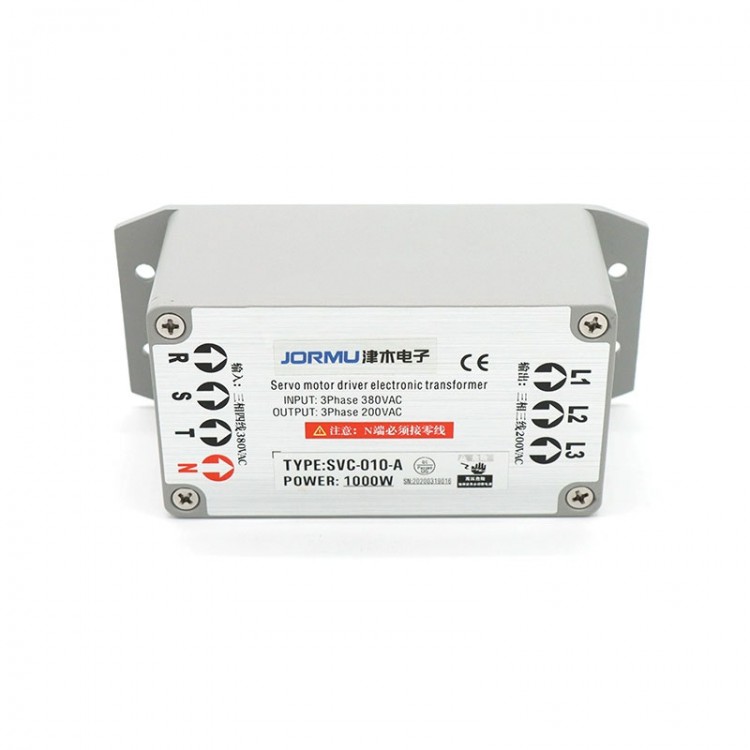

SVC-010-A Mini Intelligent Three Phase Servo Motor Electronic Voltage Transformer 1KW 380V to 200-220V

SVC-010-A Mini Intelligent Three Phase Servo Motor Electronic Voltage Transformer 1KW 380V to 200-220V

Description:
- This product is a specially designed ultra small servo motor electronic transformer for the voltage mismatch between the three-phase 380VAC and the AC servo system (power supply requirements are three-phase 200-240VAC).
- This product solves the problems of large volume, heavy weight, difficult installation, and expensive price of traditional dry-type transformers, and is the best product in motion control systems to solve power compatibility and miniaturization.
- The servo electronic transformer has four terminals for input, namely R, S, T, and N, and three terminals for output, namely L1, L2, and L3.

Supported servo system:
- For Panasonic, for Mitsubishi, for Fuji, for Sanyo, for Siemens, for Lust, for Keb, for Delta, for Teco, for Estun, for Gsk, etc.

Features:
- Provide protection against overvoltage, undervoltage, phase loss, over temperature, etc.
- Adopting high reliability power components, the product has safe and reliable performance and long service life.
- The outer shell is made of cast aluminum alloy, and the interior is sealed with high-performance epoxy resin, which can withstand harsh usage environments.
- Small size, light weight, and excellent price are conducive to miniaturization of the power supply system.
- Adapt AC servo system power levels from 1KVA to 35KVA to meet various power supply needs.

Precaution:
- The servo electronic transformer has the same overload capacity as the servo driver, and there is no need to reserve overload margin when selecting.
- When the servo electronic transformer is used in an ambient temperature above 50℃, the actual usable power capacity needs to be derated accordingly, and the specific derating amount depends on the actual system situation.
- When the servo electronic transformer supplies power to multiple servo drives together, the actual usable power capacity needs to be derated accordingly, and the specific derating depends on the actual working conditions of multiple drives in the system.
- The capacity of the power input air switch must match the total capacity of the servo electronic transformer and servo driver, so that when the main circuit of the servo electronic transformer is damaged, the internal protection circuit can quickly force the action of the power input air switch to disconnect, protecting the servo driver. At this point, the servo electronic transformer has been damaged, please do not power it on again. You need to replace with a new product and eliminate other faults.

Note:
- This model can not be used for YASKAWA servo motor.
- The servo electronic transformer requires that the power supply must be a 3-phase 4-wire system power supply, which must have a formal and standard null line (N).
- If there is no response when the servo electronic transformer is connected to the power supply, please first check if the servo electronic transformer is connected to the null line.
- It is not recommended to drive multiple drives with one servo transformer, as it is easy to burn out the transformers.

Package Included:
- 1 x Voltage Transformer
