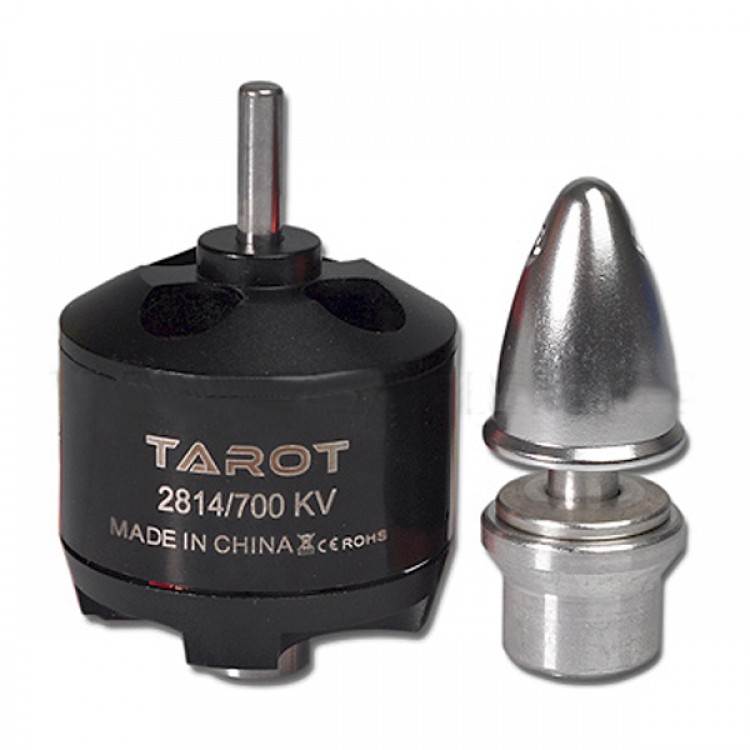

Tarot 2814 700KV Motor TL68B18 Black Multi-axis Brushless Motor for RC Hobby

Availability: Out Of Stock

  • Price:$20.99
  • Price in reward points: 210 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.57 $20.15 $19.52 $18.68 Contact US
Quantity:

Tarot 2814 700KV Motor TL68B18 Black Multi-axis Brushless Motor for RC Hobby

Description:
- Tarot 700KV motor, a 2814/700KV efficient multi-axis brushless Tarot Motor, designed for multi-rotor aircraft such as  TL65B01/TL65B02/TL68B01/TL68B02/TL2778/TL2749D. It adopts Full CNC machined rotor high-magnetic material NdFeB refined, 12-pole stator with high strength epoxy pressure reinforce the protection of high-temperature, high-speed alloy steel motor shaft. Upper and lower cover of motor using a high-speed precision bearings for large size, long life, high efficiency, low power consumption, low noise, and stability control superior characteristics.

Tarot 700KV motor Product parameters:
- Motor peripheral diameter: 35.00mm
- Stator diameter: 28.0 mm
- Stator end thickness: 14.0 mm
- Per volt speed: 700 RPM / Volt
- Motor Weight: 102 G
- Gear shaft mounting diameter: Dia 4.0 mm
- Motor shaft total length: 53.5 mm
- No-load current: 0.8A
- Installation diameter: Dia 19MM, Dia 25MM

Tarot 700KV motor Specifications:
- 2814/700KV multi-axis brushless motor x 1
- 3.5 banana plug x 3
- The metal paddle folder x 1 group
