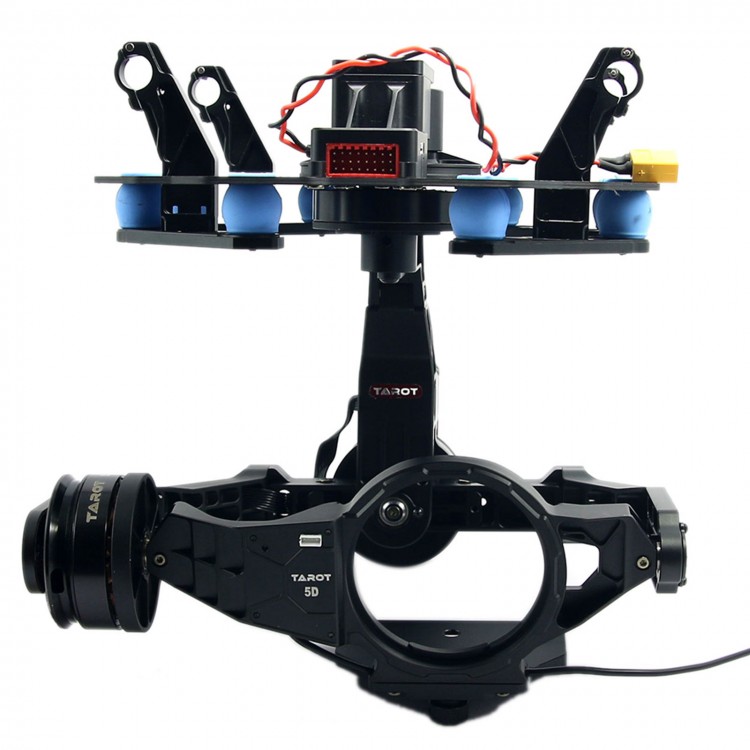

Tarot 5D3 Three Axis Stabilization Gimbal TL5D001 Integration Design for Cannon 5D Mark III DSLR Camera for Multicopter FPV Photohraphy

Tarot 5D3 Three Axis Stabilization Gimbal TL5D001 Integration Design for Cannon 5D Mark III DSLR Camera for Multicopter FPV Photohraphy

Pls choose DHL or E-EMS or EMS,Package weight > 2kg

Test Vedio:



Description:
- Specially designed for Cannon 5D Mark III DSLR camera
- Adopting CNC industrial design, the integration design brings the gimal light weight and great stability. Even in extreme rough environment, it can still lock the camera and keep high stability
- Adopting high integration conversion design, you can buy extra quick release handle as handheld gimbal to use (note: package does not include the handle)
- It has excellent gimbal control system, built in independent IMU precised control gimbal gesture, integrating gimbal and servo drive module
- Support three modes: attitude lock, pointing direction follow and the first person view
- Built in slip ring avoides the twined wires, all power supply and signal cables are skillfully built in the gimbal holder
- Mechanical structure design makes three axis rotary speed controllable. Joystick responds to axis rotary speed. Larger the joystick amount, quicker the rotary speed is

Features:
- Support PC operation interface setting
-  Attitude locking mode (AL), pointing direction follow mode, first person view mode(FPV)
- Built in independent IMU module
- Tarot gimbal professional servo driving module
- AV output interface
- Camera shutter control support
- Wide range voltage input support
- S-Bus/ PPM/ DSM receiver support

External device:
- Support camera type: CANON EOS 5D MARK III
- Support lens type: CANON EF 17-40mm f/4L USM
- Gimbal main control support input power supply: 3S~6S LiPo battery
- Control needs at least four vacancy receiver channel

Mechanical/ electronical features:
- Angle control precision: ±0.02°
Max controllable rotary speed:
- Rotary direction (PAN): ±200°/s
- Tilt direction: (TILT) : ±200°/s
- Roll direction: (ROLL): ±200°/s
Controllable rotary range:
- Rotary angle (PAN) : ±360° continuous rotation
- Tilt angle (TILT) :-135° to +45°
- Roll angle (ROLL): ±48°
- Workimg current: 120mA (@25V) 180mA  3S-6S Li (11V-26V)
- Stall current: 4A (@25V)  8A (@12V)
- Working temp: -20°C ~ 50°C
- Weight: 1.51Kg
- Size: 215mmX240mmX246mm

Parameter regulation requirements:
- Windows XP:  Windows VISTA; Windows 7: Windows 8 (32 or 64 bit)

Package includes:
- Gimbal x 1 (Including motor, control board)
