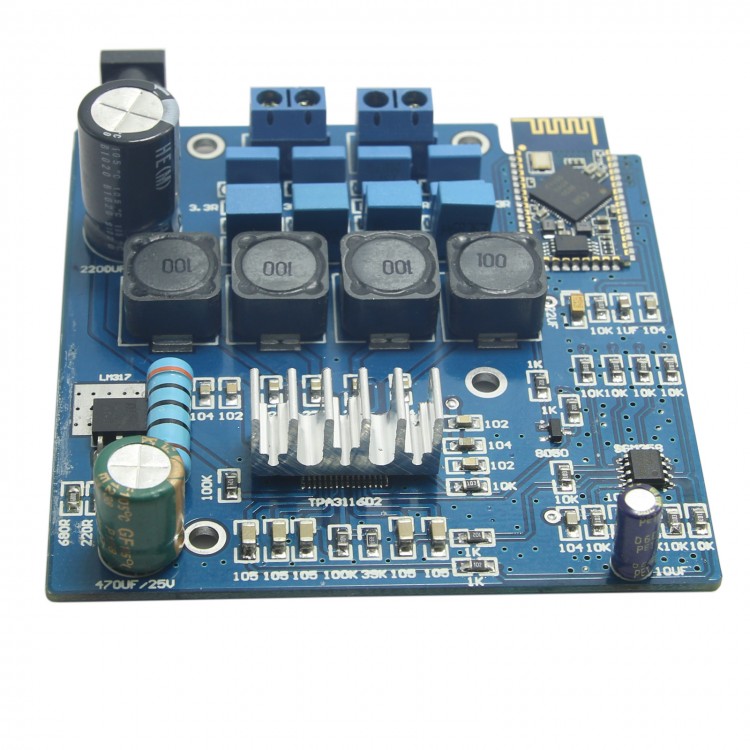

TPA3116 CSR 4.0 Bluetooth Amplifier Board Module D Class 2*50W
Description:
- Adopts original TPA3116 and CSR4.0 bluetooth module
- Power supply filter capacitor adopts Nikon and Japanese Panasonic electrolysis capacitor
- Electrolysis capacitor signal main loop adopts Taiwan brand, main filter adopts Japanese Nikon electrolysis capacitor, gurantee the strong and continuous driving support
- Resistor adopts five loop metal resistor, main loop adopts precision ±1% five loop film resisitor, gurantee the good SNR
- PCB adopts 1.6mm thick two sides board, 2.0 oz copper thickness, tin plated processing method, good current passing performance, high level PCB quality
- Adopts newest bluetooth version4.0
- Same bluetooth connection mode with normal device
- Input mode is only bluetooth input functions
Parameters:
- Working mode: D class
- Static current: 50mA
- Working efficiency: 90%
- Rated output power: 2*50W
- Frequency response: 20Hz------20KHz
- Working voltage: DC18V to DC24V
- Max output current: 3A
- Receiving range: 10M
