TS6.0 Track Type Mobile Robotic Chassis 300KG High Load Capacity All-Terrain Robotic Car Support Secondary Development

Availability: In stock, usually dispatched in 1 business day

  • Price:$14,846.32
  • Price in reward points: 148463 Reward Points: 1485
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $14,549.39 $14,252.47 $13,807.08 $13,213.22 Contact US
Quantity:

TS6.0 Track Type Mobile Robotic Chassis 300KG High Load Capacity All-Terrain Robotic Car Support Secondary Development

Description:

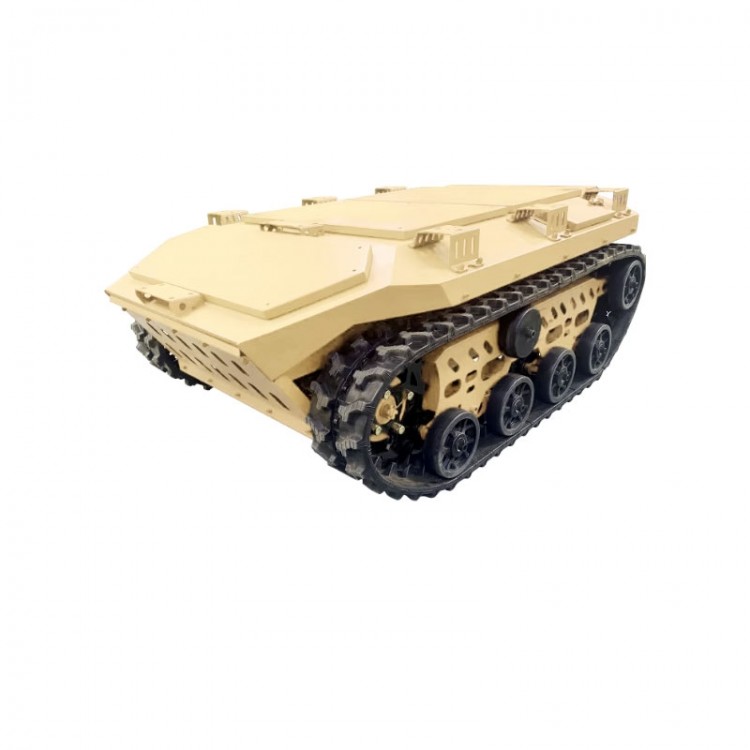

- TS6.0 is a high-performance independent suspension large chassis that combines high speed and heavy load, with a solid and durable overall structure and stable operation.
- Application scenarios: industry robot platforms such as security robots, building climbing robots, field transportation robots, explosive ordnance disposal robots, etc.

Specification:

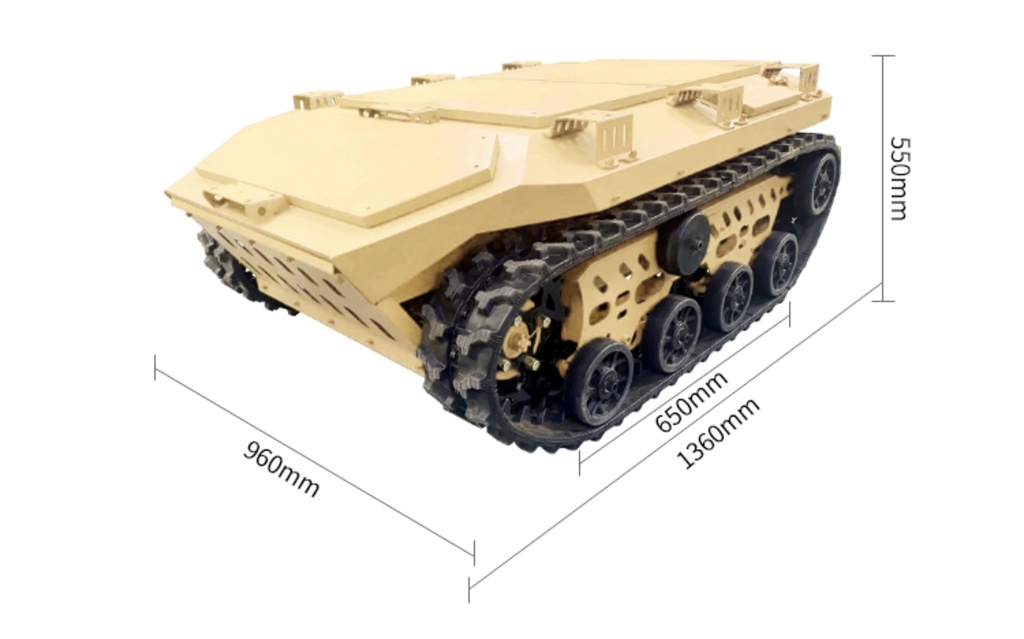

- Chassis size: 1360 x 960 x 550mm
- Working temperature: -20℃ ~ 55℃
- Chassis material: high-carbon steel (body and architecture)
- Driving mode: left and right independent driving (track differential steering)
- Minimum turning radius: 0m (can spin in place)
- Chassis weight: 175 - 185kg
- Maximum load capacity: 300kg+ (traveling and self rotating loads)
- Grounding length: 650mm
- Motion speed: 0 - 7.2km/h
- Chassis obstacle clearance height: 200mm
- Chassis track: 150mm high quality rubber track with iron core
- Shock absorption: left and right independent x 4 pendulum shock absorber
- Maximum climbing: 30°(no-load and load, can climb stairs)
- Communication interface: standard CAN/serial port communication
- Protection level: IP54
- Remote control distance: ground to ground control and high-definition video feedback distance of about 1000m, within line of sight in open areas.

Remote Controller Parameter:
- Display: 5.5-inch highlight screen
- Screen resolution: 1920 x 1080
- Processor: for Qualcomm 6nm processor
- Computer type: for Android 13
- Size: 194.3 x 282.2 x 94.9mm
- Net weight: 683g
- System memory: 64G
- Running memory: 4G
- Working frequency band: 2.4GHz/5.8GHz
- Channel number: 12

Package Included:
- 1 x Chassis
- 1 x Remote Controller

Note:
- It is assembled and ready to use.
- The battery is not included.
