Description:
Ultra-CAN-II CAN Analyzer, a new energy special diagnostic tool, supports for PCAN and ZLG USB CAN, and Kvaser.

The box supports 99% of the new energy software on the market, saving the cost of purchasing several CAN boxes.

Supporting CorssFire, it can automatically identify the type of software CAN analyzer, no need to manually switch modes, simplifying operation. It is ready to use.

USB-CAN Kernel Features:
- Fully compatible with ZLG USBCAN-II (I+/IIA)
- Supports CAN0+CAN1 channels
- Compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID)
- Baud rate range: 40K~1M

Kernel Features for PCAN/Kvaser:
- Switch modes (for PCAN/Kvaser) with one button, no need to unplug a USB cable
- Fully compatible with PCAN IPEH-002022 and for Kvaser leaf light V2
- Compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID)
- Baud rate range: 40K~1M
- Timestamp resolution is approximately 42μs

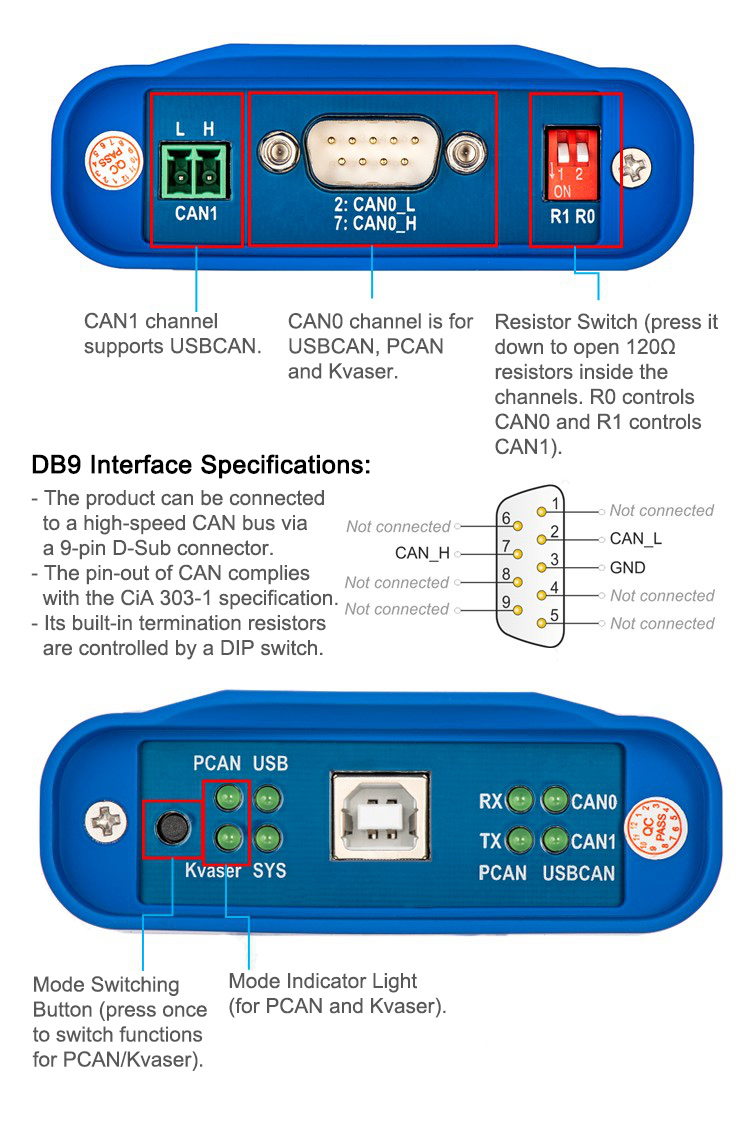

Dual-channel Features:
- CAN0 is the main channel, DB9 interface, supporting for USBCAN+PCAN/Kvaser
- You can switch modes (for PCAN/Kvaser) by pressing a button for CAN0 channel
- CAN1 is the secondary channel, which is the second channel of USBCAN-II
- The CAN1 channel only supports USBCAN functionality

Product Features:

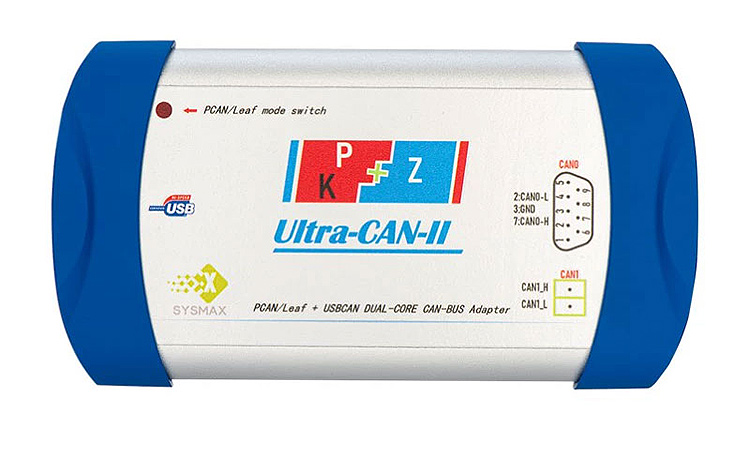

Ultra-CAN-II is a USB-to-CAN device with dual core and three functions. It has built-in cores for PCAN/Kvaser and ZLG USB-CAN-I. At the same time, it supports original drivers for PCAN/Kvaser and ZLG USB-CAN. It can not only directly use various official debugging software for PCAN/Kvaser and ZLG USB-CAN, but also use third-party applications based on secondary development for PCAN/Kvaser or ZLG USB-CAN.

Technical Specifications:
- Two-way CAN bus interface, compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID)
- Support USB (full-speed mode, compatible with USB1.1, USB2.0 and USB3.0)
- Support high-speed CAN connection (ISO11898-2)
- CAN bus connection via 9-pin D-Sub interface (complies with CiA 303-1)
- CAN galvanically isolated up to 1500V

Dual Core and Triple Functions:
- Device Manager recognizes it as devices for PCAN-USB/Kvaser and ZLG-USB CAN
- The core of the CAN0 channel can switch between modes (for PCAN-USB and Kvaser) by pressing a button
- The CAN1 channel is the second channel of the ZLG-USBCAN
- Two cores can communicate simultaneously with CAN, or only one of the cores can be enabled
- Dual core can be used by software at the same time, e.g. PCAN-View and CANtest software can be opened at the same time to communicate
- Inside the device, two cores can communicate with CAN, which is convenient for sending and receiving test and bus simulation
- Dual core can work simultaneously. No frame loss at maximum 1M baud rate and up to 90% load rate

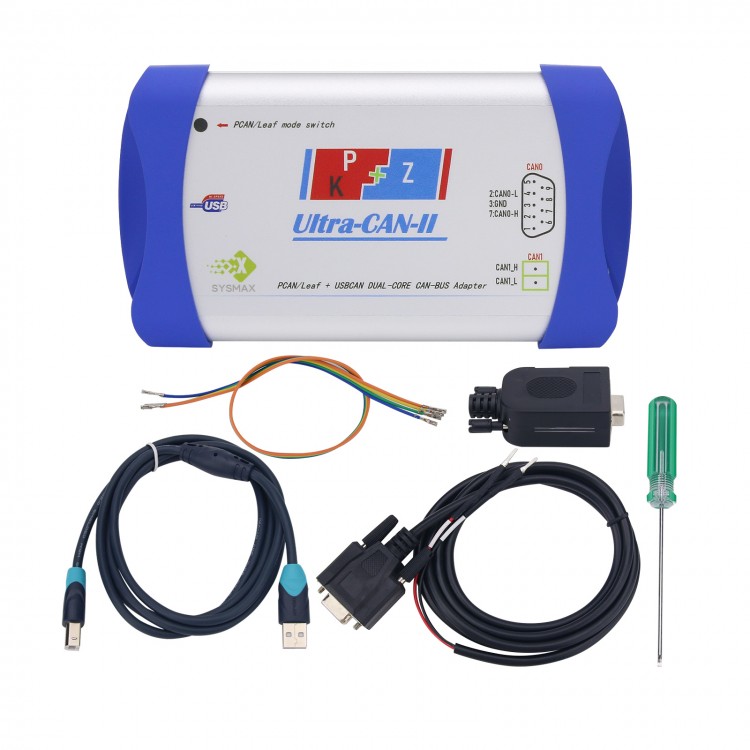

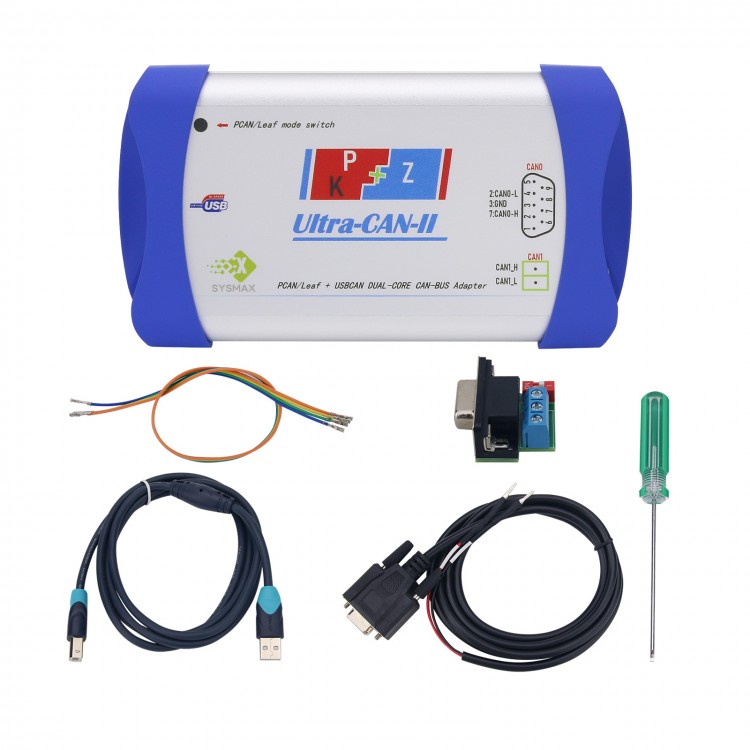

Package Included:
- 1 x Ultra-CAN-II
- 1 x Quality USB Cable
- 1 x DB9 to CAN Cable
- 1 x DB9 Universal Adapter
