UNI-T UTD2202CEX+ 200MHz 1GS/s Digital Storage Oscilloscope 2-Channel Automotive Oscilloscope

Description:

It is an economical desktop digital storage oscilloscope designed to meet the key requirements of basic measurements, featuring a simple and clear front panel design for easier user operation.

It supports 200MHz bandwidth, a real-time sampling rate of 1GS/s (per channel), and provides dual-channel performance output with a memory depth of 64kpts. This oscilloscope is designed to meet the general-purpose design, debugging, and testing needs across a wide range of digital oscilloscope markets including communications, semiconductors, computers, instrumentation, industrial electronics, consumer electronics, automotive electronics, field service, research and development, and education.

Features:
2-Channel Desktop Oscilloscope
* 2 analog channels
* 200MHz analog bandwidth
* 1GSa/s (per channel) maximum real-time sampling rate
* 64kpts maximum memory depth
* 5,000wfms/s maximum waveform acquisition rate

Configurable Fast Automatic Strategy
* It is equipped with a configurable one-key fast automatic strategy, allowing users to set channel settings, sampling settings, trigger settings, signal identification status, etc., according to their needs. This improves the automatic response speed and provides a smoother human-machine interaction experience.

Wide-Screen Display, Brand-New Interactive Interface
* It has been fully upgraded with a 7-inch LCD wide-screen display, greatly expanding the display area. To complement this, the software has also been upgraded significantly, enhancing display quality and delivering a brand-new human-machine interface for users.

Added SCPI and LAN (Optional)
* New SCPI interface and communication protocol have been added to facilitate secondary development by users. Additionally, a LAN network interface is provided as an option, enabling remote network control of the oscilloscope.

XY Measurement
* It supports XY mode (Lissajous pattern mode), which conveniently measures the phase difference between two signals using the Lissajous method. This offers a superior solution for practical teaching in universities and research institutes.

New Shortcut Knob Press Operation
* To enhance user convenience, it adds a one-key centering function by pressing the knob. Can't find the trigger point? No problem, just press once to center. Is the waveform too high and hard to view? No problem, one press to center. Additionally, the vertical control knob press toggles between coarse and fine adjustment, while the horizontal control knob press adds a one-key window expansion function.

Alternating Independent Time Base
* It features an alternating independent time base function, allowing the dual channels to simultaneously and stably trigger signals with frequency differences over 1000 times. Buy one unit, enjoy double the benefits.

More Measurement Types
* It offers up to 34 types of automatic waveform parameter measurements to help users quickly and intuitively measure the desired parameters. There is also a user-defined feature for convenient filtering and direct display of functions of interest.

Better Equivalent Sampling Performance
* Equivalent Sampling: Allows sampling of high-frequency repetitive signals at low sampling rates but cannot sample non-periodic signals.
* Real-Time Sampling: Suitable for sampling both periodic and non-periodic signals.
* Users can select the appropriate sampling method based on their waveform characteristics for optimal waveform observation.

Higher Sampling Rate (1GS/s per channel in Non-Interleaved Mode)
* Sampling rate refers to how frequently samples are taken. Uni-Trend has redefined the sampling rate calculation method. In non-interleaved mode, the per-channel sampling rate reaches up to 1GS/s. According to the Nyquist theorem, the faster the sampling rate of an oscilloscope, the higher the resolution and clarity of the displayed waveform, and the lower the probability of missing important information or events. It provides a 1GS/s sampling rate per channel in non-interleaved mode, allowing users to obtain the most authentic signal fidelity economically and with a stronger capability to acquire sporadic signals.

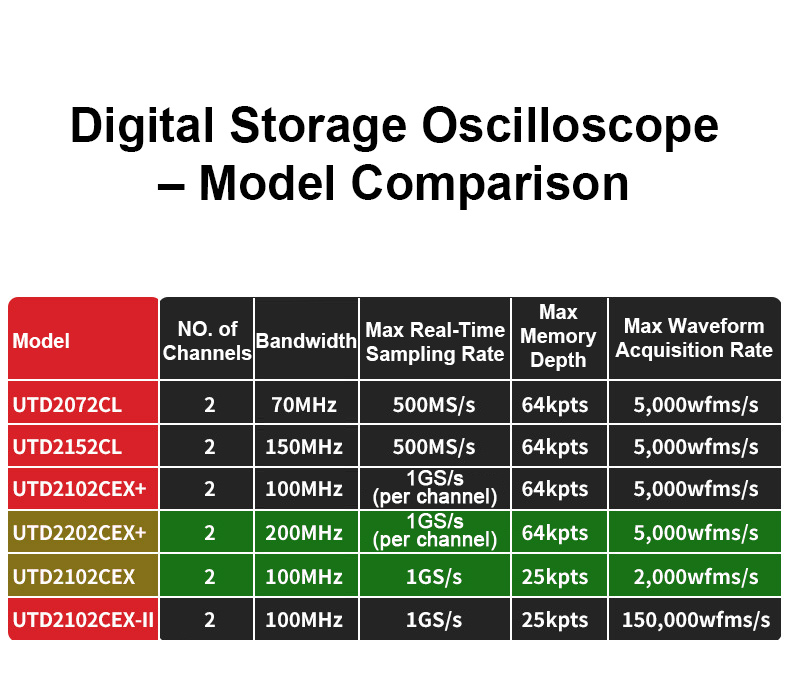

Specifications:
* Model: UTD2202CEX+
* Analog Bandwidth: 200MHz
* Number of Channels: 2
* Maximum Real-Time Sampling Rate: 1GS/s
* Rise Time: ≤1.85ns
* Memory Depth: 64kpts
* Waveform Acquisition Rate: 5,000wfms/s
* Vertical Sensitivity (V/div): 1mV/div ~ 20V/div
* Time Base Range (S/div): 2ns/div ~ 50s/div
* Storage Method: Settings, Waveforms, and Bitmap
* Trigger Frequency Counter: Hardware 6-digit frequency counter
* Trigger Types: Edge, Pulse Width, Slope, Video, and Alternate
* Trigger Modes: Automatic, Normal, and Single
* Trigger Coupling: DC, AC, High-frequency Reject, Low-frequency Reject, Noise Reject
* Cursor Measurement: Time, Voltage, Track
* Parameter Measurement: 34 automatic waveform parameter measurements
* Math Functions: +, -, ×, ÷, FFT, Digital Filtering
* Digital Filtering: Low-pass, High-pass, Band-pass, Band-stop
* Settings: 20 internal setups, 200 setups on USB drive
* Waveform: 20 internal waveforms, 200 waveforms on USB drive
* Waveform Recording: 1000 waveform data sets
* Interface: USB Host, USB Device, Pass/Fail, LAN (optional)
* Standard Square Wave Output (3Vpp): 10Hz, 100Hz, 1kHz, 10kHz
* Display Type: 7-inch TFT LCD
* Display Resolution: 800 horizontal × RGB × 480 vertical pixels
* Dimensions (W×H×D): 311mm × 152mm × 124mm
* Weight: 1.96kg

Packing List:
* 1 x Main Unit
* 1 x Certificate of Conformity
* 1 x USB Data Cable
* 2 x Probes
* 1 x Power Cable

Packaging Details:
* Weight: 5kg
