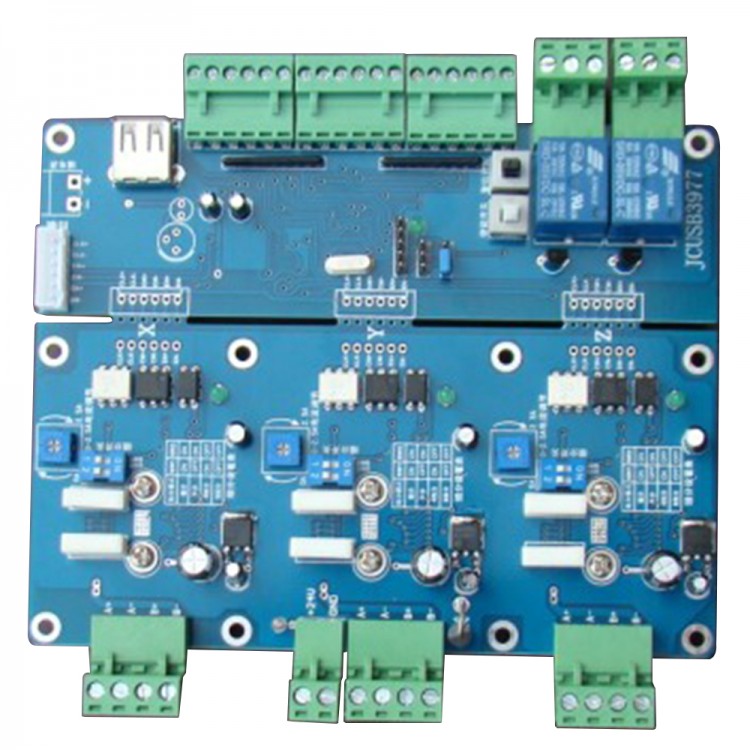

USB Interface CNC Control Board Controller + 3-Axis A3977 Driver for Stepper Motor DIY
Description:
- Working voltage DC 12V-32V. Control board USB 5V as power supply. The computer is isolated from the driver, no interference.
- Suitable for CNC USB Controller
- Output standard 3-axis drive, 4 axis port and position limitation port, also manual control interface
- The control part is isolated from the driving part of the high-speed Optocoupler
- All the data is transmitted through USB
- Step motor drive adopts A3977, inside is DMOS double H bridge
- Rated max. output: -+2.5A,35V, low output impedance, the source 0.45 ohm, receiver port 0.36ohm.
- Low voltage shutdown,Thermal shutdown circuit and current loop protection.
- Suitable for42, 57 step motor and less than 2.5A ones, but not for over 2.5A ones.
- Automatic half flow attenuation.
- Subdivision: full step, half step, 1/8 step, 1/8step, maximum 8subdivisio
- Potentiometer 0-2.5A adjustable
- Power resistance: non inductive resistance 2W /0.22R
Main features of integrated circuits:
- Rated output is: + 2.5A, 35V.
- Low output impedance, source 0.45Ohm, receiver 0.36Ohm
- Automatic detection and selection of mixed current decay, fast and slow current decay mode.
- Logic level range is 3 ~ 5.5V.
- HOME output.
- Reduce the power consumption of the synchronous rectification.
- Low voltage shutdown,Thermal shutdown circuit and current loop protection.
Package included:
- 1 x Board
