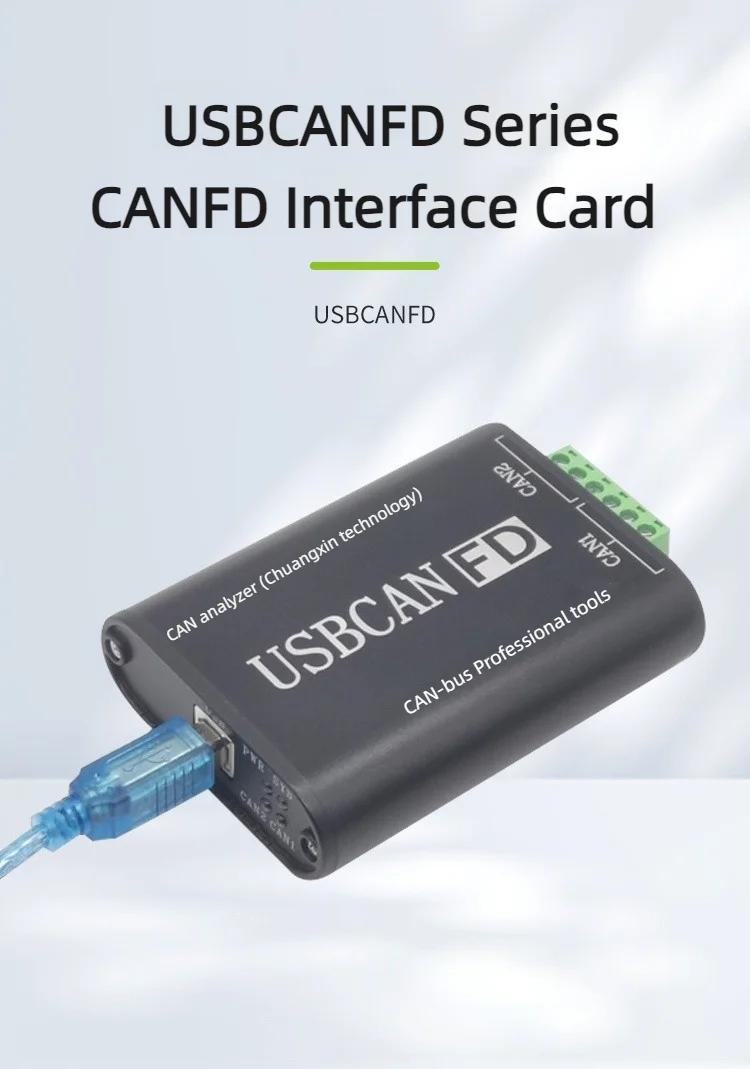

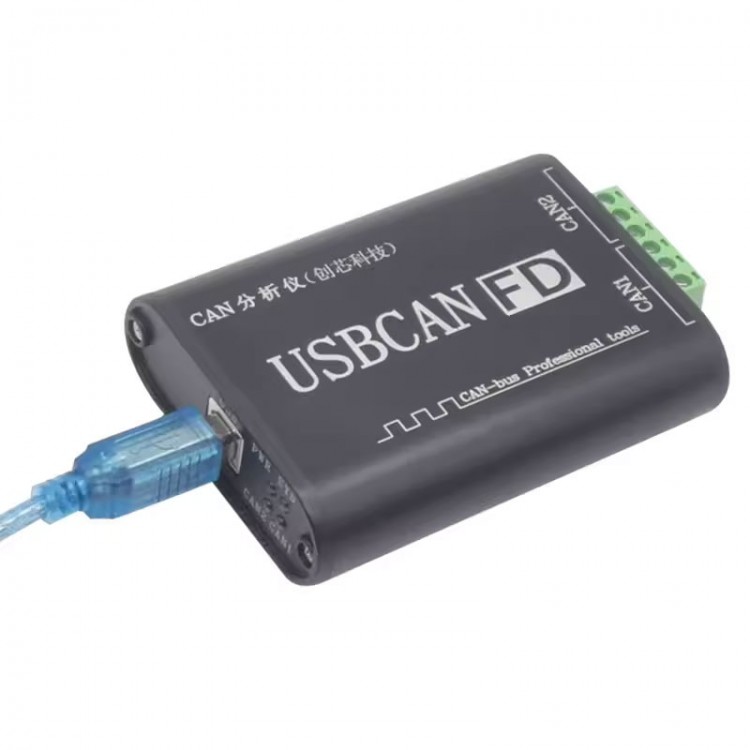

• USBCANFD Linux Version 2-Channel CAN Analyzer 3KV Electrical Isolation Support for Windows XP/7/8/10/11 and Linux Systems

USBCANFD Linux Version 2-Channel CAN Analyzer 3KV Electrical Isolation Support for Windows XP/7/8/10/11 and Linux Systems

Availability: In stock, usually dispatched in 1 business day

  • Price:$97.17
  • Price in reward points: 972 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $95.23 $93.28 $90.37 $86.48 Contact US
Quantity:

USBCANFD Linux Version 2-Channel CAN Analyzer 3KV Electrical Isolation Support for Windows XP/7/8/10/11 and Linux Systems

Specification:

USB Interface:
- Working voltage: 5V (direct power supply through USB port)
- Interface form: USB-B type interface

CAN/CANFD Interface:

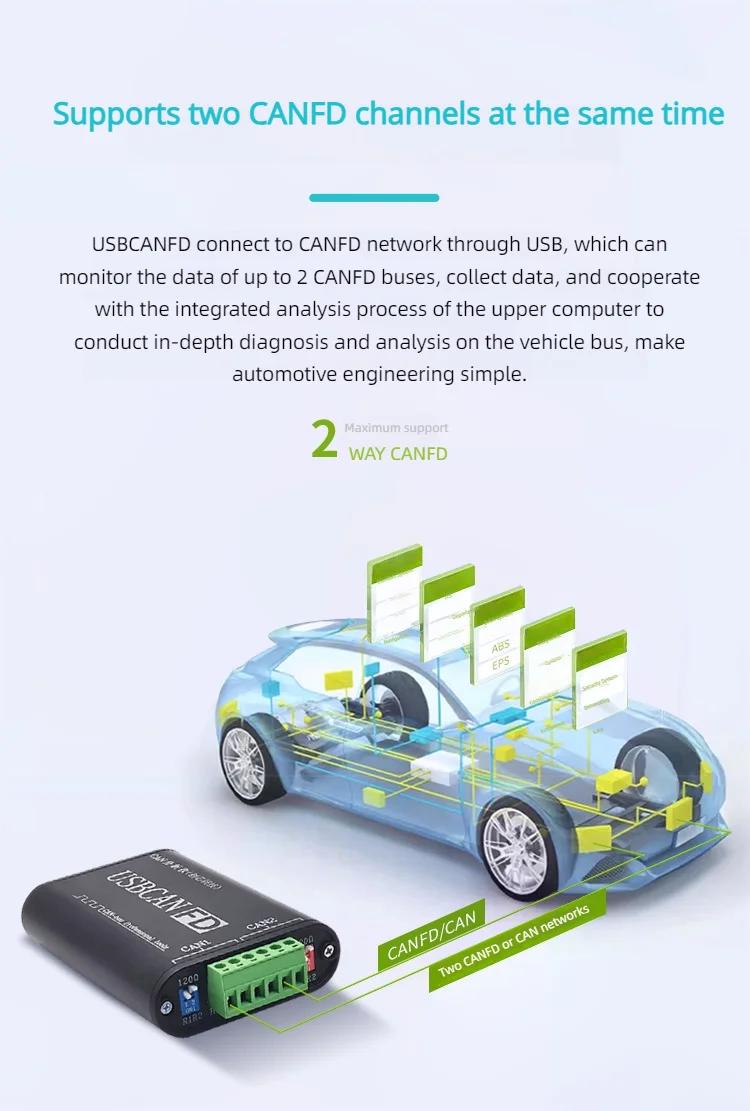

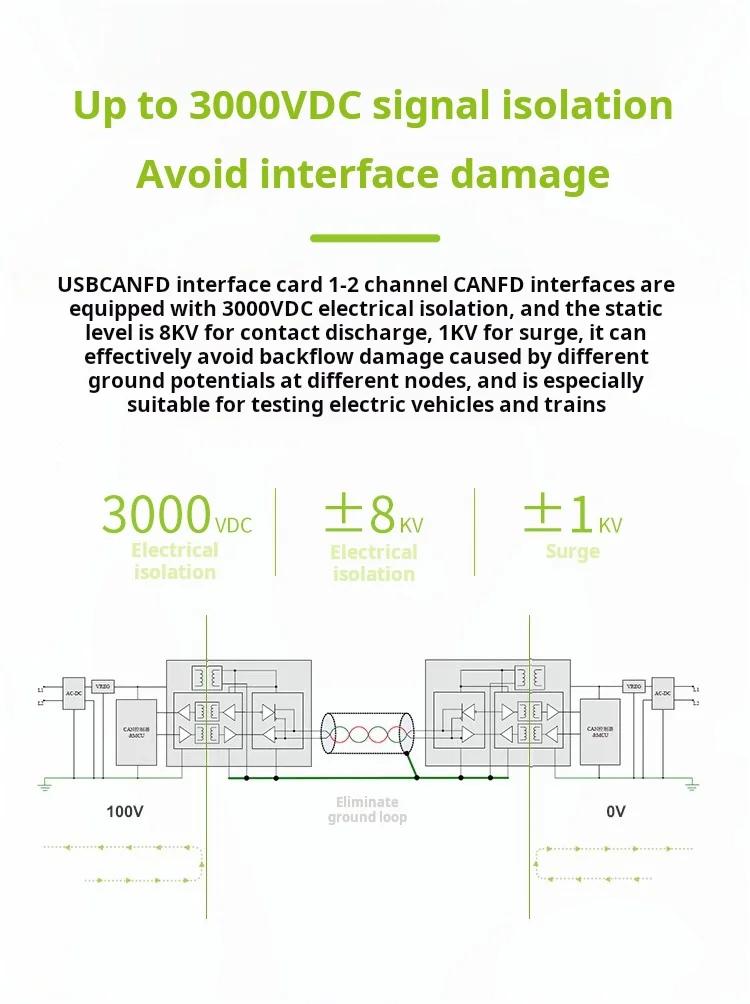

- CAN channel numbers: 2-channel; CAN1 and CAN2 (independent of each other, not affecting each other, fully isolated, with an isolation voltage of 3000VDC)

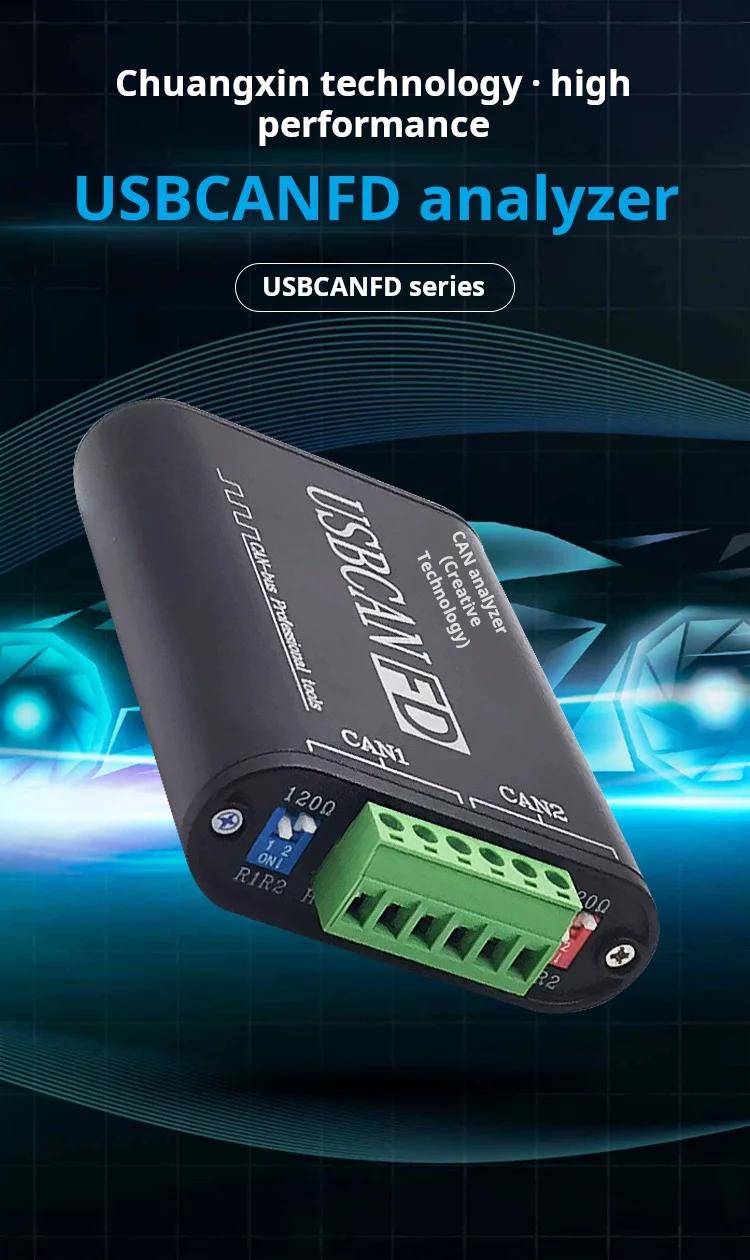

- Interface form: terminal interface (OPEN6 spacing 5.08mm)
- Matching resistor: each CAN/CANFD is equipped with two 120ohms terminal resistors, which can be enabled through switches
- Communication speed rate: 100Kbps ~ 5Mbps (configurable through software)

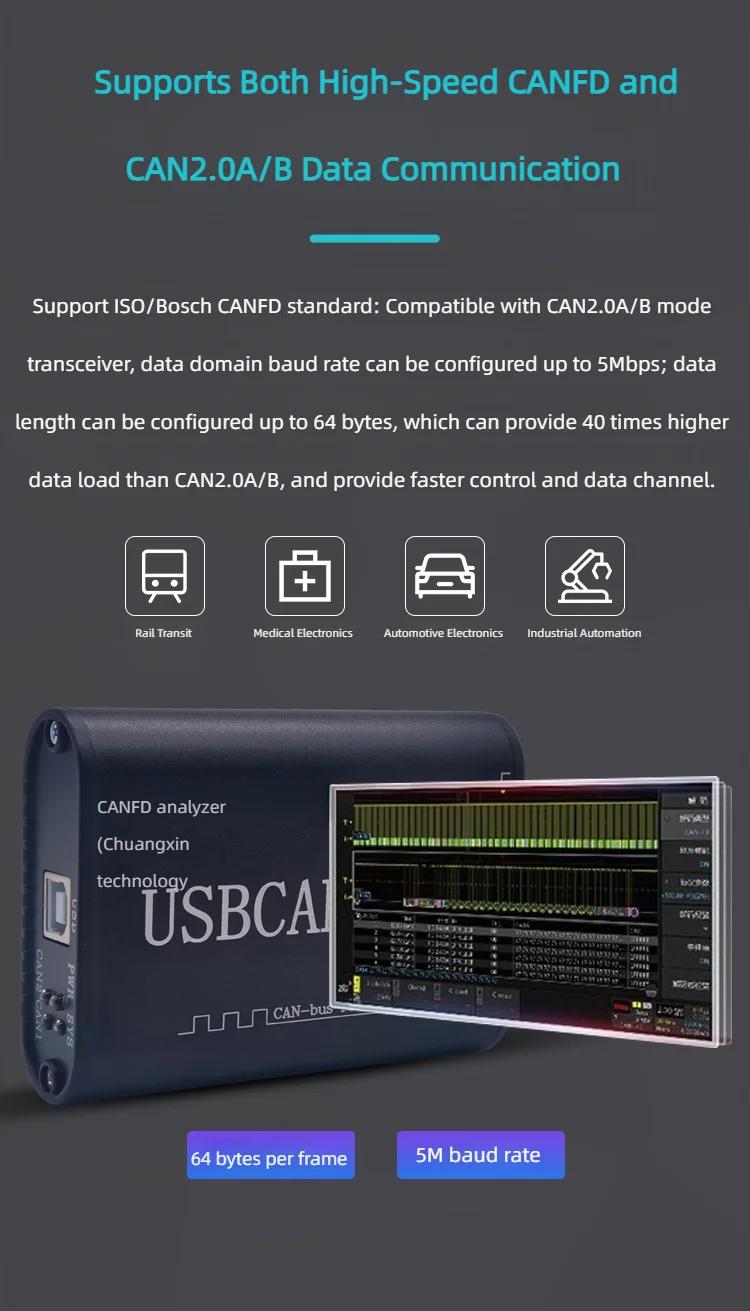

- Protocol support: CAN2.0A and 2.0B, ISO11898-1CANFD protocol specification V.1.0 protocol

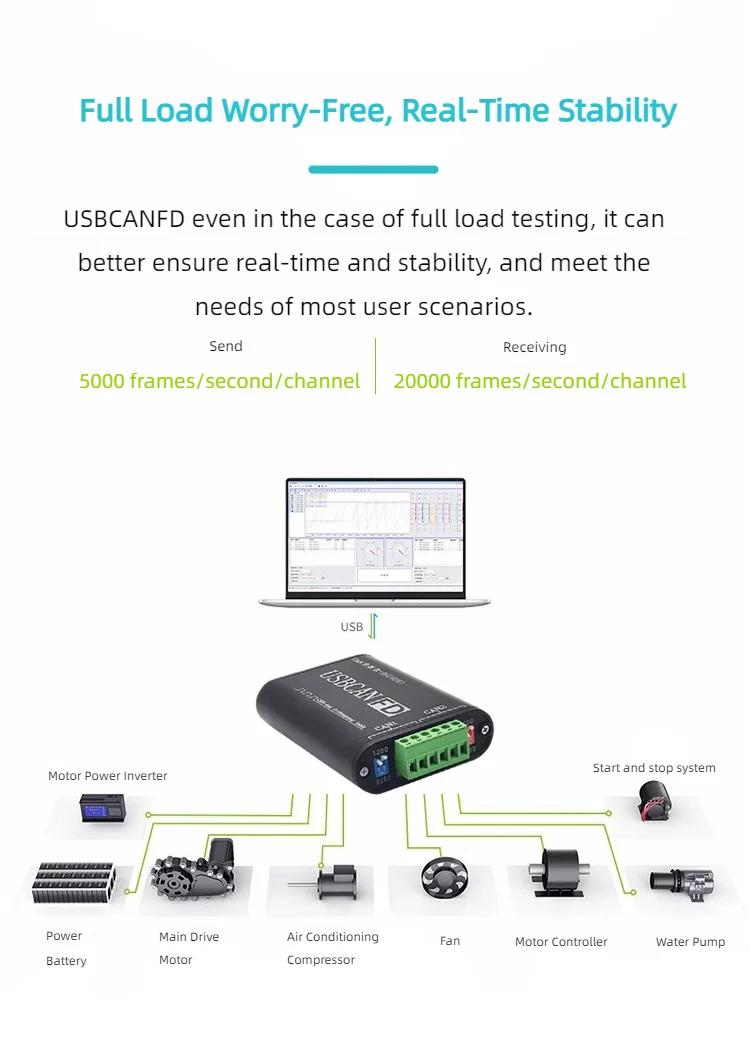

- Data transceiving ability: each CAN/CANFD can receive up to 20000 frames per second and send up to 5000 frames per second
- Data transceiving buffer: each CAN/CANFD channel has a receiving buffer of 1500 frames and a sending buffer of 64 frames (automatically resent in case of sending failure)

Indicator:
- PWR: power indicator
- SYS: system status indicator, normally off for common situation; normally on when there is an error on the bus
- CAN1: CAN1 channel indicator (flash when transceiving)
- CAN2: CAN2 channel indicator (flash when transceiving)

Others:

- Supported system: for WindowsXP/7/8/10/11 system (32bits and 64bits), Linux System
- Working temperature: -40℃ to 85℃
- Shell material: aluminum alloy metal body + 3D flame-retardant insulation baffles on both sides (patented design), better preventing metal tip discharge, improving product safety factor and service life
- Product size: 104 x 70 x 25mm

Package Included:
- 1 x USBCANFD Analyzer
- 1 x USB Cable
- 1 x Screw Driver
