XD-3420 30W Permanent Magnet DC Motor High-Speed Micro Motor (24V 7000r/min) with Threaded Shaft
$31.66
XD-3420 30W Permanent Magnet DC Motor High-Speed Micro Motor (12V 3500r/min) with Threaded Shaft
$31.66
200W 24V DC Worm Gear Reduction Motor XD5D200-24A18S 1800RPM DC Motor and NRV40 Gear Reducer
$185.00

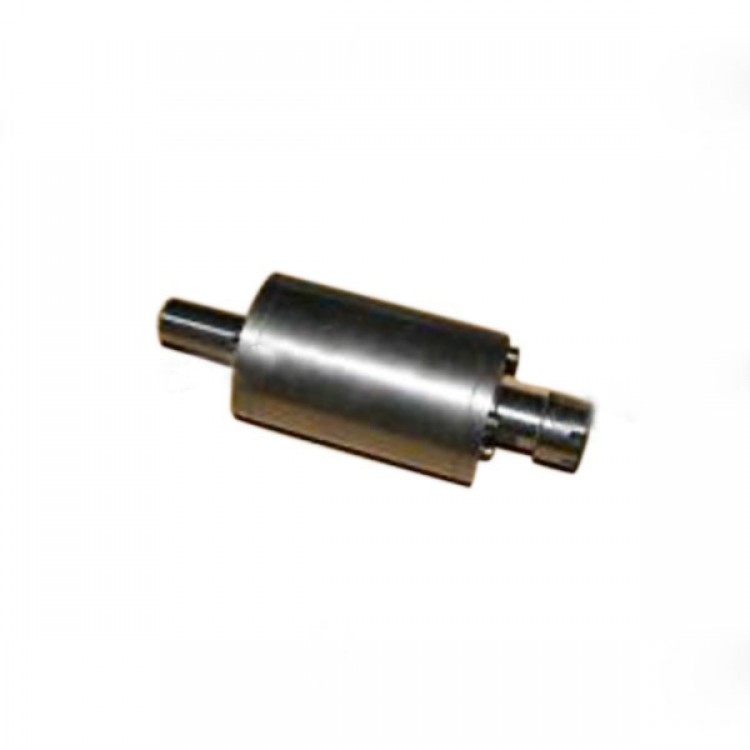

Water Cooled Motor Spindle ER20 For CNC Router
Specifications:
- Dimensions: D: 100mm (3.937") L: 290mm (~11-3/8") - body, 380mm (~15") - overall.
- Power: 4 kW (5.4HP)
- Voltage: 220 V 3 Phase (Inverter Output Voltage).
- Current 14 A
- Frequency: 0~400 Hz
- Speed: 0~24000 RPM stepless.
- Working speed: 6000~24000 RPM
- Water Cooling
- ER20 collet
- Grease Lubrication
- Run-out: less than 0.02mm (0.001")
