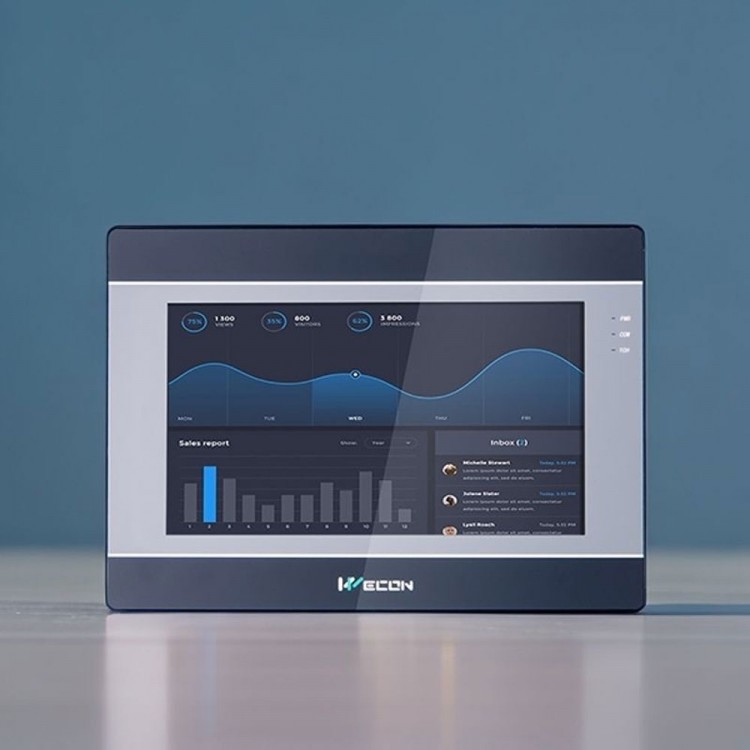

Wecon PI3102I 10.1-Inch HMI Human Machine Interface with 2-Core Processor 128M+128M & Ethernet Port

Wecon PI3102I 10.1-Inch HMI Human Machine Interface with 2-Core Processor 128M+128M & Ethernet Port

Features:
* Mainboard Specifications: Dual-core processor with 128MB Flash and 128MB RAM memory
* Display: 10.1-inch, resolution: 1024 × 600
* Interface: COM1: RS232, RS422/RS485 (multiple interfaces optional)
* Download Method: Data cable download + USB flash drive download + LAN download

Specifications:
* CPU: High-performance processor
* Touch Screen: Resistive

Display:
*Display: 10.1-inch
* Resolution: 1024 × 600
* LCD Brightness: 350cd/m²
* Backlight Type: LED
* Backlight Life (Half-life): Greater than 20,000 hours

Storage:
* FLASH: 128MB
* Memory (RAM): 128MB
* SD Card Slot: None
* RTC: Real-time clock

I/O Interface:
* USB Interface: USB Host: USB 2.0 × 1; USB Client: USB 2.0 × 1
* Serial Interface: 1 serial port. RS232, RS422/RS485 (2-in1)
* Ethernet Port: With
* CAN: None

Perpetual Calendar:
* Built-in

Power Specifications:
* Input Power: 24V DC (12–28V DC)
* Power Consumption: Less than 10W
* Power Isolation: None

Structural Specifications:
* Enclosure Material: Engineering Plastic PC+ABS (Flame Retardant Grade)
* Dimensions: 272.0mm × 191.0mm × 41.5mm
* Cutout Dimensions: 260.0mm × 179.0mm
* Weight: 1.00kg

Operating Environment:
* Protection Rating: Front panel compliant with IP65
* Storage Temperature: -20℃ to 70℃
* Operating Temperature: -10℃ to 55℃
* Operating Humidity: 10% to 90% RH (non-condensing)
* Vibration Resistance: 10–25Hz, 2G for 30 minutes along X, Y, and Z axes

* CE Certification: Complies with CE standard certification
* Software: PI Studio Configuration Software
* Remote Control: Not supported

Packing List:
* 1 × HMI Display

Packaging Details:
* Weight: 0.6kg
