Wifi UAV Sweep Frequency Disturber Signal Blocker WYDZ-5.8GHz-1W Aluminum Alloy Shell Type-C Cable
Applications:
It can be applied to WIFI, UAV, digital transmission, image transmission, shielding, etc.
Attention:
(1) Please connect the antenna first, and then power on. Otherwise, chip will be burnt out due to excessive reflected signals!
(2) Regarding power supply, a 5V/2A adapter is recommended, and normal current is greater than 1A during operation.
(3) Its body adopts an all-aluminum box shell, which has good heat dissipation and is suitable for long-time work.
(4) Regarding interference distance, the interference radius of an open room is 50m, and the wall penetration capacity is 2-3 walls.
Demonstration Video:
Link: https://pan.baidu.com/s/198TV01YWul48jH3Wg3DL2w
Password: WYDZ
Module Parameters:
1. Power supply: TYPE-C cable (USB to TYPE-C)
2. Module frequency range: 5.7-5.9GHz; internal triangular wave sweep cycle 50us/20kHz (other cycles can be customized)

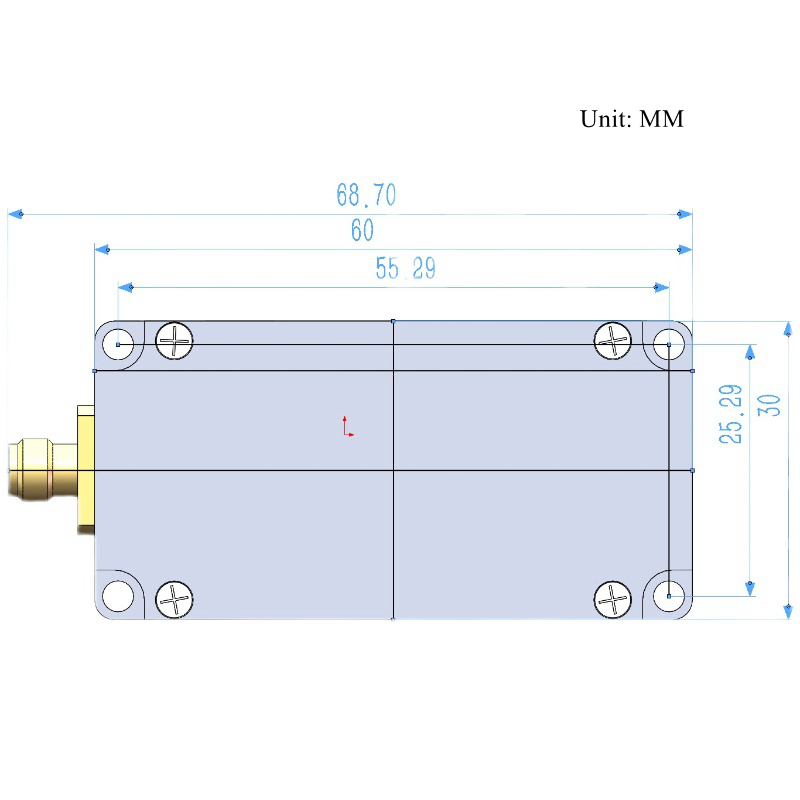

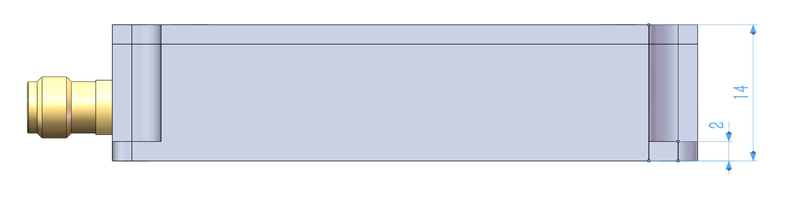

3. Volume: 6*3*1.4cm (excluding sizes of SMA connectors, refer to the mechanical drawing given for details); Net weight: 80g (including host + TYPE-C wire + antenna)
4. Current: 2A (5V/2A power adapter is recommended)
5. P1dB=30dBm at 2.4GHz (1W)
6. Output interface: SMA female; output impedance: 50 ohms

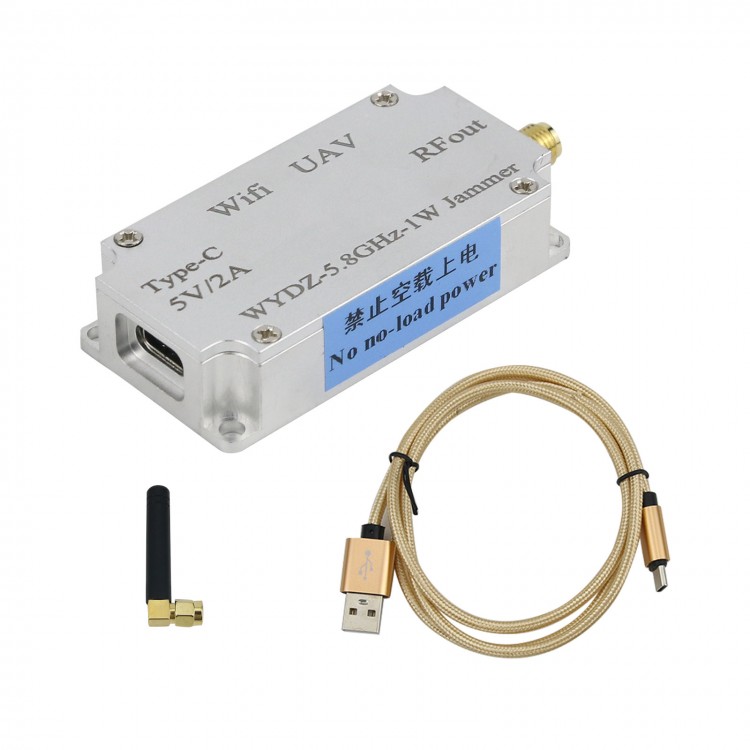

Package Included:
- 1 x Sweep Frequency Disturber Alloy Shell
- 1 x Type-C Cable
- 1 x Antenna
Measured Parameters:

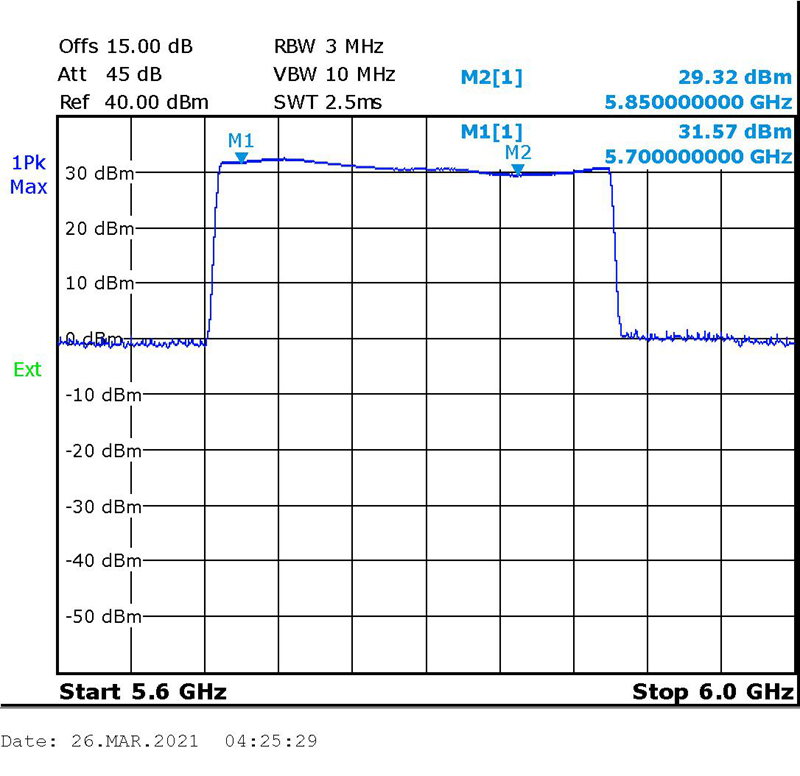

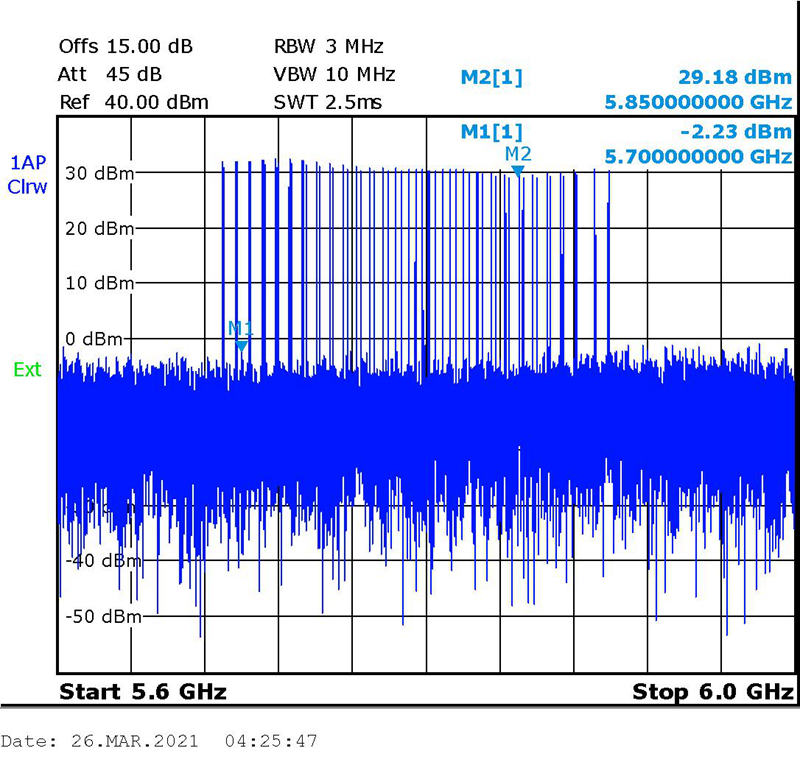

Measured sweep bandwidth parameters

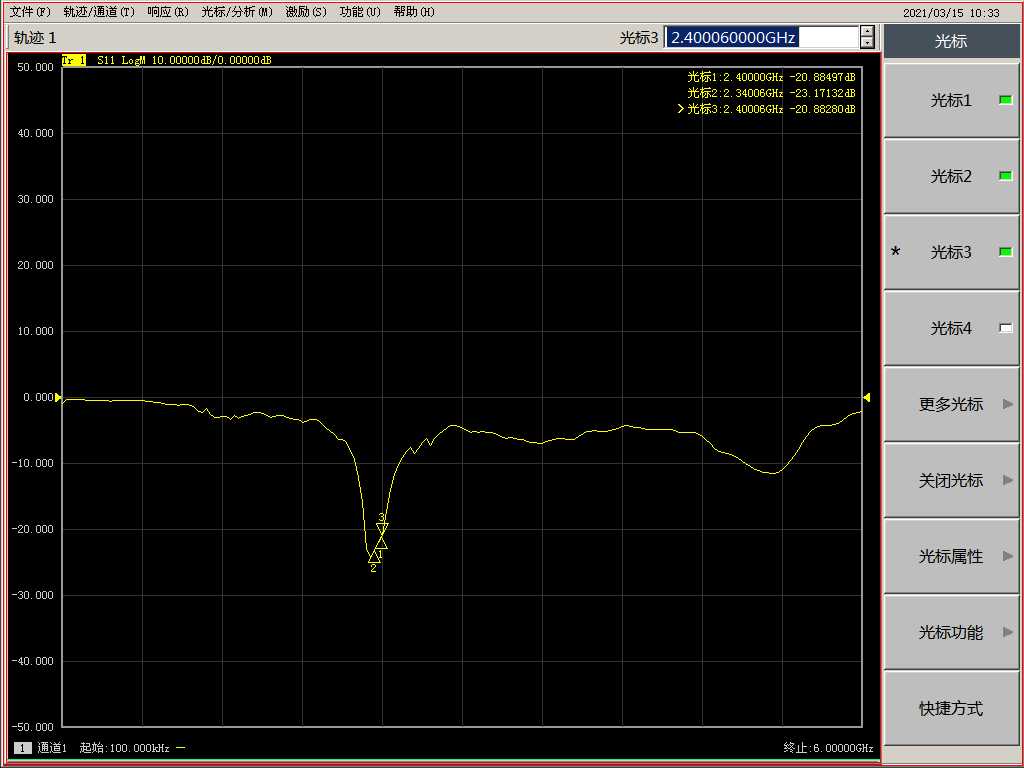

Measured 2.4G 5.8G dual-band antenna parameters
