WYDZ-2.4GHz-1W WiFi Bluetooth Blocker 2.4GHZ 1W With Antenna Type-C Cable Aluminum Alloy Shell
Attention:
(1) The antenna must be connected first, and then power on. Otherwise, the chip will be burnt out due to excessive reflected signals!
(2) Regarding power supply, please use a 5V/2A adapter, and the normal current is greater than 1A during operation.
(3) It adopts an all-aluminum case, which has good heat dissipation and is suitable for long-time work.
Applications:
- Can be applied to WIFI, Bluetooth transmission, data transmission, image transmission, shielding
Demo Video:
https://pan.baidu.com/s/1iBLzoyIvXS8hyuyoQgxFPA
Password: WYDZ
Module Parameters:
1. Power supply: TYPE-C cable (USB to TYPE-C)
2. Module frequency range: 2.4-2.5GHz; internal triangular wave sweep cycle 50us/20kHz (other cycles can be customized)
3. Volume: 6*3*1.4cm (without the size of protruding SMA, refer to the given mechanical drawing for details); Net weight: 80g (including host + TYPE-C wire + antenna)
4. Current: 2A (5V/2A power adapter is recommended)
5. P1dB=30dBm at 2GHz (1W)
6. Output interface: SMA female, output impedance: 50Ω

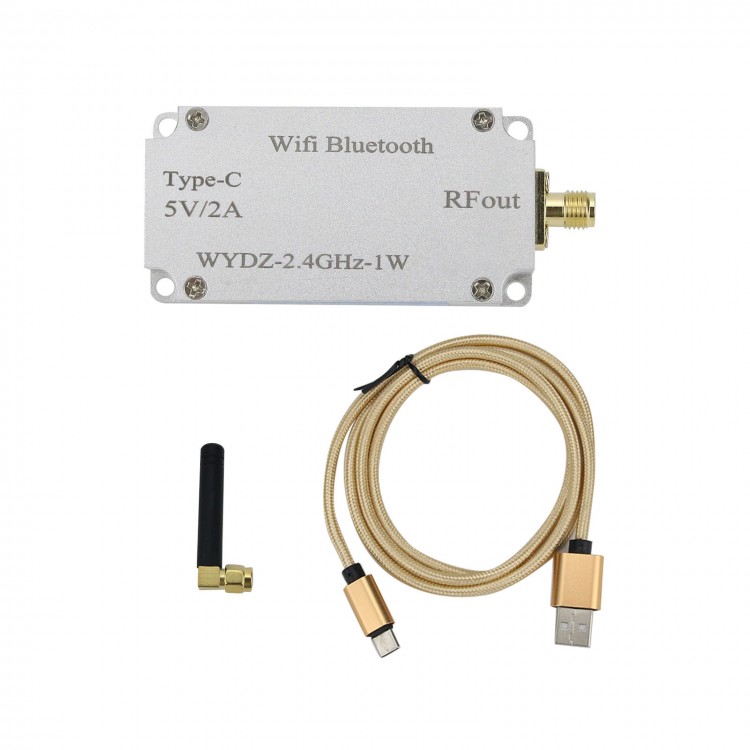

Package Included:
- 1 x Main Unit w/ Aluminum Alloy Shell
- 1 x Type-C Cable
- 1 x Antenna
Measured Parameters:

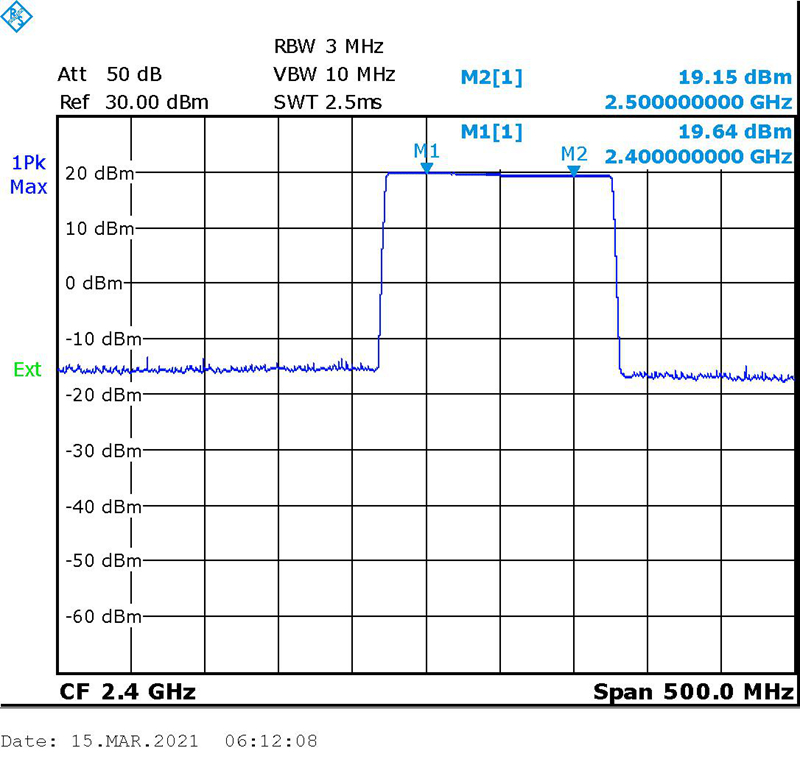

1. Measured sweep bandwidth parameters:

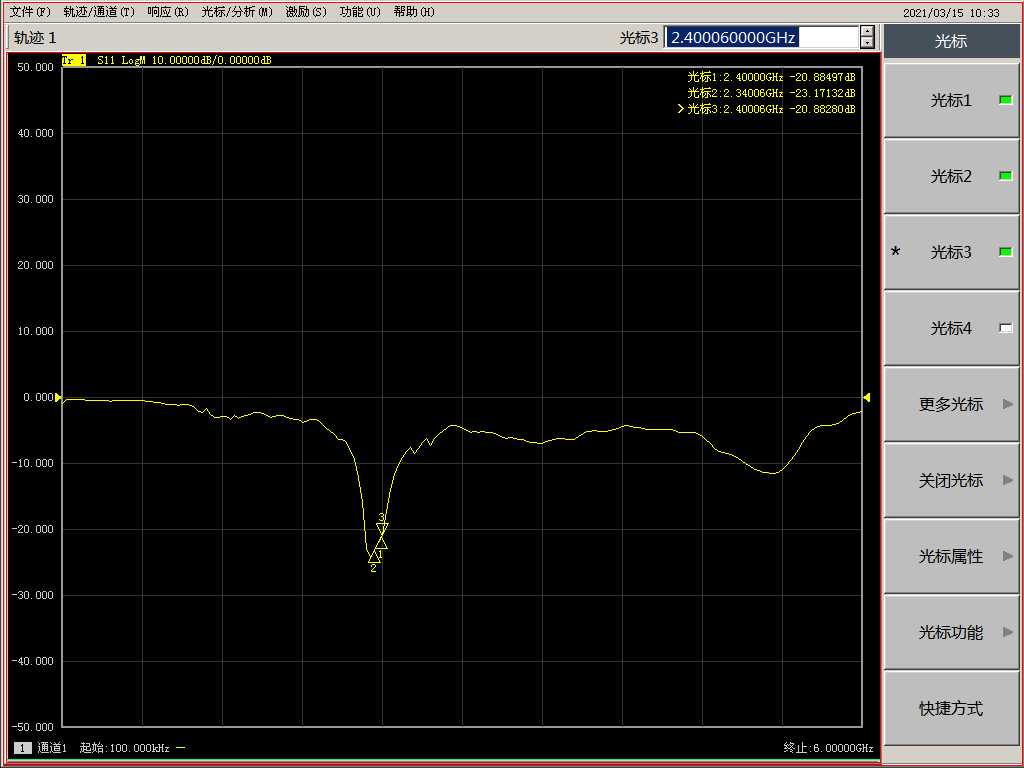

2. Measured Antenna Parameters:

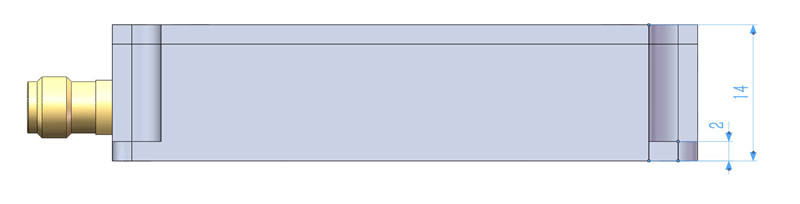

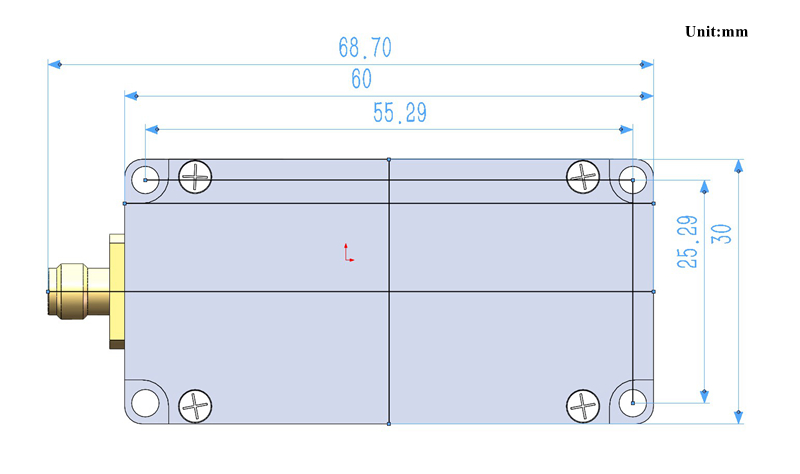

Module Size:
