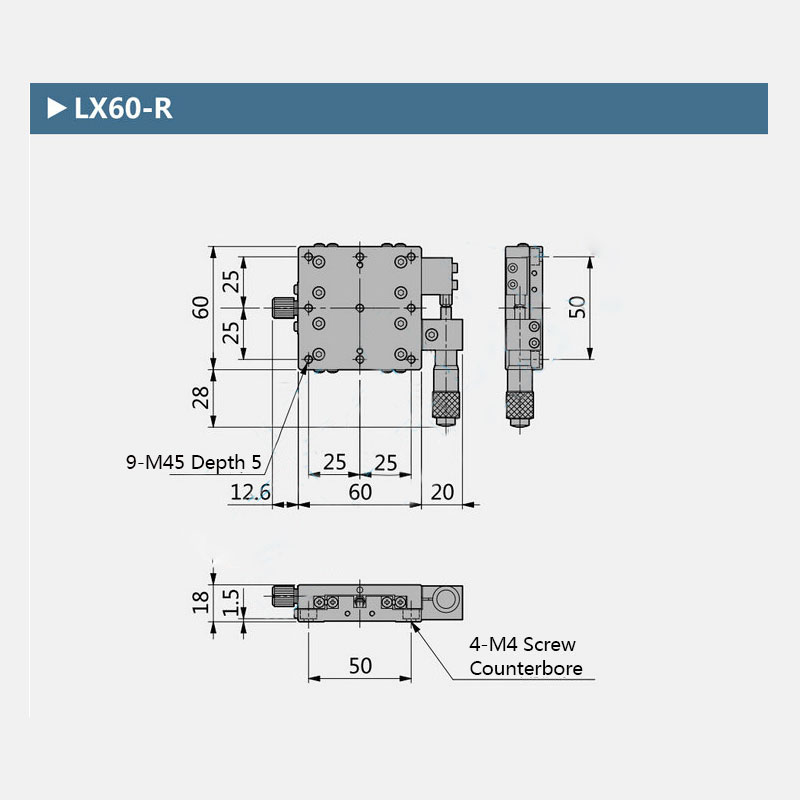

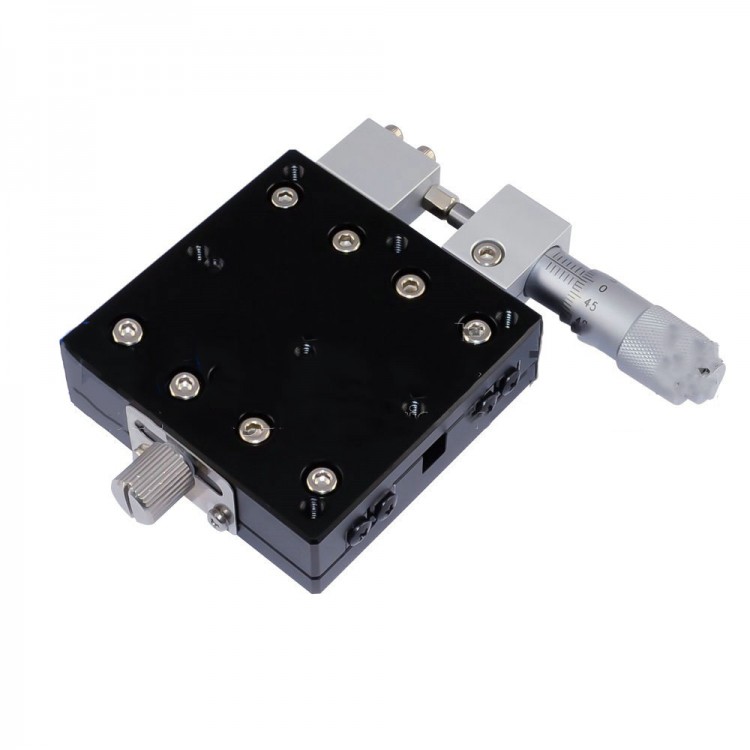

X Axis 60*60mm Manual Displacement Platform Linear Fine Adjustment Sliding Table LX60-R
Features:
- Using cross roller guide for high accuracy, smooth movement
- Lightweight: its main material aluminum alloy makes it suitable for built in other devices
- Drive Mode: micrometer head
Parameters:
- Model: LX60-R
- Move Direction: X axis in one direction
- Material: Aluminum Alloy (Surface black anodizing)
- Drive Mode: Micrometer head
- Dimension: 60*60mm
- Table Thickness: 18mm
- Travel: ±6.5mm
- Load: 49N (5kgf)
- Minimum scale: 0.01mm
- Movement Parallelism: ≤0.01mm/13mm
- Parallelism: 0.03 mm
- Weight: 0.24kg
Package Included:
- 1 x Manual Displacement Platform
