0.1Ω-9.9999999MΩ 0.1% 0.25W 25PPM Programmable Resistor Board with Transparent Case for Multimeters

0.1Ω-9.9999999MΩ 0.1% 0.25W 25PPM Programmable Resistor Board with Transparent Case for Multimeters

Description:
This resistor board uses a large number of 0.1% precision resistors with copper leads and a low temperature coefficient of 25PPM. In contrast, many competing products use 1% tolerance resistors, which are not in the same class. The raw material cost for this board is significantly higher.

Advantages:
* The resistor board uses 0.1% precision resistors, not standard 1% resistors. The material cost difference between the two is dozens of times.
* The resistors are through-hole components, not SMD (surface-mount) types. SMD resistors have smaller pin spacing and are more susceptible to moisture, which can reduce resistance and lead to poor stability.
* We do not use DIP switches. Instead, we use gold-plated pin headers, as DIP switches have large contact resistance that negatively affects the accuracy of low-resistance measurements. Gold-plated pins have less than half the contact resistance of DIP switches.

Specifications:
* Product Name: 8-Stage Programmable Decimal Resistor Board (0.1%)
* Resistance Range: 0.1Ω–9.9999999MΩ
* Resistor Specifications:
 ** 0.1Ω – 1% Metal Film Resistor, 50PPM
 ** 1Ω – 0.1% Metal Film Resistor with Copper Leads, 25PPM Low Temperature Drift
 ** 10Ω – 0.1% Metal Film Resistor with Copper Leads, 25PPM Low Temperature Drift
 ** 100Ω – 0.1% Metal Film Resistor with Copper Leads, 25PPM Low Temperature Drift
 ** 1KΩ – 0.1% Metal Film Resistor with Copper Leads, 25PPM Low Temperature Drift
 ** 10KΩ – 0.1% Metal Film Resistor with Copper Leads, 25PPM Low Temperature Drift
 ** 100KΩ – 0.1% Metal Film Resistor with Copper Leads, 25PPM Low Temperature Drift
 ** 1MΩ – 0.1% Metal Film Resistor with Copper Leads, 25PPM Low Temperature Drift
* Power Rating: 0.25W
* PCB Board Size: 100mm × 70mm
* Board Weight: 70g

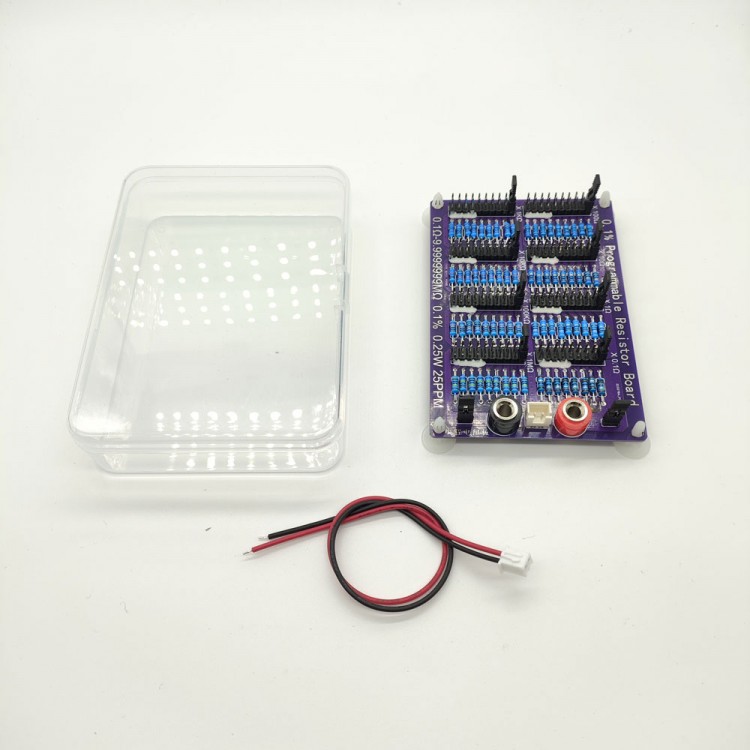

Packing List:
* 1 × Programmable resistor board
* 1 × 2-pin wire
* 1 × Transparent case

Packaging Details:
* Weight: 0.15kg
