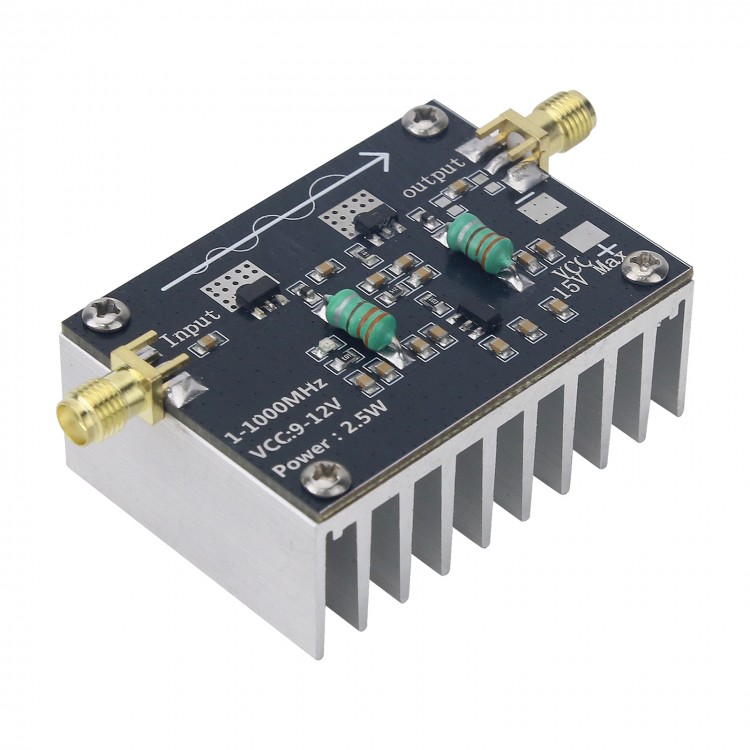

1-1000MHz 2.5W RF Power Amplifier HF VHF UHF FM Frequency Modulation Power Amplifier Module for Wireless Transmission

1-1000MHz 2.5W RF Power Amplifier HF VHF UHF FM Frequency Modulation Power Amplifier Module for Wireless Transmission

Description:
- This broadband RF low-power amplifier is suitable for various wireless transmission applications, such as shortwave FM wireless remote control, FM radio transmission, amateur radio 135-175MHz, 380-470MHz walkie talkies, etc.
- The low-frequency input 1mW can output up to 2.0W, the maximum output is 1.6W at 512MHz, the maximum output is 1.0W at 930MHz, and the maximum output is 1W at 1000MHz.
- The amplifier is equipped with a heat sink and can operate stably for a long time.
- Attention: The RF power amplifier is a vulnerable component, so it is necessary to connect the input and output properly and pay attention to impedance matching before powering on for testing.

Specification:
- Working frequency: 1 - 1000MHz
- Working voltage: 12 - 15V DC
- Working current: 300 - 400mA (depends on output power)
- RF Connector: SMA female connector
- Size: L x W x H = 55 x 40 x 20mm
- Gain: 35dB (decreasing with increasing frequency)
- Input power: 1mW (0dBm)
- Weight: 67g
- Maximum output:
  2.5W (34dBm)
  Low frequency terminal (10MHz)
  2W (33dBm)
  Medium frequency terminal (512MHz)
  1.25W (31dBm)
  High frequency terminal (1000MHz)
  1W (30dBm)
  High frequency terminal (1000MHz)

Precaution:
- It is strictly prohibited to operate without load, and the power supply can only be carried out after the input and output are connected.
- The positive and negative poles of the DC when connected should be confirmed multiple times, reverse connection will cause module damage.

Package Included:
- 1 x RF Power Amplifier
