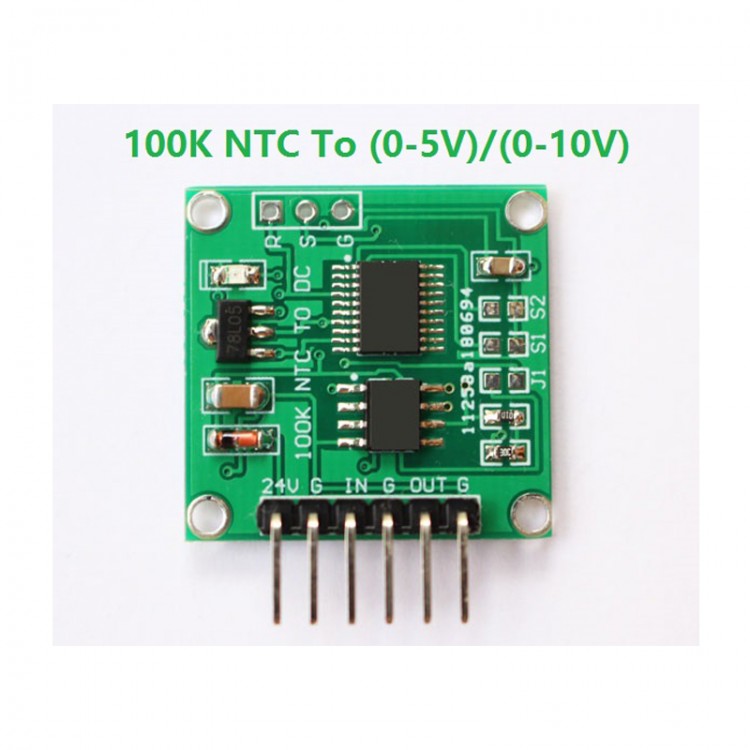

100K NTC Thermistor to Voltage Converter Module Optional Output Voltage 0-5V/0-10V
Description:
This is a linear conversion module that converts the input ntc resistor signal into a temperature (voltage signal) output via internal chip processing.
Parameters:
- Working Voltage: 9V-24V
- Input Resistor: NTC 100K Thermal Resistor
- Optional Output Voltage: 0.00V-5.00V, 0.00V-10.00V
- Temperature Measuring Range: -20℃ to 150℃
- Output Way (S2 Pad on the Board):
Open Circuit: Output 0.00-5.00V;
Short Circuit: Output 0.00V-10.00V.
The Default Output is 0.00-5.00V.
- Application: for Remote Data Acquisition and Control Equipment
- Size: 26 x 23 x 10mm (L*W*H)
SIP Pin Definition:
- 24V: for Power Supply + (9-24V)
- G: Power Supply GND
- IN: NTC +
- G: NTC –
- OUT: Signal Output (0.00-5.00V/ 0.00V-10.00V)
- G: Power Supply GND
Note:
- Optional Output Voltage: 0.00V-5.00V, 0.00V-10.00V. Please leave a message about your desired output voltage when purchasing. Thank you!
- When the output voltage is 0.00V ~ 10.00V, your power supply voltage should be 15V.
Output Resolution:
- Output Resolution (0.00V ~ 5.00V): 0.0294117V / °C
- Output Resolution (0.00V ~ 10.00V): 0.0588235V / °C
How to Calculate Measured Temperature:
(Output Voltage (V) /Resolution) -20 °C = Measured Temperature Value (°C).
Package Included:
- 1 x NTC Thermistor to Voltage Converter Module
