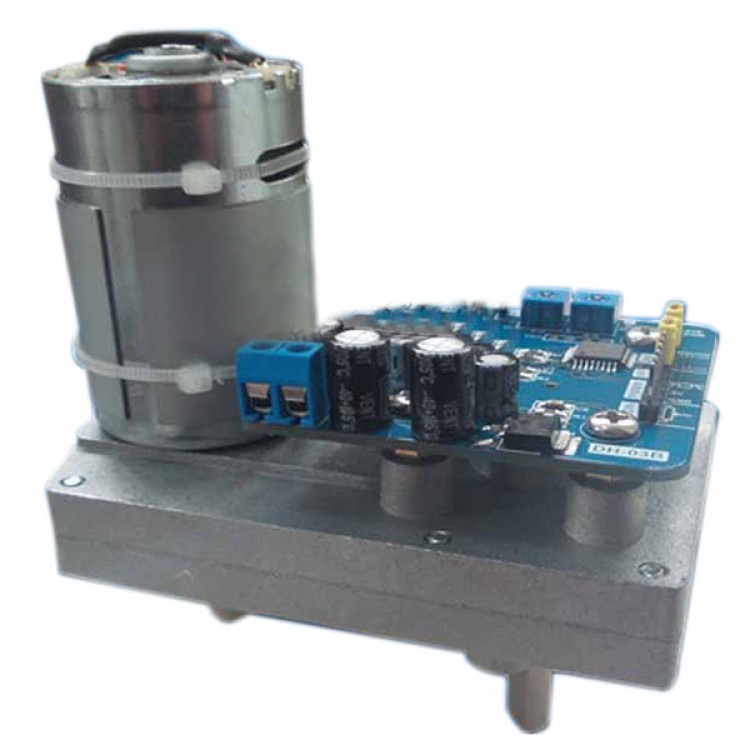

  • 12V/24V DH-03B Mental Servo Alloy 180kg/cm 330 Degree for RC Robot PWM Signal

12V/24V DH-03B Mental Servo Alloy 180kg/cm 330 Degree for RC Robot PWM Signal

Availability: In stock, usually dispatched in 1 business day

  • Price:$63.94
  • Price in reward points: 639 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $62.66 $61.38 $59.46 $56.91 Contact US
Quantity:
Buy it now Add cart

You might like

DC 12V/ 24V DH-03X Large Torque Alloy Servo 180kg/cm 160A Mechanical Arm for Robot RC

DC 12V/ 24V DH-03X Large Torque Alloy Servo 180kg/cm 160A Mechanical Arm for Robot RC

$34.13

(0)
DH-03S Super Large Torque Alloy Servo 12V/ 24V/ 180KG.CM for Large Robot Mechanical Arm

DH-03S Super Large Torque Alloy Servo 12V/ 24V/ 180KG.CM for Large Robot Mechanical Arm

$72.88

(0)
ASMC-01B Super Large Torque Alloy Servo 12V/24 /180KG.cm Robot Mechanical Arm

ASMC-01B Super Large Torque Alloy Servo 12V/24 /180KG.cm Robot Mechanical Arm

$88.90

(0)
ASME-01B Super Large Torque Alloy Servo 12V/24V/380KG.CM Large Robot Mechanical Arm

ASME-01B Super Large Torque Alloy Servo 12V/24V/380KG.CM Large Robot Mechanical Arm

$150.37

(0)
UGV01-X3 Intelligent Track Tank Robot Chassis with Horizon Sunrise X3 Pi Support for Bus Servo/PWM Output/SD Card Expansion

UGV01-X3 Intelligent Track Tank Robot Chassis with Horizon Sunrise X3 Pi Support for Bus Servo/PWM Output/SD Card Expansion

$477.99

(0)
XQ-POWER XQ-RS416 180 Degree Rotation Angle 16KG Torque High Quality Robot Servo 0.12sec/60degree

XQ-POWER XQ-RS416 180 Degree Rotation Angle 16KG Torque High Quality Robot Servo 0.12sec/60degree

$60.47

(0)
FEETECH SCS225 Servo Serial Bus Servo Dual Axis 19KG Torque TTL Signal Level with Metal Servo Horn

FEETECH SCS225 Servo Serial Bus Servo Dual Axis 19KG Torque TTL Signal Level with Metal Servo Horn

$16.21

(0)
Assembled 18DOF Aluminium Hexapod Spider Six Legs Robot Kit with LD-1501 Servos & Controller -Silver

Assembled 18DOF Aluminium Hexapod Spider Six Legs Robot Kit with LD-1501 Servos & Controller -Silver

$346.80

(0)

12V/24V DH-03B Mental Servo Alloy 180kg/cm 330 Degree for RC Robot PWM Signal


Specifications:
- Voltage:12-24V
- Np load current: <500mA
- Max torque:180kg.cm(24V)3648N.cm(24V)
190kg.cm(12V) 1824N.cm(12V)
- Angular velocity: 0.5s/60 degree(24V)  1.0s/60 degree(12V)
- Rotate angle: max 330 degree
- Input mode: PWMIN/ADIN
- Pulse signal input range:0.5ms-2.5ms
- Voltage signal input range: 0V to +5V
- Accuracy: 0.32 degrees
- Weight: 530g
- Gear: steel
- Size: 95.5mm X 60.5mm X 102.6mm
