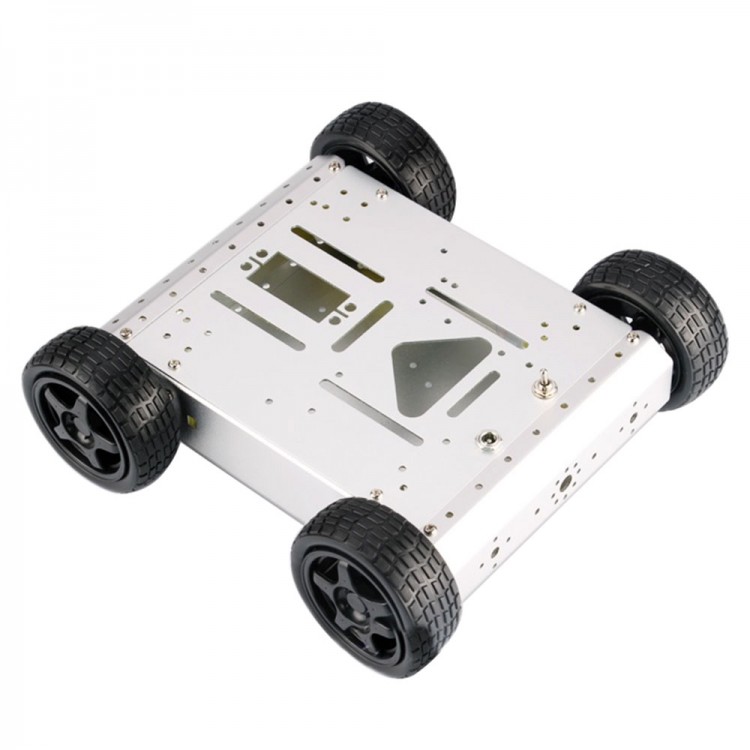

4WD Robot Smart Car Chassis Kits Metal Car Platform For Arduino ROBOTICS Raspberry Pi
Product parameters :
- Drive motor Gearbox ratio : 1:48
- Drive motor with no load speed :. 220rpm
- Wheel diameter : 65mm
- Wheel width : 26mm
- Platform length : 206mm
- Platform width : 200mm
- Platform weight :. 620g
- Chassis from the ground distance : 13mm
Motor parameters :
Operating voltage: 3V-12V or so
Speed ratio: 1:48
Rpm : 7.2v: 220 r / min ( rpm low voltage will be lower , high voltage will be higher rpm )
Load Current : 100mA (160mA MAX)

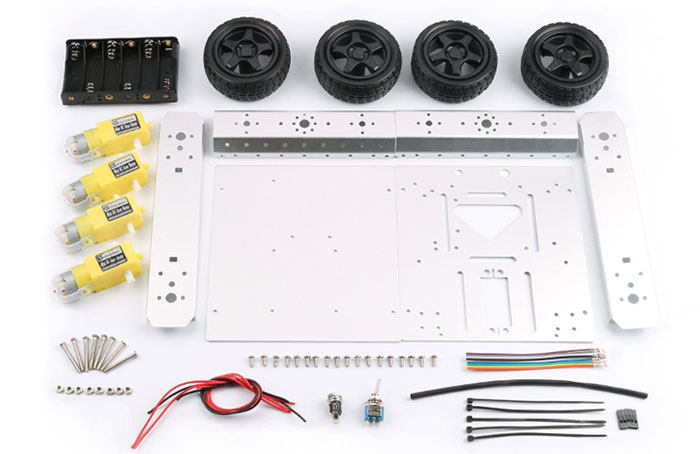

Product list:
