Beecore VTX Brushed Flight Controller with Betaflight OSD 25mW VTX Smartaudio for Tiny6/6x/7/7x Drone
Description:
The tiny whoop style Brushed flight controller built-in Betaflight OSD and 25mw VTX with Smartaudio is coming now. Best for Kingkong Tiny6/6x/7/7x Drone.
Features:
- With 4 large current NMOS transistors, operating current of up to 10A each
- Built-in OSD (Using F3 MCU controls OSD over SPI bus in DMA mode)

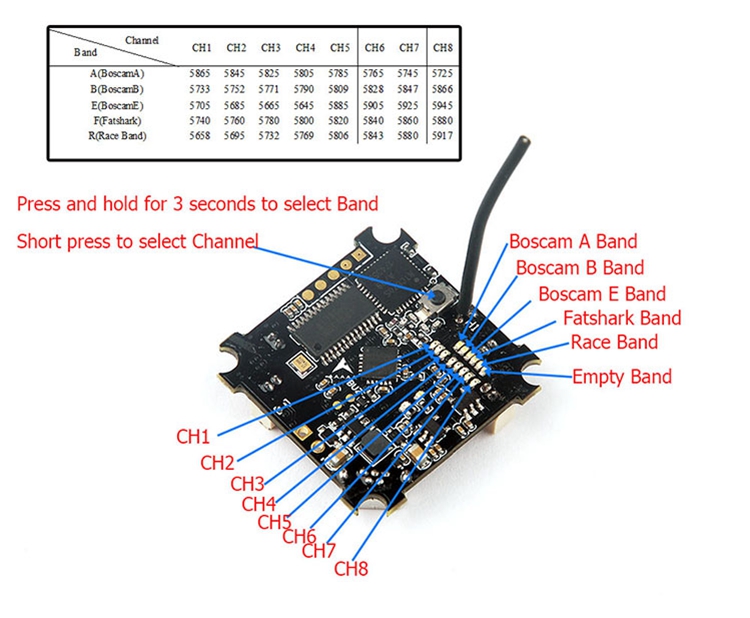

- Smartaudio ready, you can change the VTX channels by your radio sticks
- PPM/SBUS/IBUS/DSM2/DSMX..etc protocol receiver compatible
- Best for Tinywhoop style brushed frame, perfect flight controller replacement for Kingkongrc/LDARC Tiny6/6x/7/7x/8/8x
Specifications:
- MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
- Sensor: MPU-6000(SPI connection)
- Power supply: 1S battery input (DC 3.5-4.35V)
- Built-in Betaflight OSD(SPI Control)
- Built-in 5.8G 25mw 40ch vtx
- Smartaudio function ready
- Heading LED Ready
- Mount hole distance: 26mm * 26mm
- Board size: 29mm*29mm
- Board weight: 4.0 g
Package Included:
- 1 x Flight Control Board
- 4 x Rubber Shock Absorber
- 4 x Screws
- 1 x Power Cable
