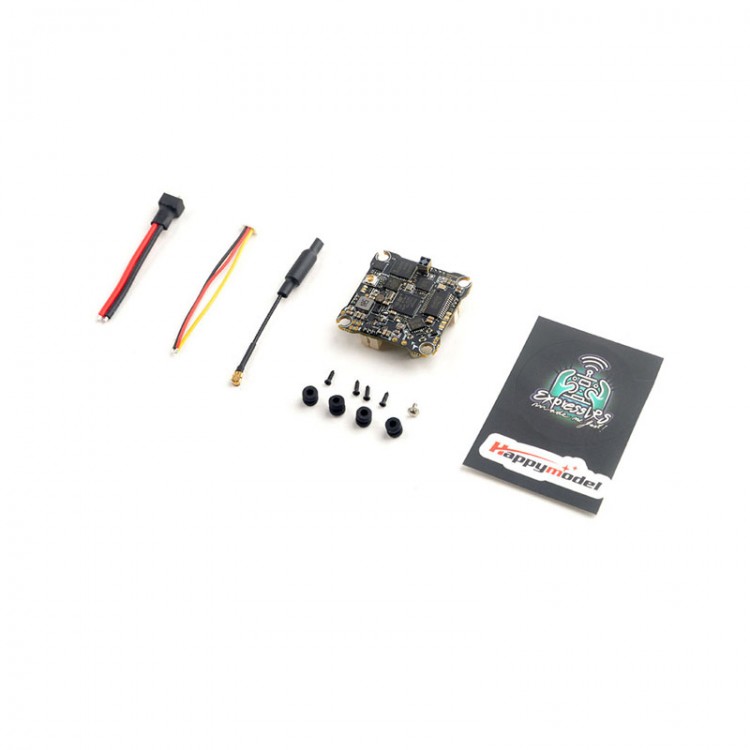

Happymodel X12 Flight Controller (for PNP V1.0) with 12A ESC 400MW VTX for Mobula7 1S Drone

Happymodel X12 Flight Controller (for PNP V1.0) with 12A ESC 400MW VTX for Mobula7 1S Drone

Description:
The world first 5-IN-1 AIO flight controller, VTX for OPENVTX (up to 400mw), 12A Brushless Blheli_S ESC and OSD for Betaflight coming out recently.

This is an amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.

Specifications:
- Brand Name: Happymodel
- Item Name: X12 AIO 5-IN-1 Flight controller built-in 12A ESC and for OPENVTX
- For Betaflight firmware target: for PNP Version: CRAZYBEEF4DX
- VTX antenna: U.FL
- Weight: 5.1g
- Size: 30mm*30mm*8mm

Flight controller
- For X12 PNP V1.0 flight controller without onboard receiver Target: CRAZYBEEF4DX
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU6000 or ICM20689 or BMI270 (SPI connection)
- Mount hole size: 25.5mm*25.5mm
- Built-in 12A (each) Blheli_S 4in1 ESC
- Built-in OSD for Betaflight (SPI Control)
- Built-in 5.8G 0mw~400mw for OpenVTX
- Built-in voltage meter sensor, voltage meter scale 110Built-in current meter sensor, current meter scale 470

Onboard 4in1 ESC
- Power supply: 1-2S LiPo/LiPo HV
- Current: 12A continuous peak 15A (3 seconds)
- Programmable
- Factory firmware: Z_H_30_REV16_7.HEX
- Default protocol: DSHOT300
- Support firmware for Bluejay
- When use firmware for Blujay with 48khz, should set startup power to 1100/1200

Onboard 5.8g VTX for OPENVTX
- Firmware version: for OPENVTX
- For Smartaudio v2.1
- PIT Mode support
- RCE Mode support
- Channels: 48ch
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Power supply: DC 5V
- Current (5v): <650ma (400mw)
- Antenna connector: U.FL

Note:
- Battery is not included. 1-2S Lipo/LIHV battery is recommended.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
