CNC 3-Axis Motion Controller Motor Driver 500KHz DDCSV2.1 + 4-Axis MPG Pendant Handwheel & Emergency Stop

Availability: In stock, usually dispatched in 1 business day

  • Price:$242.43
  • Price in reward points: 2424 Reward Points: 24
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $237.58 $232.73 $225.46 $215.76 Contact US
Quantity:

CNC 3-Axis Motion Controller Motor Driver 500KHz DDCSV2.1 + 4-Axis MPG Pendant Handwheel & Emergency Stop

User manual: Click here

Introduction:
DDCSV2.1 is the 3 axis motion controller which has been researched and developed by Faster CNC for four years. The control period of each position is only 4 milliseconds, with a high control precision. The highest uniaxial output pulse is 500KHz and the pulse width can be adjusted. It supports the common stepper motor and servo motor.

DDCSV2.1 numerical control system adopts the ARM+FPGA design framework. The ARM can finish the part of human-computer interface and code analysis and the FPGA can finish the part of underlying algorithm and control pulse generate, with the reasonable design, reliable control and easy operation.
- The panel layout structure of DDCSV2.1 is rational. The CNC MOTION SYSTEM Controller can be finished only by 17 keys and it supports the FANUC with high universality to be compatible with G code set.

This manual introduces the operation method of the DDCSV1,the machine tool and the operation procedure of the machine tool. By lots of graphical representation and examples, the uses can quickly learn to use the DDCS2.1 CNC system.

Performance parameter:
- Ordinary digital input interface of 16-circuitoptocoupler coupling isolation
- Ordinary digital input interface of 3-circuit optocoupler coupling isolation
- Output interface of 0-10V spindle control port with analog quantity(can be modified as PWM output);
- Support the 3 axis stepper motor control, the highest control pulse output of single axis is 500KHz;
- ARM9 main control chip;
- FPGA core algorithm chip;
- 4.3 inches TFT screen, resolution ratio: 480*272;
- 17 operational keys;
- The main control equipment is 18V-32V power input, the current capacity is required not to be lower than 0.5A;
- Support the USB flash disk to read the G code,and the size of G codefile has no requirement;
- Be equipped with MPG port and support digital display MPG as well as support the general MPG in the market.
- Support the panel key with single-axis manual operation, manual step and CONToperation;
- Support the operation of quickly specify the running position;
- Support the multi coordinate systems (with automatically saving function in case of power cut);
- Support the function of saving data automatically after power down (press the start to automatically save the data in the operation, automatically save the data after power down)

Outward Appearance, Structure and Size :
- The DDCSV2.1 adopts the embedded shell structure, which can punch a square hole on the equipment cabinet and then embed this equipment in the squire hole. - Use two locking mechanism from the inside can fix this equipment on the equipment cabinet, with easy installation.
- The panel size of the product is 163mm*102mm*5mm;
- The size of main body is 156mm*93mm*45mm;
- The size of square hole installed on the equipment cabinet is 156mm*93mm.



The front of the product is 17 user keys and 1 4.3’’and 480*272 LSD (Liquid Crystal Display), and the reverse side is input signal, spindle control, stepper/ servo control, MPG and other four sets of interfaces as well as USB interface and power interface. Please look at the reference picture 1-3 and picture 1-4 in detail.


This USB Interface is the standard USB socket of A-type, attached a 50cm USB extension cord with installation lugs



Handwheel:

Description:
 The CNC 4 Axis handheld controller MPG Pendant with x1, x10, x100 selectable, You are bidding one complete unit of the MPG pendant with Emergency stop for 4 axis CNC machine, it equipped with our popular machined MPG unit with 4 axis and scale selector, LED indicator also send feedback from the CNC machine to user about the status of the unit.- All Wiring isolated from MPG unit and provide a easy to install wiring diagram, it suit both commercial machine as a replacement jog control unit or other computer based controller. Which add great control flexibility to the system.

Features :
x1, x10, x100 switch- X,Y,Z,4th axis selector switch- LED indicator- With Emergency stop- High quality professional chassis- 6ft extendable high quality shielded cable cord- Magnetic base holder can place anywhere on the machine steel surface- Required 5V+, 150mA, power for MPG- Phase output is A ,/A and B,/B;- TTL output, drive capability +-20mA;

Support CNC system:
Taiwan Pou Yuen M600 M500 M520i T300 series, Higerman, HANUC,GSK,opened NC, KND,Siemens, the NUM, Spain FAGOR (NEW, 8055I) and so on.

Wiring:
User can wire this unit to the CNC system.

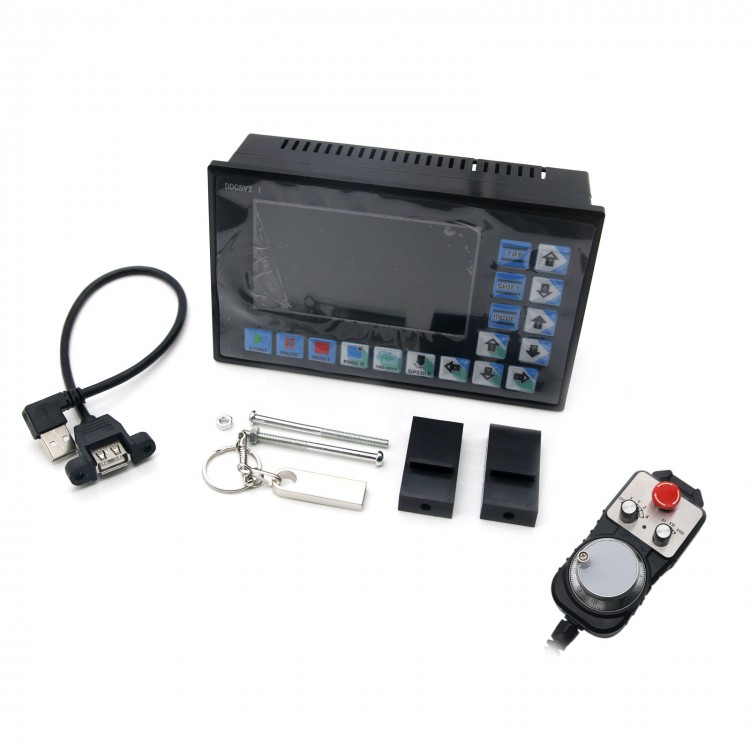

Package include:
- 1 x 3-Axis CNC Motion controller
- 1 x 8GB USB Flash drive
- 1 x USB Extension Cable
- 1 x CNC 4 axis MPG Pendant handwheel with Emergency stop
