Specification:

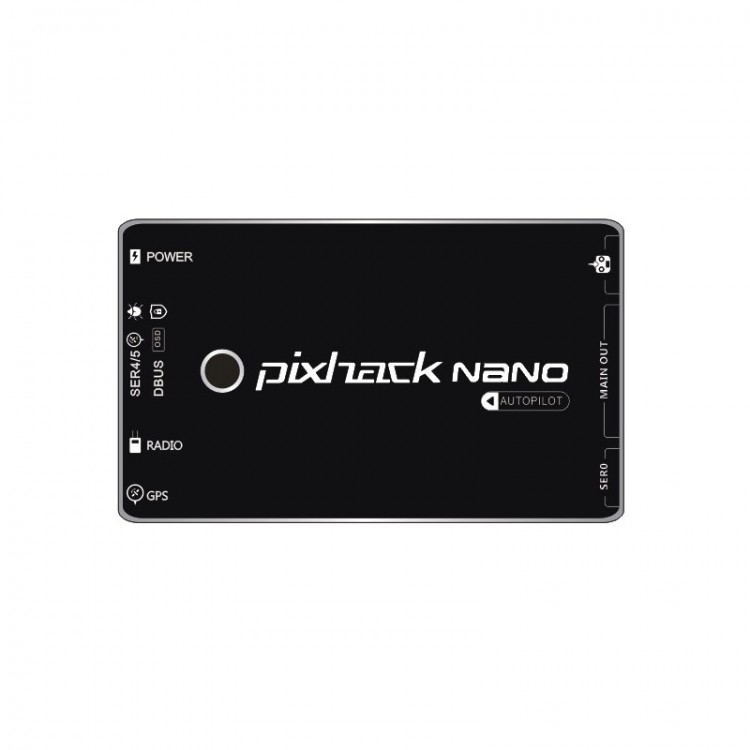

- Item Name: CUAV Pixhack Nano STM32F427 Flight Controller
- Model: Pixhack Nano
- Processor: STM32F427
- Accelerometer: MPU9250/ ICM-20608
- Gyro: ICM-20608
- Compass: HMC5983
- Barometer: MS5611
- Serial port
- Maclink UART: 2
- GPS UART: 2
- DEBUG UART: 1
- Radio Transmitter Signal: PPM/SBUS/DSM/DSM2
- RSSI Input: PWM / 3.3V Analog Voltage
- I2C: 1
- ADC Input: 6.6Vx1
- PWM Input: Standard 6 PWM IO
- PM Working Voltage: 4.5-5.5V
- USB Voltage: 5.0V (±0.25)
- Servo Voltage: 4.8-5.4V
- Working Temperature: -20-60℃
- Size: 34x57mm
- Weight: 40g
Package Included:
- 1x Pixhavk Nano Flight Controller
- 1x Current Sensor Module with XT60 Connector ( Soldered well)
- 1x USB Cable
