Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $63.83 | $62.52 | $60.57 | $57.97 | Contact US |

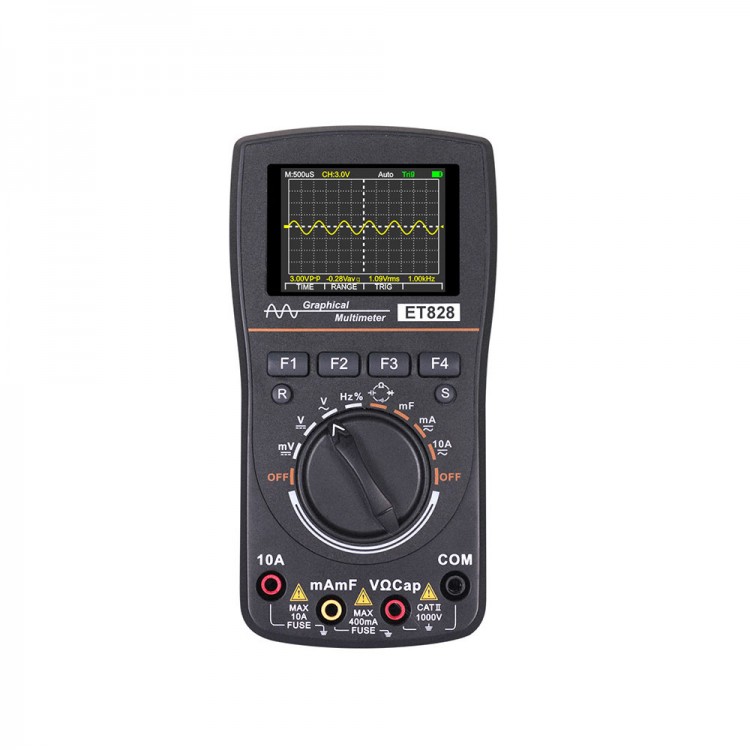

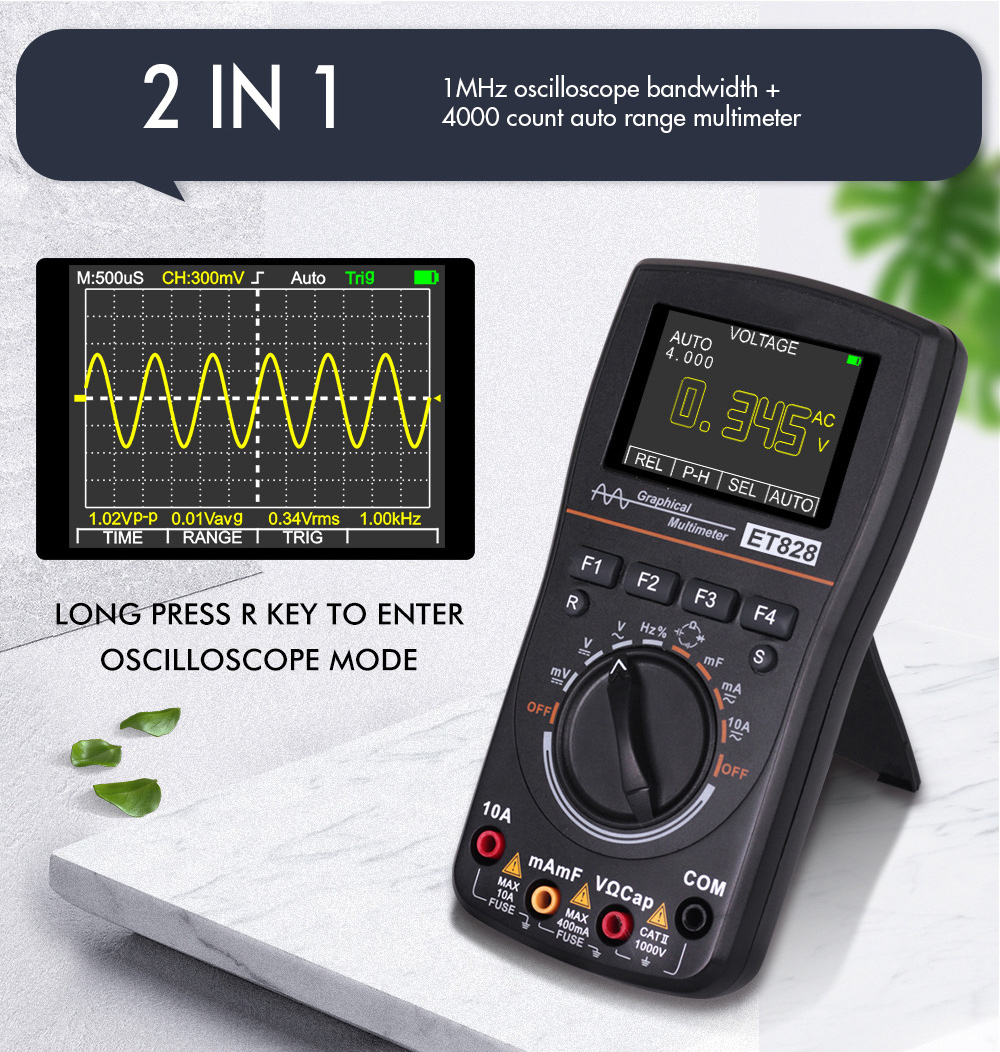

ET828 2-in-1 4000-Count Graphical Multimeter and 1MHZ 2.5Msps Oscilloscope with Color HD Screen
Specifications:

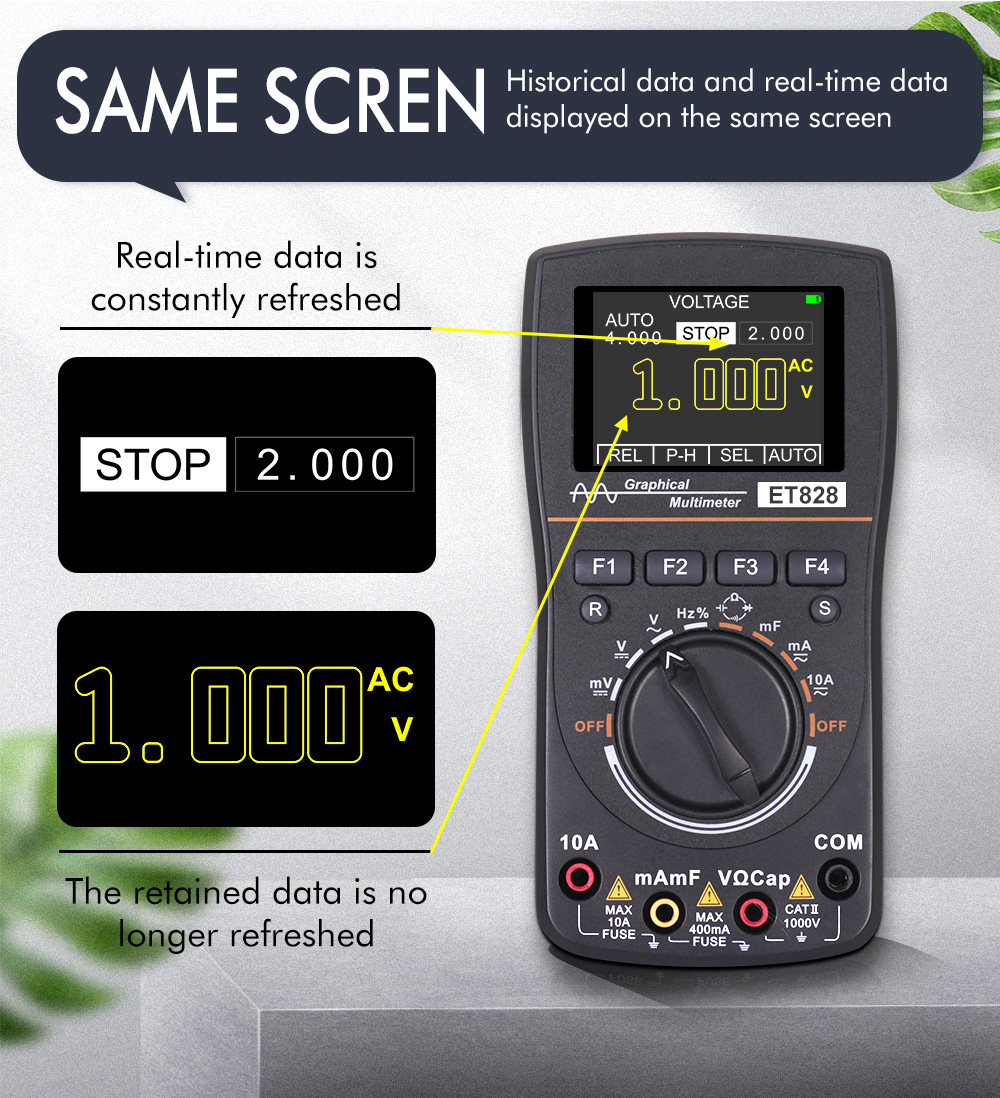

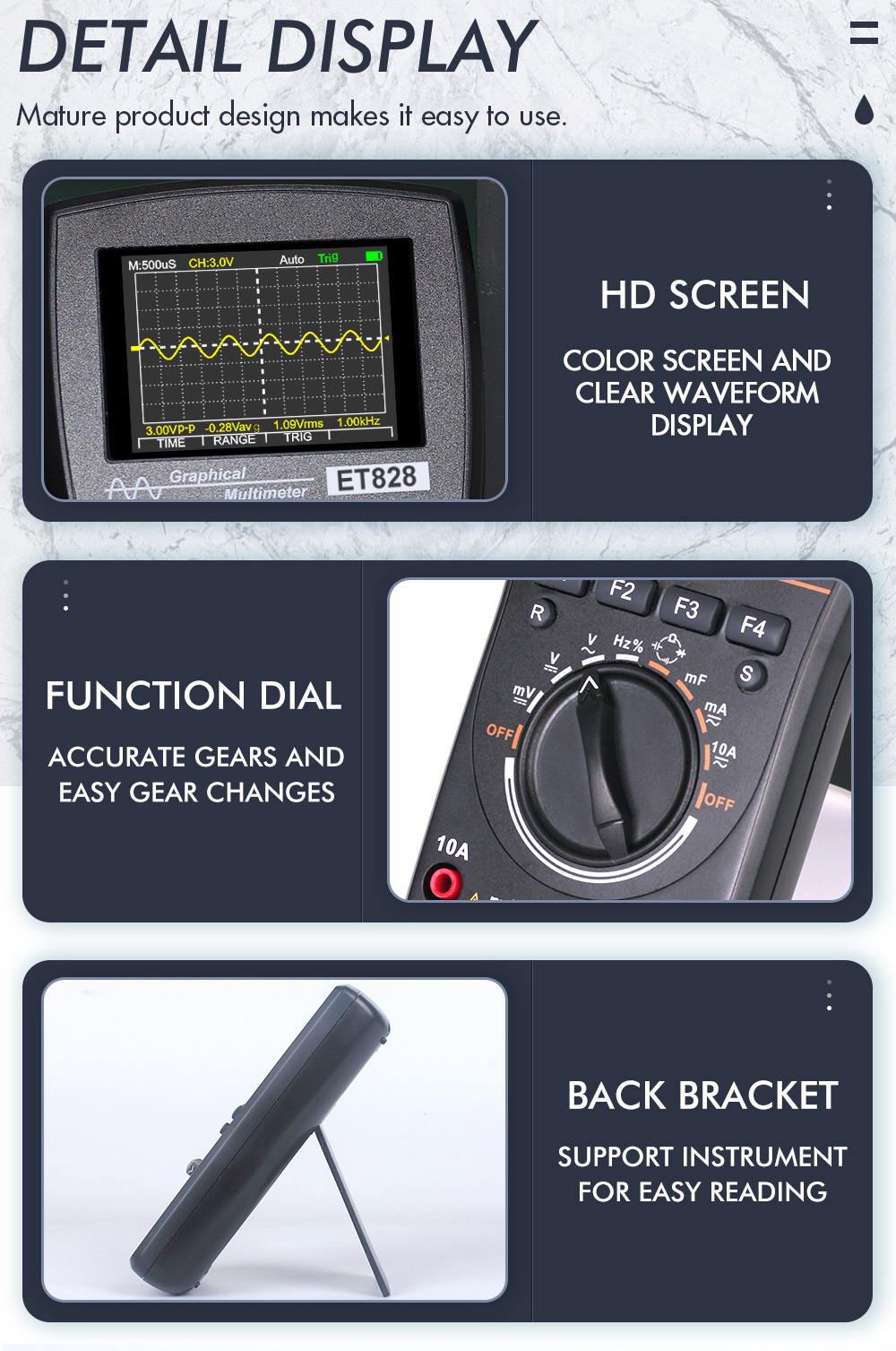

- Display: 320x240 with white backlight

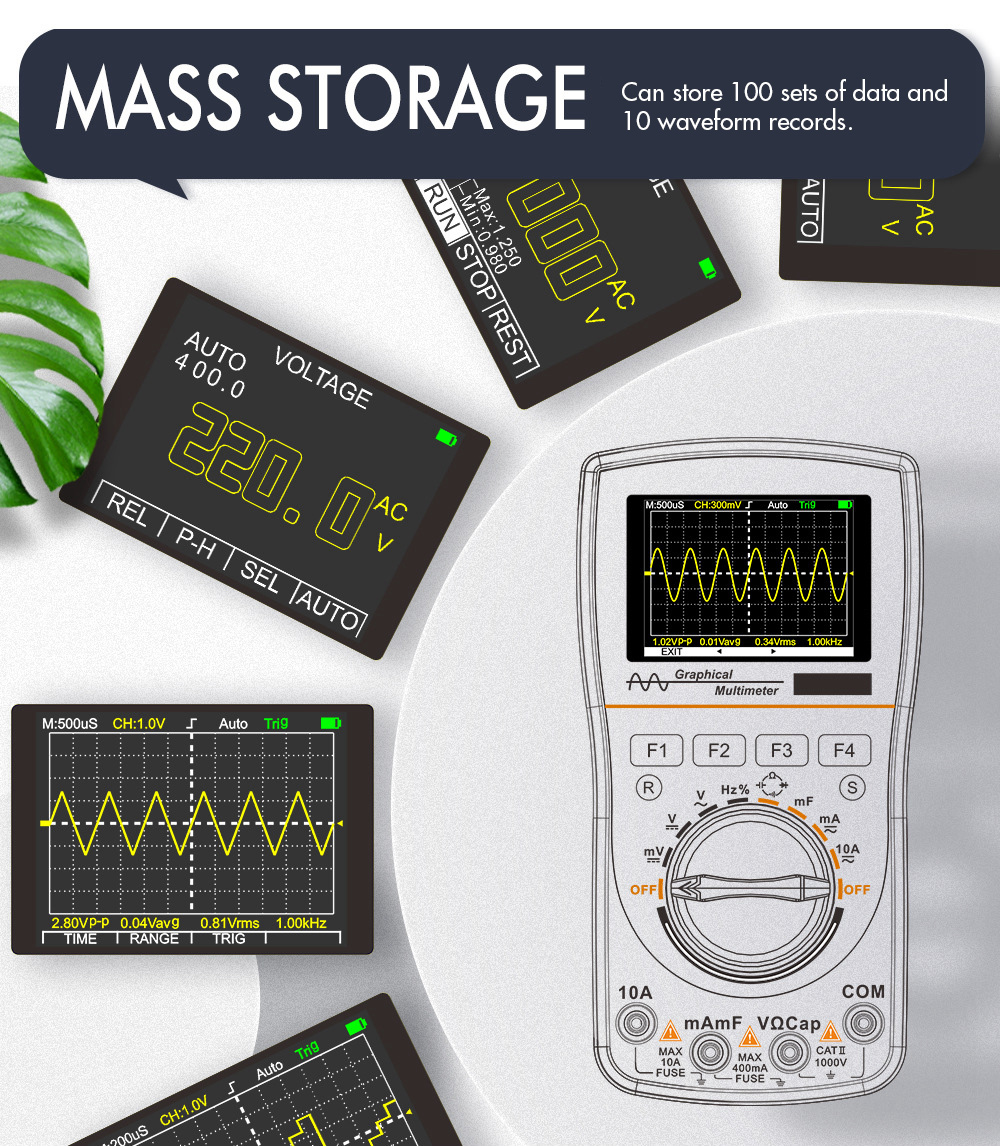

- Storage: 100 set of data/10 waveforms
- Working temperature: 0°C to +40°C; <75%RH

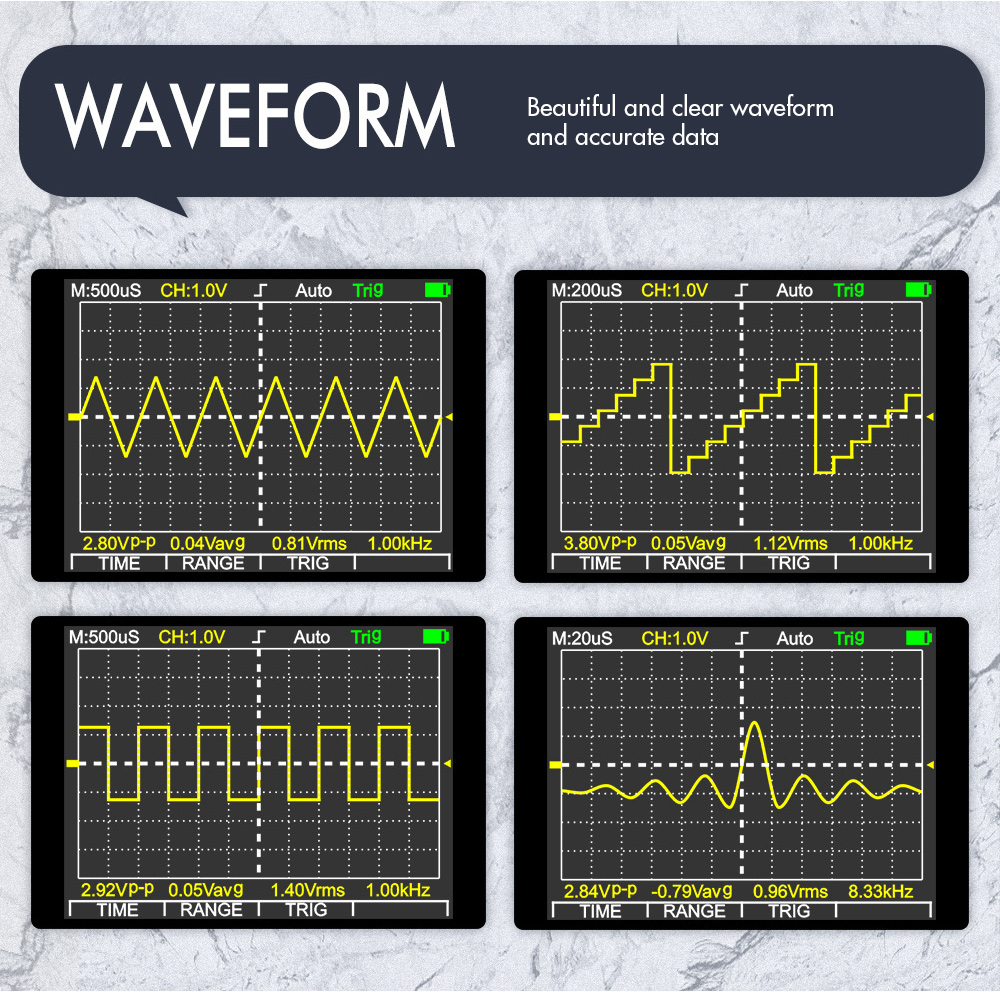

- Oscilloscope bandwidth: 1MHz
- Fuse: 500mA/250V and 10A/250V
- Size: 83 x 160 x 32mm/3.3 x 6.3 x 1.3"
- Weight: About 180g/0.4lb
- Storage temperature: -10°C to +60°C; <90%RH
- Max real-time sampling rate: 2.5Msps

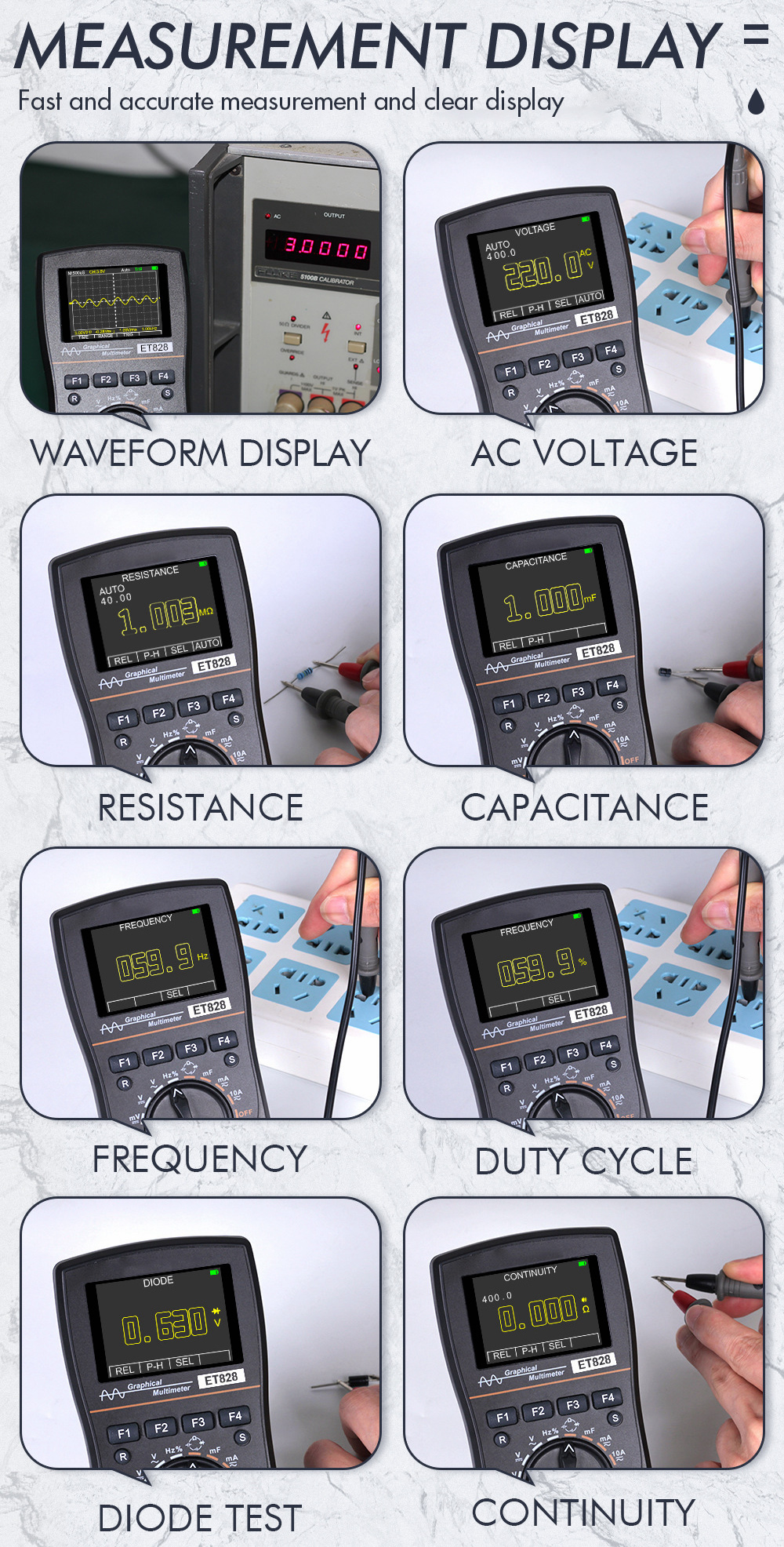

Test Ranges:
- DC Voltage: 400mV~1000V
- DC Current: 40mA~10A
- Resistance: 400.0Ω~40.00MΩ
- Frequency: 5Hz~5MHz
- Diode test: Voltage is about 1.5V
- AC Voltage: 400mV~750V
- AC Current: 40mA~10A
- Capacitance: 51.2nF~100μF, 10mF
- Duty cycle: 0.1%~99.9%
- Continuity test: With beep sound when resistance is below 50Ω
Package Included:
- 1 x Main unit
- 1 x Pair of test leads
- 1 x User manual
- 1 x Cloth bag
Note:
- 3pcs AA batteries are not included.
