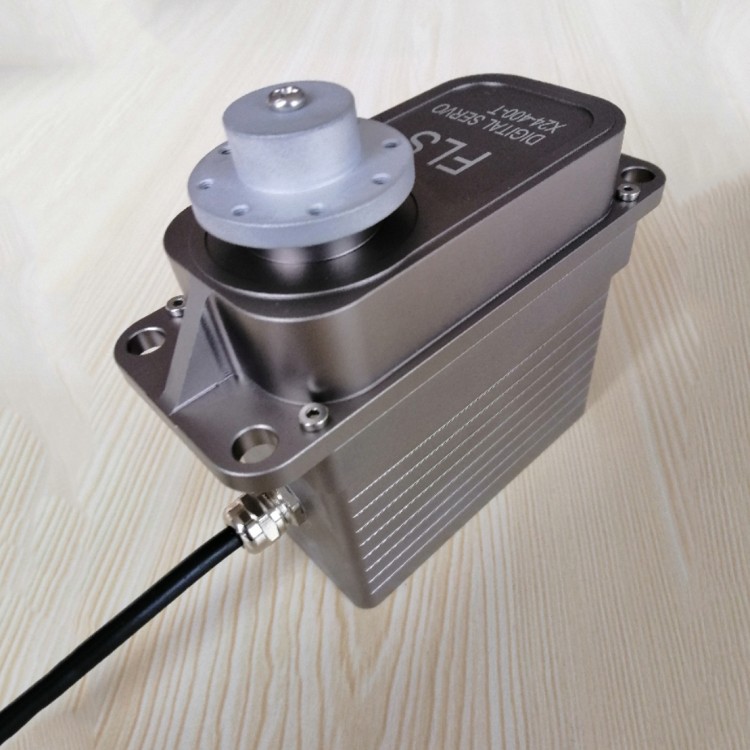

FLS X24-400-T Digital Steering Gear 400kg/cm 24V Waterproof Steering Gear
Features:
- Updated PID Algorithm: Position loop, speed loop and current loop ensures positioning accuracy
- Can be used with a higher speed DC geared motor, creating a steering gear with higher speed and shorter response time
- Waterproof digital steering gear 400kg/cm 24V
- Perfect replacement for Japanese steering gear
Technical Parameters:
- Rated Voltage: DC24V
- No-load Current: <500MA (Current limit 5A. It is recommended to use a switching power supply greater than 5A)
- Angle Limit:
1.0-2MS Control Mode: 90°(electronic limit adjustable)
0.5-2.5MS Control Mode: 180°(electronic limit adjustable)
- Control Methods:
1.0-2.0MS Pulse Mode: Suitable for RC remote control receiver control
0.5-2.5MS Pulse Mode: suitable for multi-way steering gear controller
(Pulse Frequency: 50-333Hz)
- Materials: Gear and Shaft: alloy steel; Shell: aluminum alloy
- Speed: 0.5S/60°
- Mechanical Life Span: >1,000,000 times / conventional torque 140KG/CM
- Max. Torque: 400KG/CM
- Weight: 800g
Package Included:
- 1 x Steering Gear
