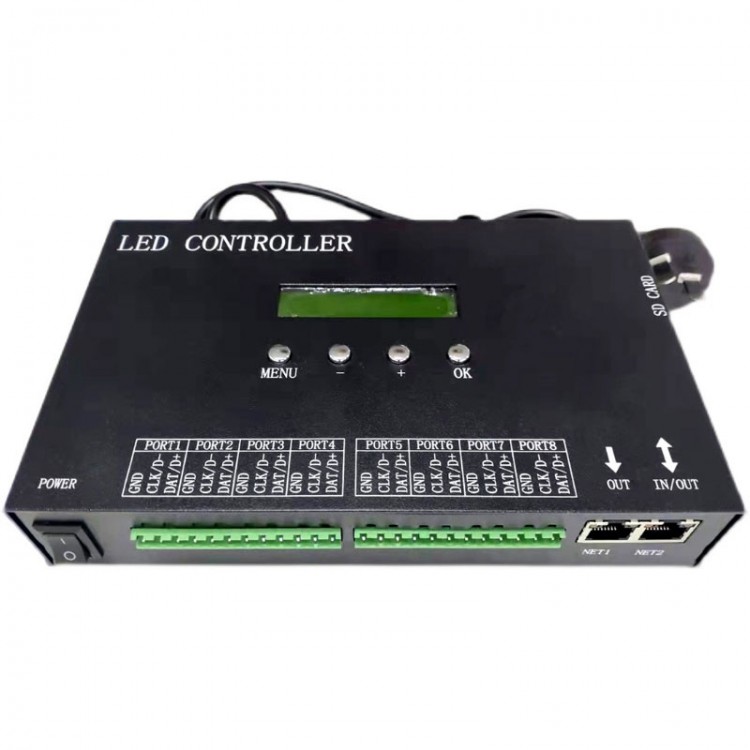

H807SA SD Card Programmable LED Controller 8 Output Pixel Controller Full Color Support DMX512

H807SA SD Card Programmable LED Controller 8 Output Pixel Controller Full Color Support DMX512

Description:
- H807SA is an eight-port connectable and detachable off-line controller, which can control up to 8192 points. It support Art-Net protocol, address DMX chip, connect DMX console, and add and delete DAT files through LAN.
- At present, DMX512, HDMX and DMX512 can be controlled_ RDM, APA102, APA102-65536, WS2801, WS2811, WS2812, WS2813, TM1812, TM1809, TM1804, TM1923, TM1934, TM1925D, TM1926D, TM1803, TM1814, TM1913, TM1914, TM1926, UCSUCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, UCS8904, UCS5603, SK9816, SK6812, SM16716, SM16703, SM16709, SM16712, SM16704, LPD6803, LPD8806, LPD1882, LPD1889, LPD1883, INK1003, APA104, P943, LC8812, GW6205, QED3110, D9866E, D9866B, D9865C, D9865E, D9865F, D9864B, D9864C, etc.
- The supporting software is LED Programming Software V4.47 and above.
- The SD card needs to be formatted into FAT32 or FAT16 format after adding and deleting files many times. SDHC (high capacity SD card) is supported, with a maximum of more than 64G bytes. A maximum of 64 DAT files are allowed in the SD card. The playback order is alphabetical according to the file name.
- Eight output ports, controlling 8192 pixels at most. The maximum number of control points per port is 1024. It can also be set as one, two or four output ports. Each port can control 2048 points at most. The remaining ports can be used as backup of the ports. The actual maximum output of each port is 1600 points, a total of 12800 points.
- QED3110 chip can only select 8-port output.
- When powered on, the first line of the LCD displays the controller model, and the second line displays the version number. Press and hold the “MENU” key to power on, and the controller automatically upgrades the firmware.
- Press the MENU key to switch the menu, press the ‘-’ or ‘+’ key to set, press and hold the ‘-’ or ‘+’ key to accelerate the parameter setting, press the OK key to save the parameter or enter the submenu.
- Set the password. In the light modeling window of LED Programming Software, click the menu “Settings” - “Controller Password” to pop up the encryption dialog box. Select the controller encryption. The encryption method is to limit the number of power-on times. After the first encryption, the second encryption can be performed without decryption to extend the number of times of use.

Package Included:
- 1 x Controller
- 1 x Power Cord
