Happymodel Servo Power Distribution Board Servo Section Board for Fixed Wing

Happymodel Servo Power Distribution Board Servo Section Board for Fixed Wing

Parameters:
- Input Voltage: 3S or 15V
- Output Voltage: 5V, 12V, and 6V, 7.4V (Servo Ends)
- Output Current of Servo Terminal: 0-20A
- Working Temperature: -20-85℃
- Weight: 162g

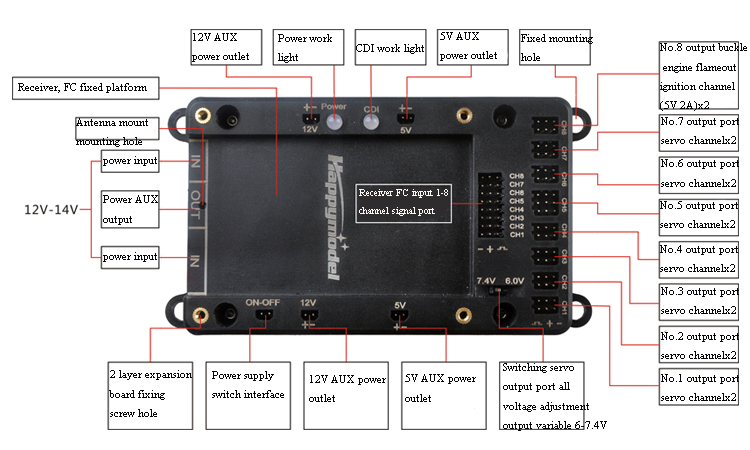

Features:
- Support dual power supplies, and direct output function of power supplies. Only one XT60 connector for single input is welded. The input and output pads for the second power supply are reserved for DIY.
- Independent CDI power supply, and comes with a remote flameout switch, making the flight more secure and supporting two-way engine power supply.
- With separate 5V, 3A and 12V2.5A output, it can supply power to other devices, such as picture transmission, pan/tilt, camera, motion camera, etc.
- The servo supply voltage can be switched, supporting 6V and 7.4V.
- The distribution board works when the circuit of its standard switch is open. It does not work when the circuit of the section board is in closed.
- Dedicated installation space for your receiver. It enables your flight control and receiver to be placed together.
- The distribution board has a 2.4G antenna mount and mounting position.
- The base made of aluminum alloy CNC has better heat dissipation and has a damping rubber ring for installation to prevent the negative impact of engine vibration.
- 8-channel input, 17-channel output.

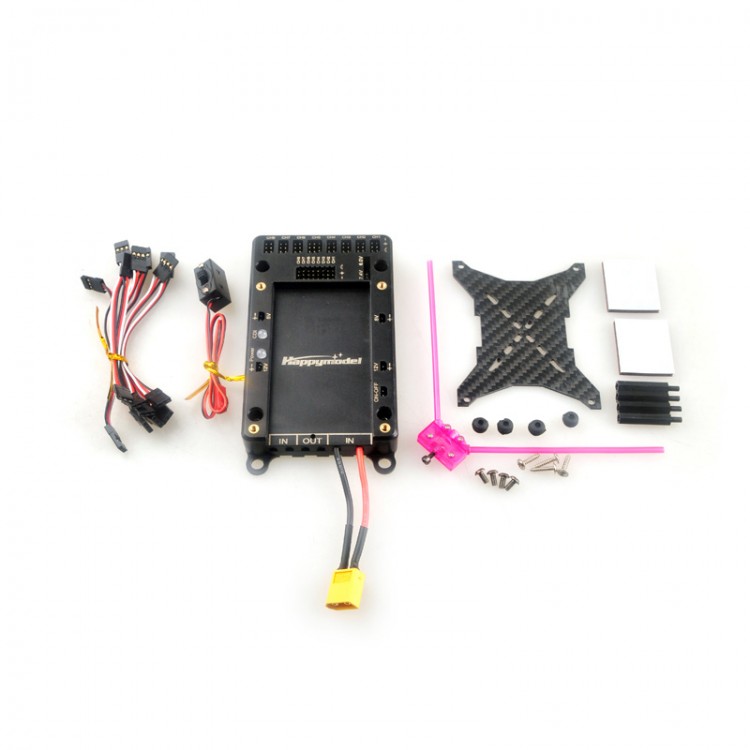

Package Included:
- 1 x Servo Power Distribution Board Kit
