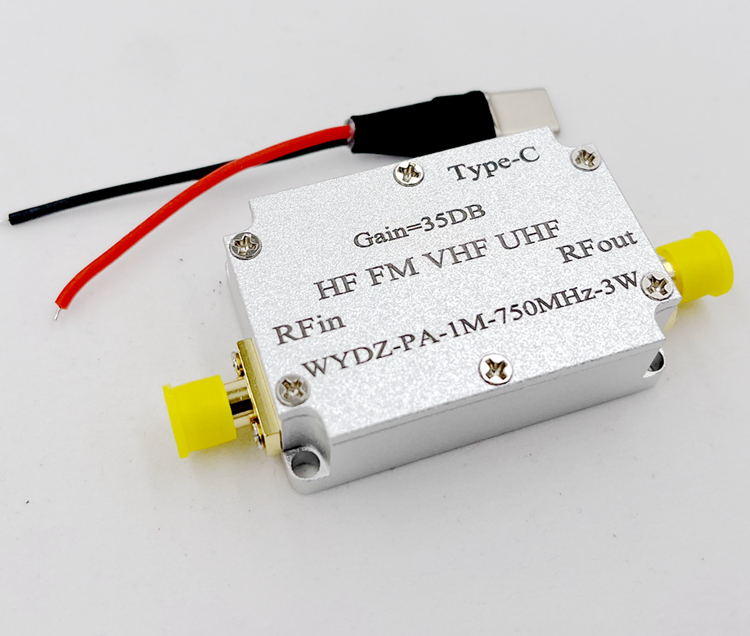

HF FM VHF UHF Broadband RF Power Amplifier FM Transmitter Amplifier Shell 35DB WYDZ-PA-1M-750MHz-3W
Attention:
The RF power amplifier is a vulnerable part, it must be connected to the input and output. Pay attention to impedance matching before powering on to test.
Technical Parameters:

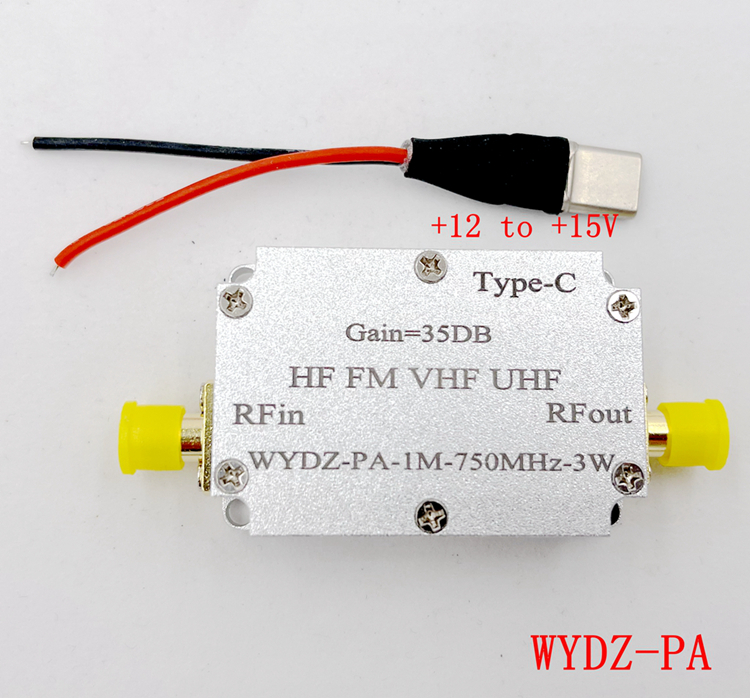

1. Power supply voltage: DC +12~15V (typical 15V at 0.3-0.5A)

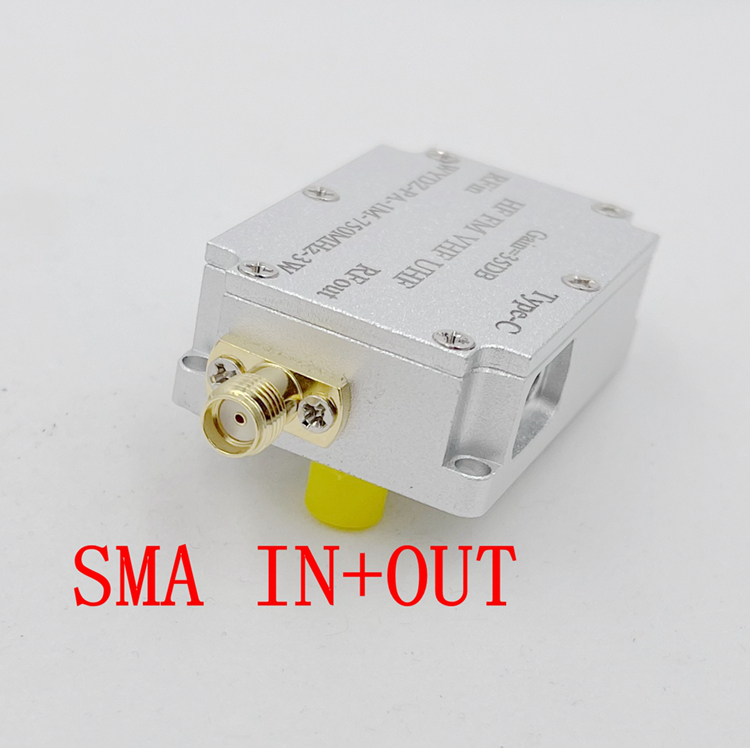

2. Working frequency: 1MHZ-750MHZ, input and output impedance: SMA at 50 ohms
3. Maximum output power: 34.8dbm (3W)
4. Typical power gain: 35 dB (a slight decrease in gain greater than 300M)
5. Maximum input power: <+10dBm

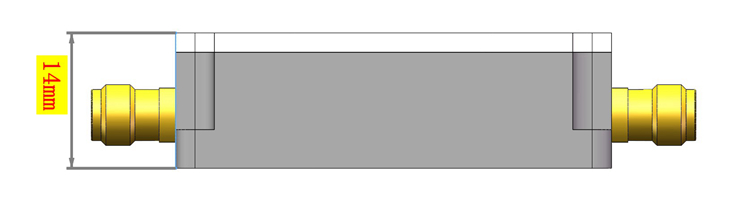

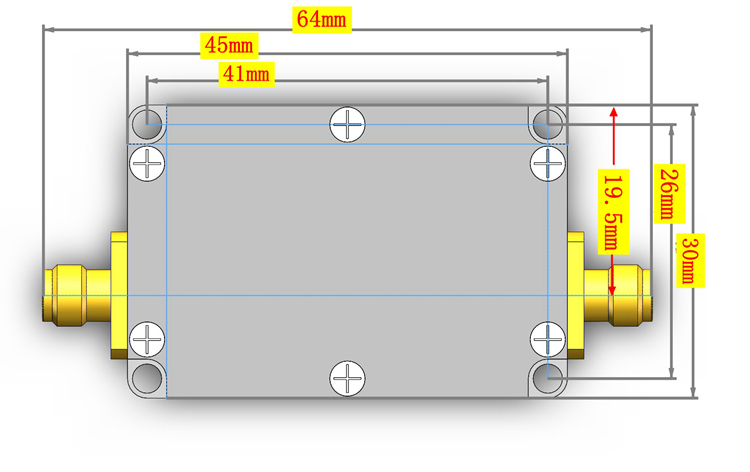

6. Module size (L*W*H): 45 * 30 * 14mm (with aluminum alloy shielding shell)
Measured Power Index:
* 2-300M, maximum +34dBm maximum 3W
* 300-500M, greater than +32dBm
* 500-750M, greater than +30dBm

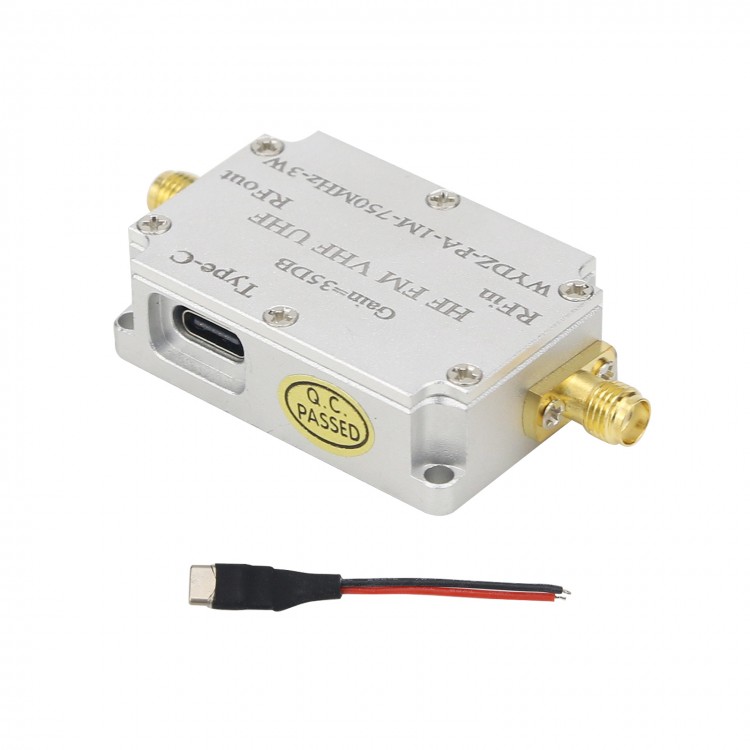

Package Included:
- 1 x RF Power Amplifier
- 1 x Type-C Cable
