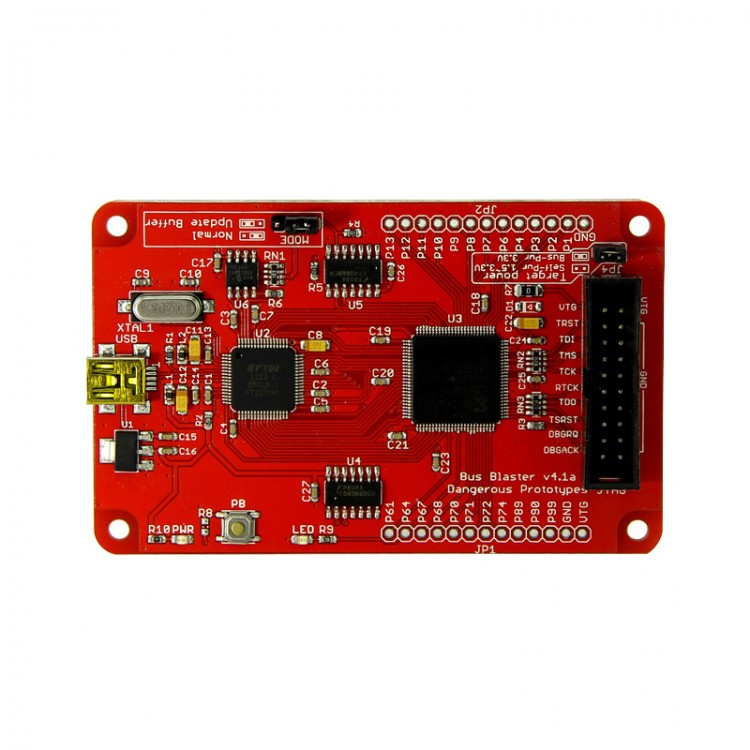

High-Speed Bus Blaster V4 for MIPS Kit OpenOCD urJTAG JTAG Debugger Adapter
Description:
Bus Blaster v4 is an experimental, high-speed debugger from Dangerous Prototypes for JTAG. Thanks to a reprogrammable buffer, a simple update over USB makes Bus Blaster compatible with many different JTAG debugger types in the most popular open source software.
Features:
- Based on FT2232H with high-speed USB 2.0
- Buffered interface works with 3.3V to 1.8V targets
- Reprogrammable buffer is compatible with multiple debugger types
- Compatible with JTAGKEY, KTLink programmer settings in OpenOCD, urJTAG, and more
- ships with JTAGkey compatible buffer image pre-programmed
- Support serial wire debug when available
- Mini-CPLD development board: self programmable, extra CPLD pins to header
- Open source (CC-BY-SA)
Updates in V4:
- V4 uses a larger CPLD than previous versions. It can now support the SWV feature of Cortex microcontroller for advance debugging when software support is available
- SWV is little used and not currently supported in software, most users will be better off with Bus Blaster v3 available here.
- Fitted in a DP9056 (90x56 mm) standard PCB.
- Added series resistors to input and output pins to protect against damage and noise.
Package Included:
- 1 x Bus Blaster V4 Development Board
- 1 x Schematic Diagram
- 1 x Chip Datasheet
- 1 x Official Material
