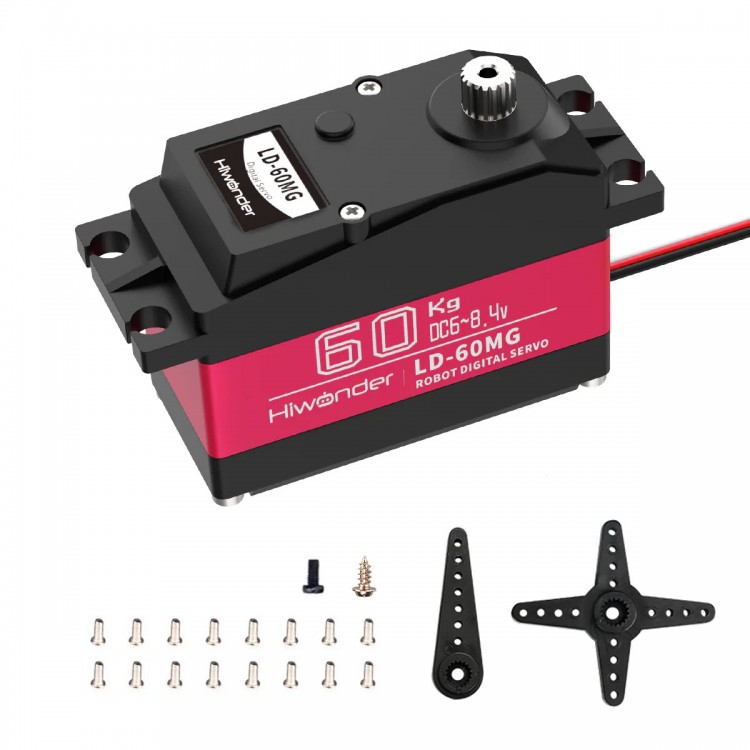

Hiwonder LD-60MG 60kg·cm High Torque Digital Servo Single-Shaft with Metal Case for RC Cars & Robots

Hiwonder LD-60MG 60kg·cm High Torque Digital Servo Single-Shaft with Metal Case for RC Cars & Robots

Features:
LD-60MG 60kg·cm High Torque Digital Servo
* 180° rotation
* Stainless steel gears
* High-performance motor
* CNC metal shell
* Provides control source code for 51 MCU, Ar-duino, STM32 microcontroller, and Raspberry Pi

High-Quality Metal Motor
* The servo features a high-quality metal motor, allowing it to support higher payloads and withstand impacts. This design significantly enhances the servo's torque and extends its lifespan.

Stainless Steel Gear
* The gear is made of stainless steel, which significantly enhances its durability and extends its lifespan.

60KG High Torque
* This servo offers a high torque of 60KG, making it suitable for a wide range of robots and robotic arms that require strong performance and precision.

Red Metal Middle Shell
* Convenient wiring design.
* The red oxidized metal middle shell provides excellent heat dissipation and a cool, stylish appearance.

180° Precision Control
* The servo uses a high-precision potentiometer and PWM pulse width control, allowing precise adjustment of the output angle from 0° to 180°.

IP67 Waterproof
* The fully sealed structure effectively resists moisture in various everyday environments.

Supports Multiple Controllers
* Compatible with Raspberry Pi, Ar-duino, 51 MCU, and STM32 MCU.

Specifications:
* Model: LD-60MG
* Weight: 159g

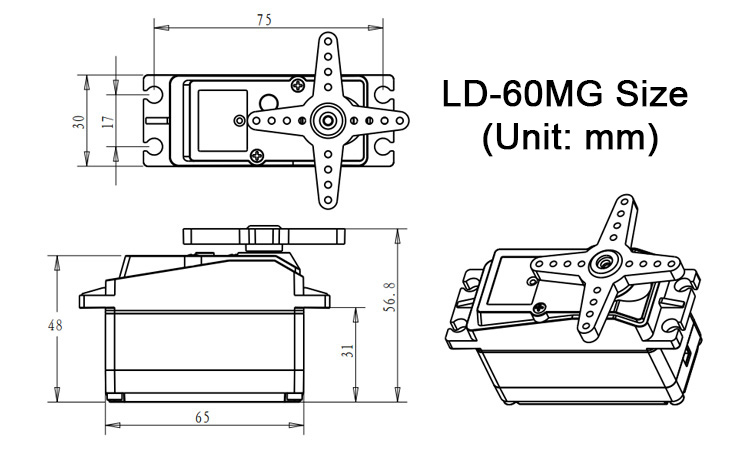

* Dimensions: 65mm × 30mm × 48mm
* Operating Voltage: 6–8.4V
* Stall Current: 3.5–6.2A
* No-Load Speed: 0.17s/60° (6V); 0.15s/60° (7.4V); 0.13s/60° (8.4V)
* Stall Torque: 58kg·cm (6V); 65kg·cm (7.4V); 70kg·cm (8.4V)
* Gear Material: Stainless steel
* Standby Current: 4–6mA
* Control Angle: 180°
* Waterproof Rating: IP67
* Control Accuracy: 3μs
* Wire Length: 300mm

Packing List:
* 1 × Set of Digital Servo

Packaging Details:
* Weight: 0.26kg
